Diagnostic Procedure

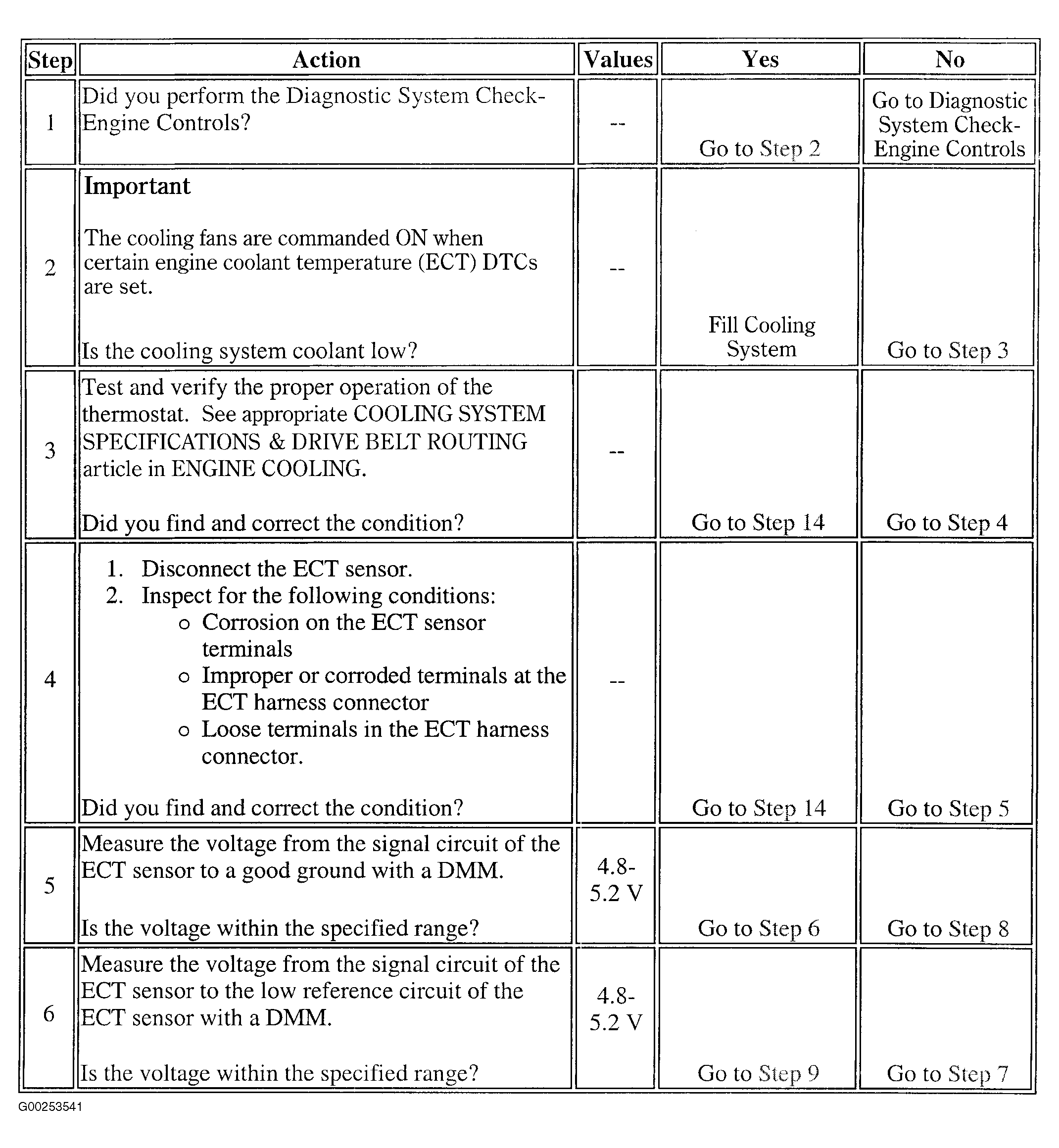

Fig 1: DTC P0125: ECT Insufficient For Close Loop Fuel Control (Steps 1-6)
G00253541Courtesy of GENERAL MOTORS CORP.
Fig 2: DTC P0125: ECT Insufficient For Close Loop Fuel Control (Steps 7-15)
G00253542Courtesy of GENERAL MOTORS CORP.
