Diagnostic Procedure

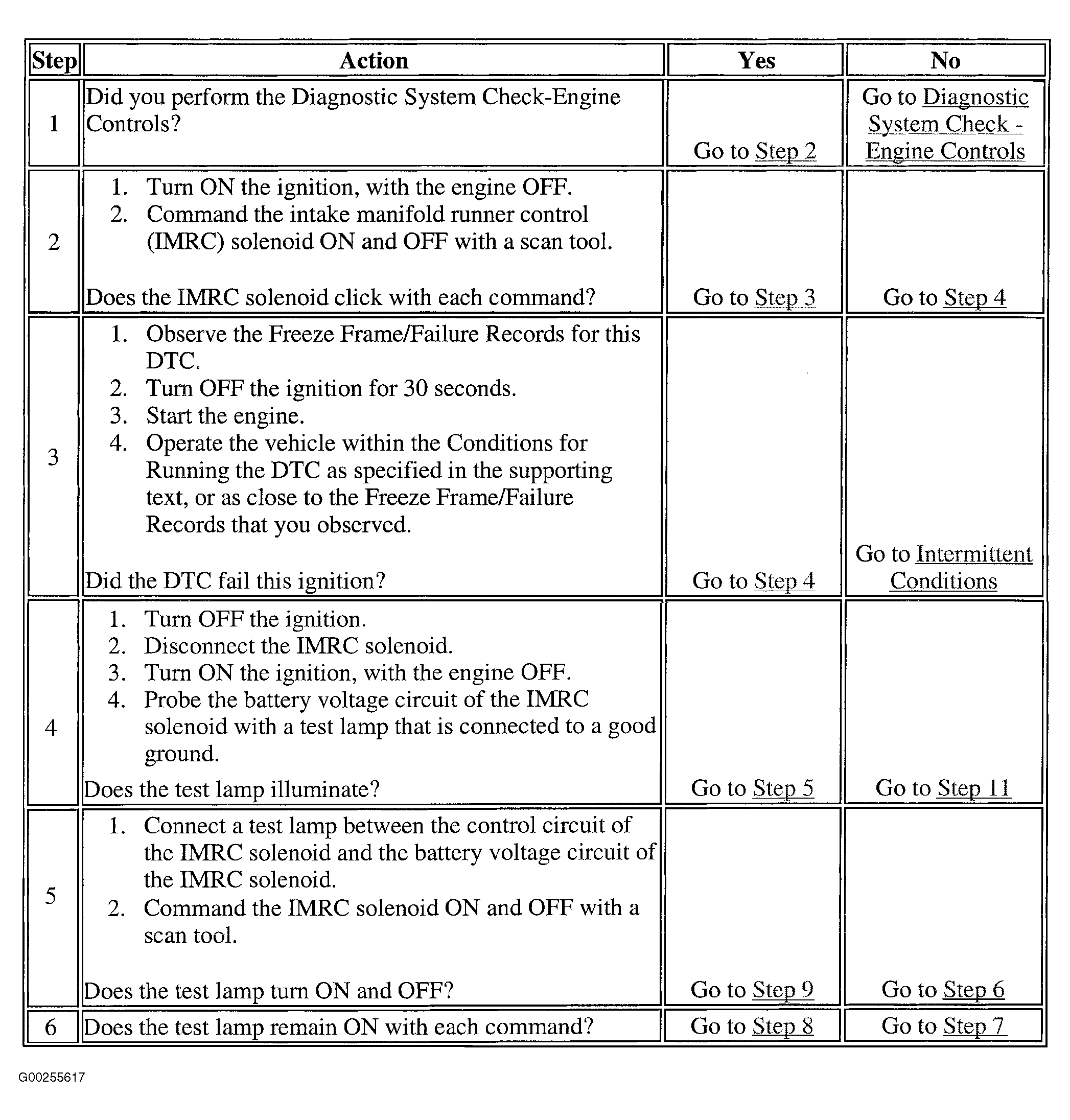

Fig 1: DTC P1245: Intake Plenum Switchover Valve (Steps 1-6)
G00255617Courtesy of GENERAL MOTORS CORP.

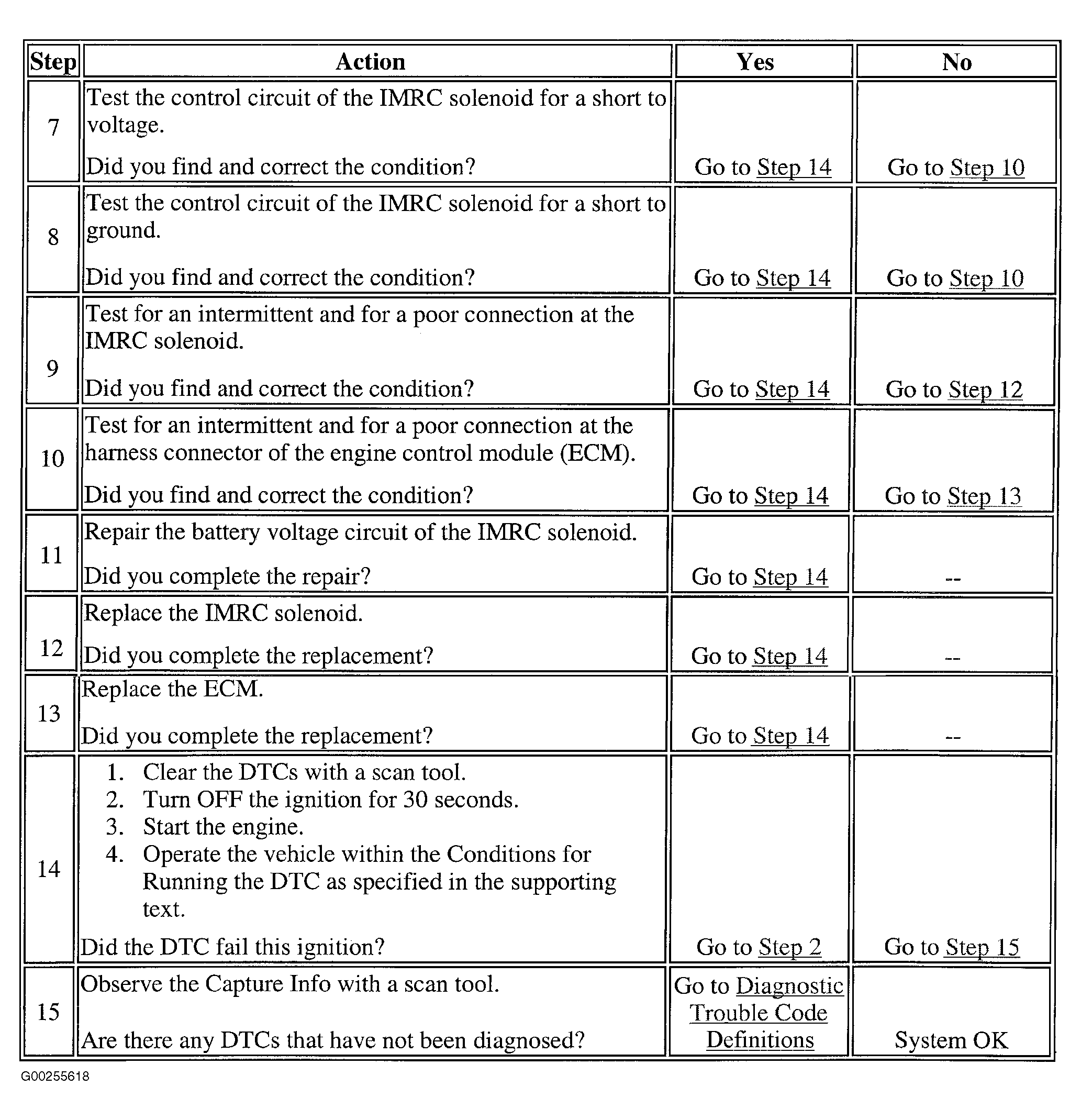

Fig 2: DTC P1245: Intake Plenum Switchover Valve (Steps 7-15)
G00255618Courtesy of GENERAL MOTORS CORP.
