Diagnostic Procedure

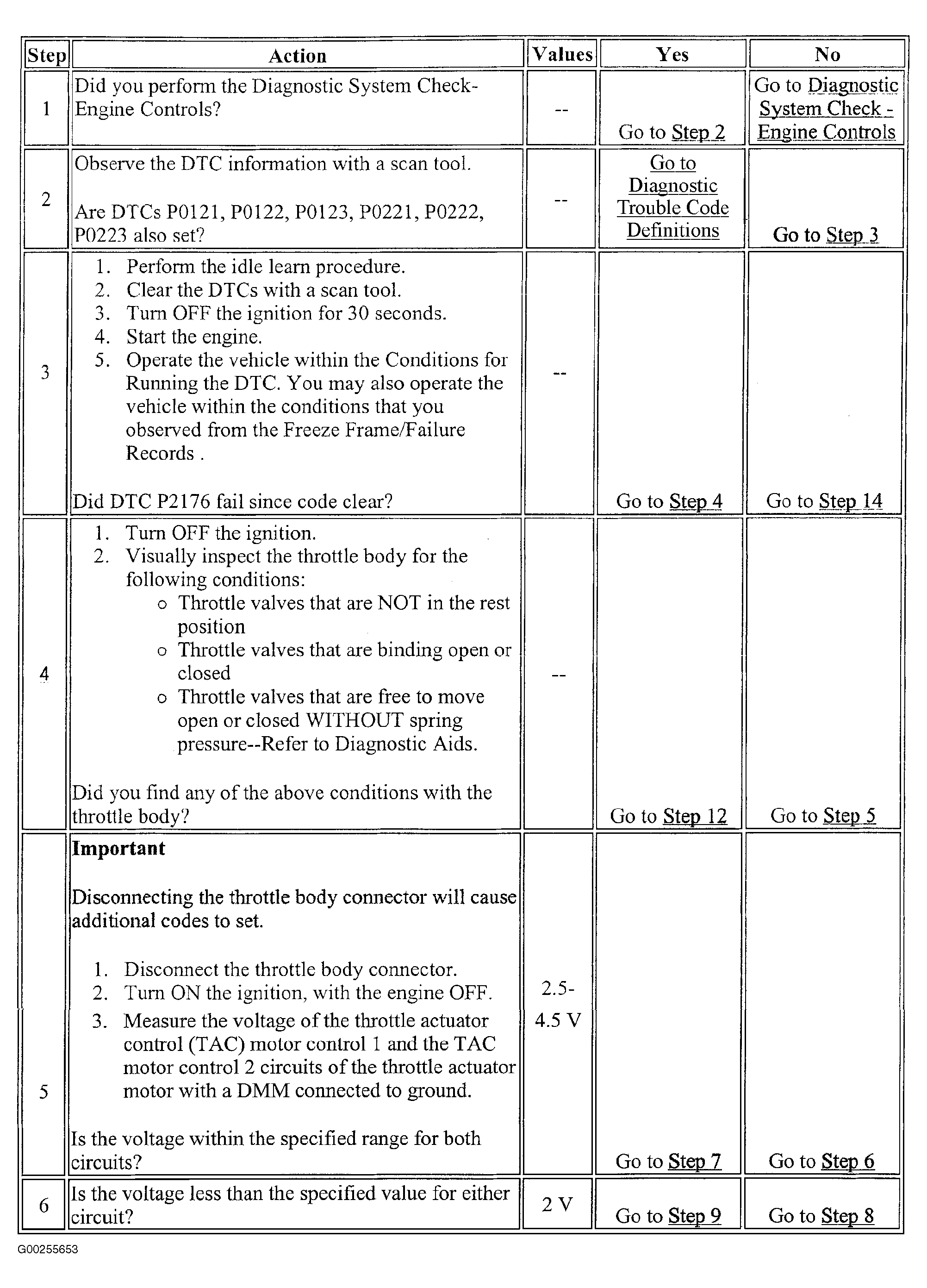

Fig 1: DTC P1526: TP Sensor Learn Not Done After Reprogramming (Steps 1-6)
G00255653Courtesy of GENERAL MOTORS CORP.

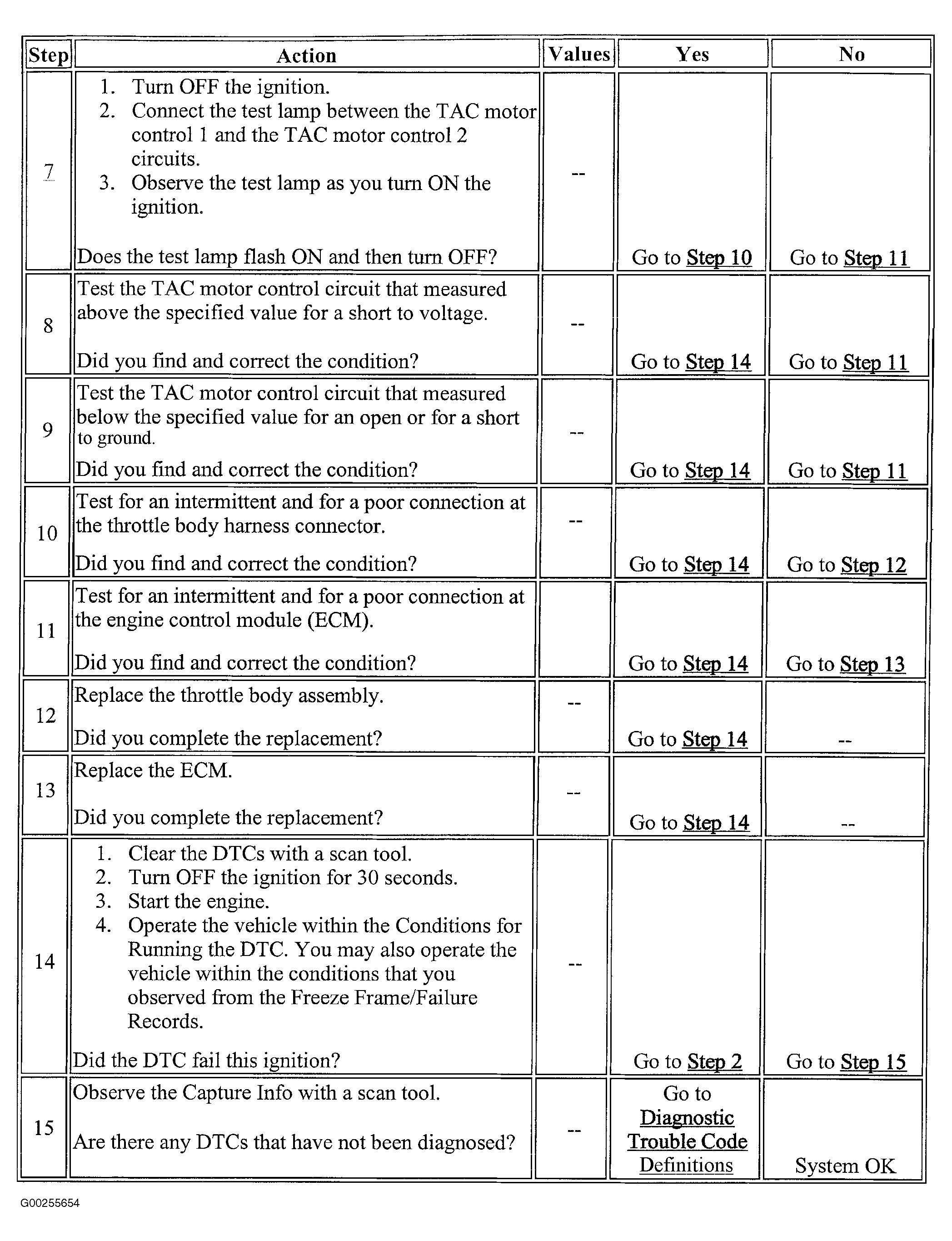

Fig 2: DTC P1526: TP Sensor Learn Not Done After Reprogramming (Steps 7-15)
G00255654Courtesy of GENERAL MOTORS CORP.
