Automatic Transmission Shift Lock Control Component Views

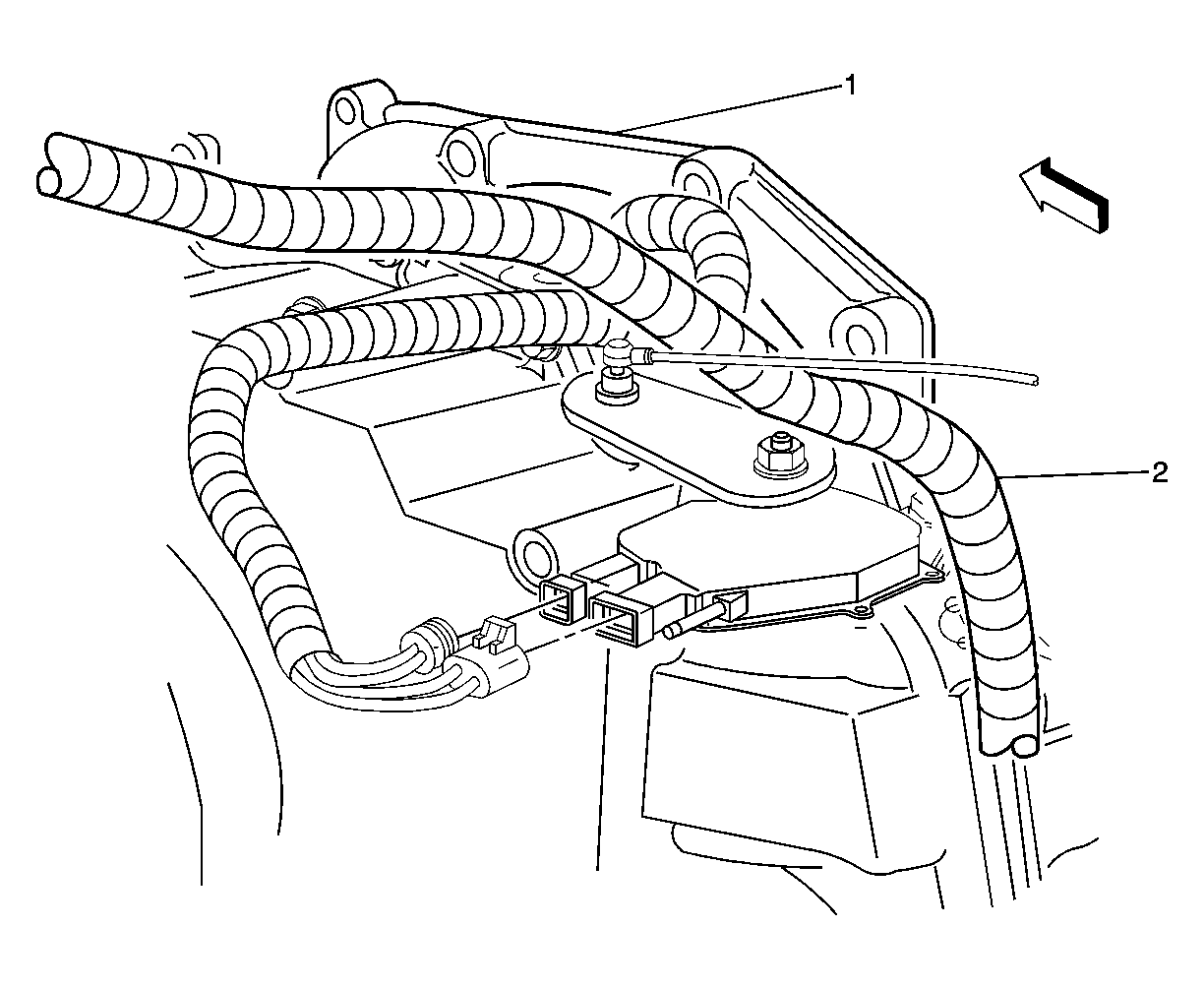

Fig 1: Top of the Transmission Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Case
2	Park Neutral Position (PNP) Switch

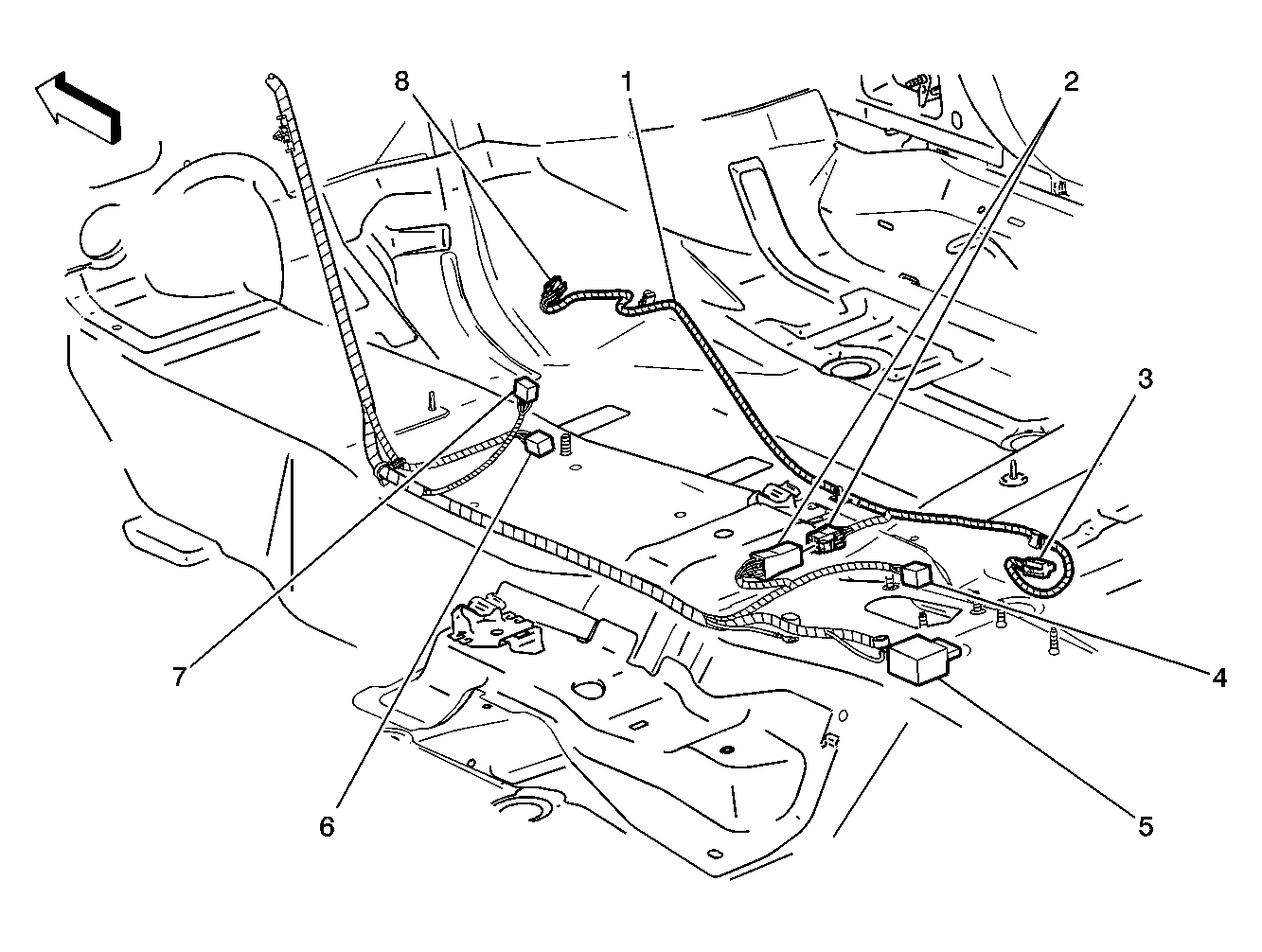

Fig 2: Center Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Harness
2	C301
3	Auxiliary Power Outlet Connector
4	Park Brake Switch Connector
5	Inflatable Restraint Sensing and Diagnostic Module (SDM)
6	Automatic Transmission Shift Lock Actuator Connector
7	Electronic PRNDL Module Connector
8	Cigar Lighter Connector
