Horns Component Views

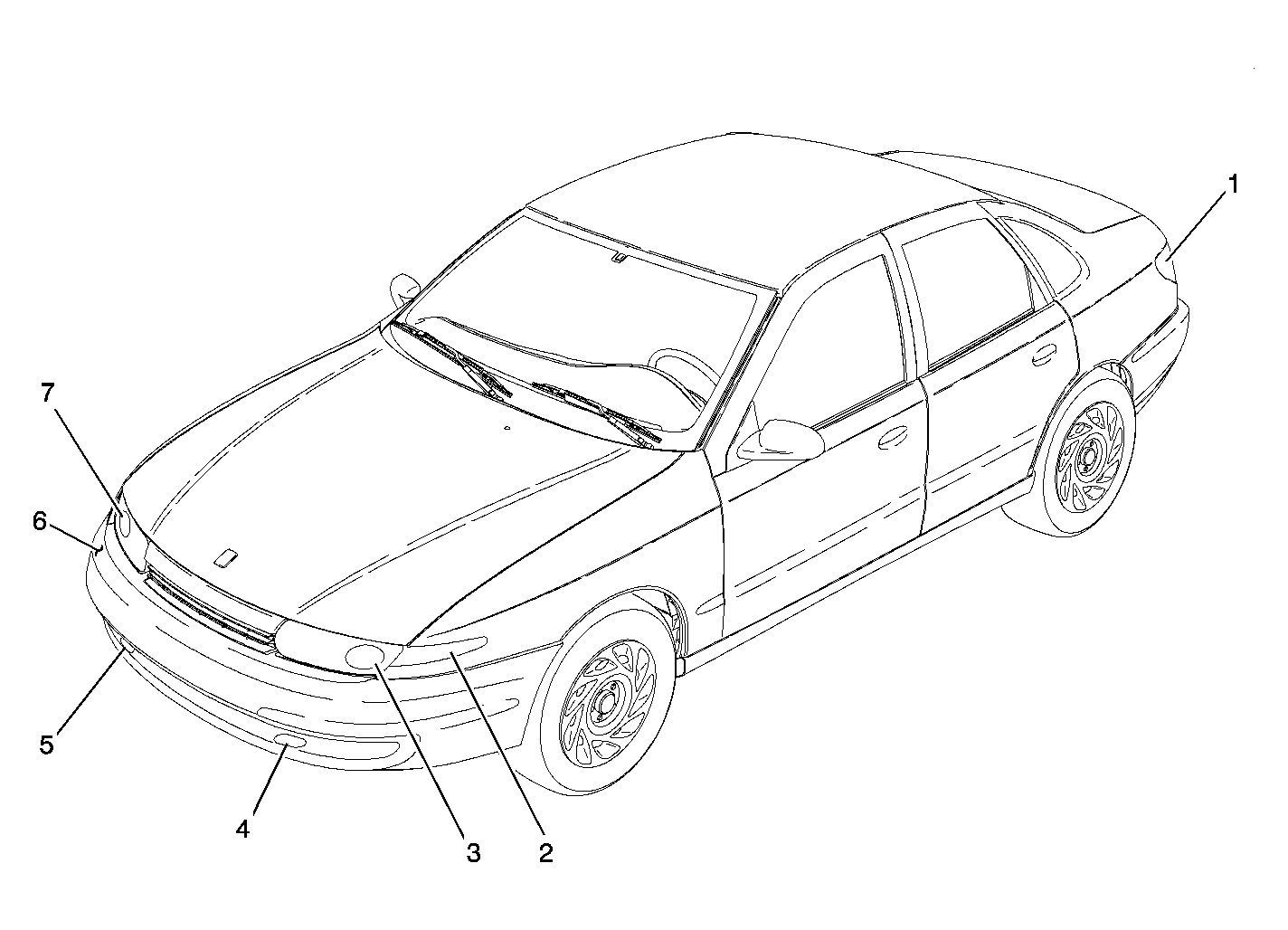

Fig 1: Exterior Lighting Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp Assembly-Left (Right Similar)
2	Park/Turn Signal Lamp-LF
3	Left Headlamp Assembly
4	Fog Lamp-Left
5	Fog Lamp-Right
6	Horn (Behind Fascia)
7	Right Headlamp Assembly
