DTC B2708: Gearshift Unlock Circuit High: Notes

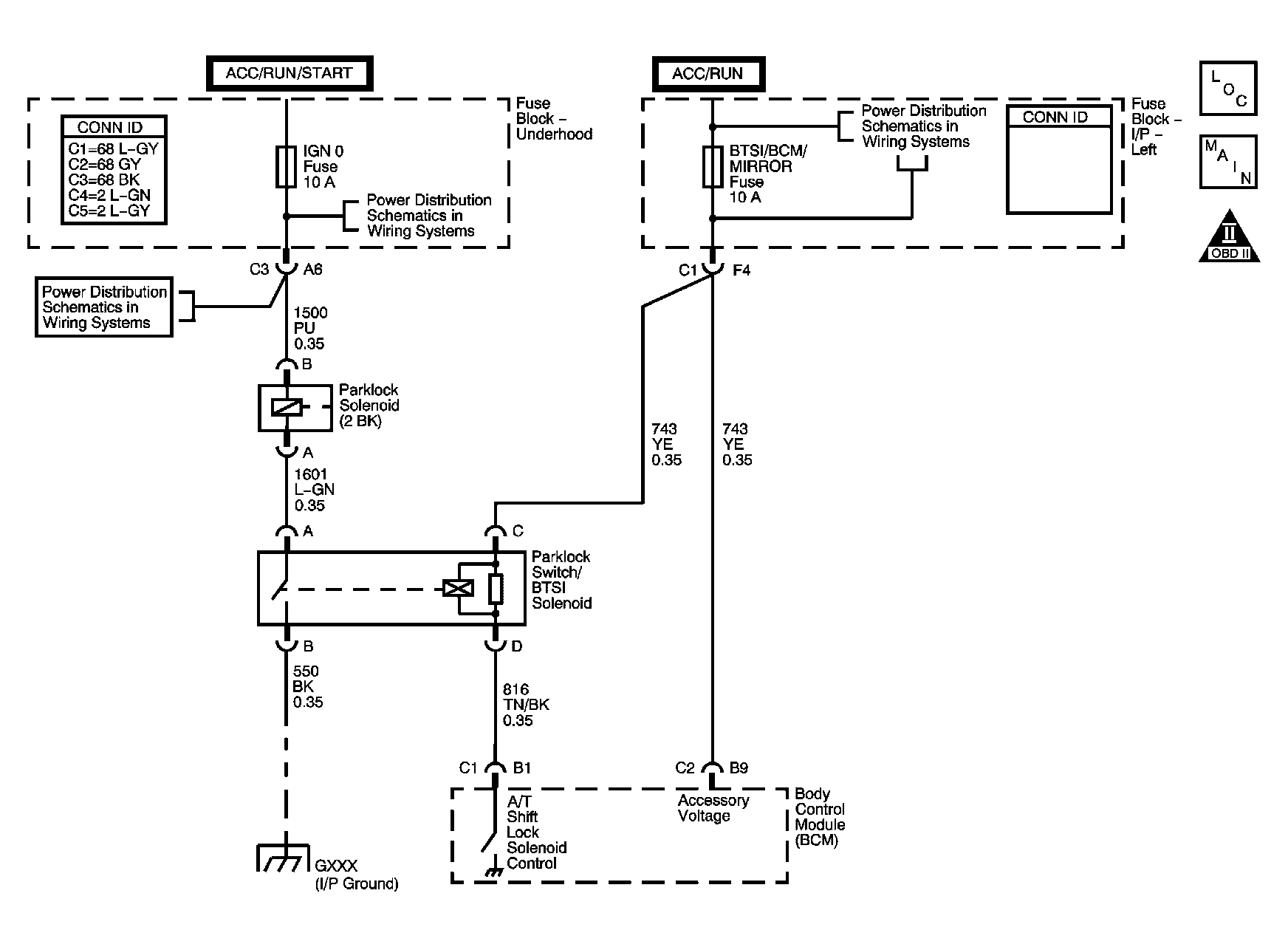

Fig 1: Automatic Transmission Shift Lock Control Circuit Wiring Schematic
GM1222400Courtesy of GENERAL MOTORS CORP.
