Removal Procedure
- Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM
in Air Bag Restraint Systems.
Courtesy of GENERAL MOTORS CORP.
- Remove the automatic transaxle control assembly. Refer to Shift Control Replacement
in Automatic Transaxle - 4T40-E/4T45-E (Overhaul).

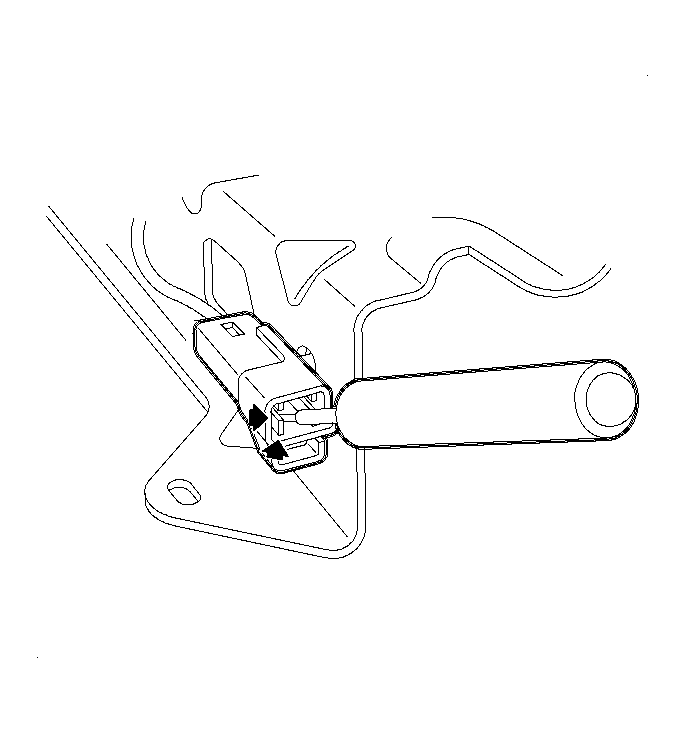

- Using an electrical terminal pick, remove the shift lock control solenoid electrical terminals (black wires) from the connector body.
- Move the control assembly out of the PARK (P) position and remove the park lock switch by pressing the switch retaining tabs.
Courtesy of GENERAL MOTORS CORP.
- Remove the park lock switch connector body from the control assembly, and remove the switch assembly.
