Connector Identification

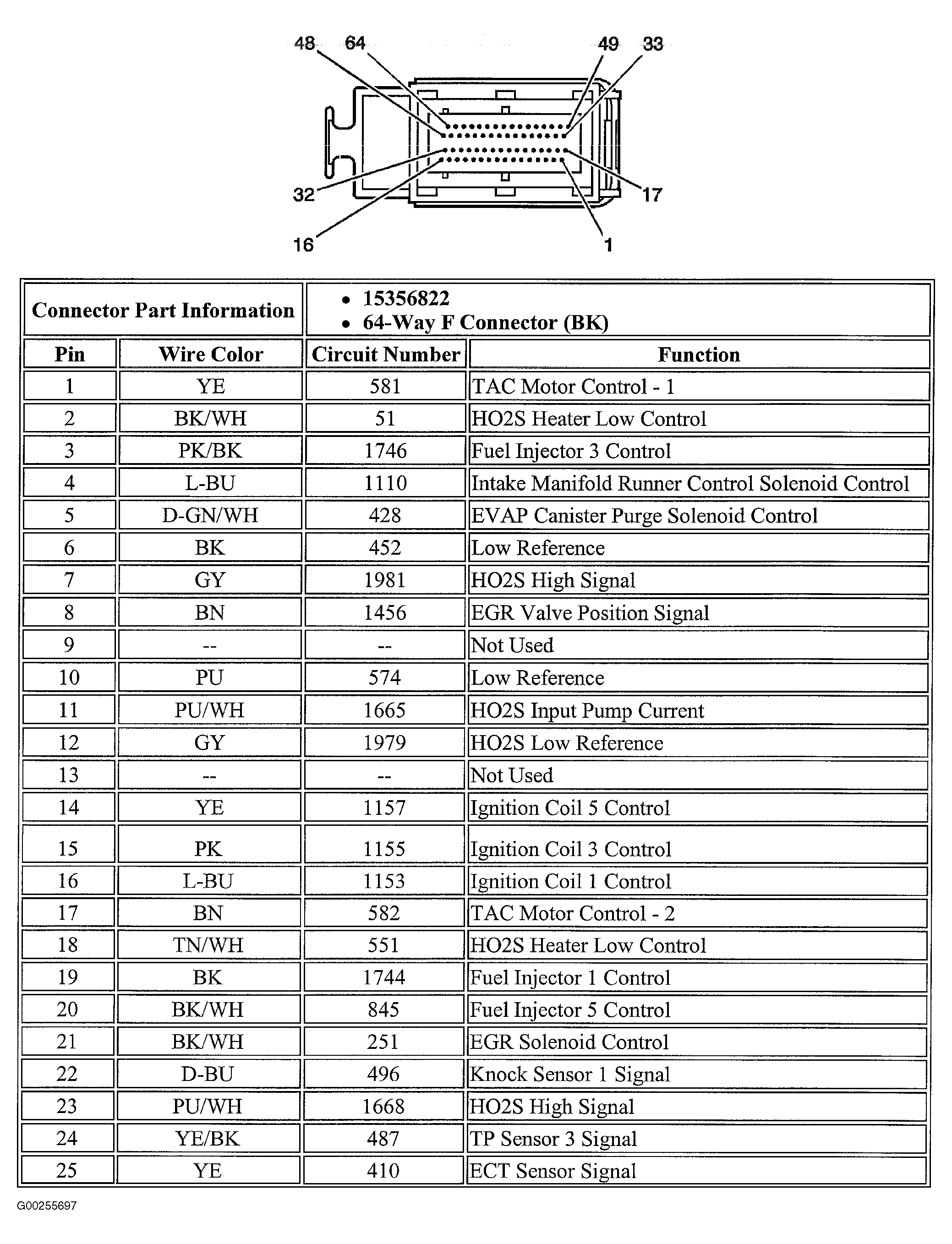

Fig 1: Identifying Engine Control Module (ECM) - C1 Connector Terminals (1 Of 2)

G00255697

Courtesy of GENERAL MOTORS CORP.

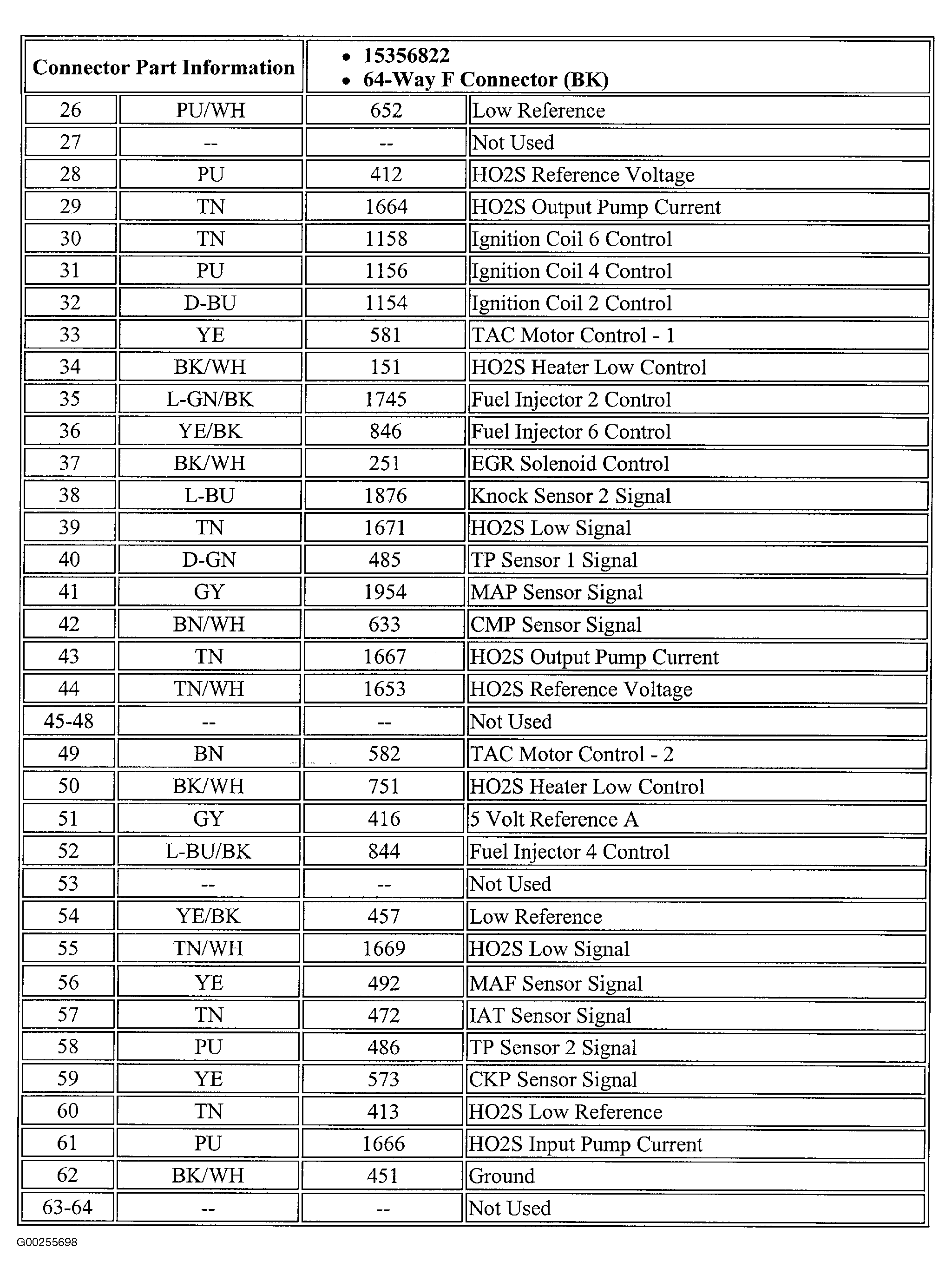

Fig 2: Identifying Engine Control Module (ECM) - C1 Connector Terminals (2 Of 2)

G00255698

Courtesy of GENERAL MOTORS CORP.

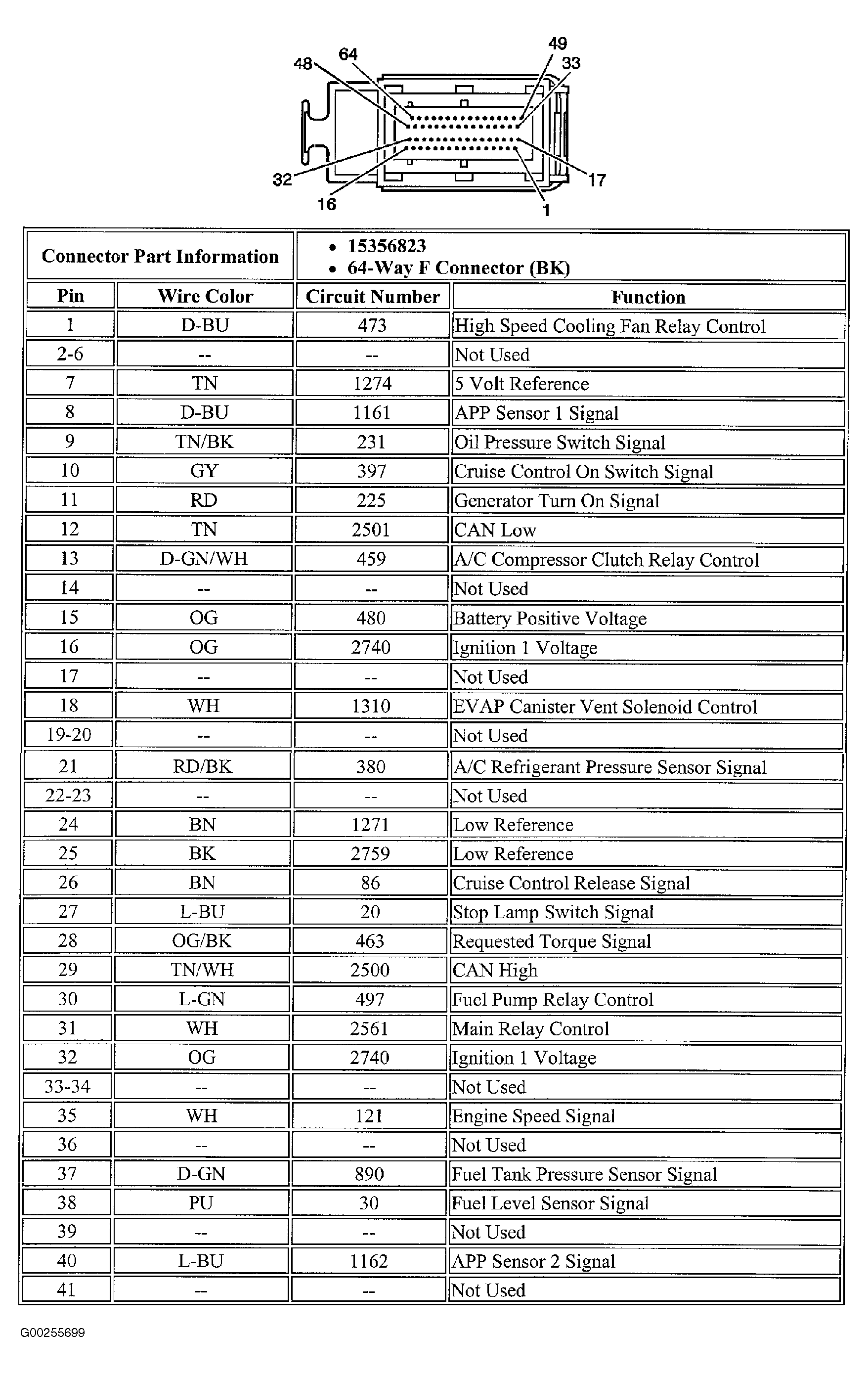

Fig 3: Identifying Engine Control Module (ECM) - C2 Connector Terminals (1 Of 2)

G00255699

Courtesy of GENERAL MOTORS CORP.

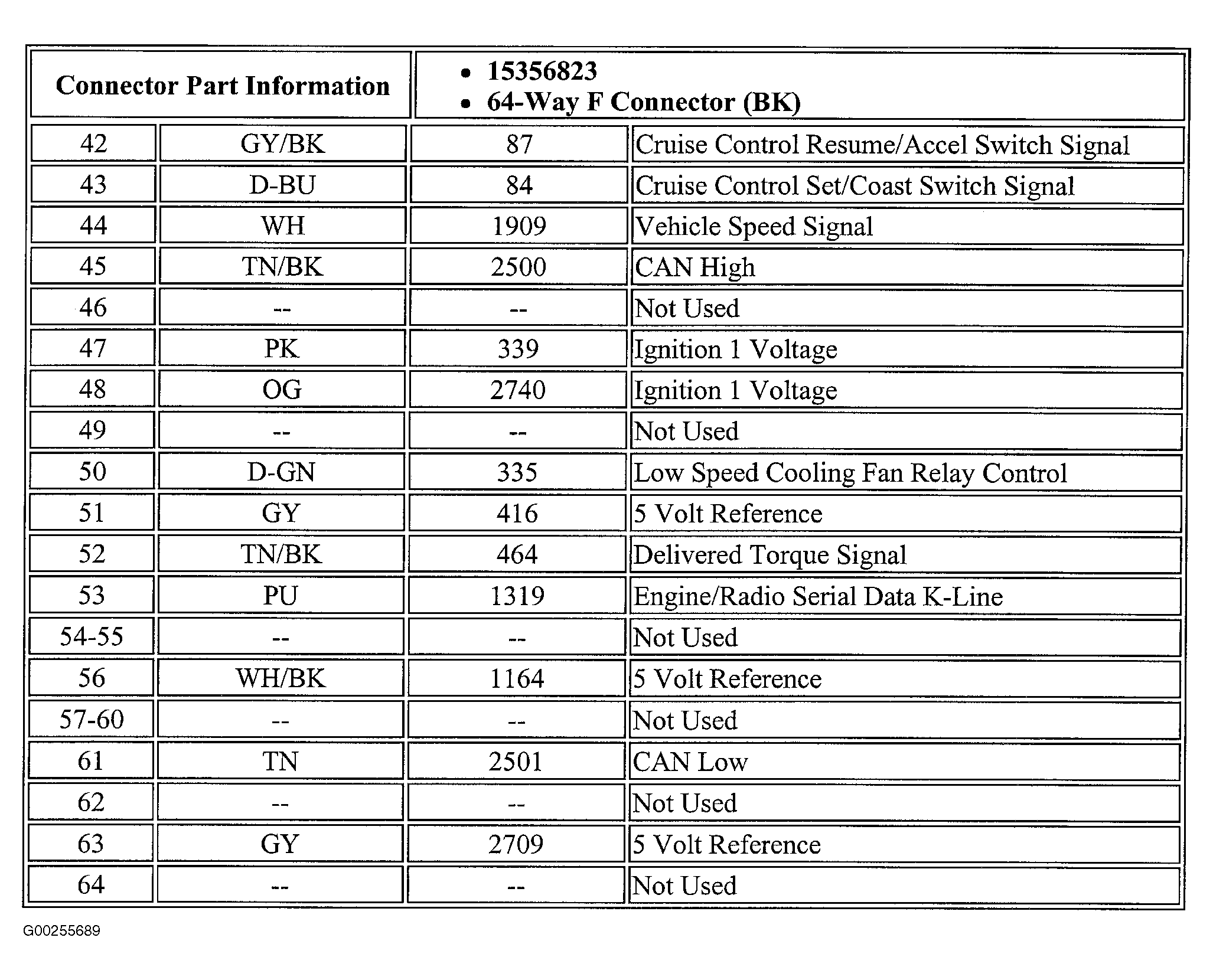

Fig 4: Identifying Engine Control Module (ECM) - C2 Connector Terminals (2 Of 2)

G00255889

Courtesy of GENERAL MOTORS CORP.

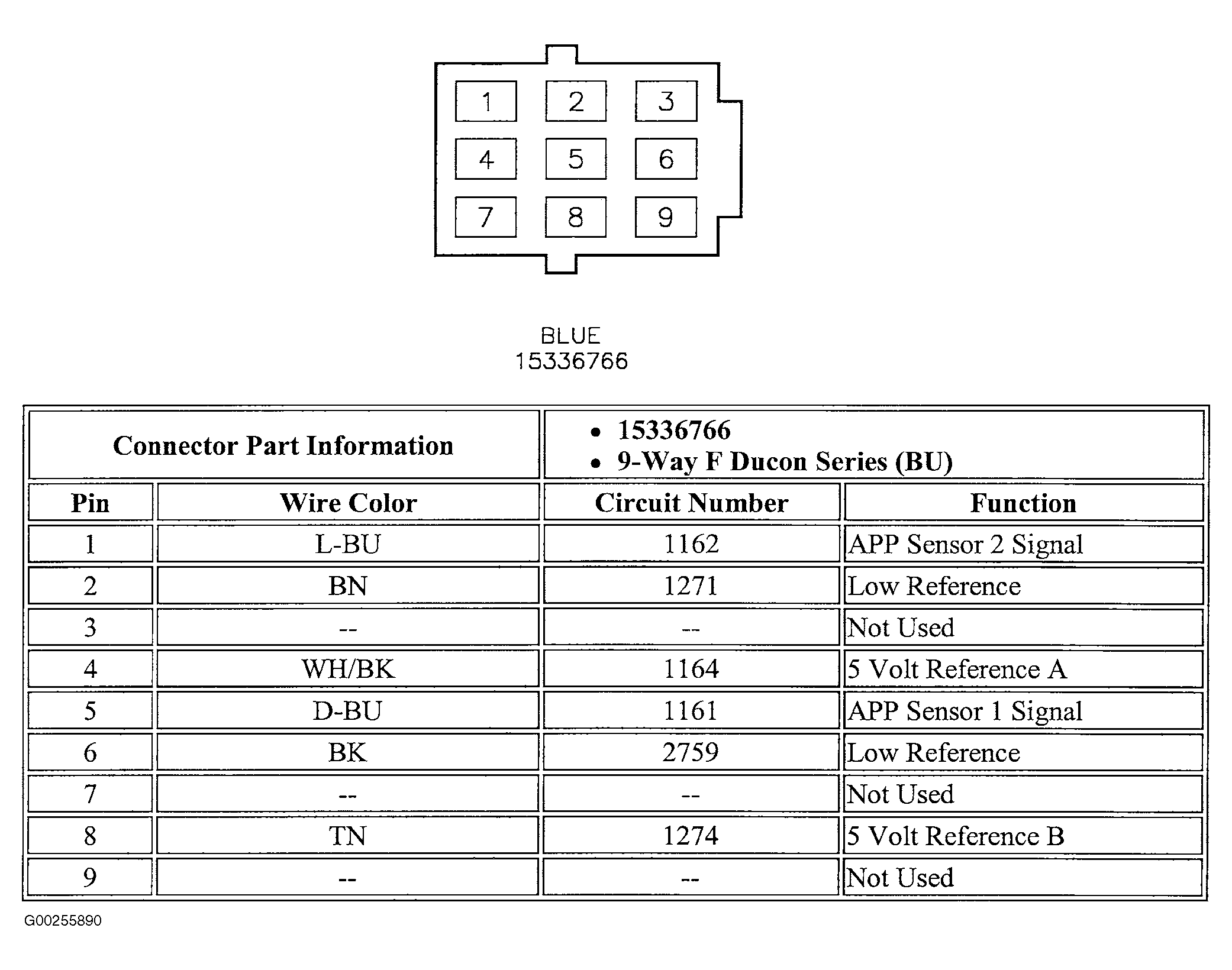

Fig 5: Identifying Accelerator Pedal Position (APP) Sensor Connector Terminals

G00255890

Courtesy of GENERAL MOTORS CORP.

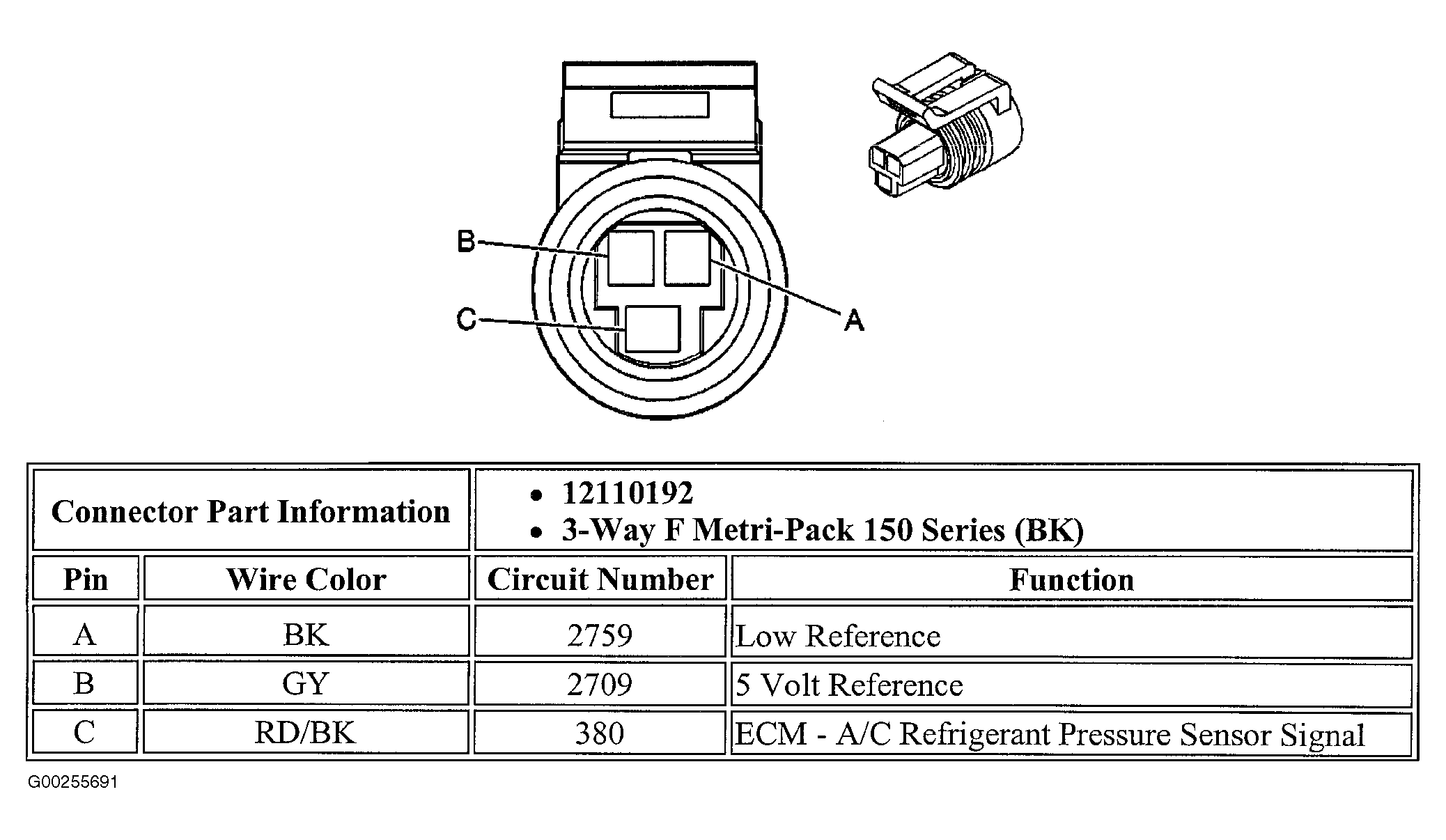

Fig 6: Identifying A/C Refrigerant Pressure Sensor Connector Terminals

G00255891

Courtesy of GENERAL MOTORS CORP.

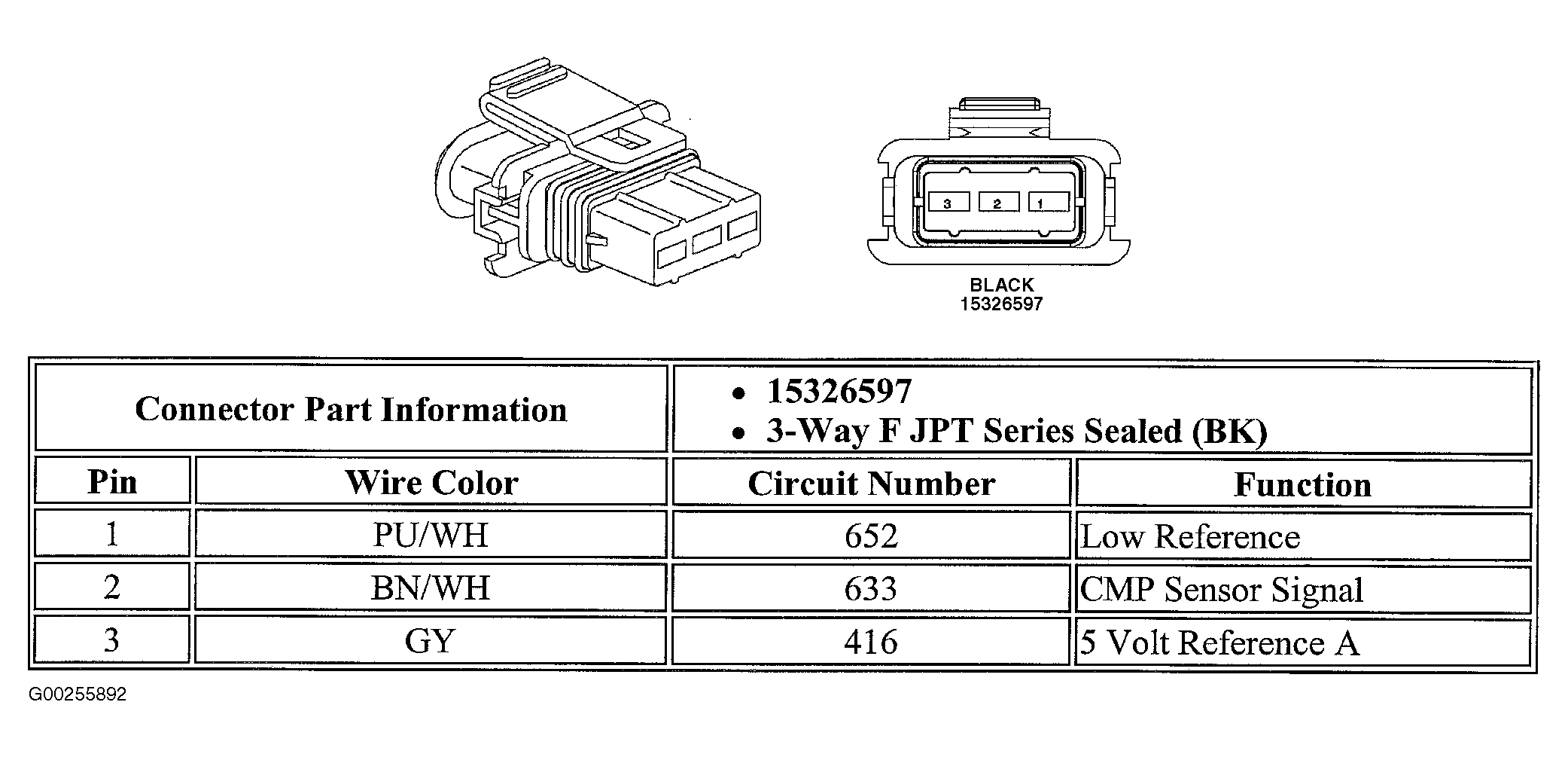

Fig 7: Identifying Camshaft Position (CMP) Sensor Connector Terminals

G00255892

Courtesy of GENERAL MOTORS CORP.

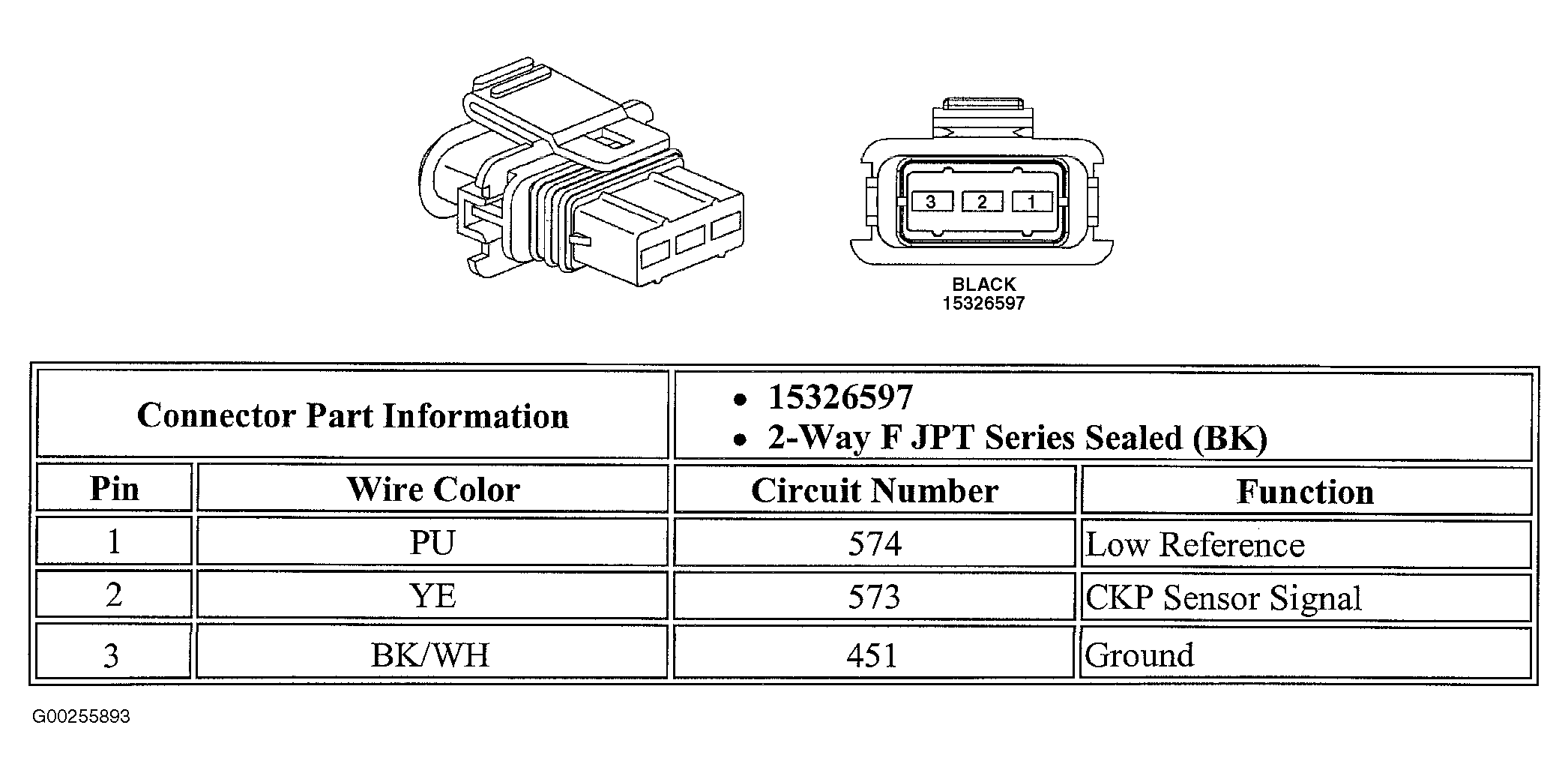

Fig 8: Identifying Crankshaft Position (CKP) Sensor Connector Terminals

G00255893

Courtesy of GENERAL MOTORS CORP.

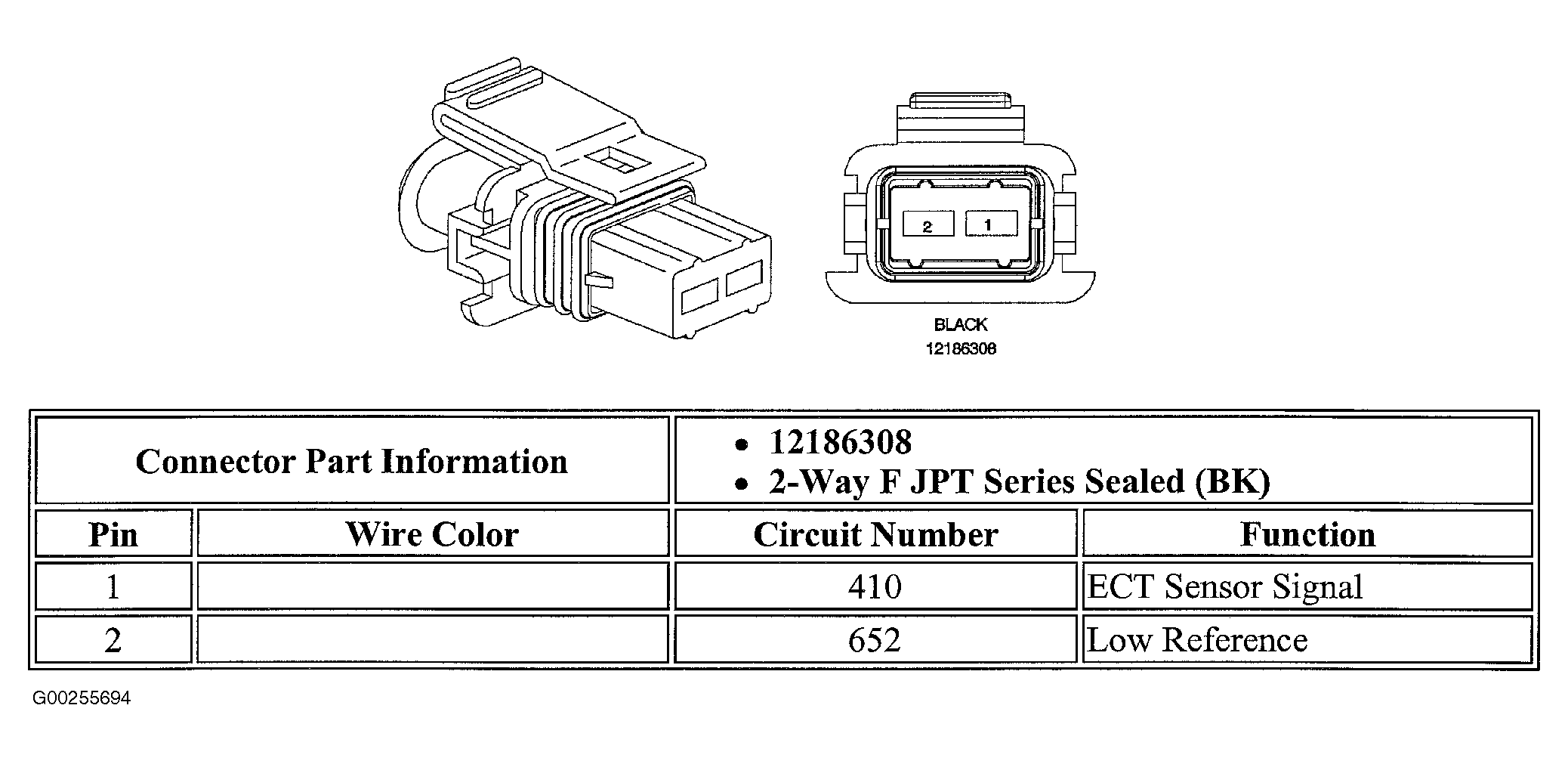

Fig 9: Identifying Engine Coolant Temperature (ECT) Sensor Connector Terminals

G00255894

Courtesy of GENERAL MOTORS CORP.

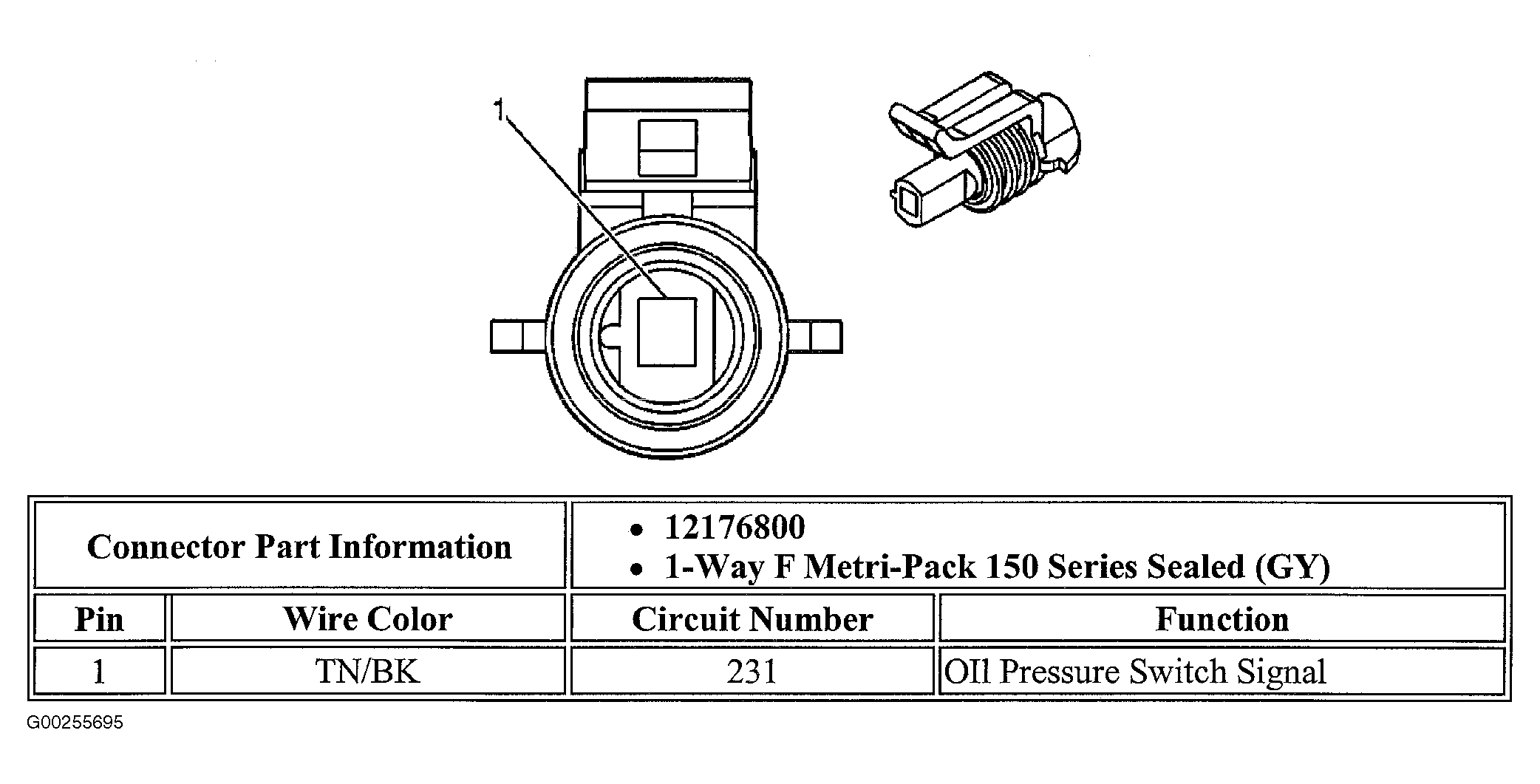

Fig 10: Identifying Engine Oil Pressure (EOP) Switch Connector Terminals

G00255895

Courtesy of GENERAL MOTORS CORP.

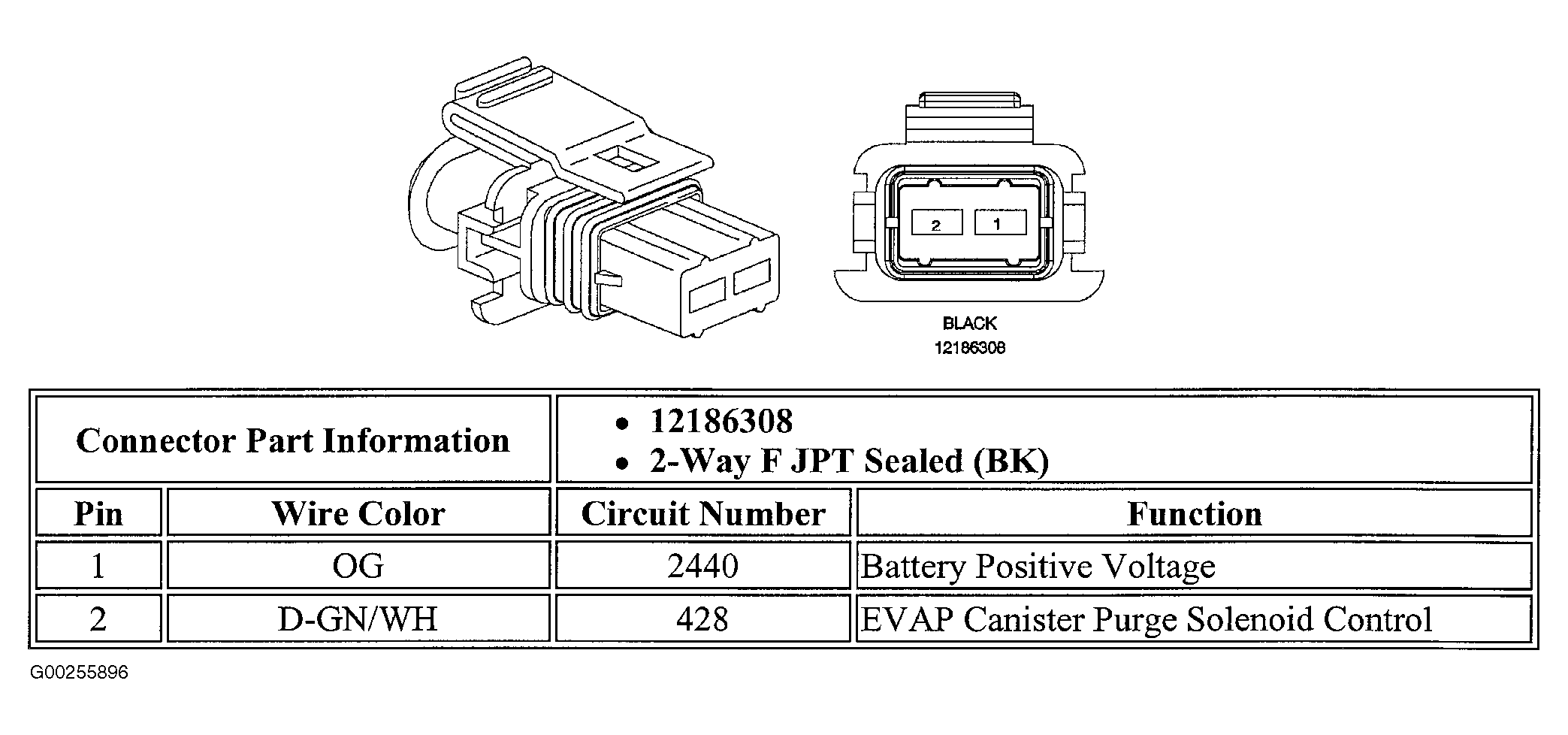

Fig 11: Identifying Evaporative Emissions (EVAP) Canister Purge Solenoid Connector Terminals

G00255896

Courtesy of GENERAL MOTORS CORP.

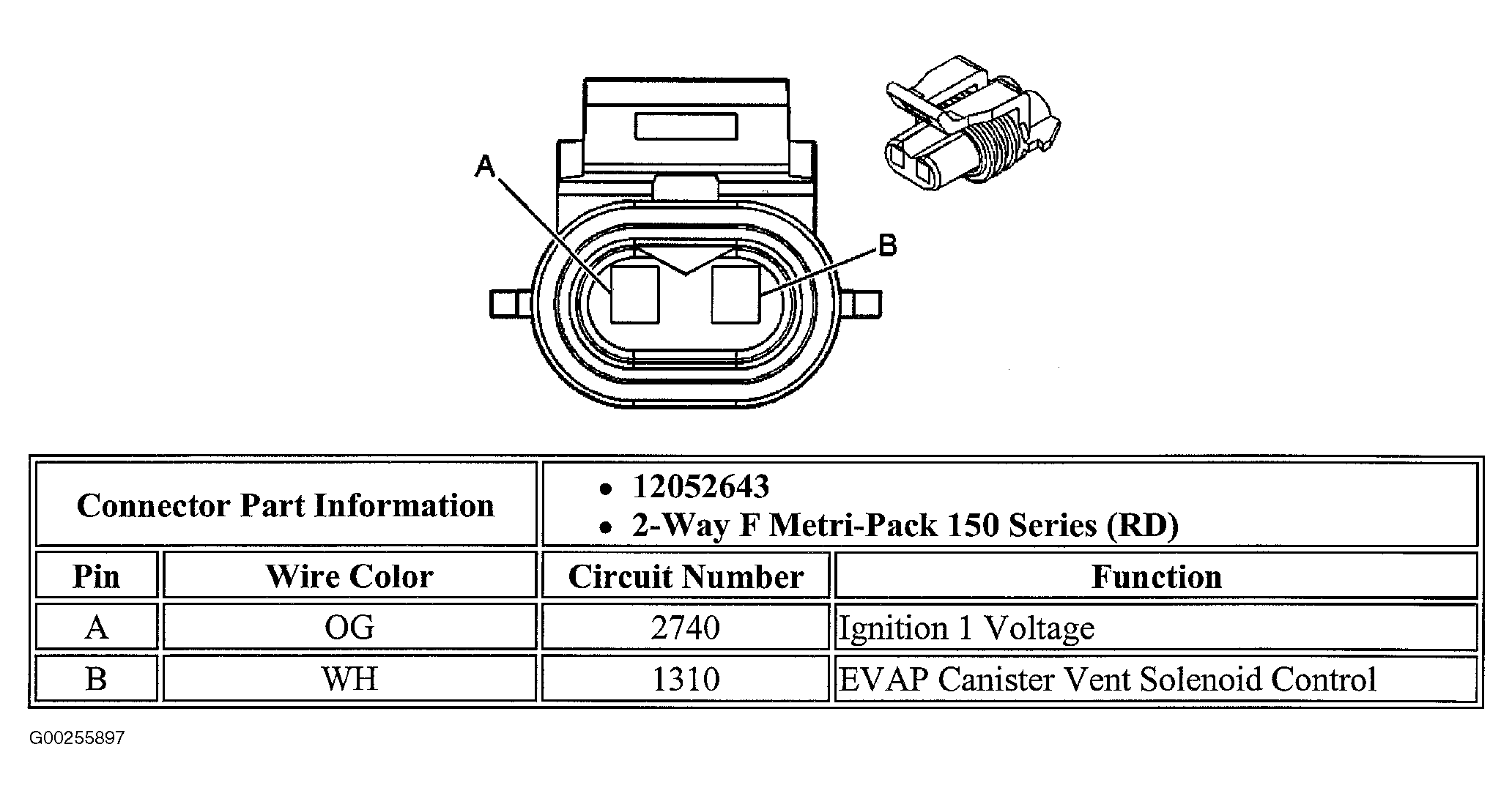

Fig 12: Identifying Evaporative Emissions (EVAP) Canister Vent Solenoid Terminals

G00255897

Courtesy of GENERAL MOTORS CORP.

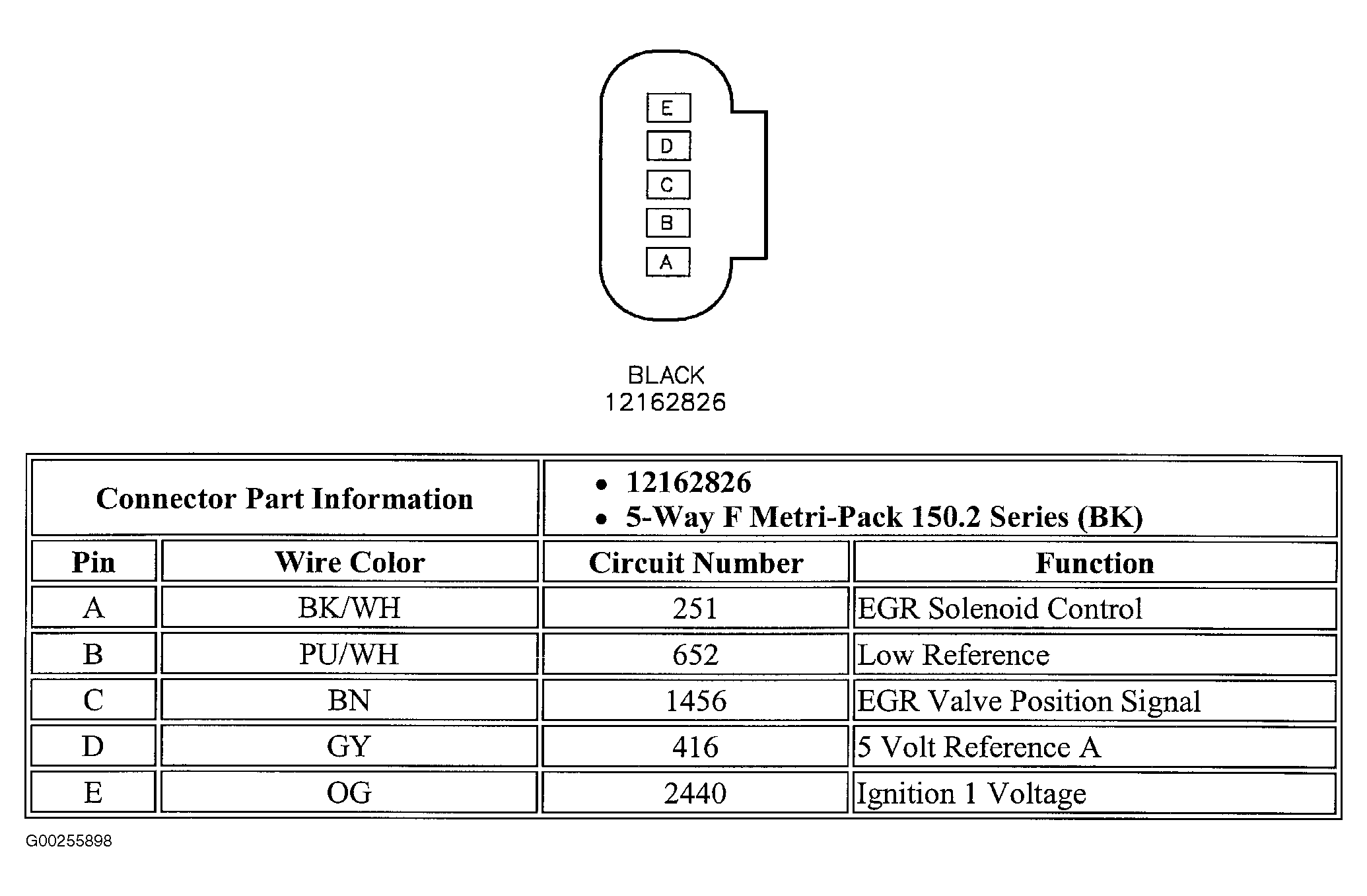

Fig 13: Identifying Exhaust Gas Recirculation (EGR) Valve Connector Terminals

G00255898

Courtesy of GENERAL MOTORS CORP.

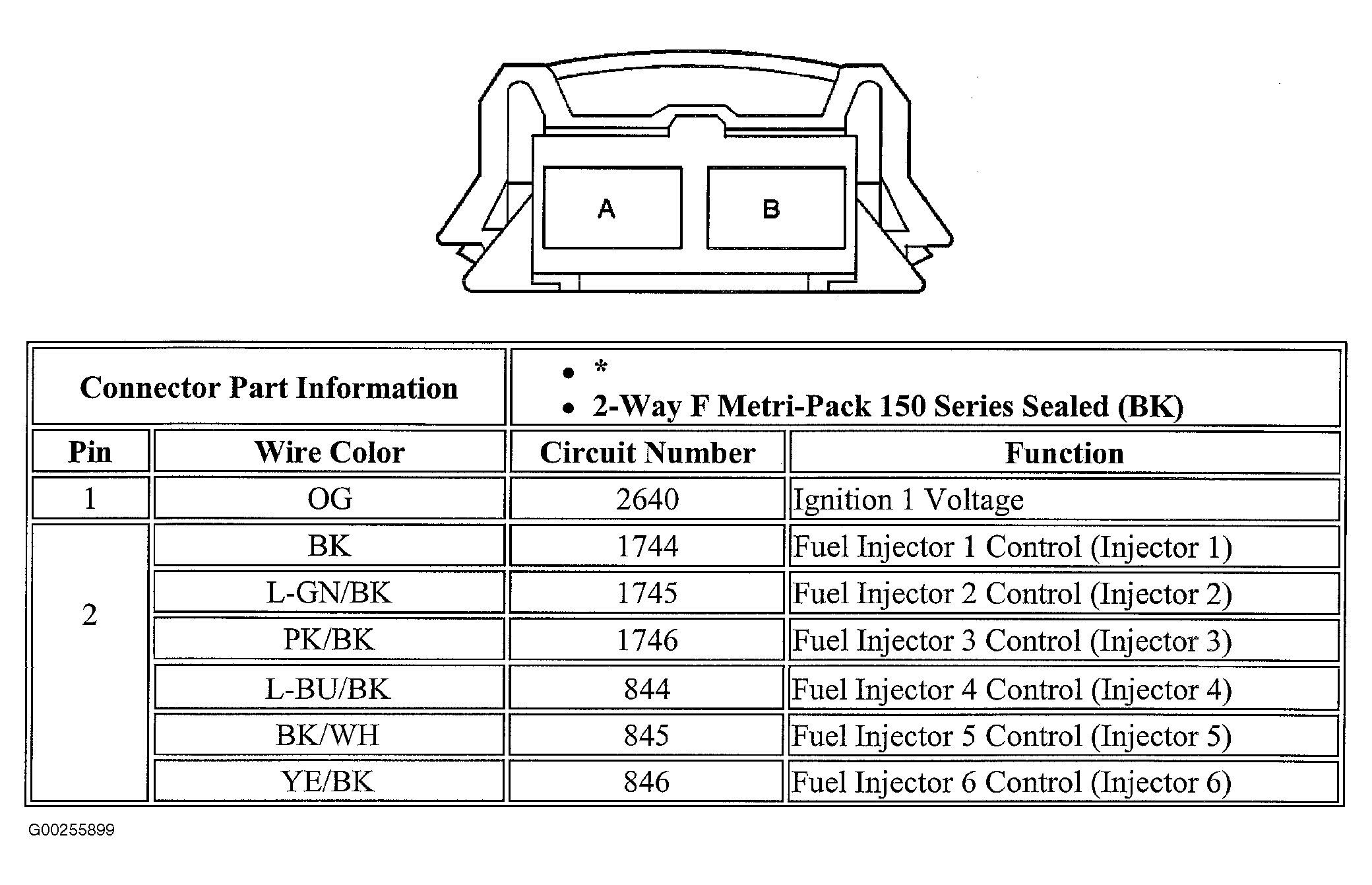

Fig 14: Identifying Fuel Injector Connector Terminals

G00255899

Courtesy of GENERAL MOTORS CORP.

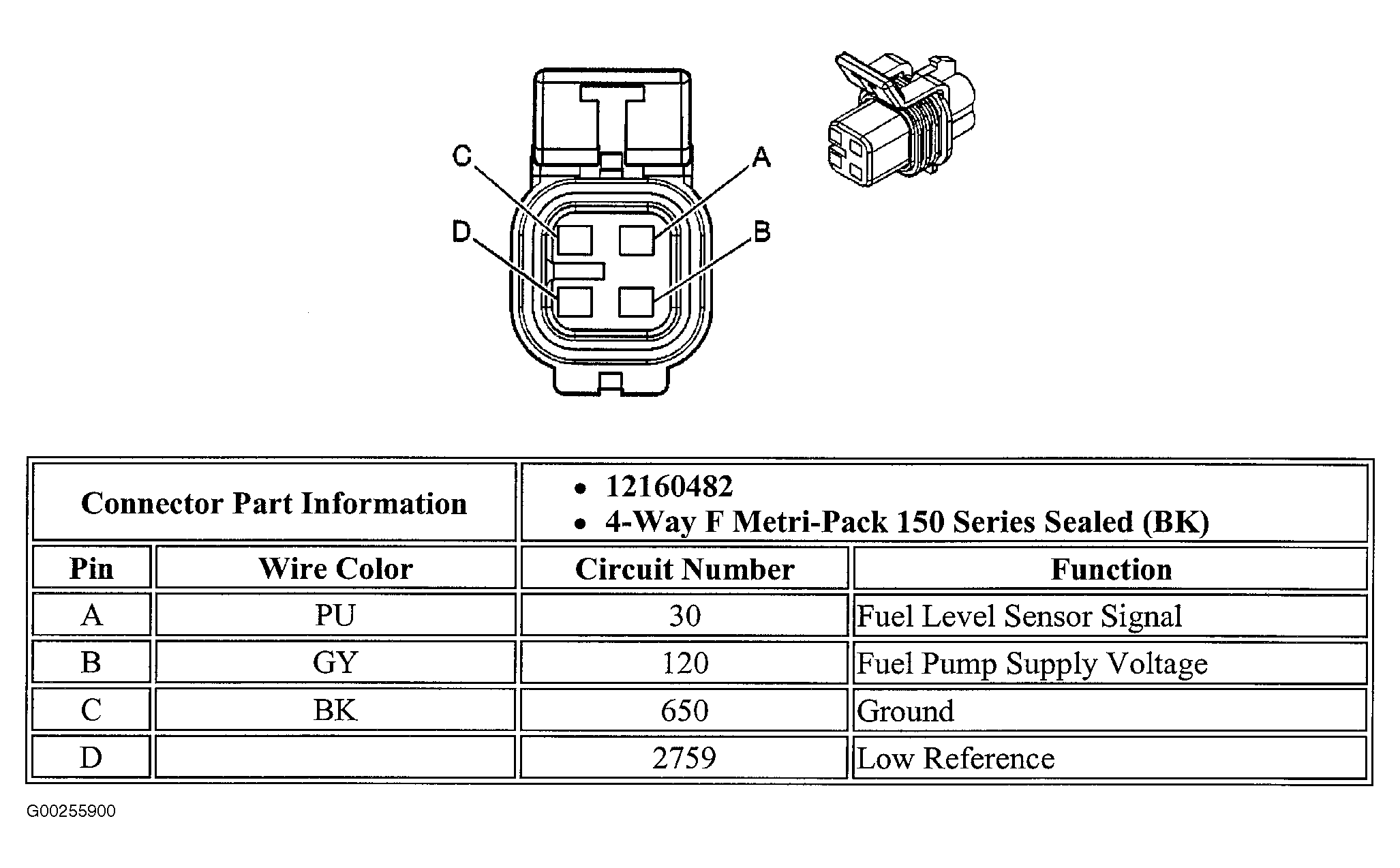

Fig 15: Identifying Fuel Pump & Sender Assembly Connector Terminals

G00255900

Courtesy of GENERAL MOTORS CORP.

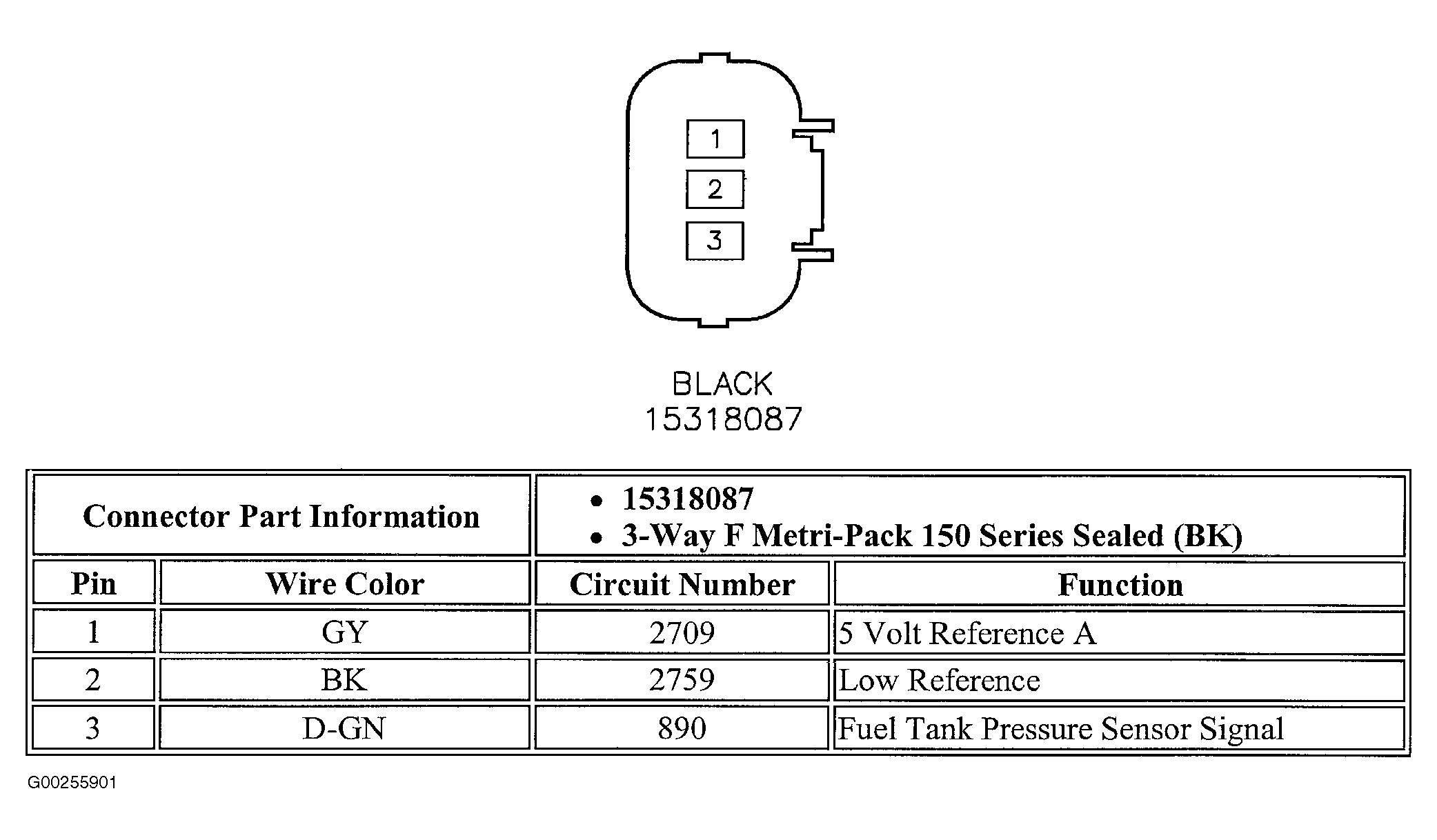

Fig 16: Identifying Fuel Tank Pressure (FTP) Sensor Connector Terminals

G00255901

Courtesy of GENERAL MOTORS CORP.

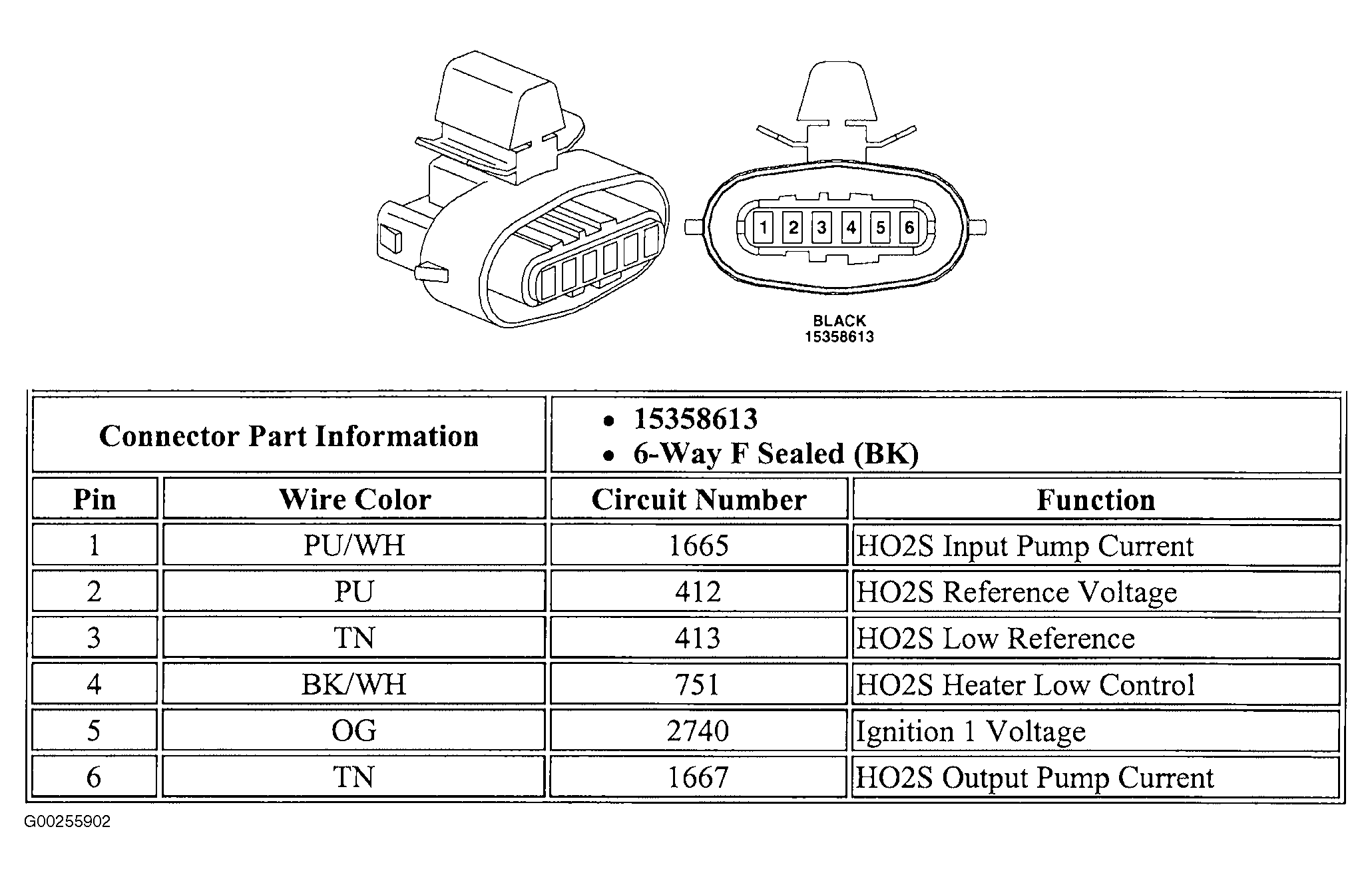

Fig 17: Identifying Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector Terminals

G00255902

Courtesy of GENERAL MOTORS CORP.

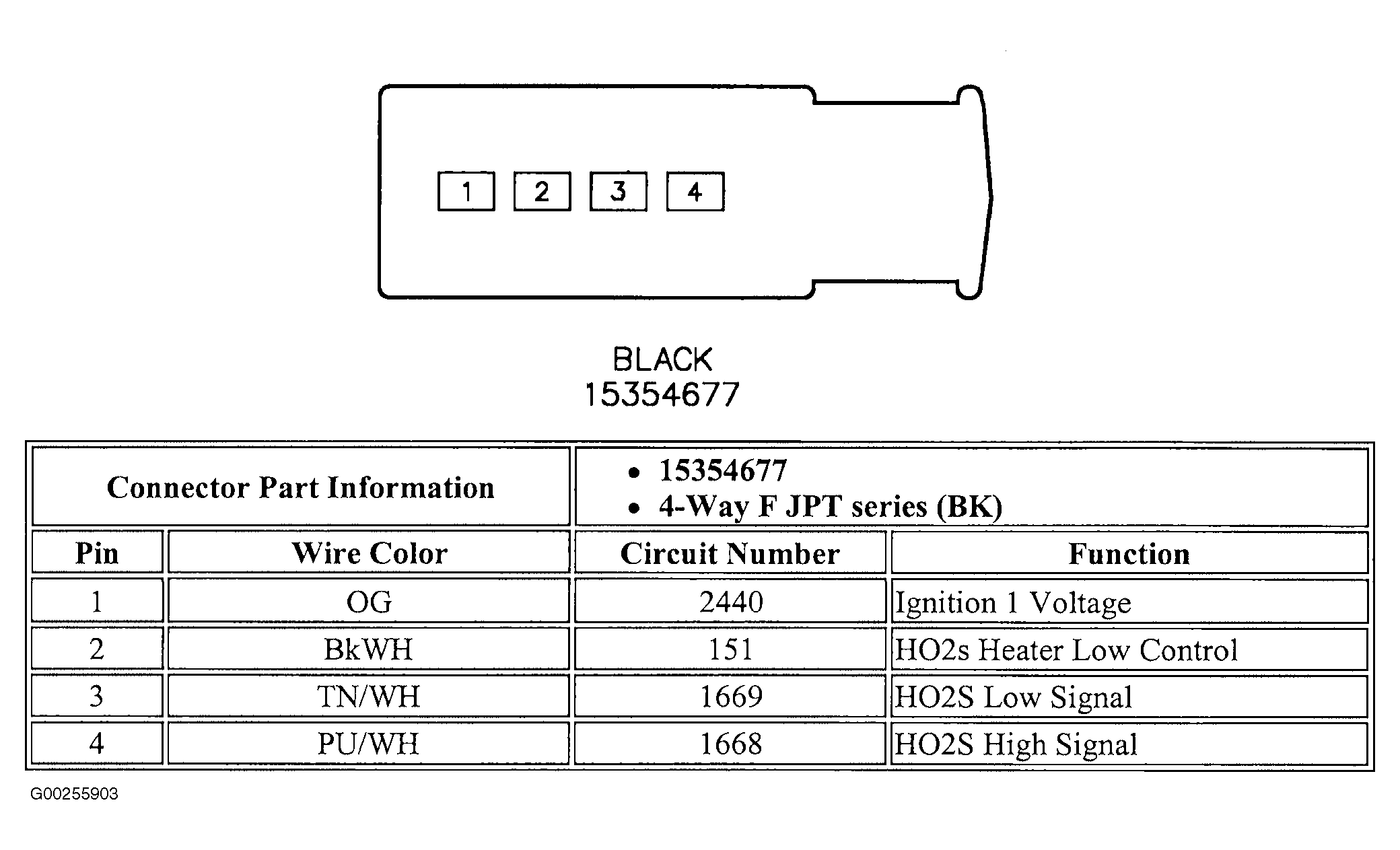

Fig 18: Identifying Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector Terminals

G00255903

Courtesy of GENERAL MOTORS CORP.

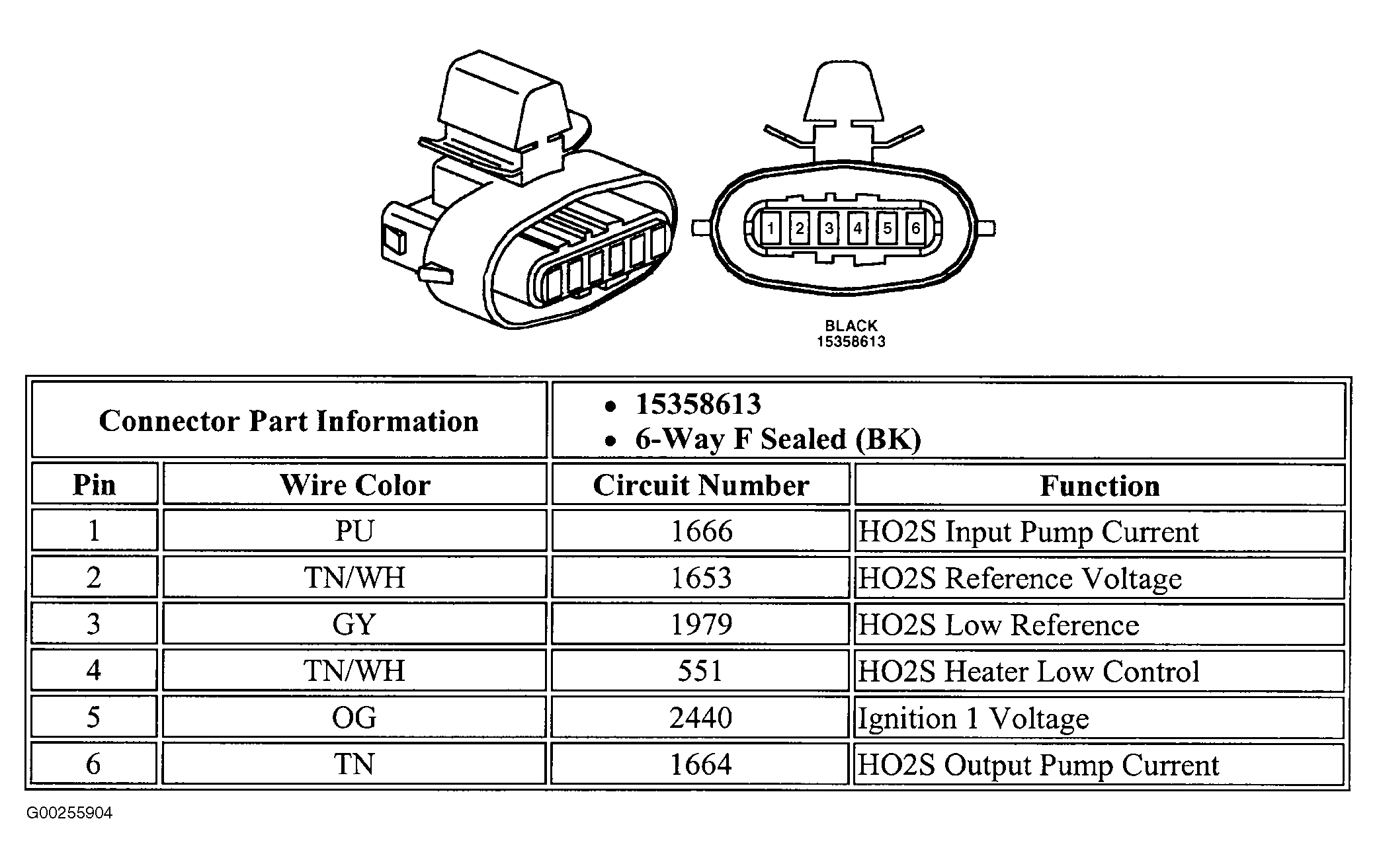

Fig 19: Identifying Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector Terminals

G00255904

Courtesy of GENERAL MOTORS CORP.

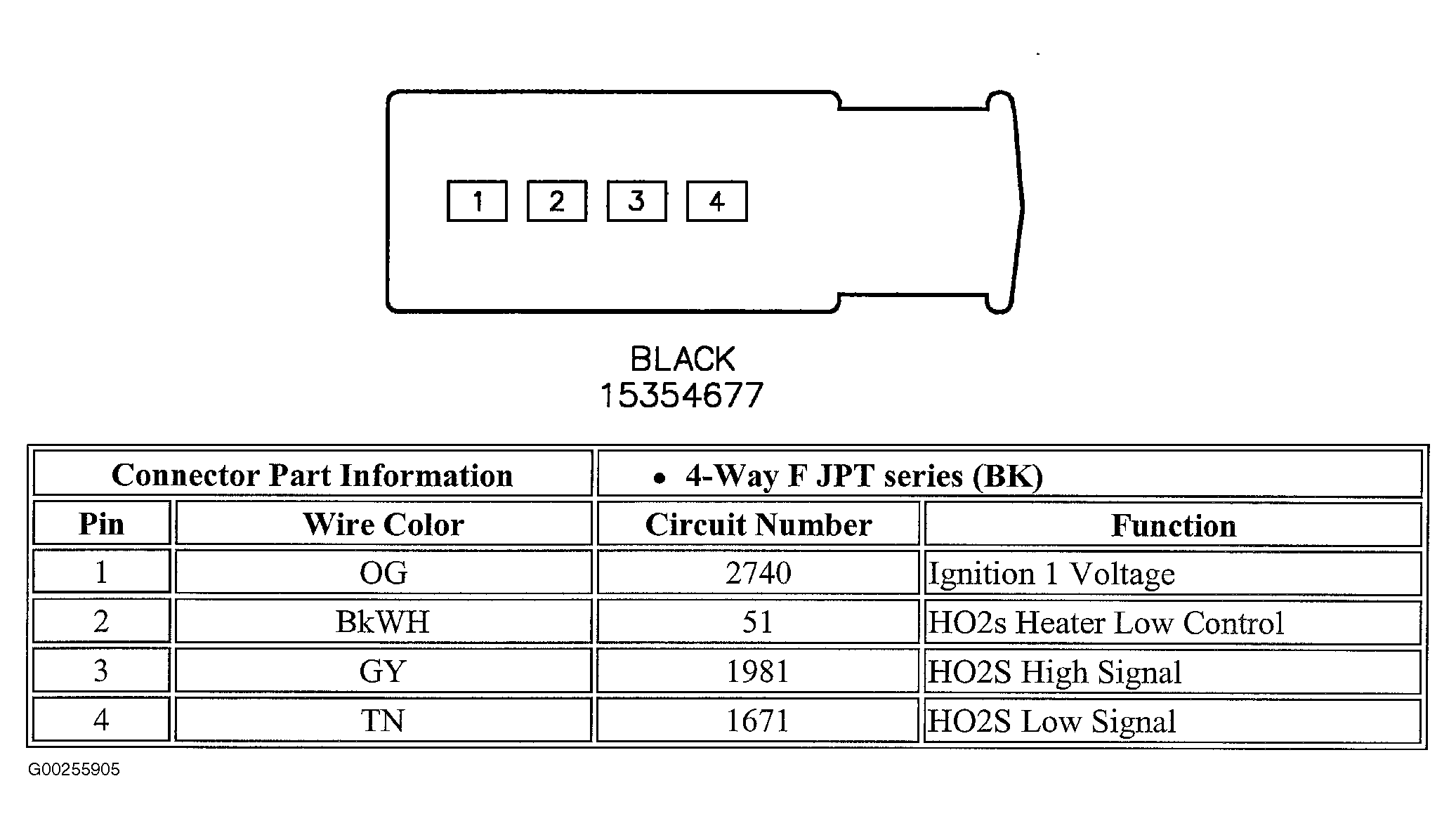

Fig 20: Identifying Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 Connector Terminals

G00255905

Courtesy of GENERAL MOTORS CORP.

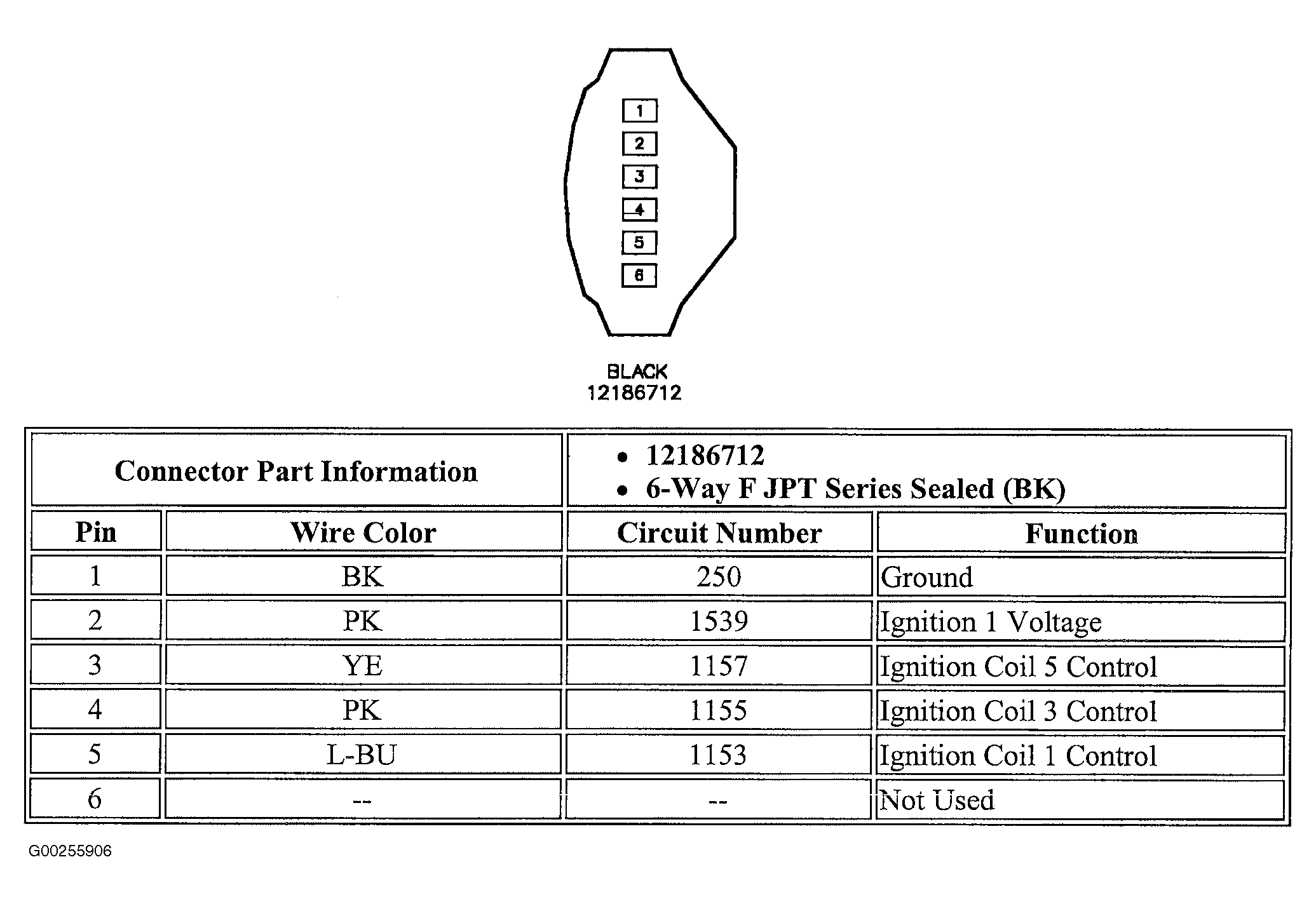

Fig 21: Identifying Ignition Control Module (ICM) Bank 1 Connector Terminals

G00255906

Courtesy of GENERAL MOTORS CORP.

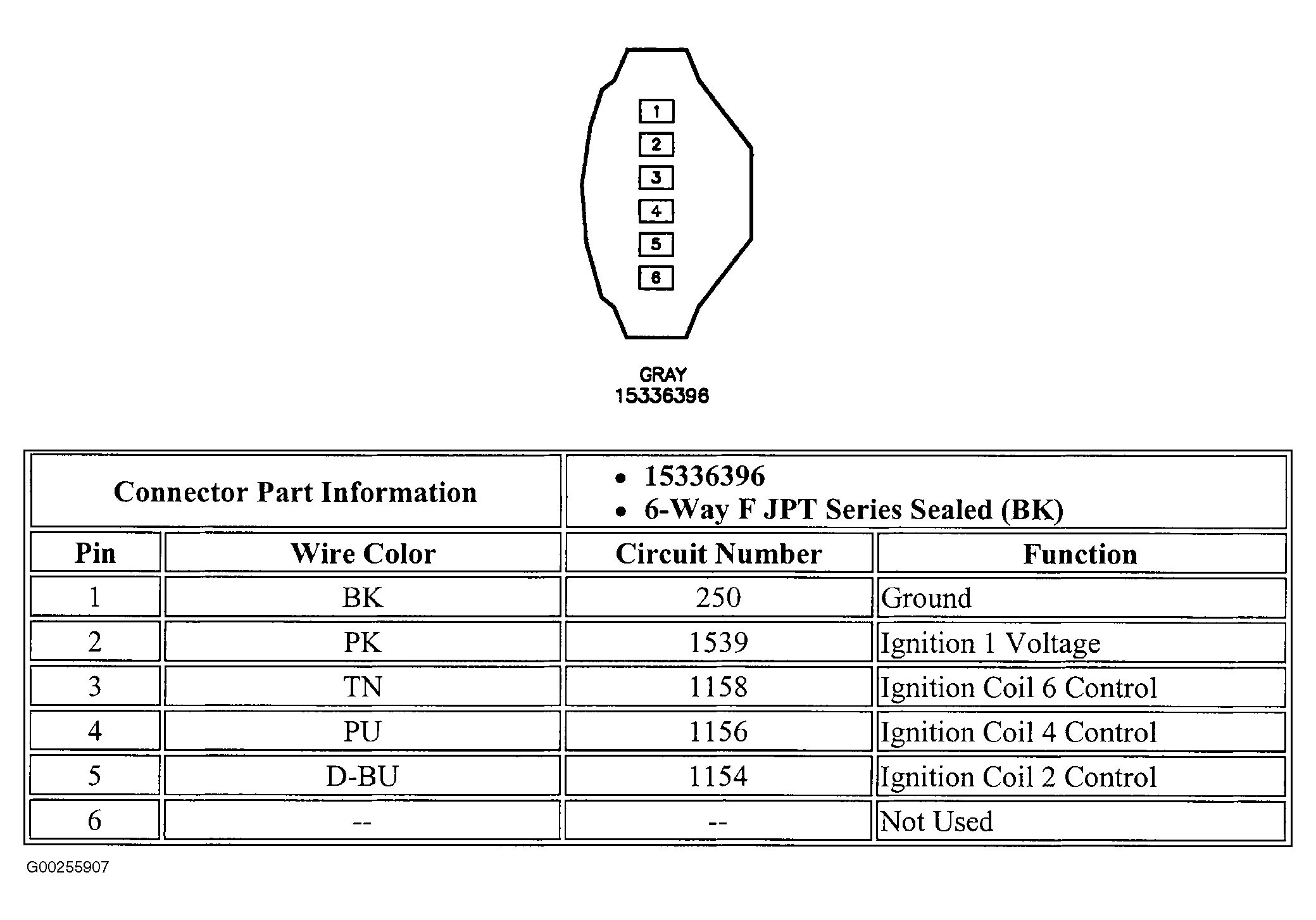

Fig 22: Identifying Ignition Control Module (ICM) Bank 2 Connector Terminals

G00255907

Courtesy of GENERAL MOTORS CORP.

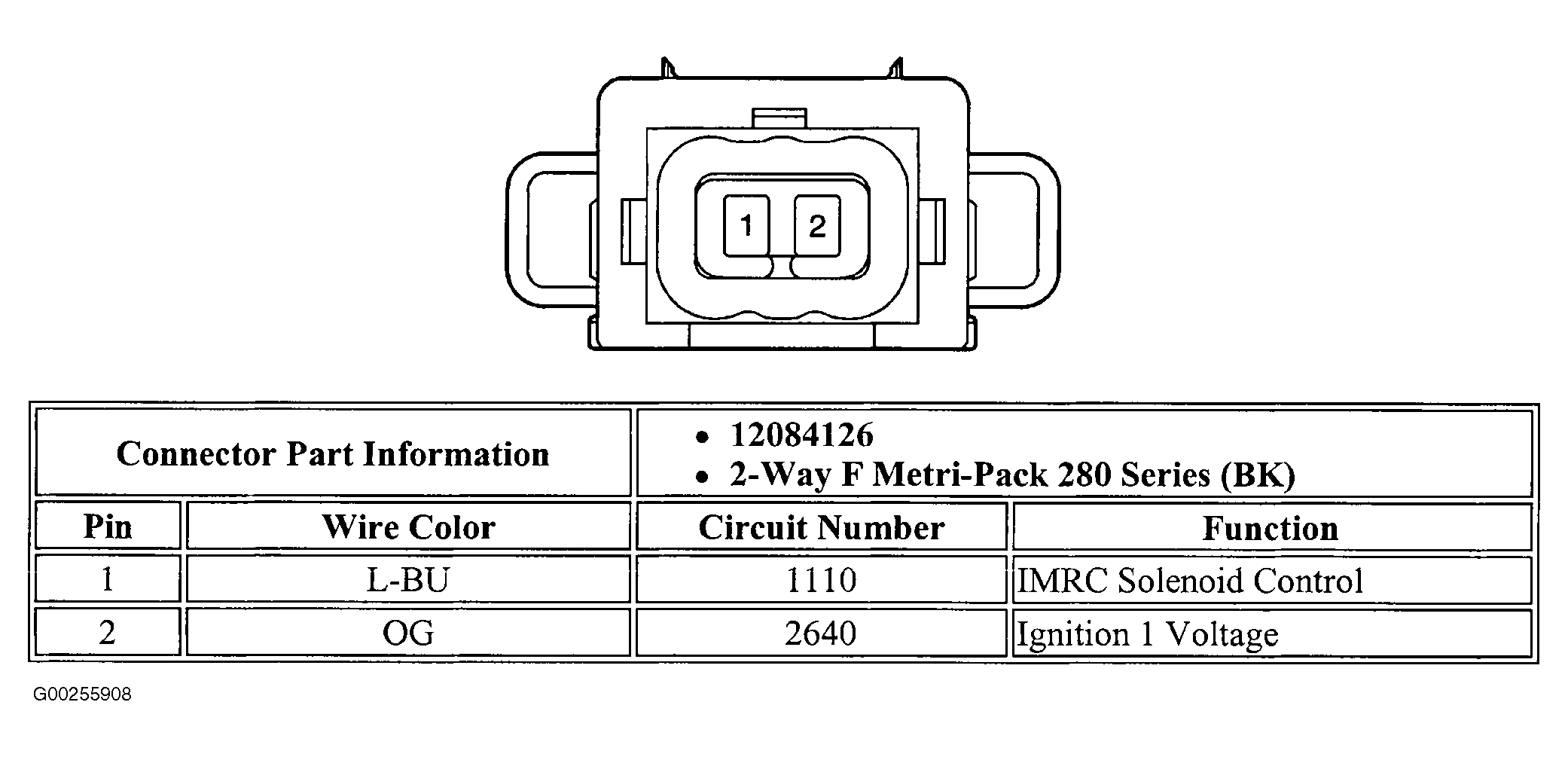

Fig 23: Identifying Intake Manifold Runner Control (IMRC) Solenoid Connector Terminals

G00255908

Courtesy of GENERAL MOTORS CORP.

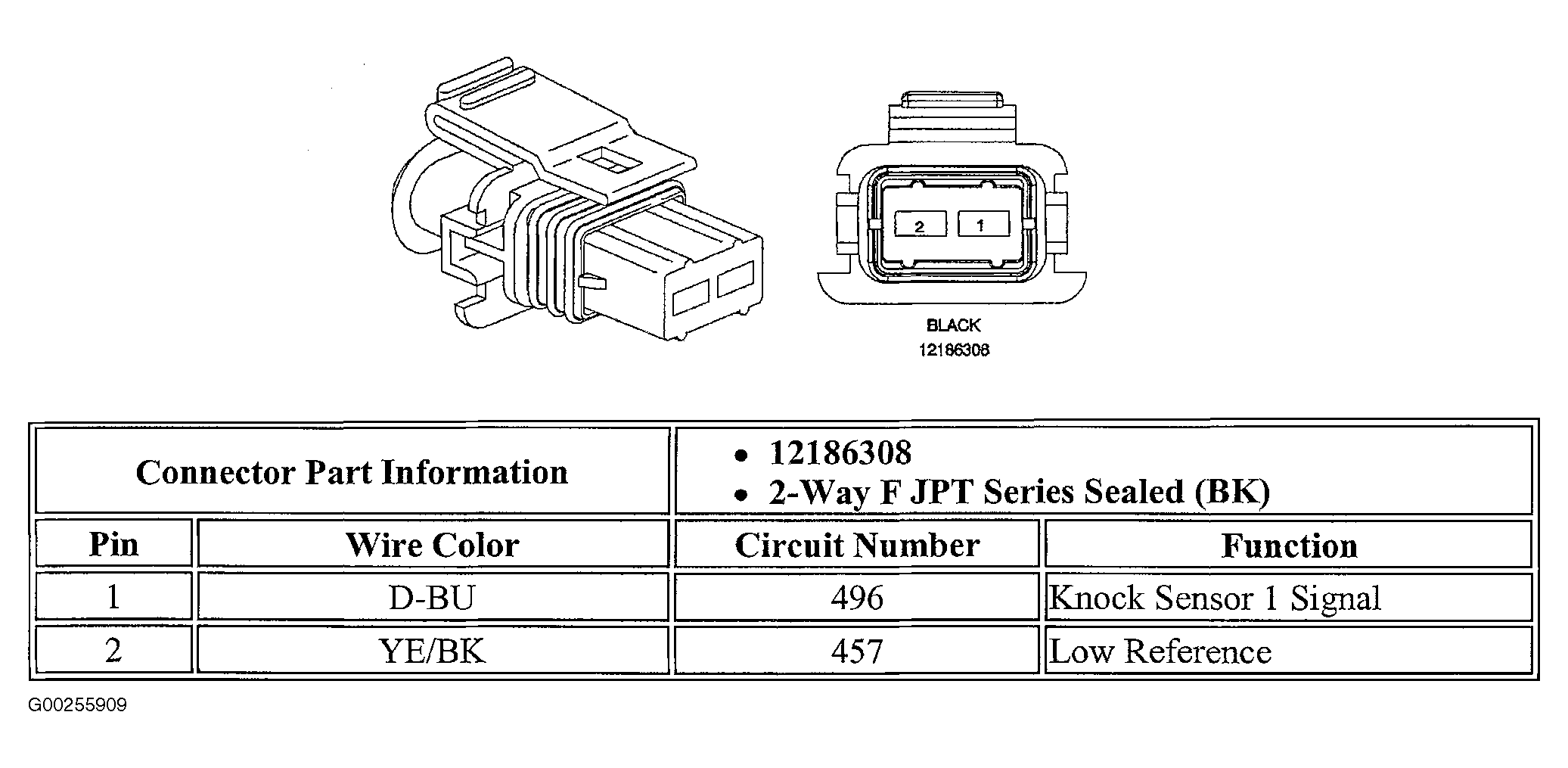

Fig 24: Identifying Knock Sensor (KS) 1 Connector Terminals

G00255909

Courtesy of GENERAL MOTORS CORP.

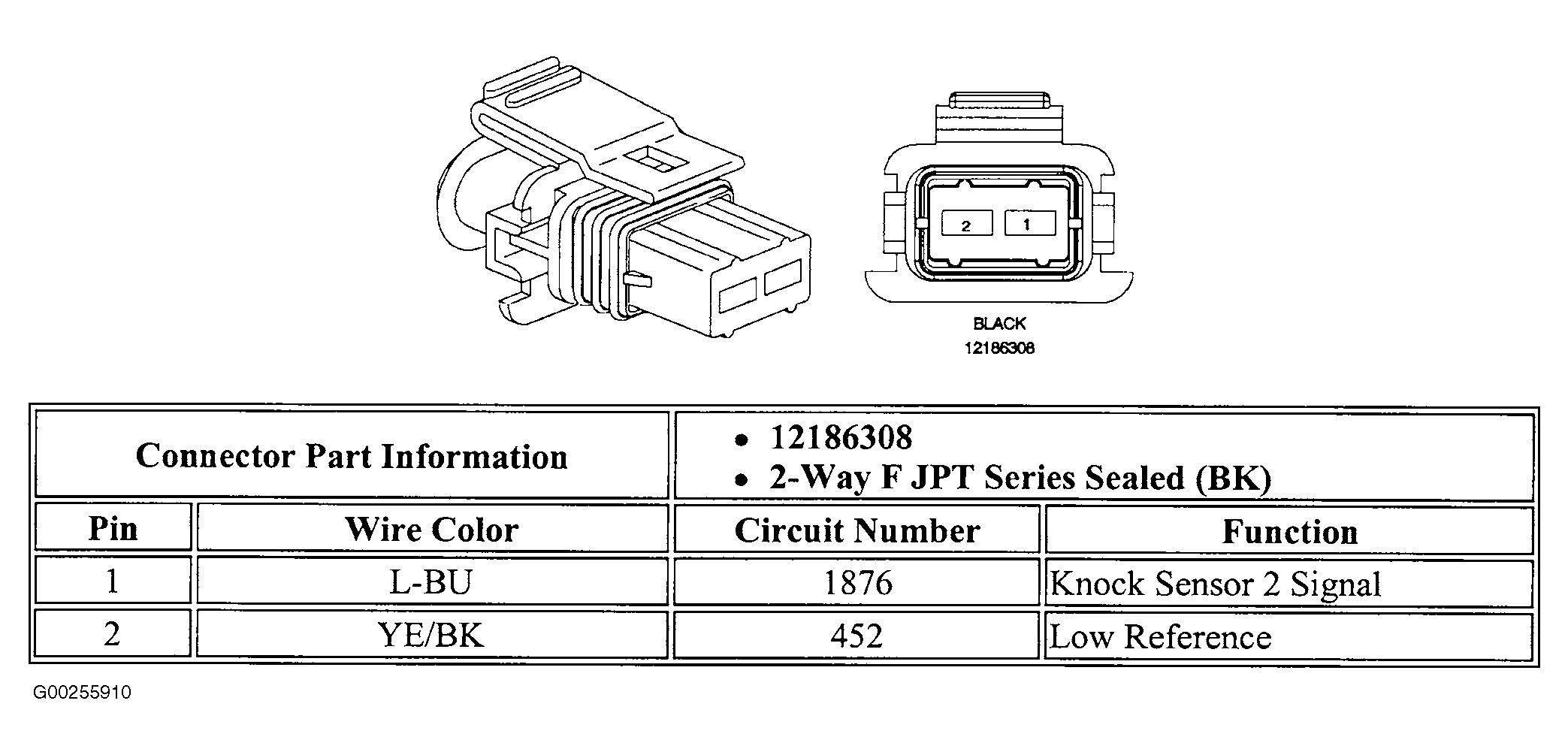

Fig 25: Identifying Knock Sensor (KS) 2 Connector Terminals

G00255910

Courtesy of GENERAL MOTORS CORP.

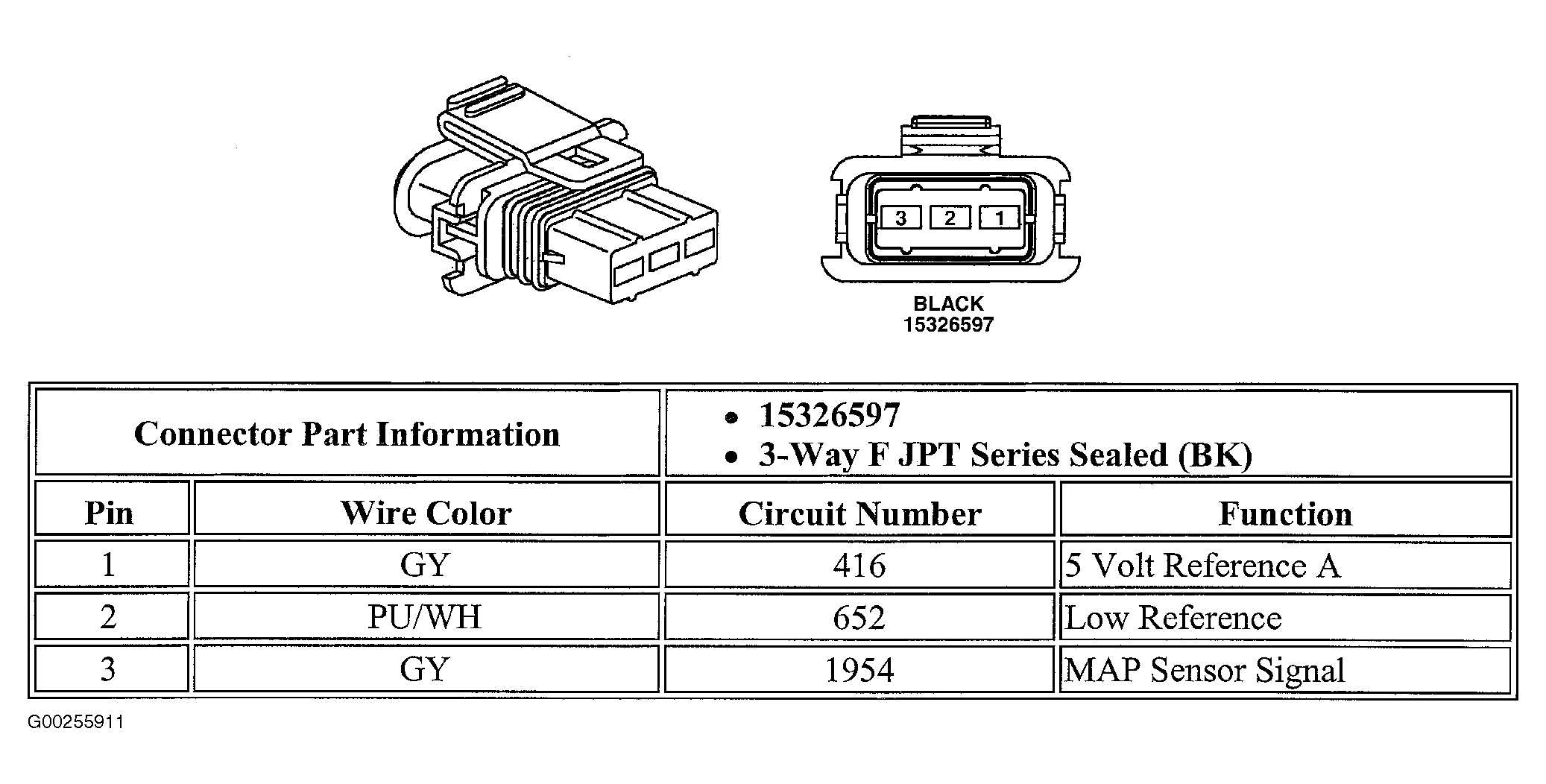

Fig 26: Identifying Manifold Absolute Pressure (MAP) Sensor Connector Terminals

G00255911

Courtesy of GENERAL MOTORS CORP.

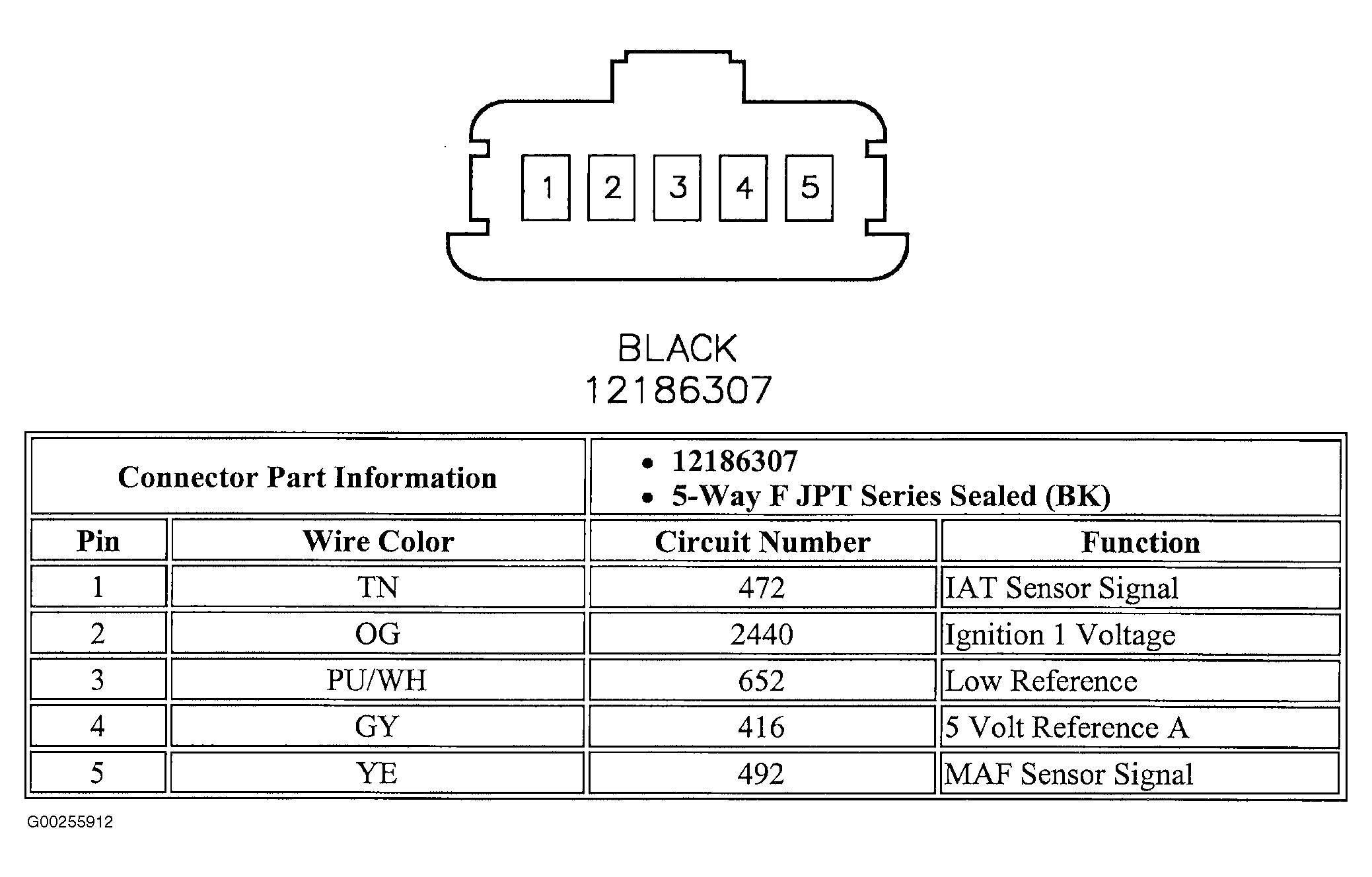

Fig 27: Identifying Mass Airflow (MAF) Sensor Connector Terminals

G00255912

Courtesy of GENERAL MOTORS CORP.

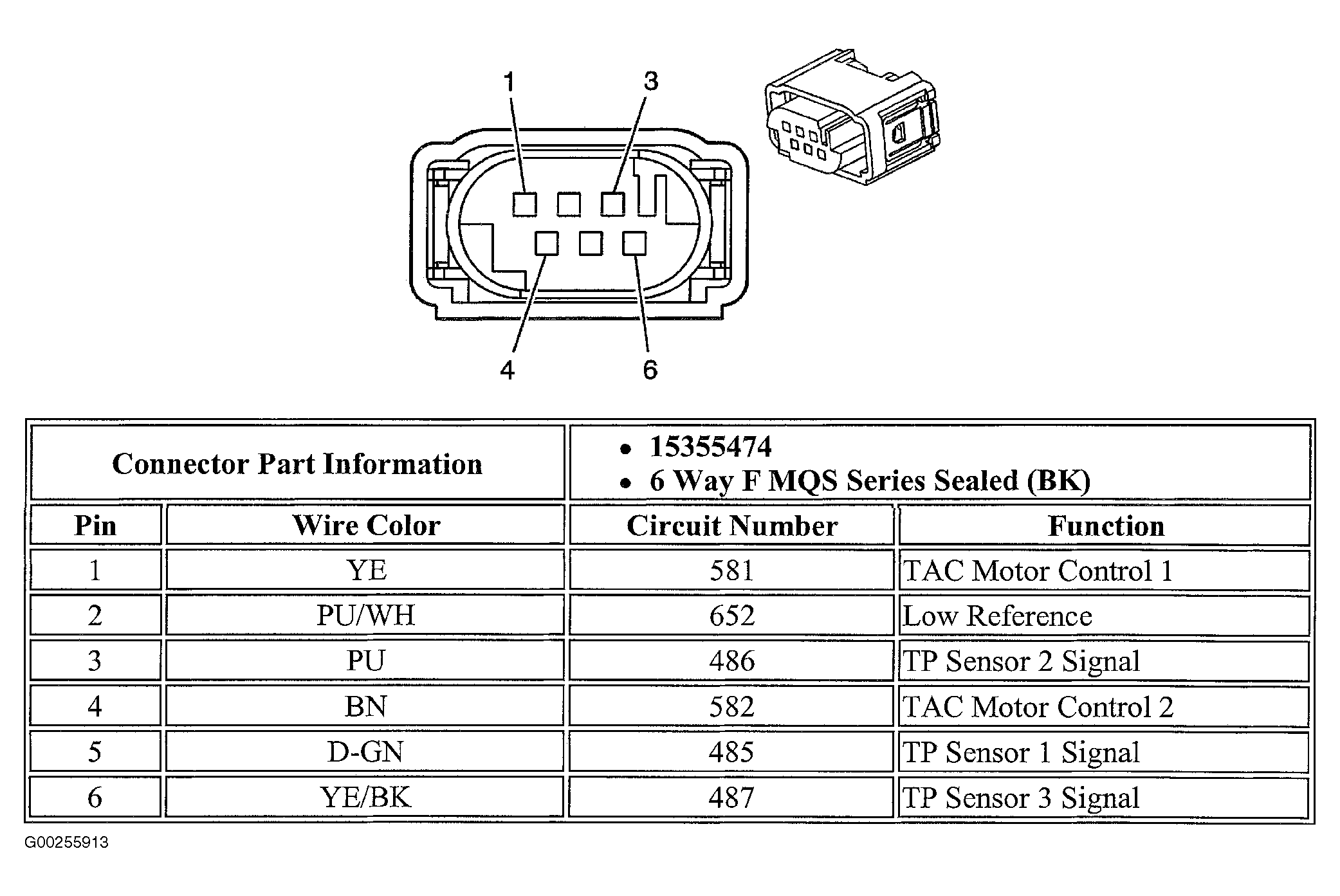

Fig 28: Identifying Throttle Actuator Control (TAC) Module Connector Terminals

G00255913

Courtesy of GENERAL MOTORS CORP.

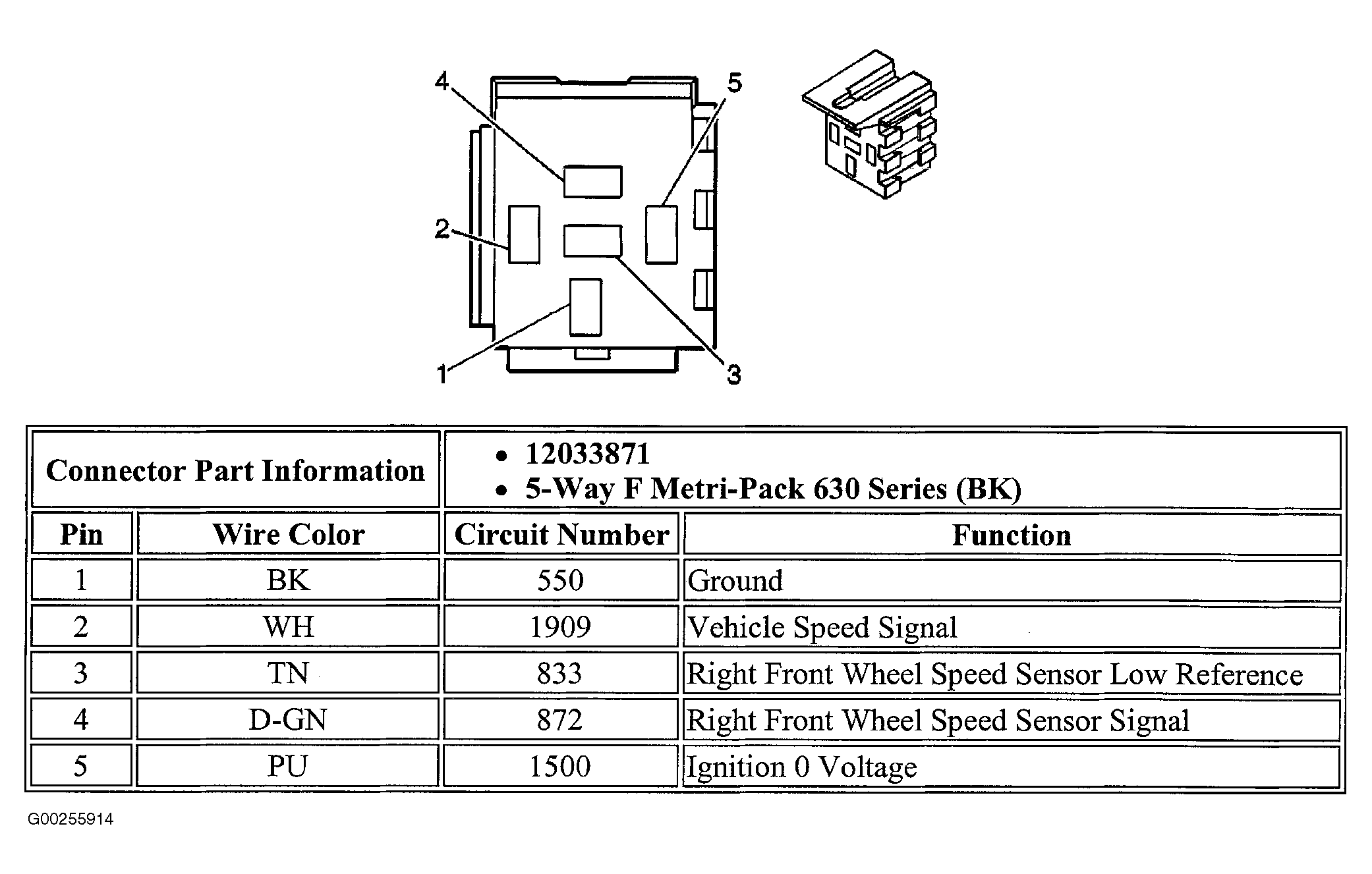

Fig 29: Identifying Wheel Speed Signal Conditioner Module (W/O ABS) Connector Terminals

G00255914

Courtesy of GENERAL MOTORS CORP.
