Front Toe Adjustment

IMPORTANT:

Front wheel toe adjustment is performed with the steering wheel locked in the forward position.
Front toe is performed after rear toe and camber have been checked.

Position and lock the steering wheel with the vehicle with the wheels in the straight forward position.

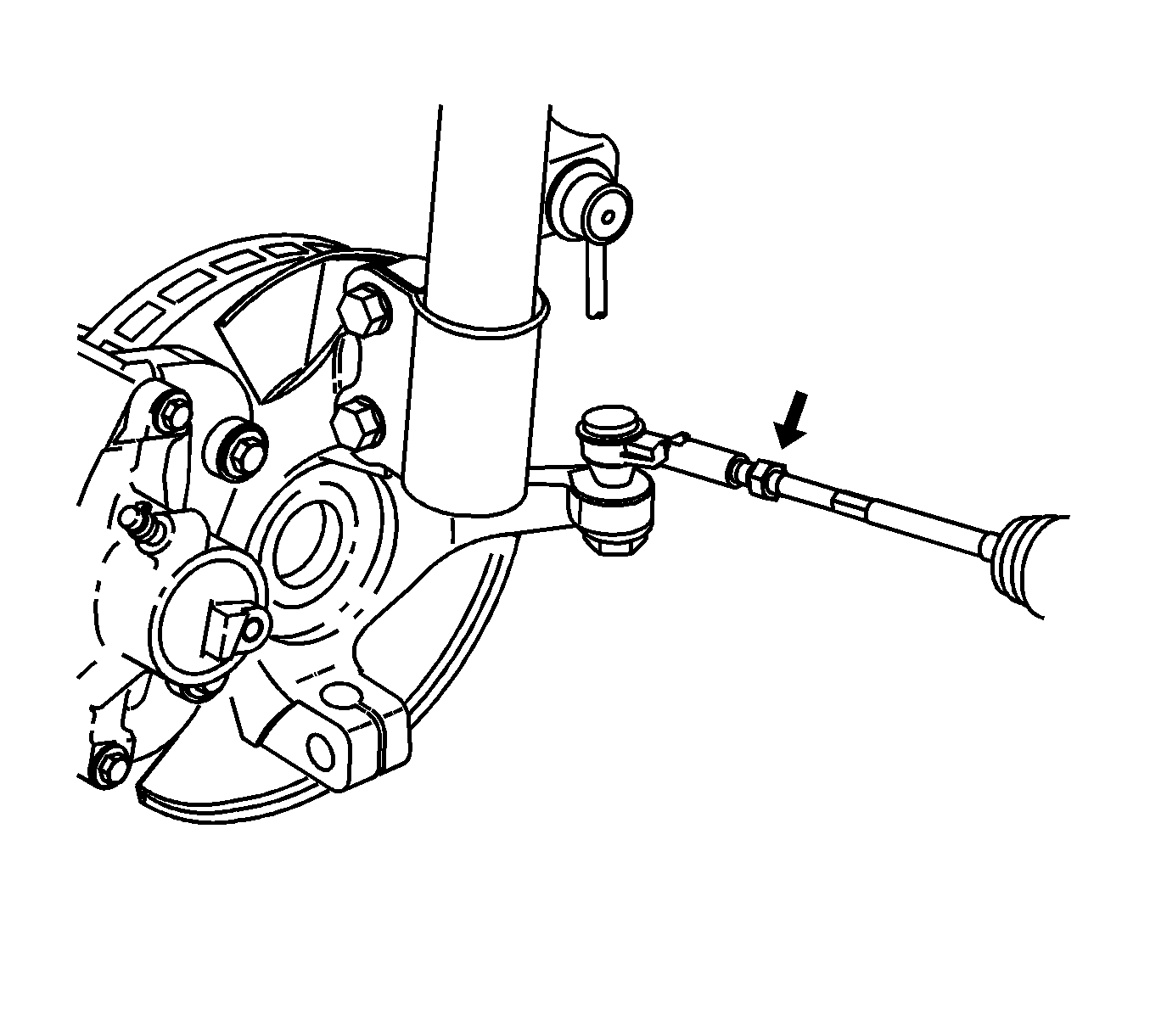

Fig 1: Identifying Tie Rod Inner Jam Nut

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The inner tie rod must rotate freely from the boot seal surface. Do not allow the boot to rotate.

Loosen the inner tie rod seal to boot surface.
Use a wrench on the tie rod flats to increase or decrease the toe angle specifications. Refer to Wheel Alignment Specifications .

NOTE: Refer to FASTENER NOTIC in Cautions and Notices.

Tighten the inner tie rod jam nuts.
Tighten: Tighten the jam nuts to 60 N.m (44 lb ft).
Inspect the toe angle to ensure proper adjustment and adjust as necessary.
