Home >> Saturn >> 2004 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Amplifier, Sound System
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Amplifier, Sound System

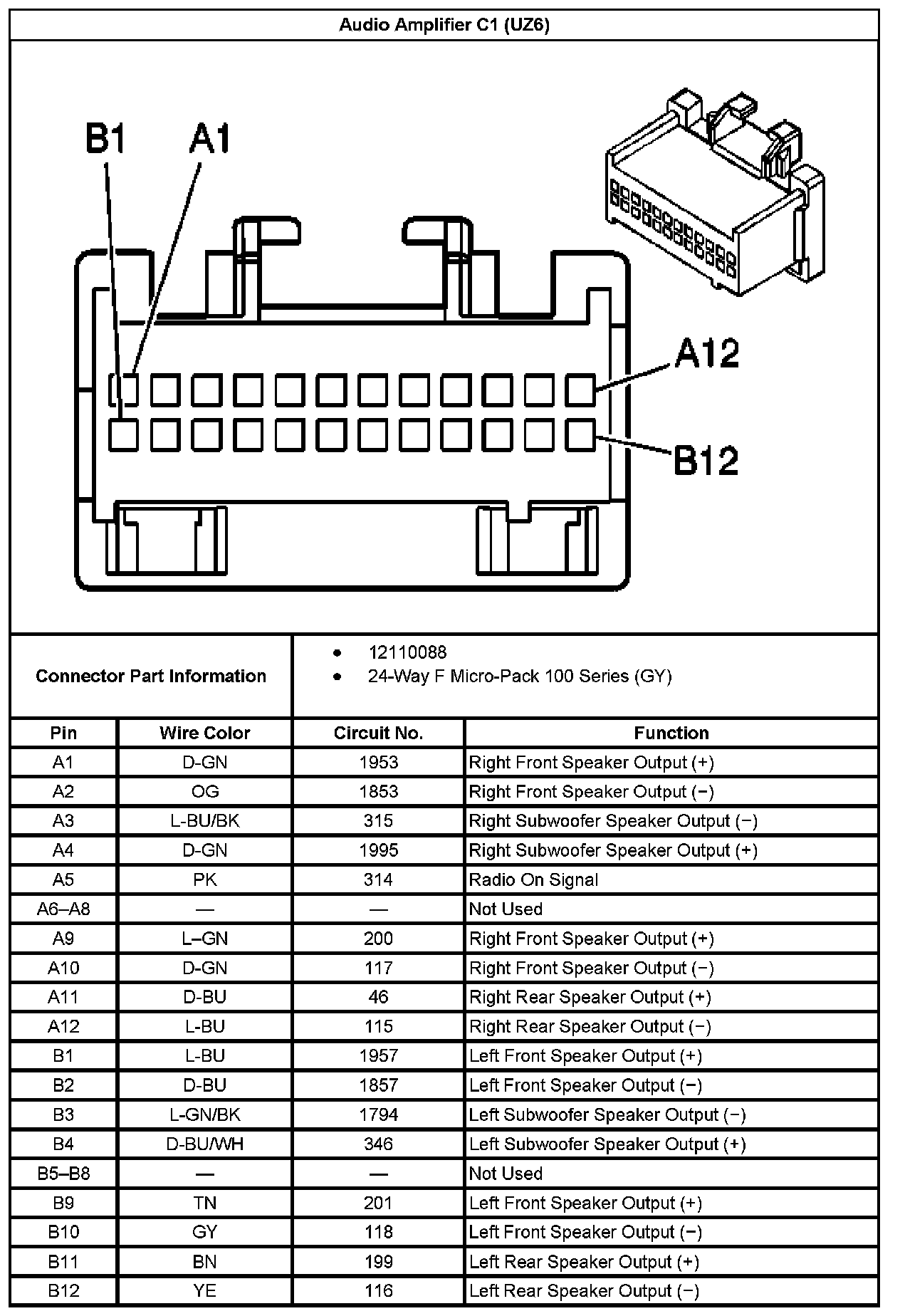

Audio Amplifier C1 (with RPO Code UZ6):

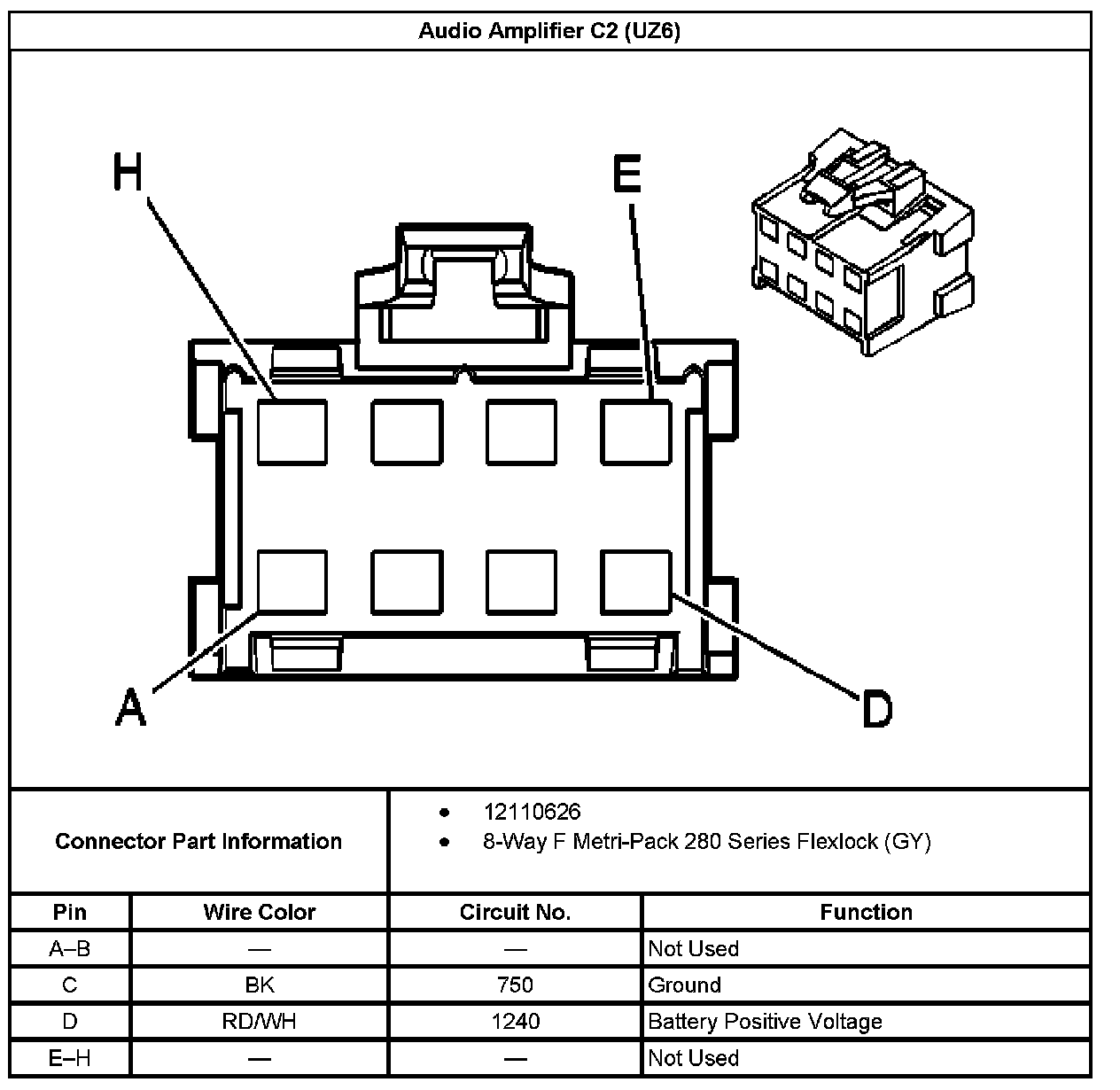

Audio Amplifier C2 (with RPO Code UZ6):
