Door Switch

Door Jamb Switch - Driver:



Door Jamb Switch - Front Passenger:



Door Jamb Switch - LR (Sedan):

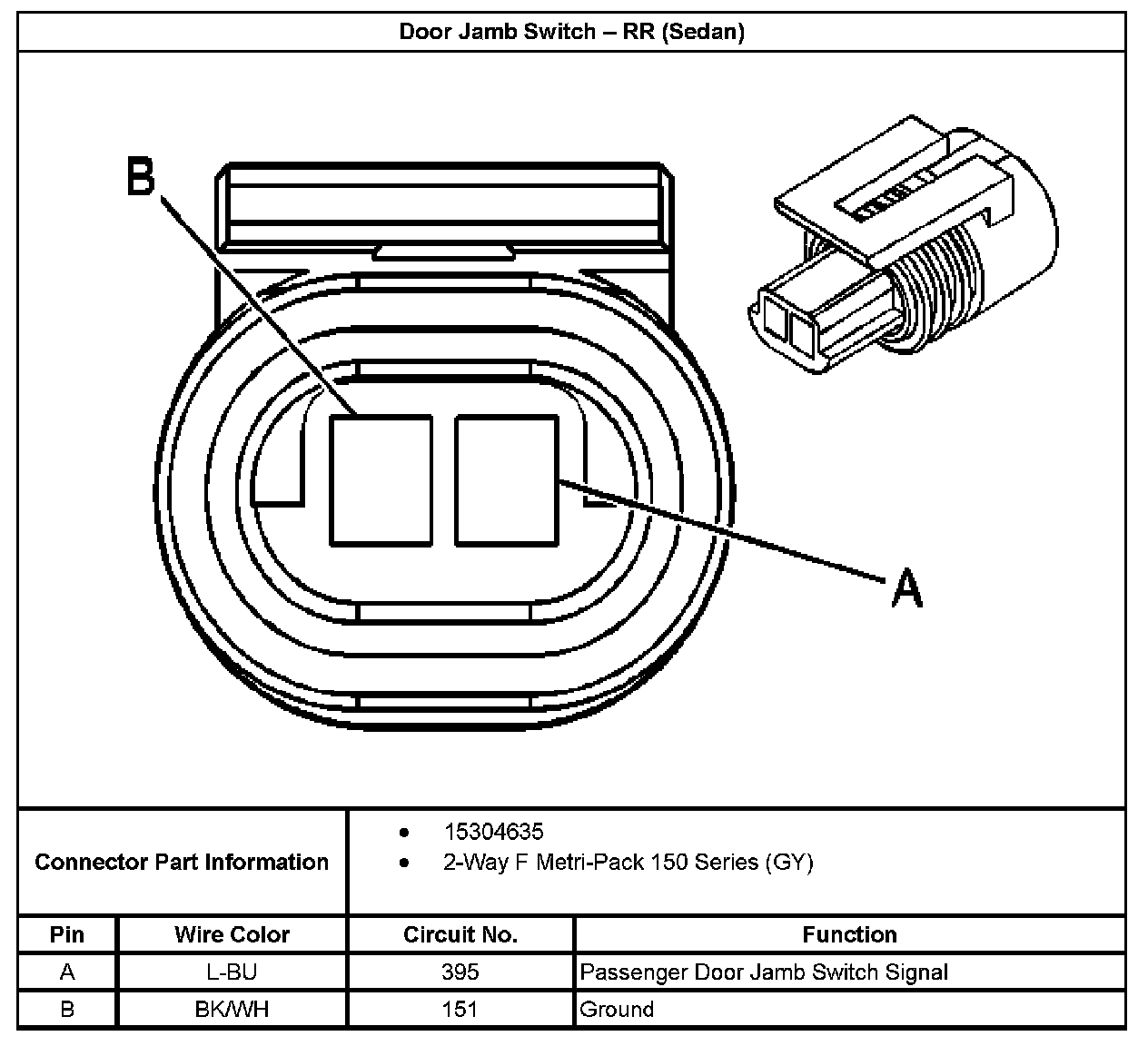

Door Jamb Switch - RR (Sedan):
