Module Power, Ground, DLC, PNP Switch Signals...

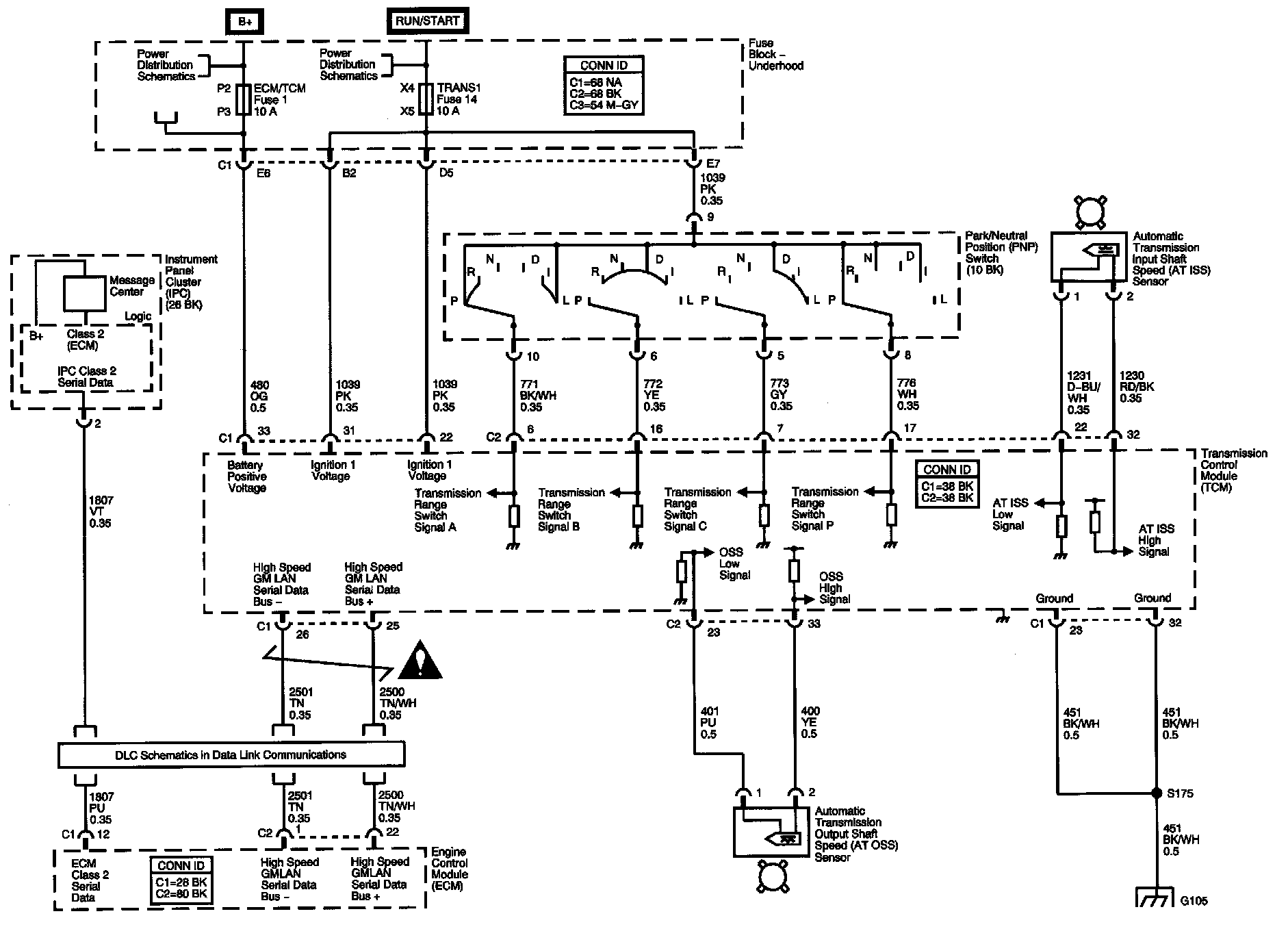

Automatic Transmission Controls Schematics (Module Power, Ground, DLC, PNP Switch Signals, Speed Signals, and Low Center Control
