Transmission Park/Neutral Position Switch Assembly.........

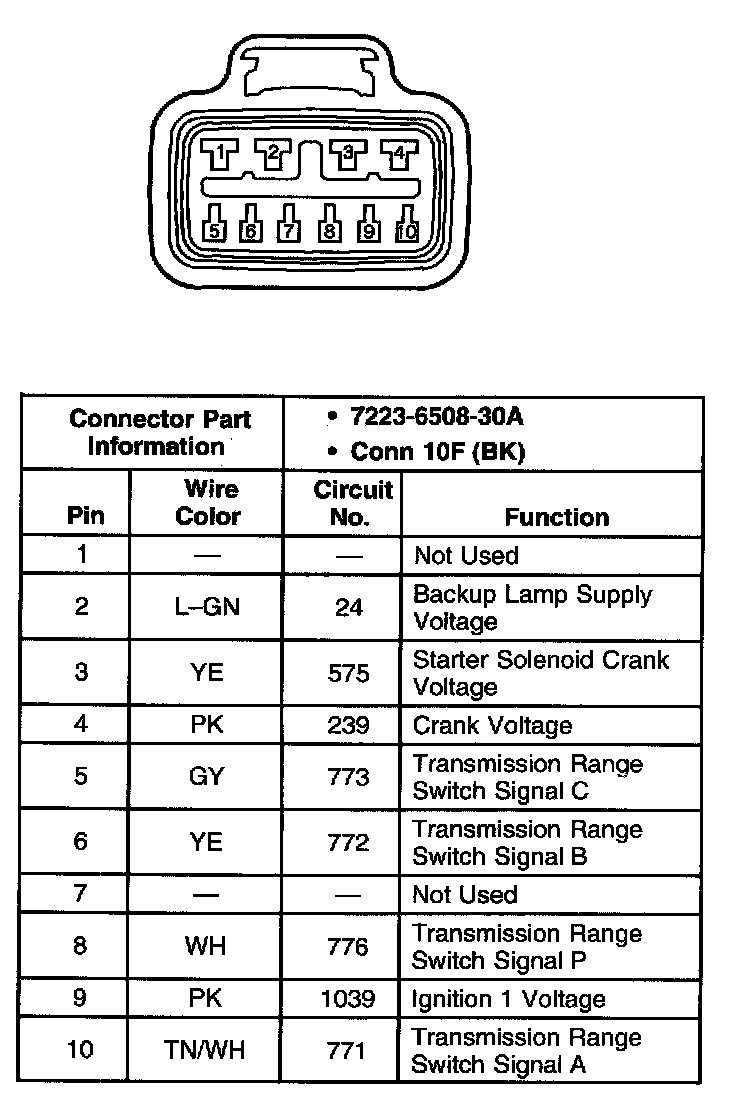

Transmission Park/Neutral Position Switch Assembly Connector, Wiring Harness Side
