Engine Controls Component Views

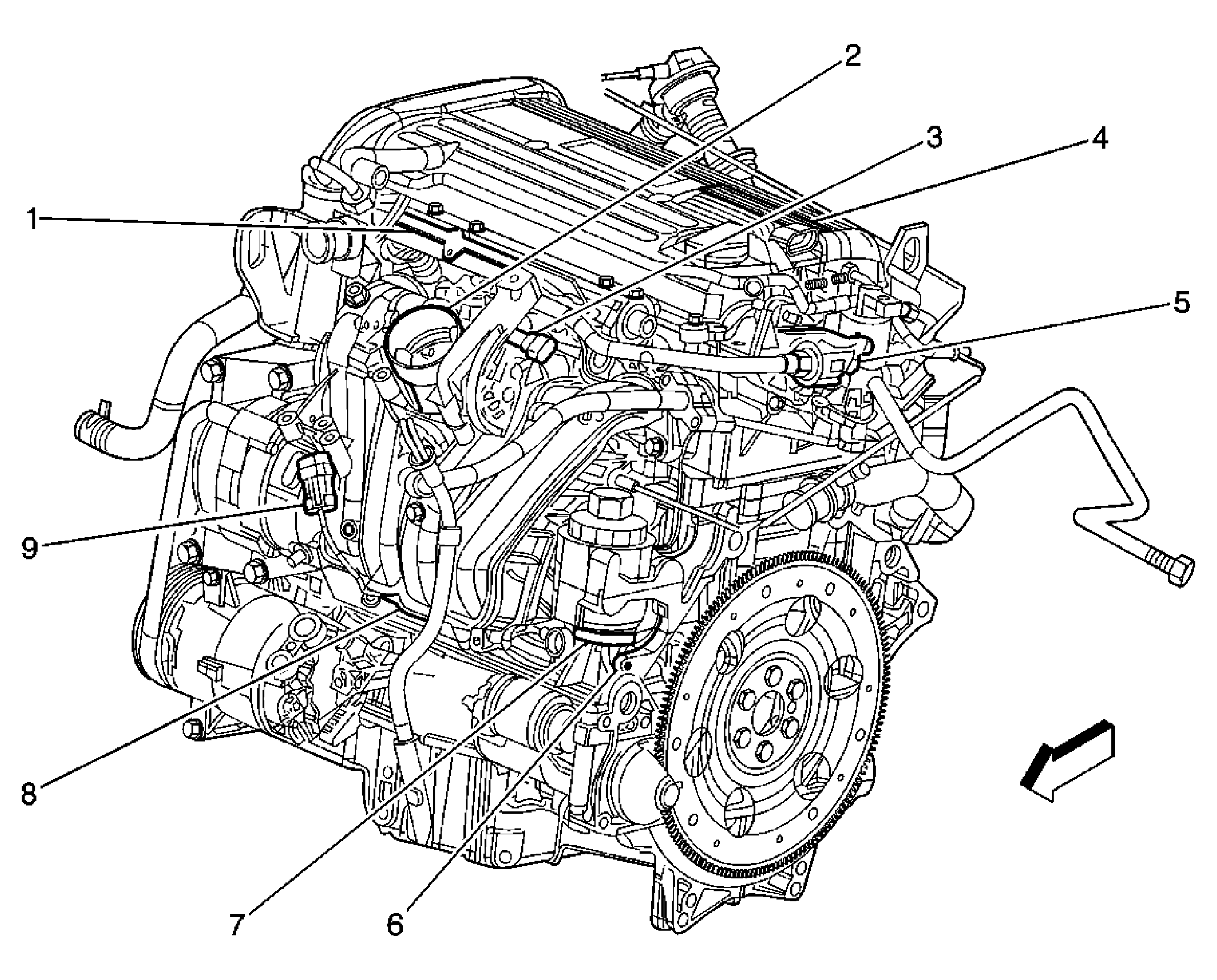

Fig 1: Front Left Side Of Engine Component View (2.2L)
GM1504314Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injectors Rail
2 Throttle Body
3 Manifold Absolute Pressure (MAP) Sensor
4 Ignition Control (IC) Module
5 Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
6 G105 (2.0L Similar)
7 Crankshaft Position (CKP) Sensor
8 Knock Sensor (KS)
9 C150

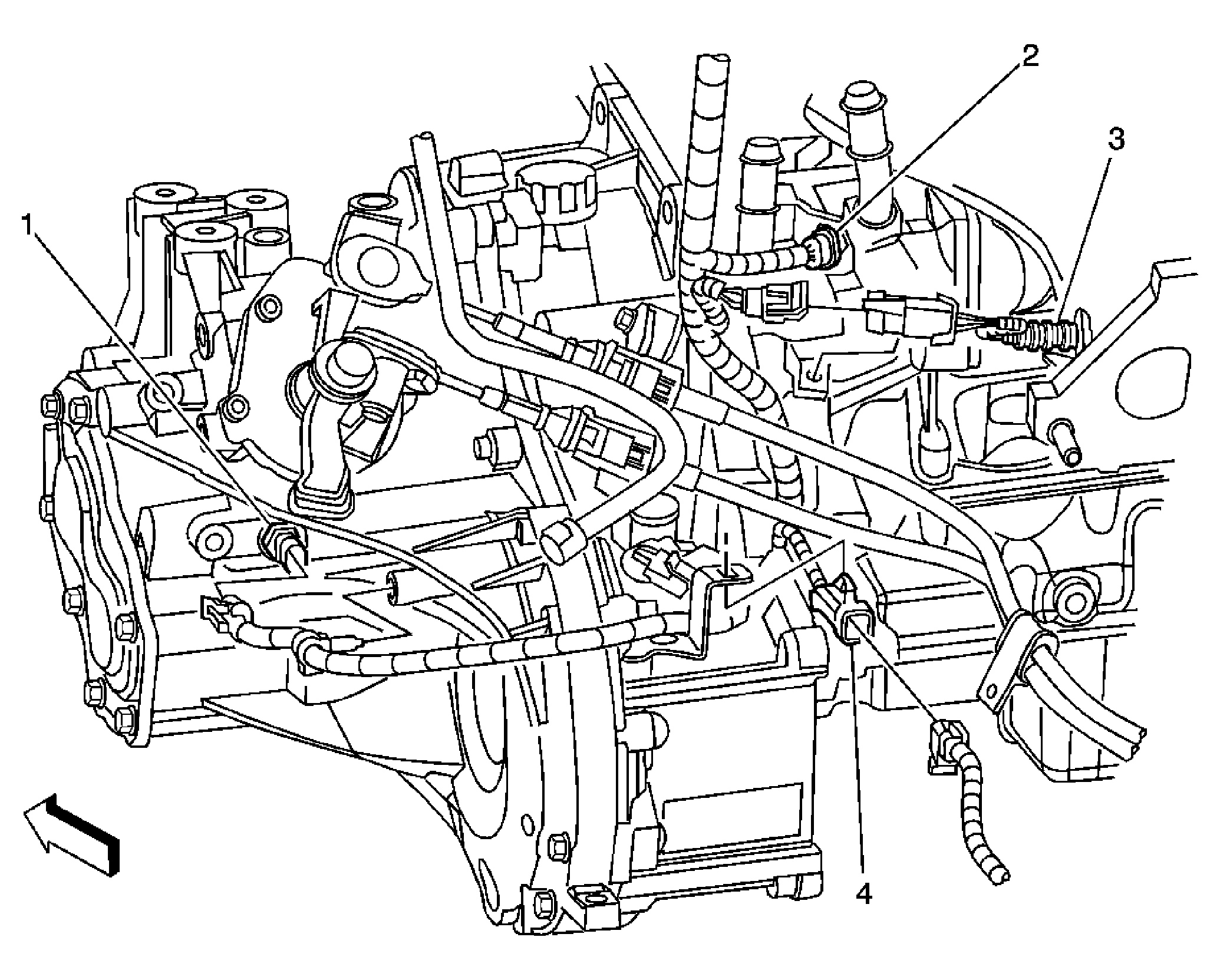

Fig 2: Rear Side Of Engine Component View
GM897816Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Backup Lamp Switch (M86)
2 Engine Coolant Temperature Sensor (ECT)
3 Heated Oxygen Sensor (HO2S)1
4 Heated Oxygen Sensor (HO2S)2 Connector

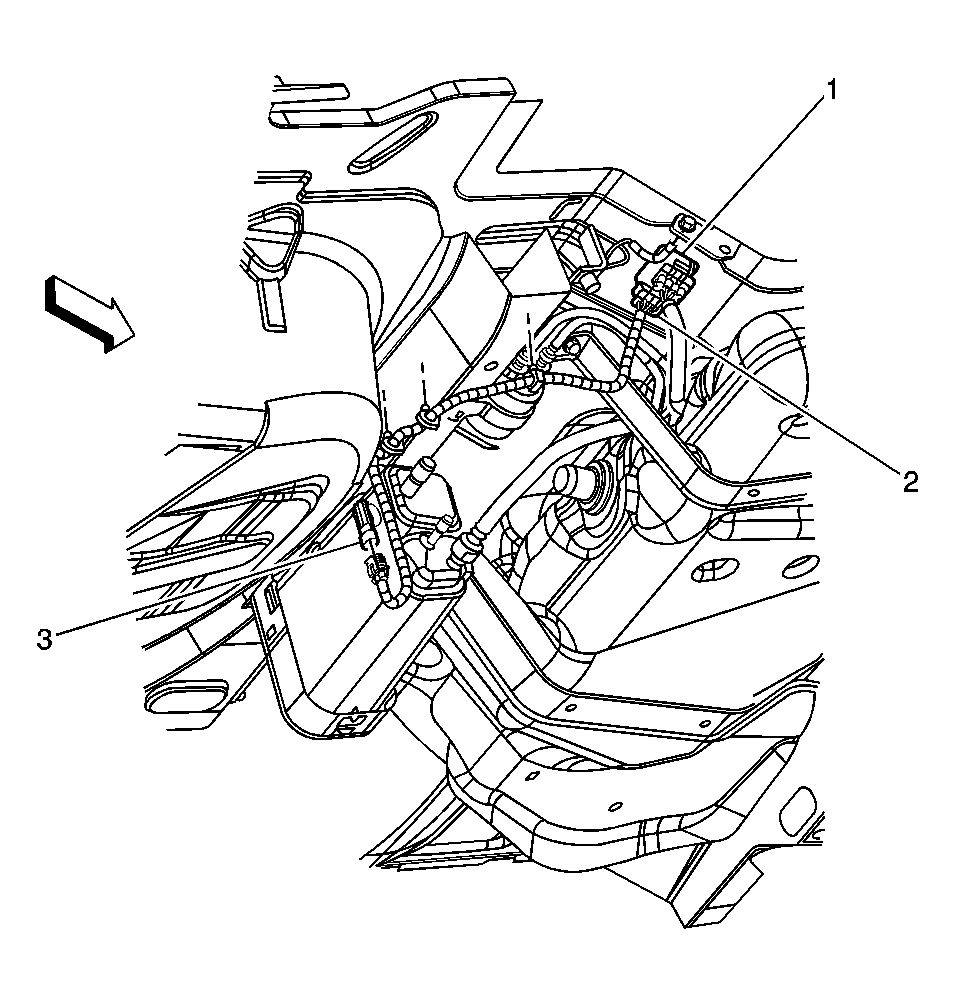

Fig 3: Right Rear Side Under Vehicle Component View
GM897675Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C406 (Fuel Controls)
2 C406 (EVAP Controls)
3 Evaporative Emission (EVAP) Canister Vent Solenoid

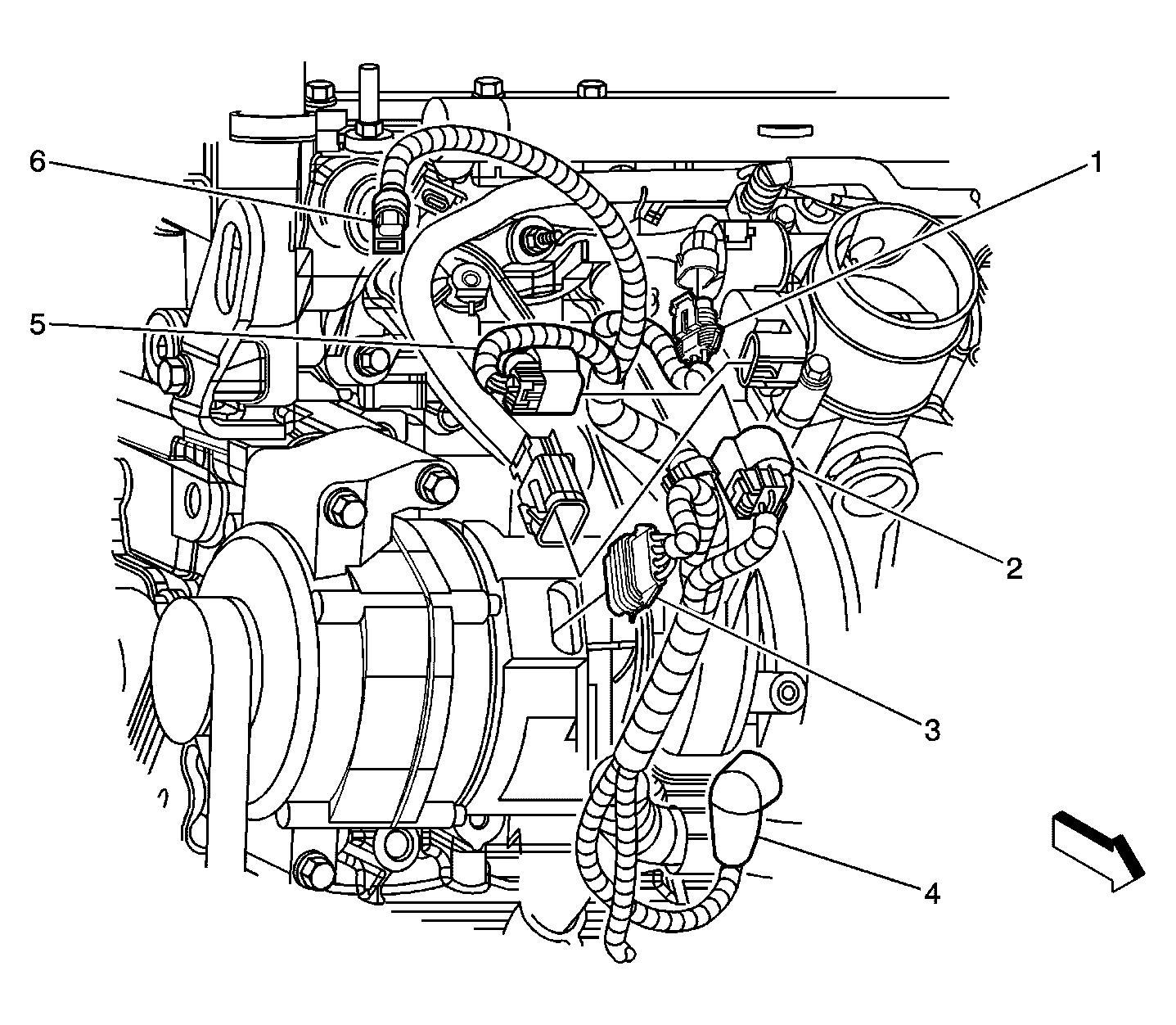

Fig 4: Right Front Side Of Engine Component View (2.2L)
GM897627Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Idle Air Control (IAC)
2 C150
3 Generator
4 Generator B+
5 Throttle Position (TP) Sensor
6 Intake Air Temperature (IAT)

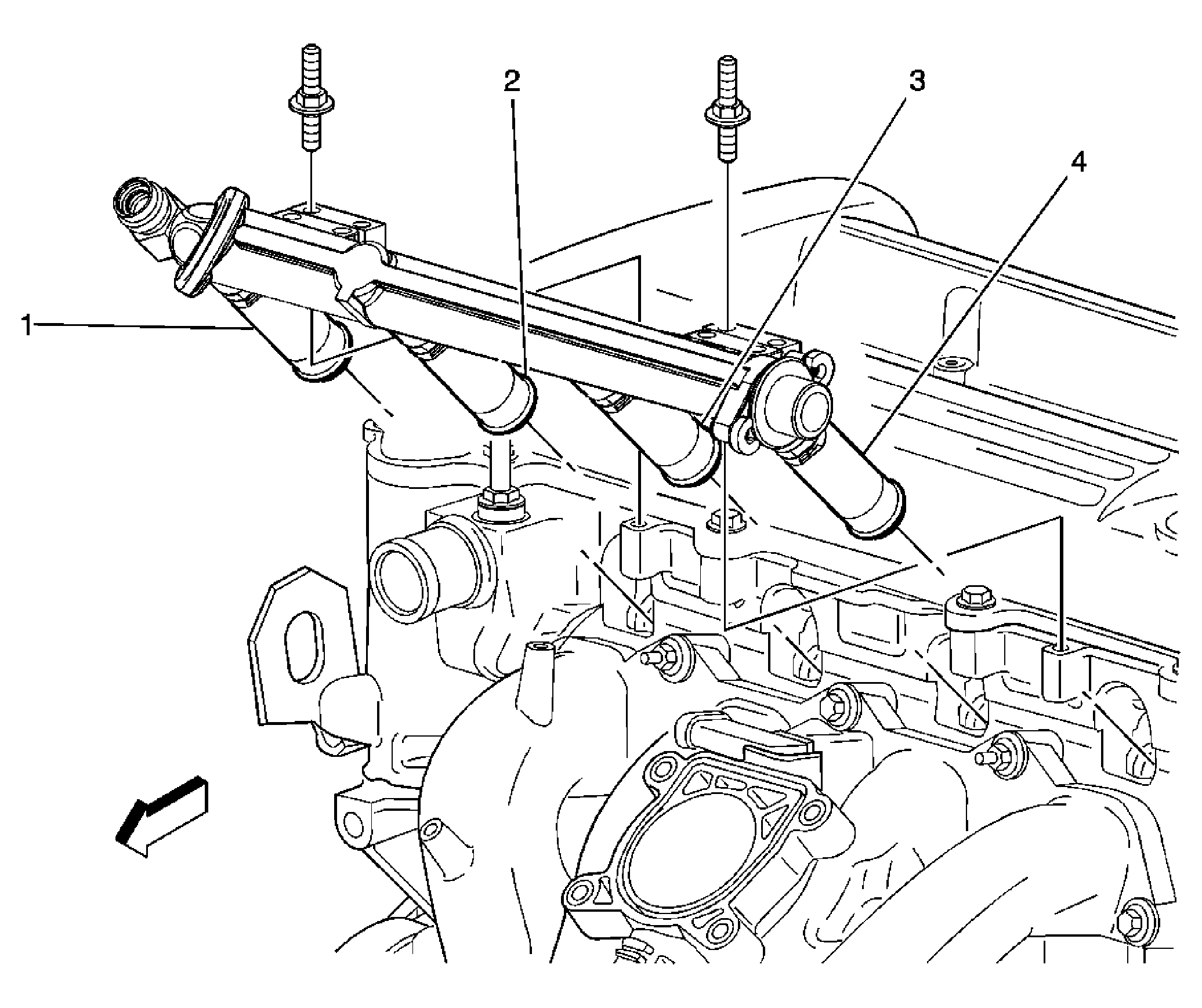

Fig 5: Top Front Of Engine Component View
GM1540536Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 1
2 Fuel Injector 2
3 Fuel Injector 3
4 Fuel Injector 4
Fig 6: Fuel Pump & Sender Assembly Component View
GM61866Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank Pressure (FTP) Sensor
2 Fuel Pump and Sender Assembly
3 Fuel Pump Strainer
4 Fuel Level Sensor
