Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the accelerator bracket (2) on the throttle body (1).

    Tighten:  Tighten the accelerator bracket bolts to 10 N.m (89 lb in).

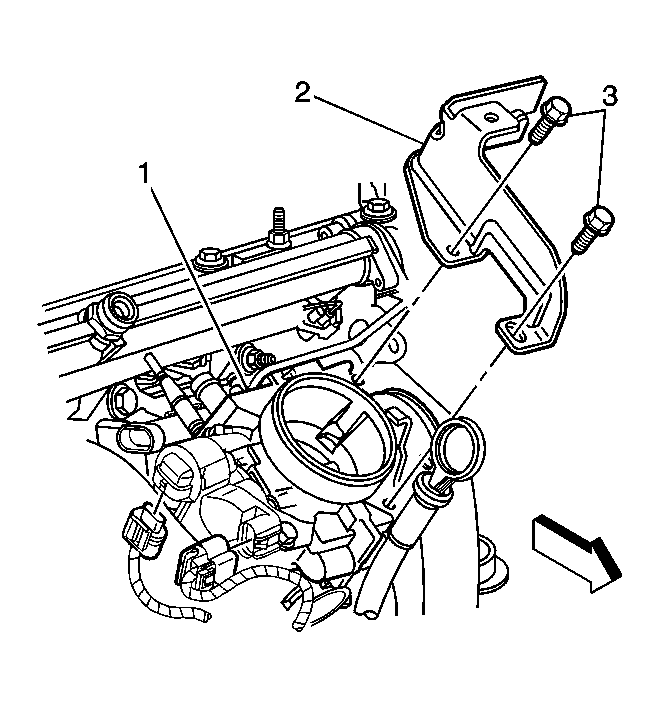

    2. Fig 1: View Of Accelerator Bracket
    GM889862Courtesy of GENERAL MOTORS CORP.
  2. Connect the accelerator control cable to the throttle body and accelerator bracket.

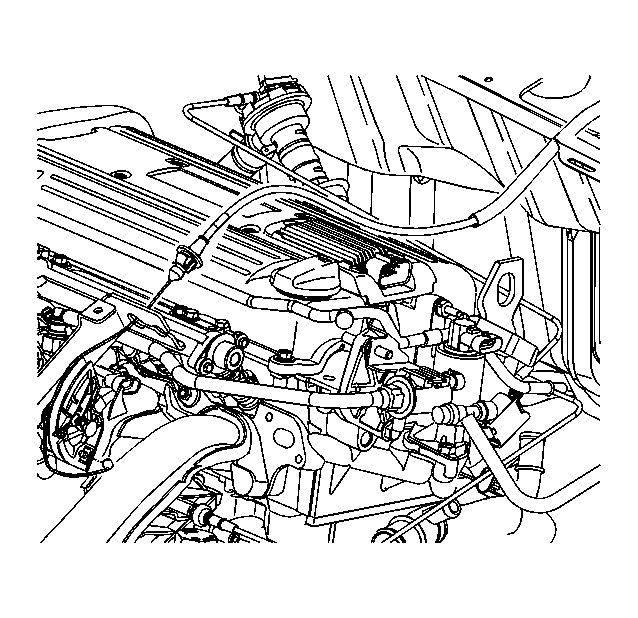

    3. Fig 2: Identifying Accelerator Control Cable
    GM851308Courtesy of GENERAL MOTORS CORP.
  3. Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
