Removal Procedure

  1. Depress the accelerator control cable tangs from the pedal lever assembly.
  2. Remove the accelerator control cable from the pedal lever assembly.

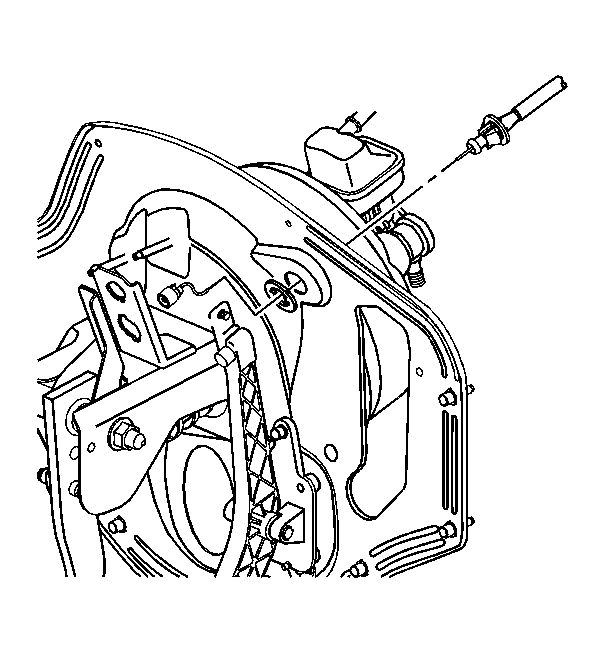

    3. Fig 1: Locating Accelerator Control Cable
    GM854276Courtesy of GENERAL MOTORS CORP.
  3. Release the accelerator control cable lug (3) from the throttle body assembly (4).
  4. Depress the tangs on the control cable (2) while pulling the cable through the control cable bracket (1).
    5. Fig 2: Control Cable Bracket View
    GM782246Courtesy of GENERAL MOTORS CORP.
  5. Remove the control cable from the bracket.
  6. Disconnect the control cable (2) from the support clip (1).
  7. Remove the cable from the vehicle.
    8. Fig 3: View Of Control Cable & Support Clip
    GM782235Courtesy of GENERAL MOTORS CORP.
