Installation Procedure

    IMPORTANT: Verify full engagement of the inlet onto the resonator neck.
  1. Position the air cleaner assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the air cleaner assembly attachment nut.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  3. Connect the air cleaner resonator to the air cleaner assembly.

    Tighten:  Tighten the air cleaner intake duct clamp to 5 N.m (44 lb in).

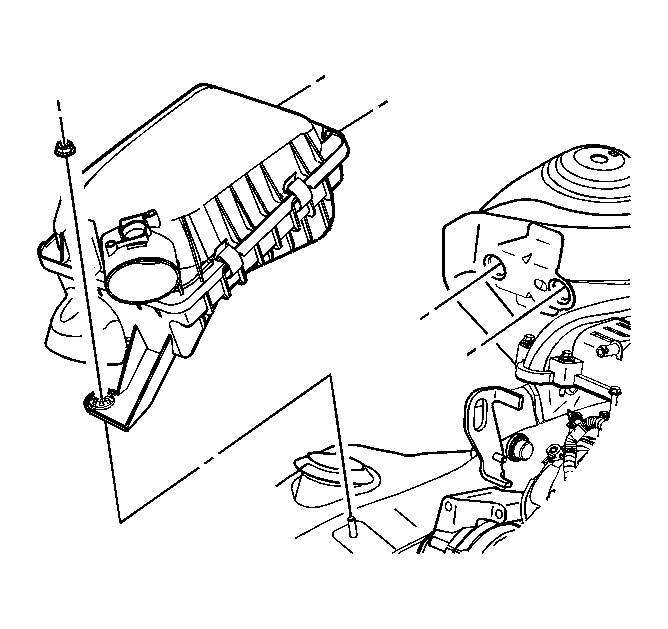

    4. Fig 1: View Of Air Cleaner Assembly
    GM854291Courtesy of GENERAL MOTORS CORP.
