Stationary Windows Component Views

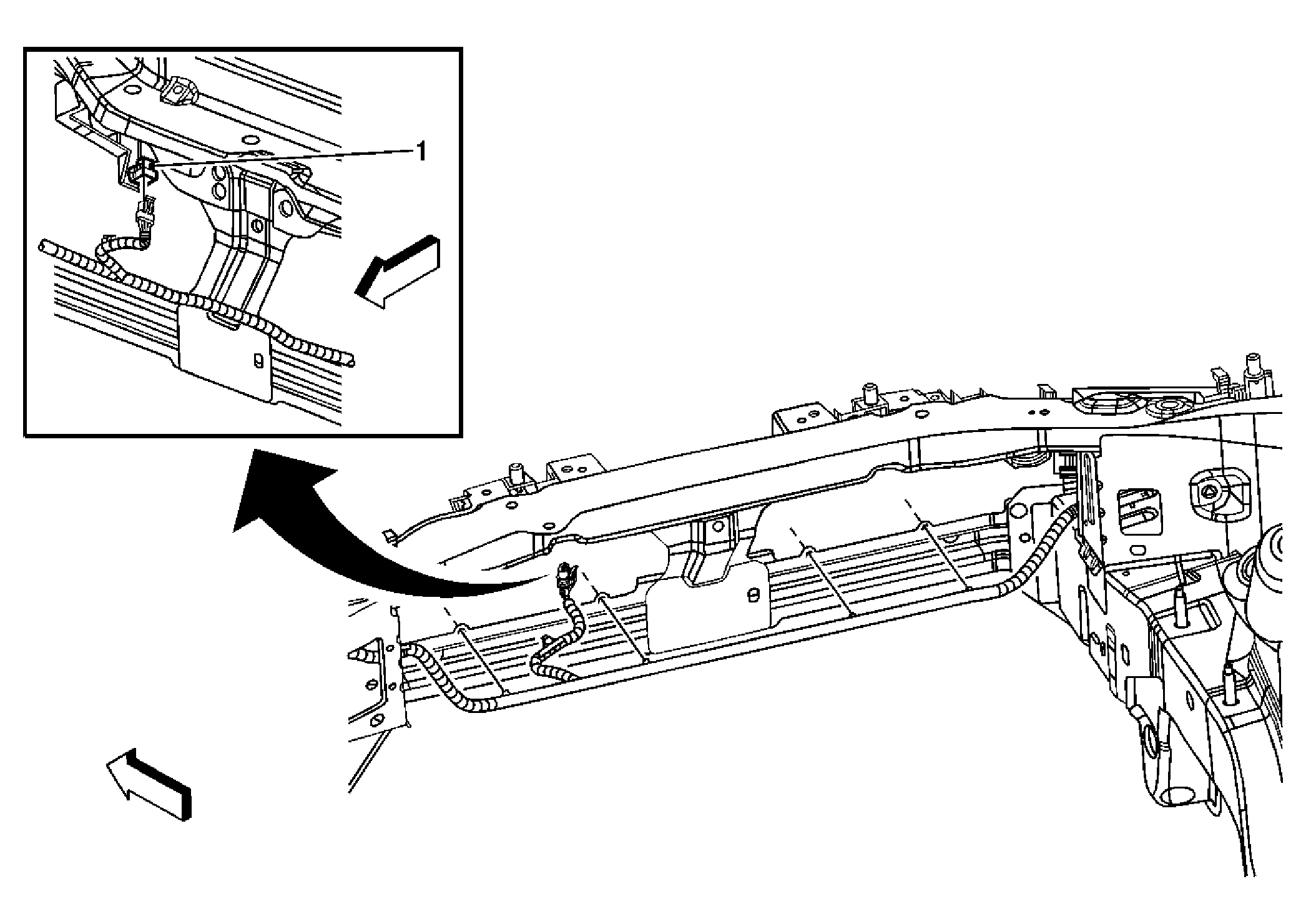

Fig 1: Left Front Of Vehicle (DF5) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor

Fig 2: Top Center Of Windshield Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rear View Mirror

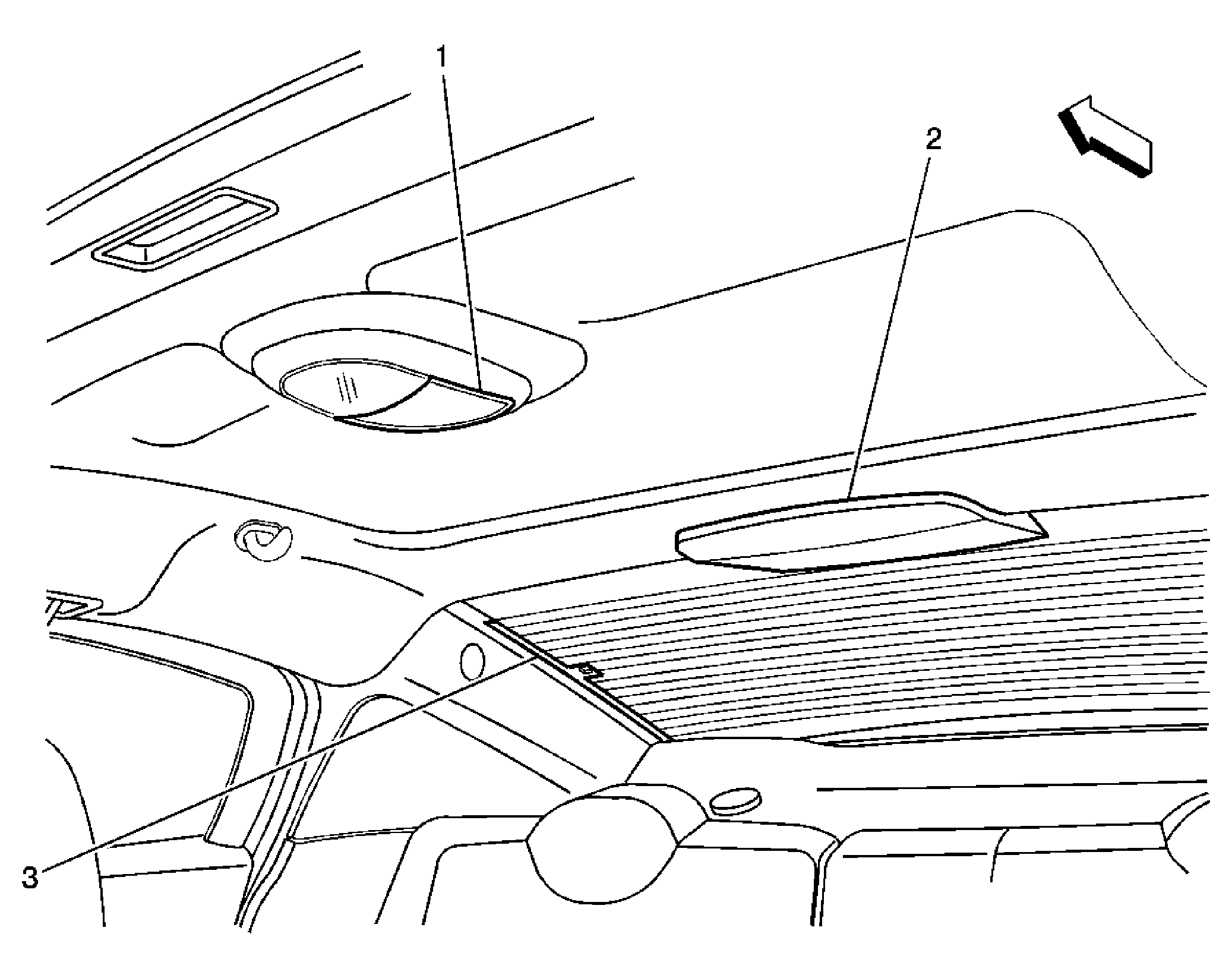

Fig 3: Rear Of Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger Grid

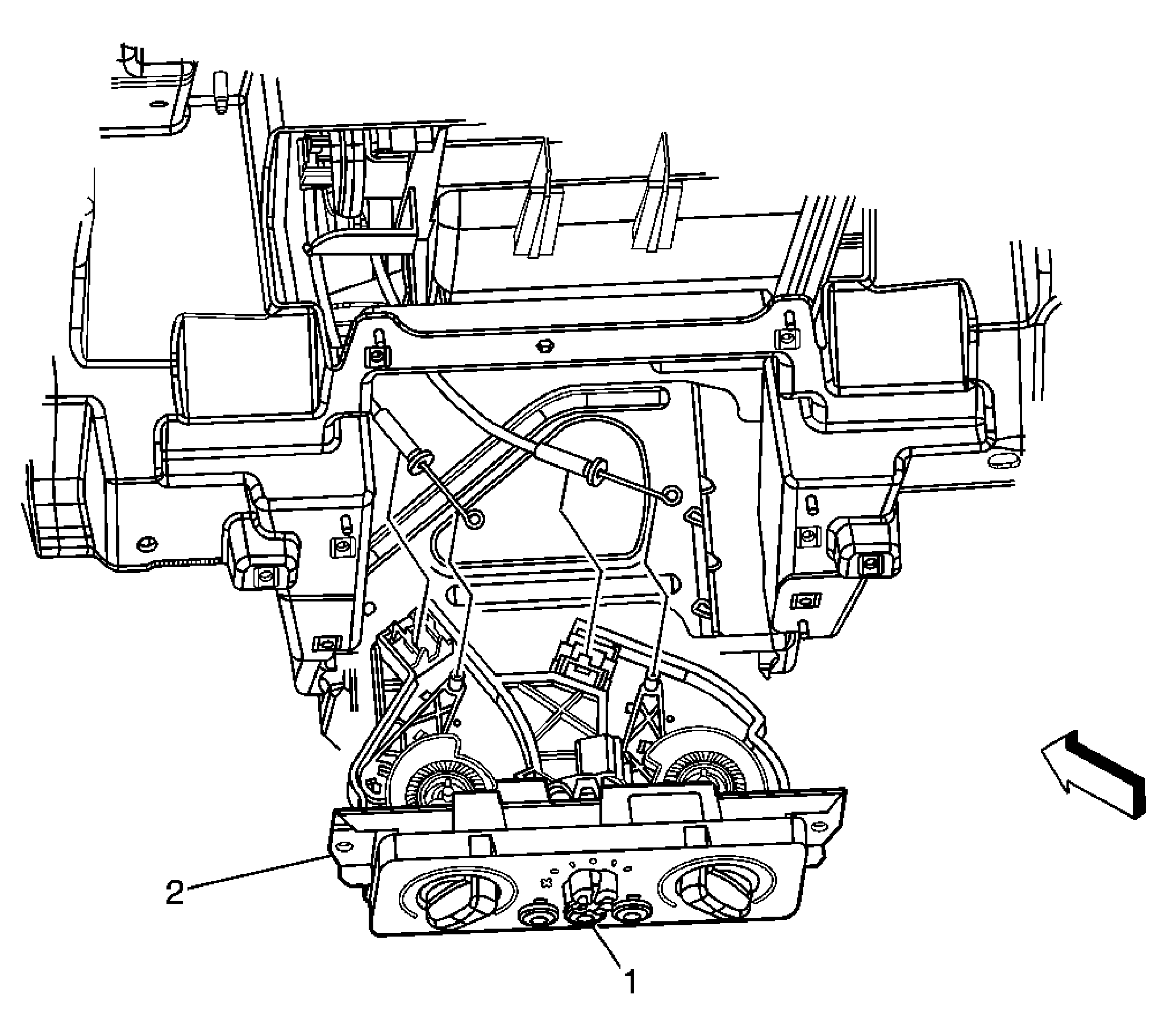

Fig 4: Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Switch
2	HVAC Control Assembly
