Removal Procedure
- Remove the rear roof rail appliques. Refer to Molding Replacement - Roof Weld Joint Reveal - Rear (Coupe) or Molding Replacement - Roof Weld Joint Reveal - Rear (Sedan) in Exterior Trim.
- Remove the rear upper garnish moldings. Refer to Garnish Molding Replacement - Lock Pillar Upper in Interior Trim.
- Disconnect the rear window defogger electrical connectors.
- Disconnect the rear window radio antenna connector.
- Open the rear compartment lid in order to access the reveal molding.
- Cut the urethane adhesive along the sides of the rear window:
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
- From the outside of the car, use J 39032 to cut the urethane along the sides of the window. See Special Tools and Equipment .
- From the inside of the car, cut the urethane bead along the top and the bottom of the rear window.

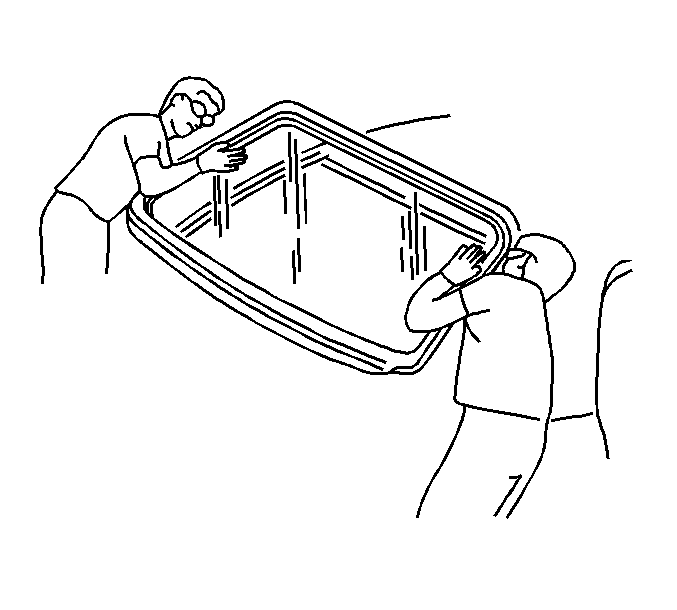

- With the aid of an assistant, lift the rear window from the opening.
CAUTION:
If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
IMPORTANT:
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim.
CAUTION:
When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
