Installation Procedure

  1. Install the mirror to the mounting pad.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Tighten the set screw that retains the mirror base to the mounting pad.

    Tighten:  Tighten the mirror set screw to 2 N.m (18 lb in).

  3. Install the rearview mirror wiring harness.

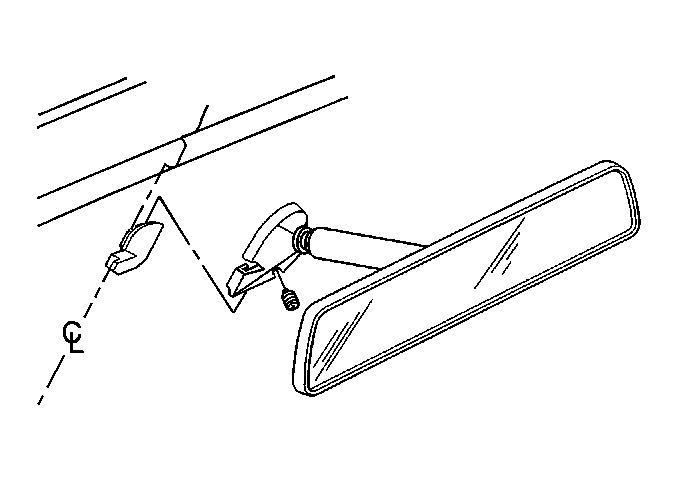

    4. Fig 1: View Of Rearview Mirror Mounting Components
    GM326796Courtesy of GENERAL MOTORS CORP.
