Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

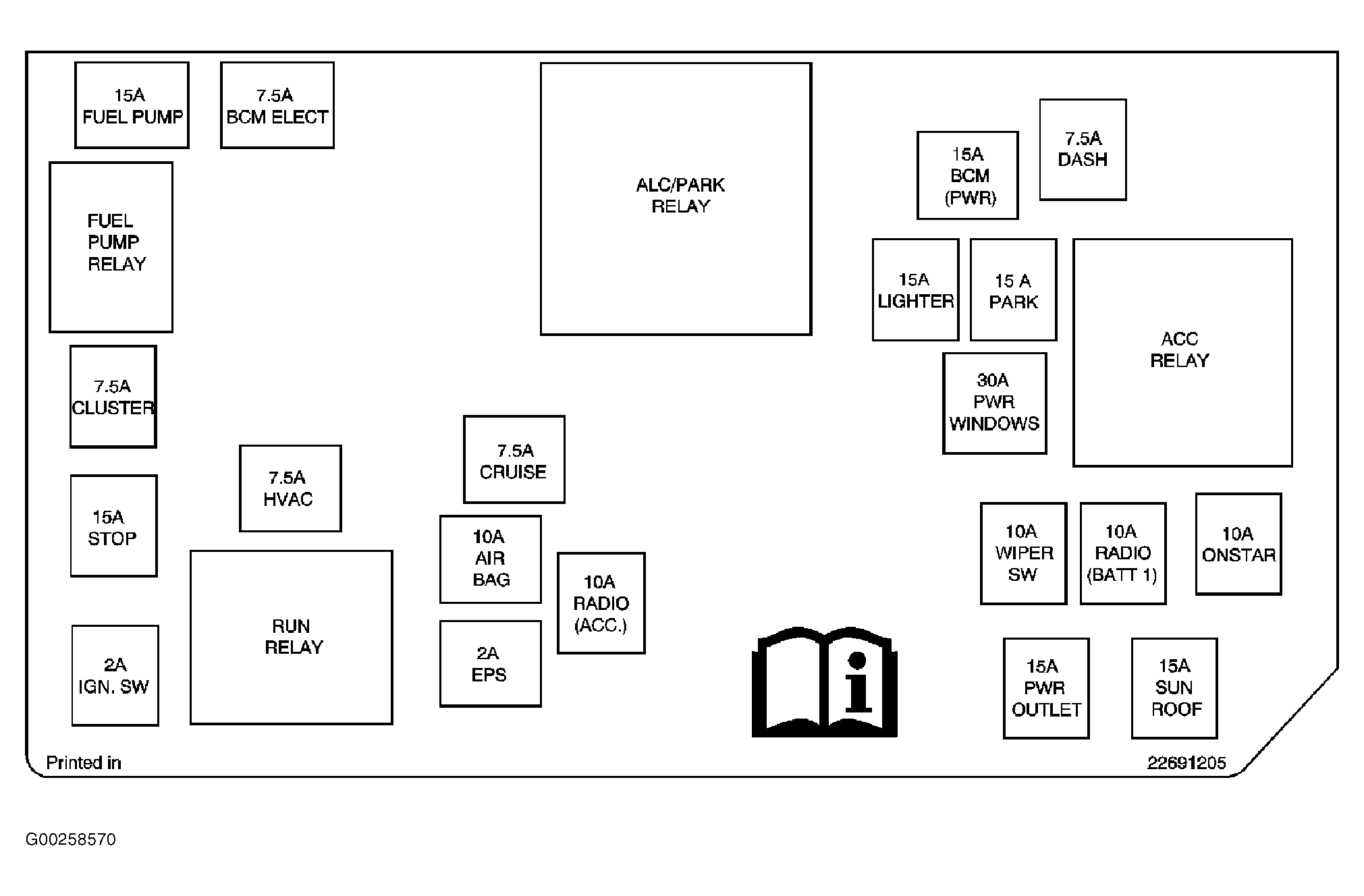

Fig 1: Locating Body Control Module & Junction Block
Courtesy of GENERAL MOTORS CORP.

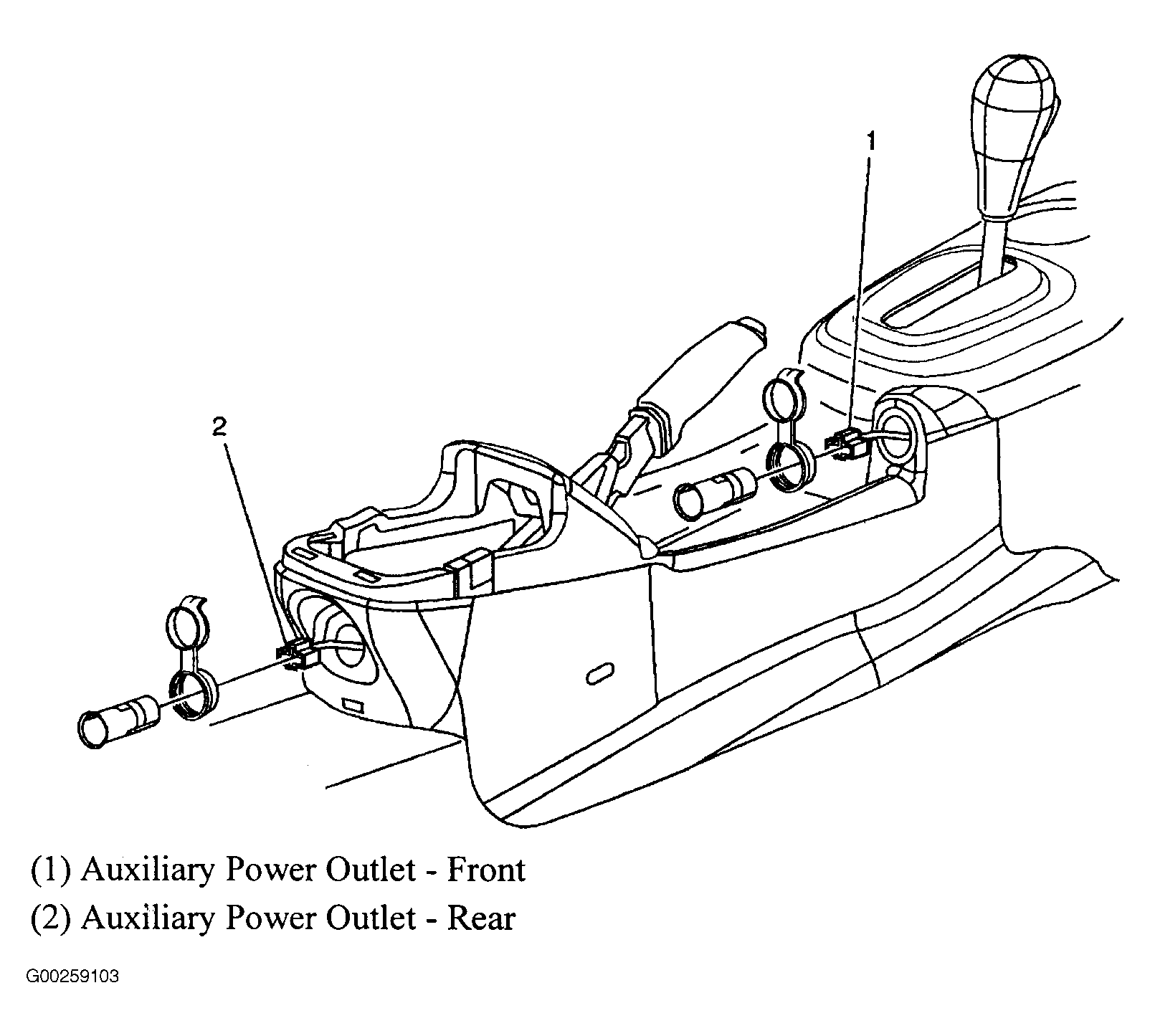

Fig 2: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Rear Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

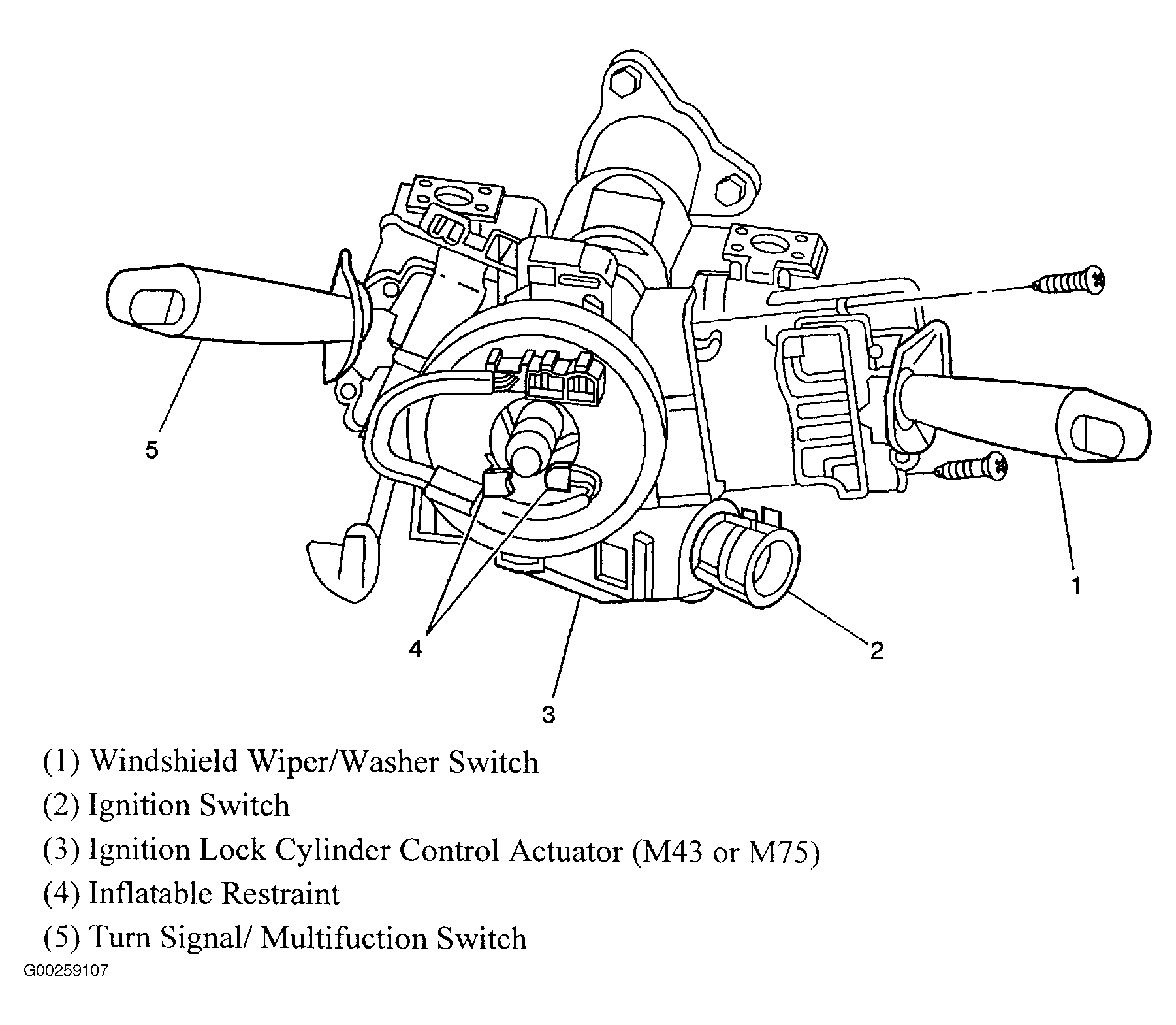

Fig 4: Top Of Steering Column
Courtesy of GENERAL MOTORS CORP.

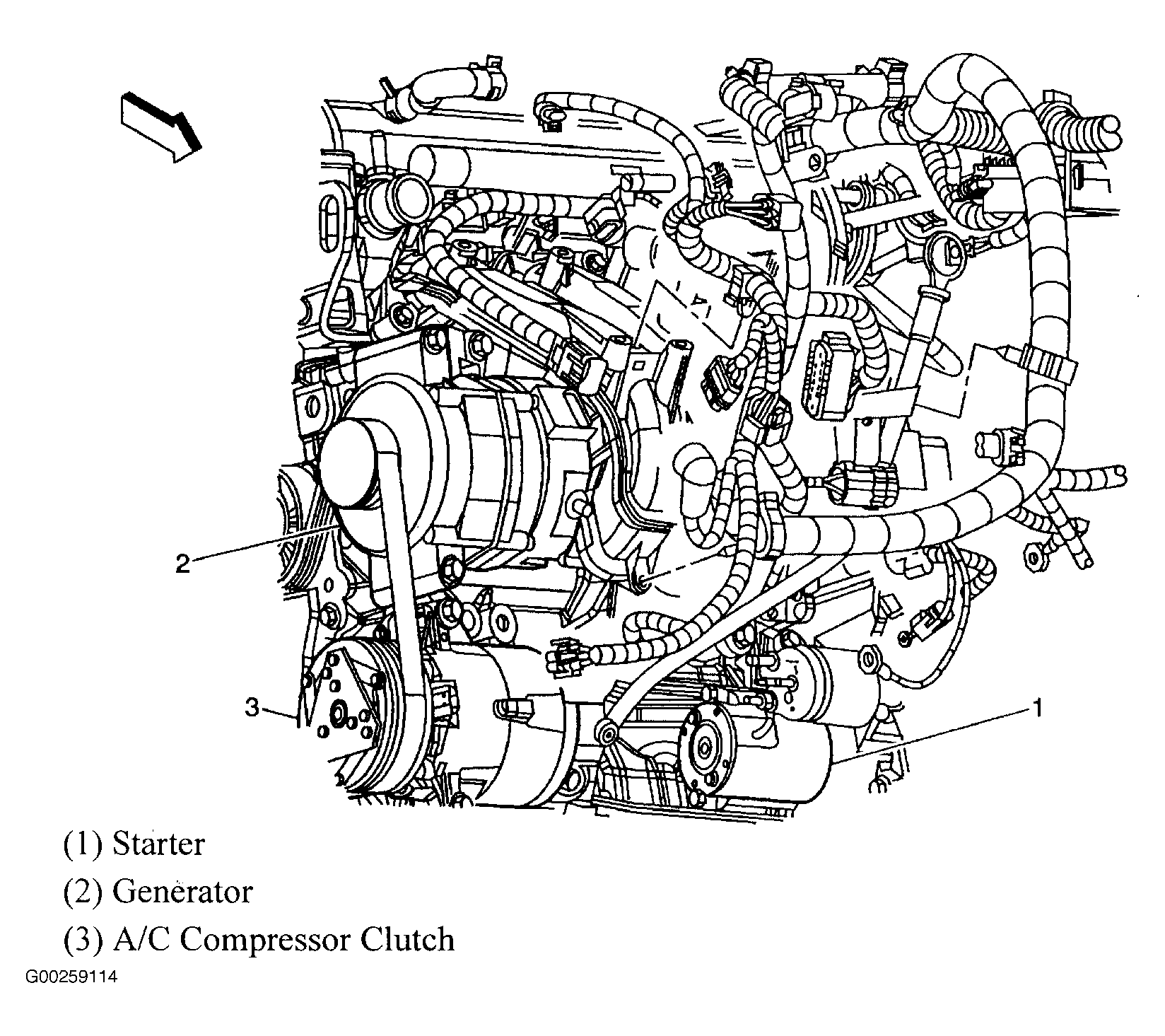

Fig 5: Lower Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

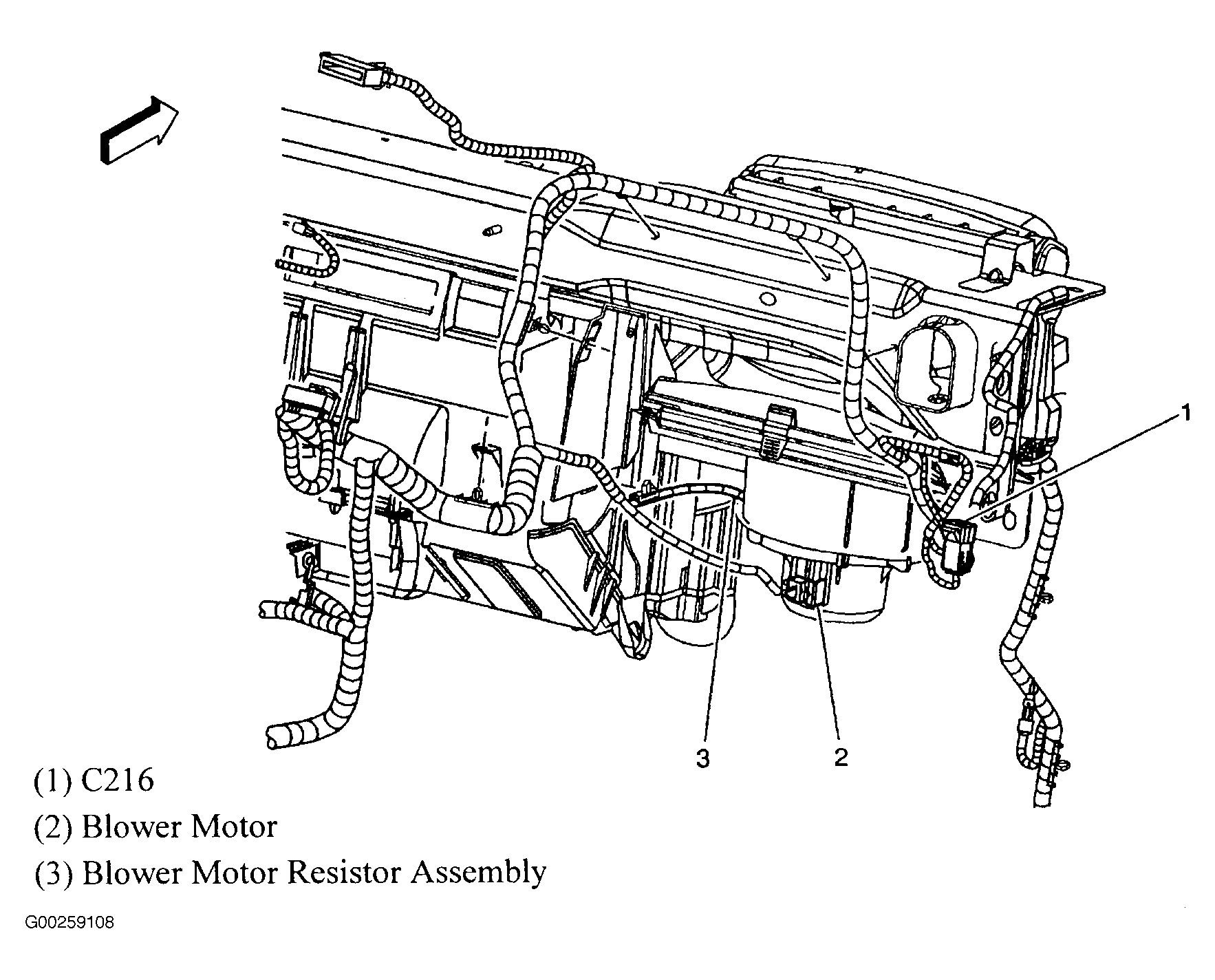

Fig 6: Behind Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

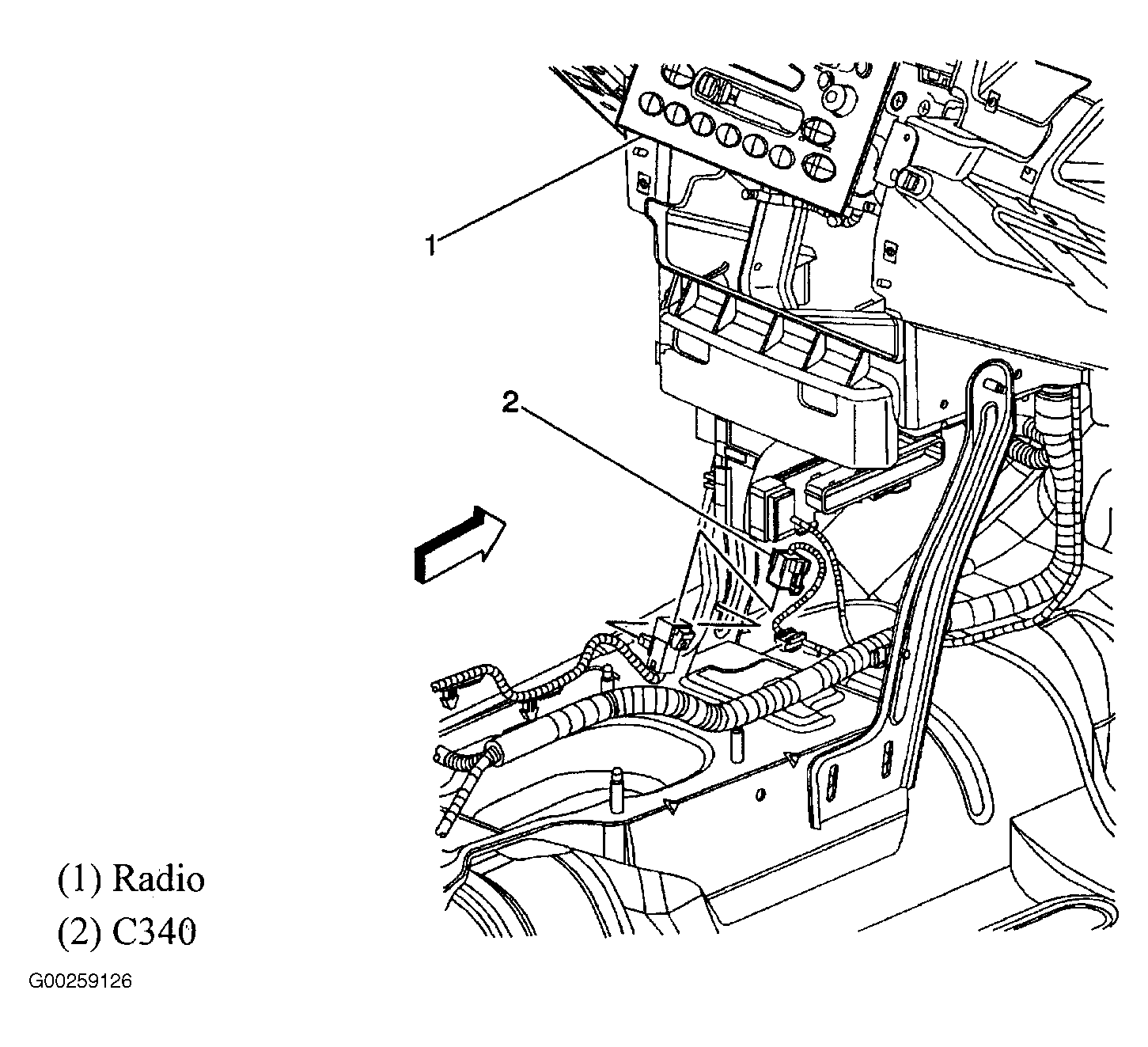

Fig 7: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 8: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

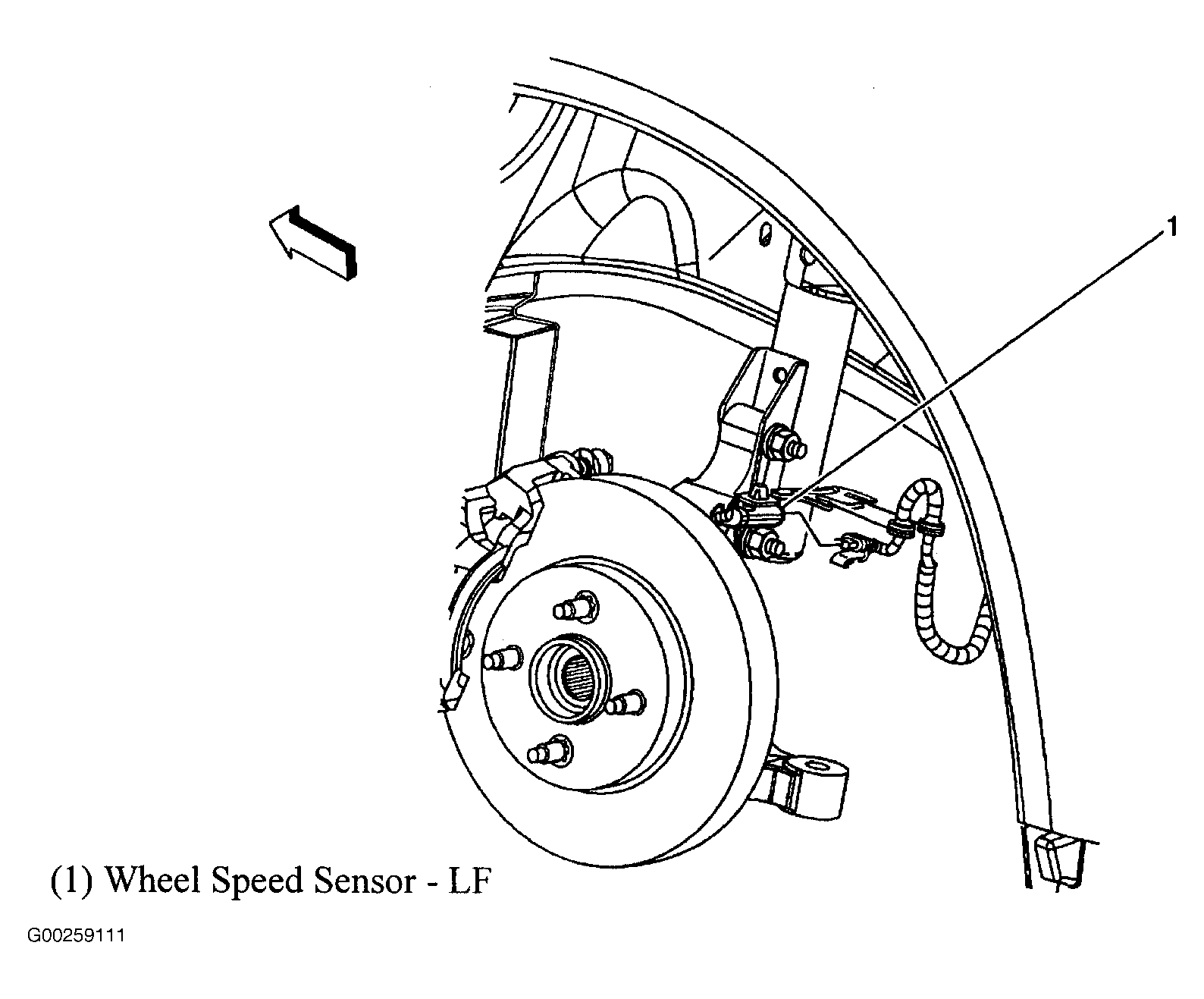

Fig 9: Left Front Wheel
Courtesy of GENERAL MOTORS CORP.

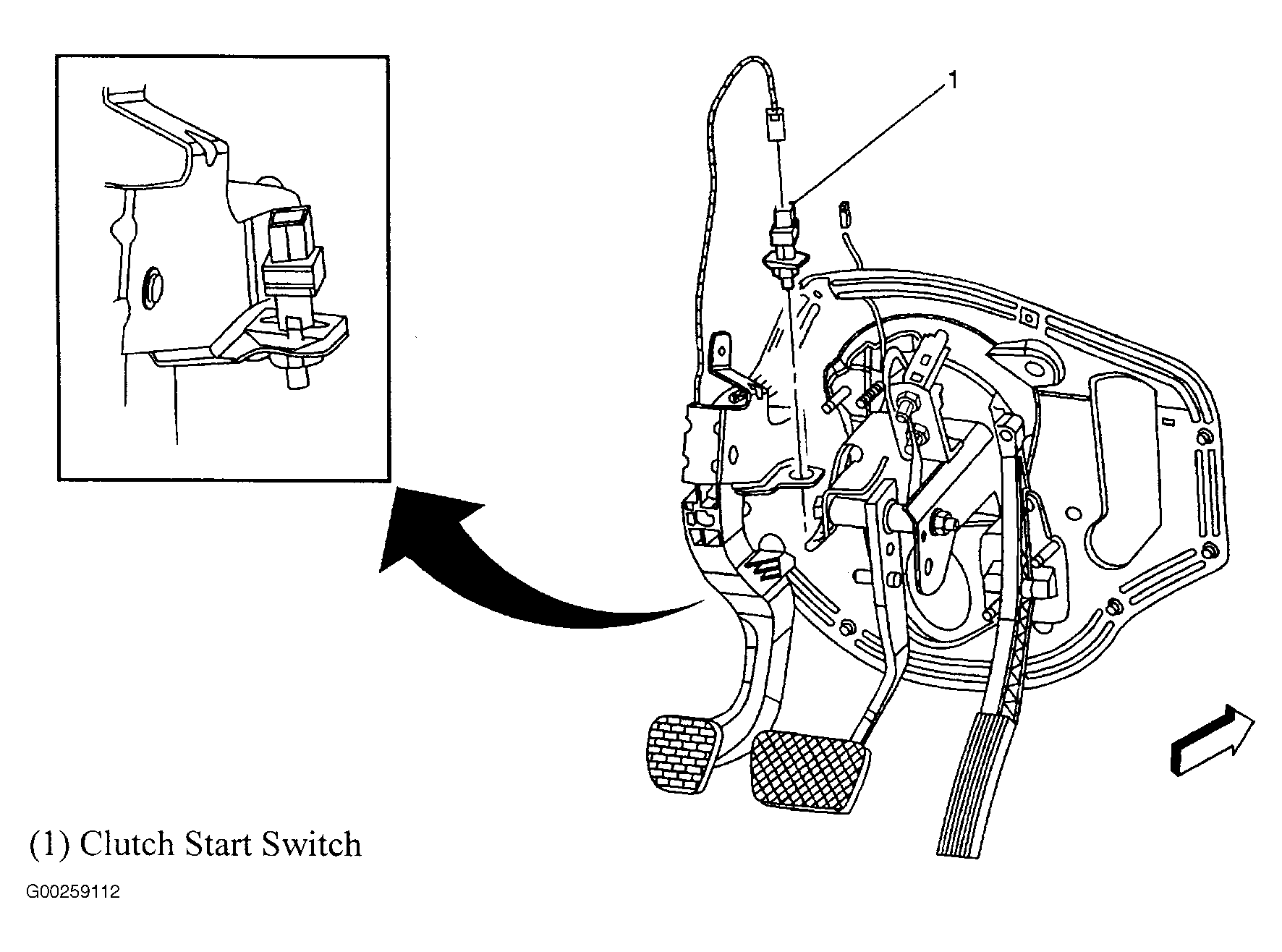

Fig 10: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

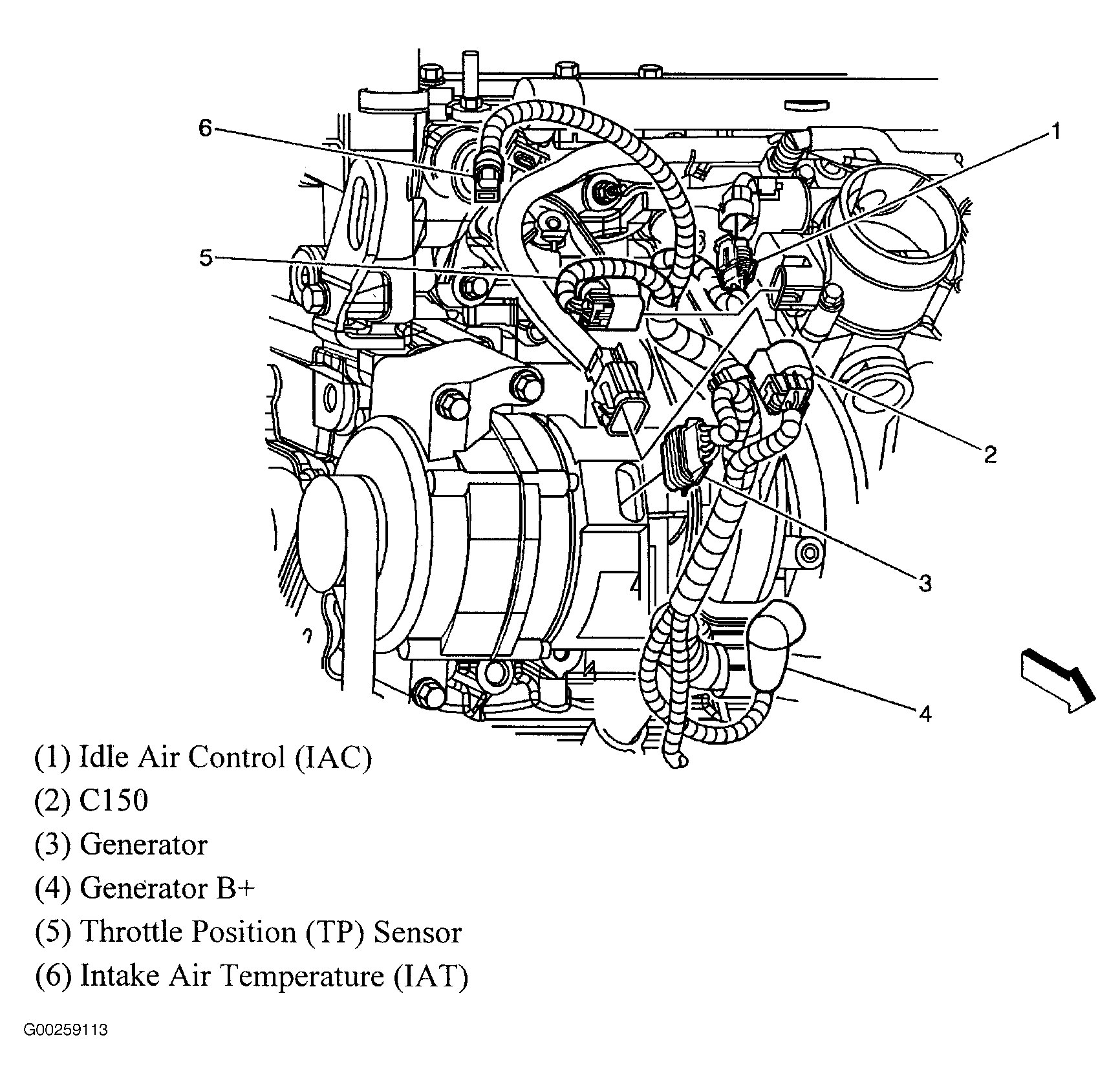

Fig 11: Left Front Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Front Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.

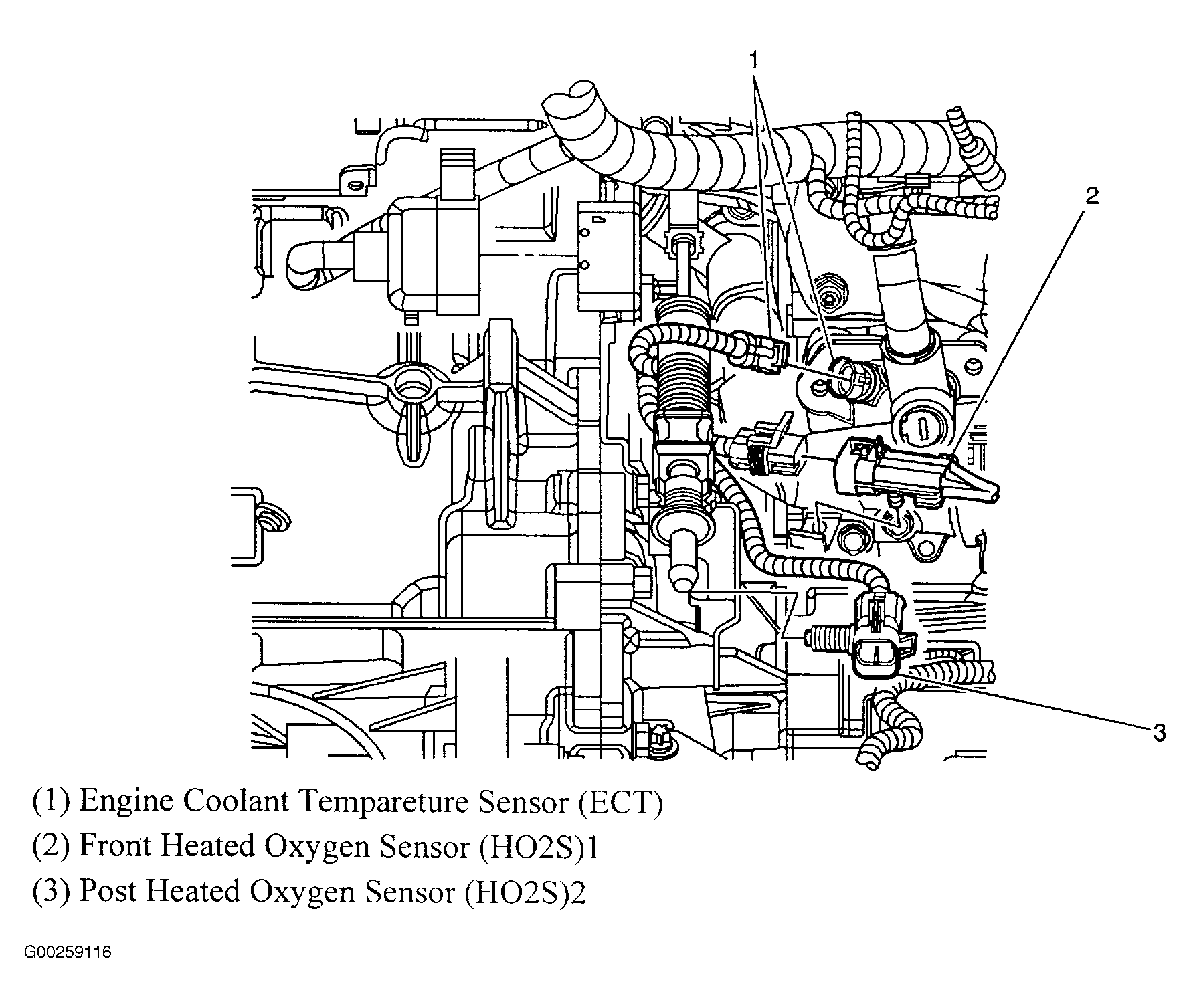

Fig 13: Right Rear Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

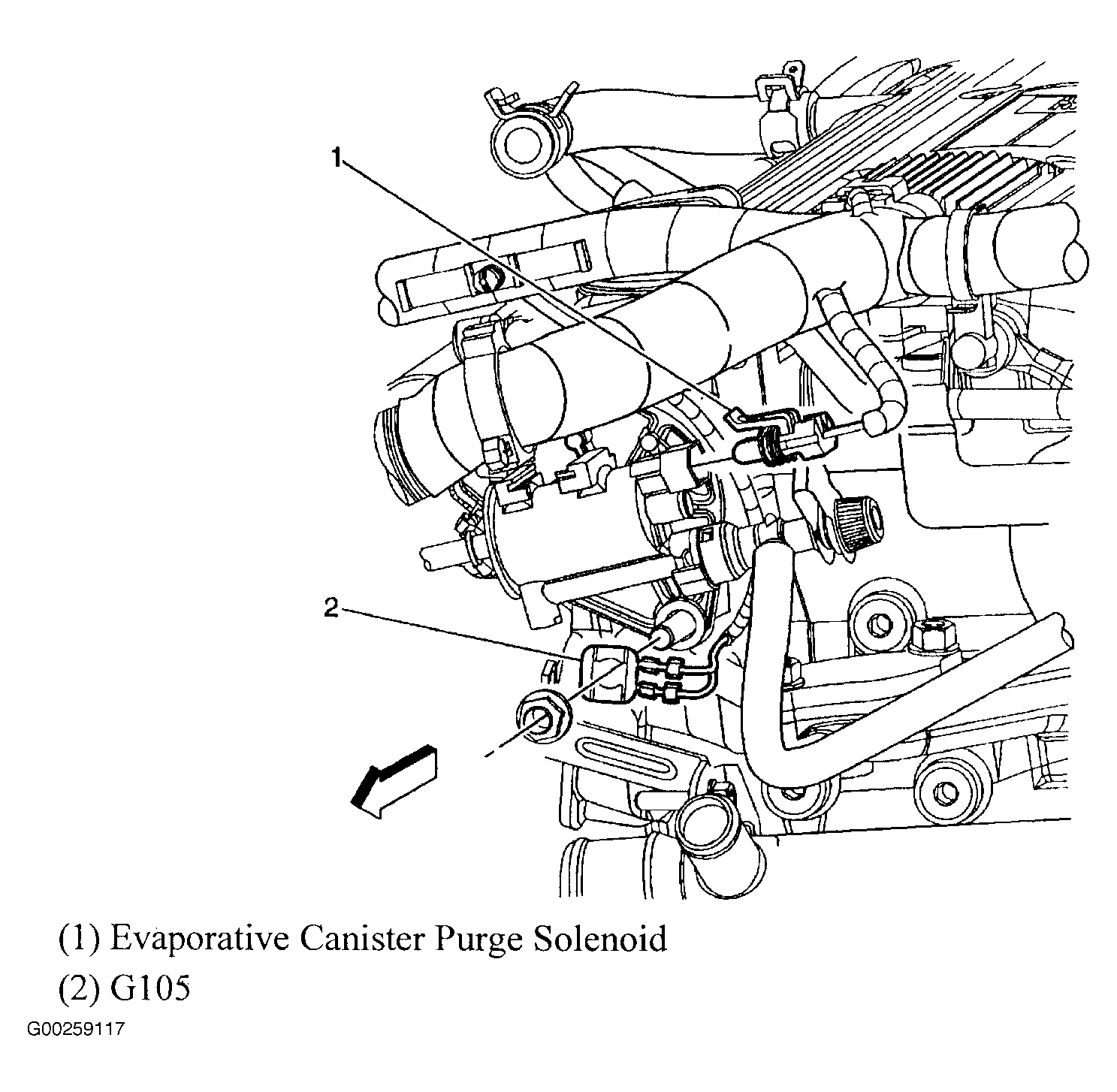

Fig 14: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

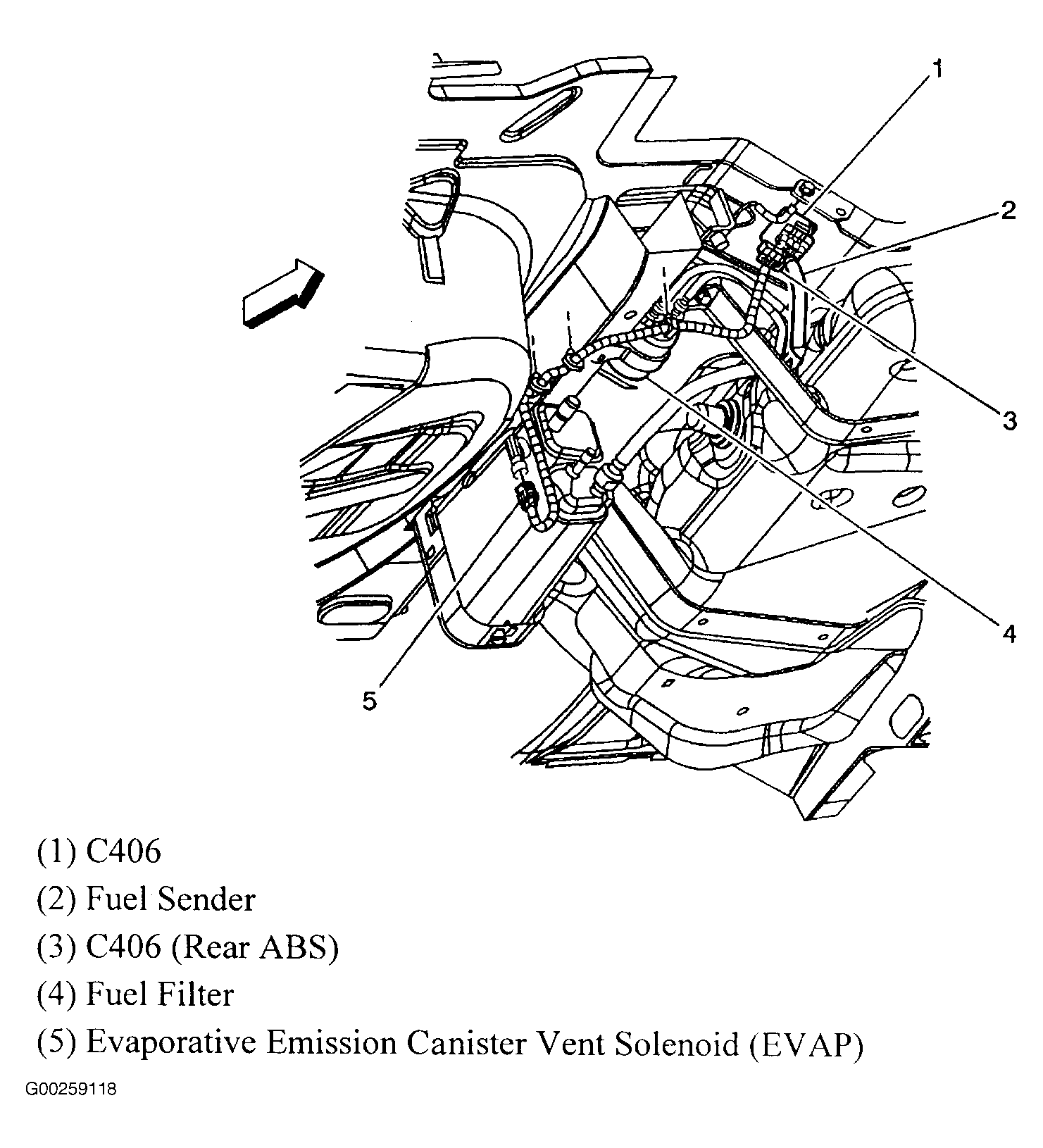

Fig 15: Rear Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.

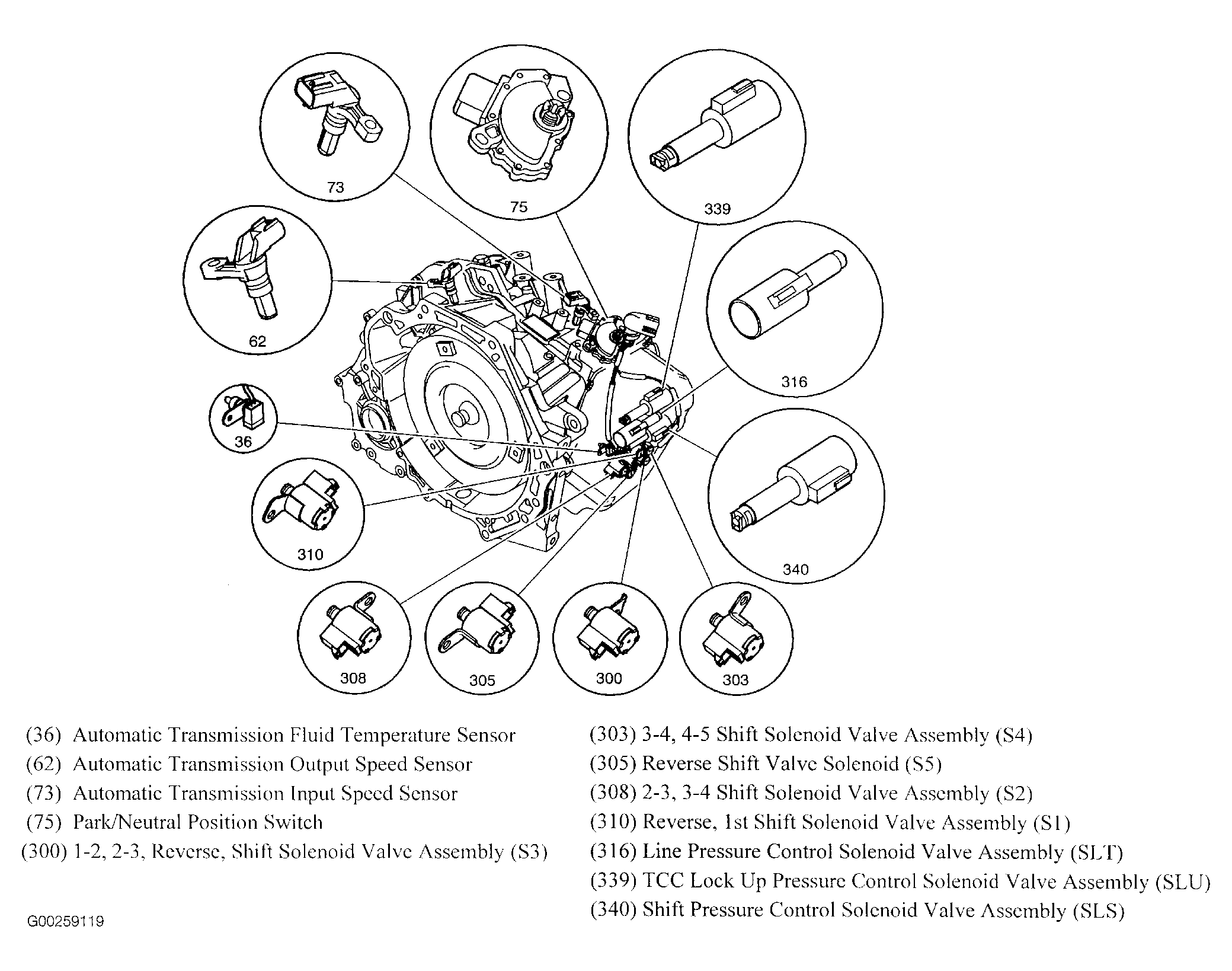

Fig 16: Automatic Transmission (AF23-5)
Courtesy of GENERAL MOTORS CORP.

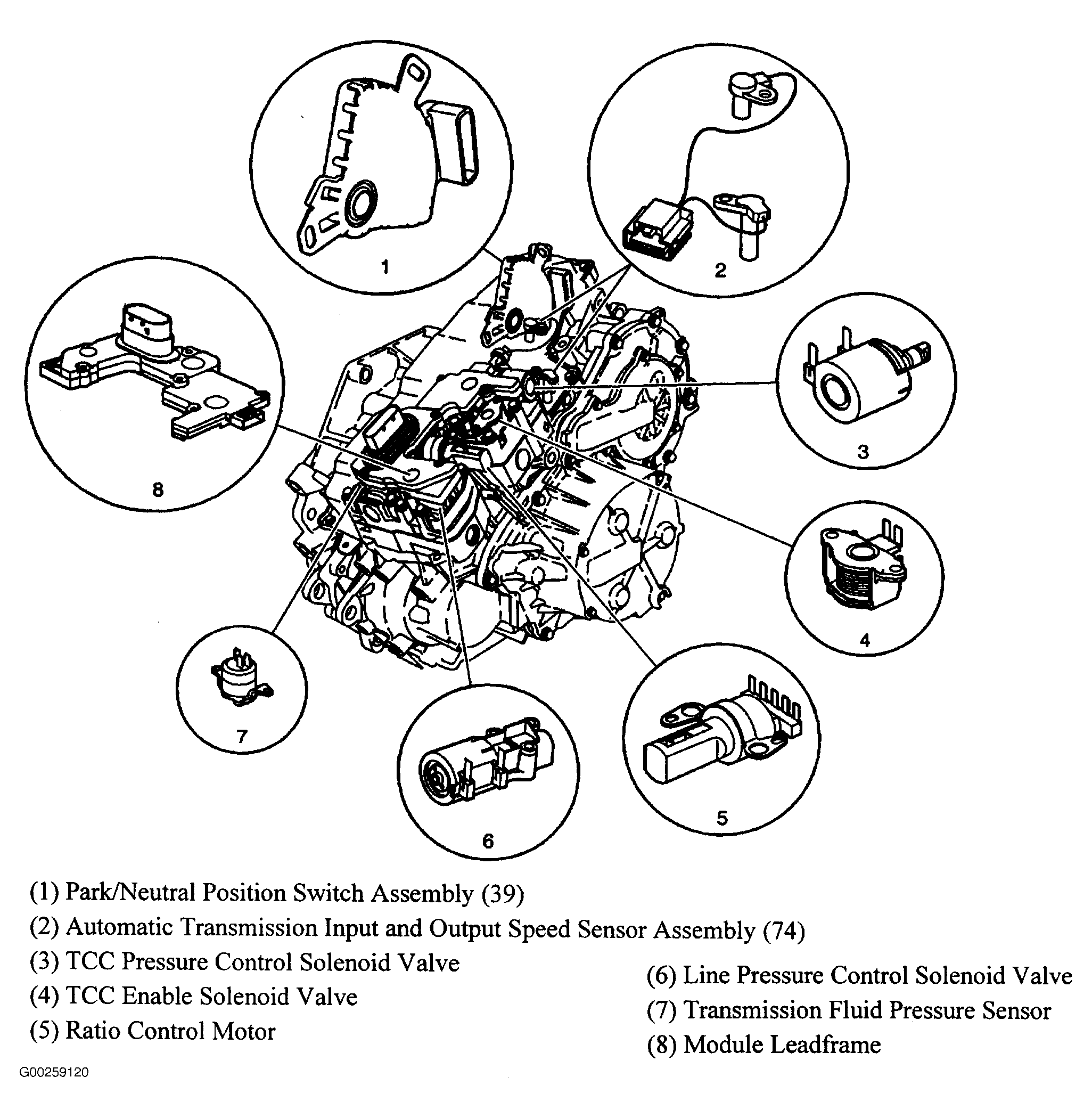

Fig 17: Automatic Transmission (VT25-E)
Courtesy of GENERAL MOTORS CORP.

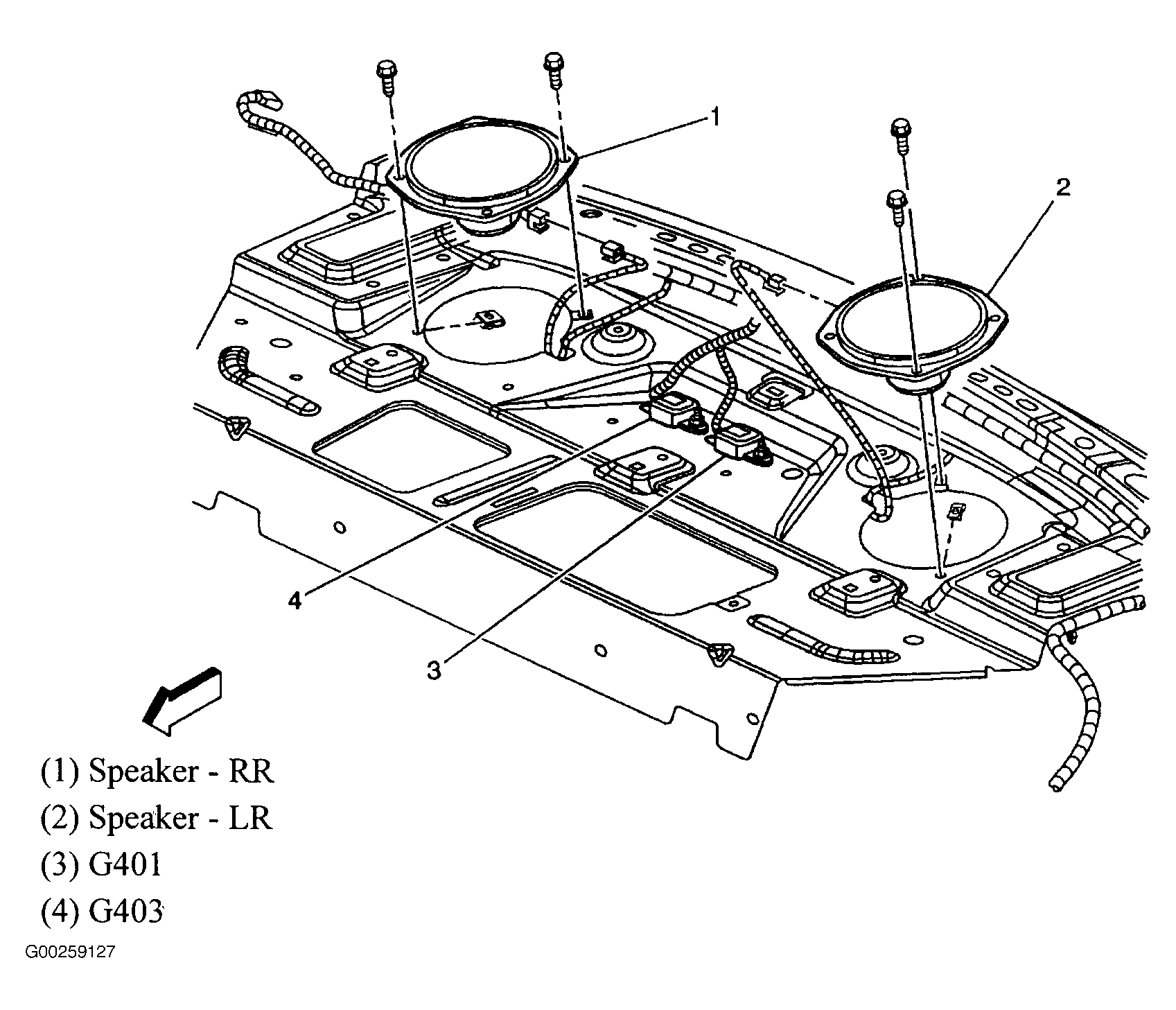

Fig 18: Rear Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 19: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

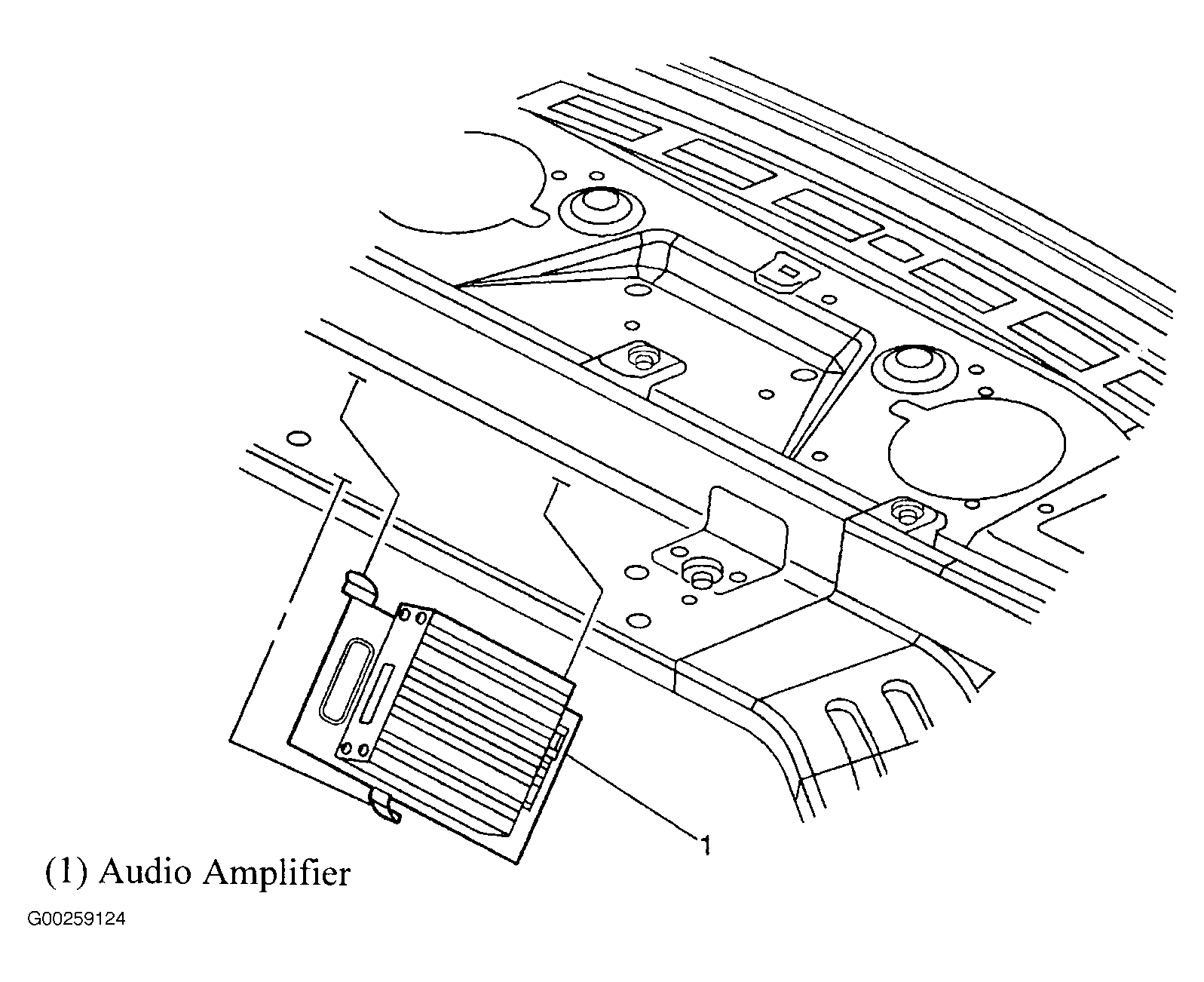

Fig 20: Rear Shelf
Courtesy of GENERAL MOTORS CORP.

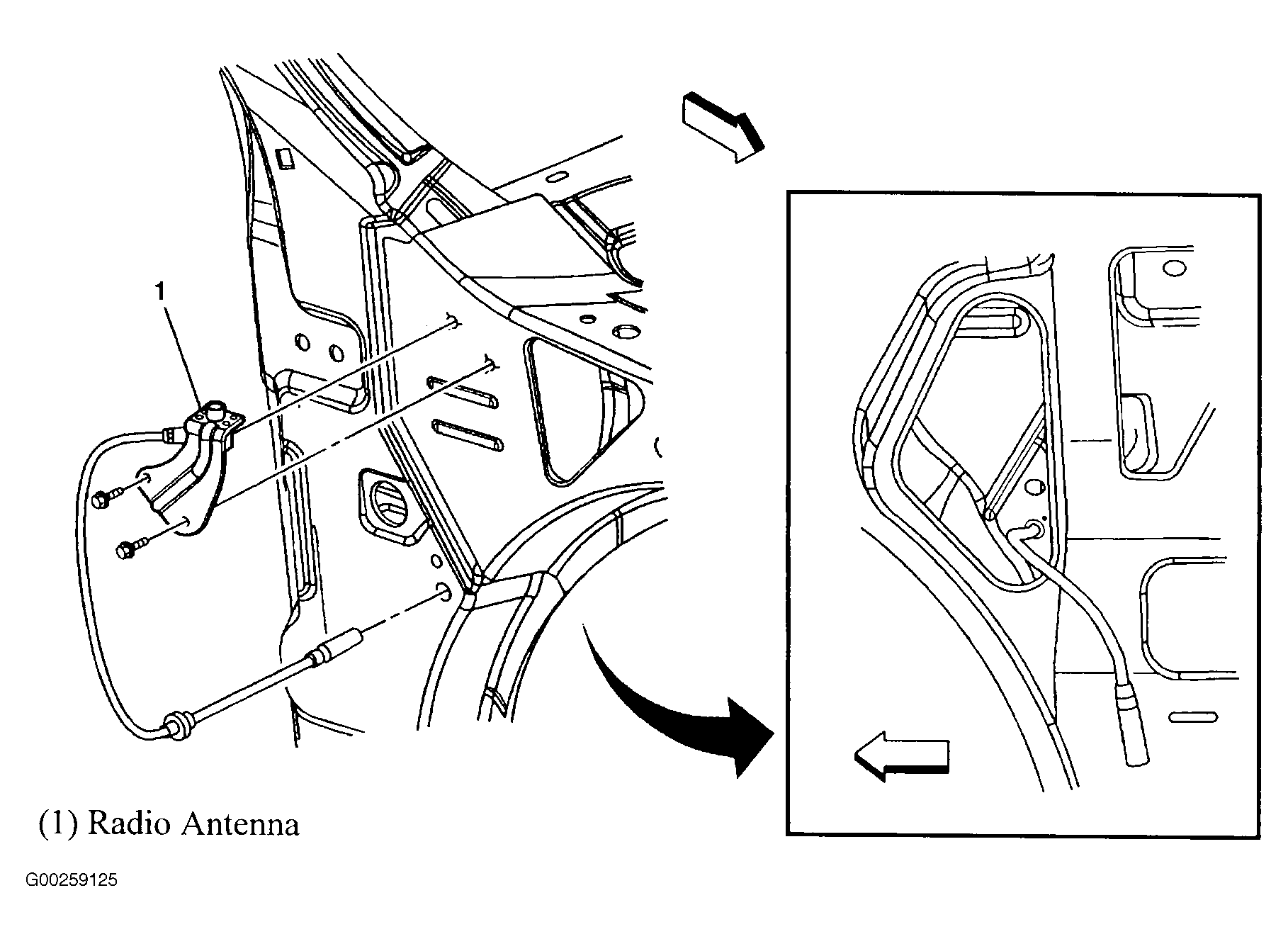

Fig 21: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 22: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 23: Rear Shelf
Courtesy of GENERAL MOTORS CORP.

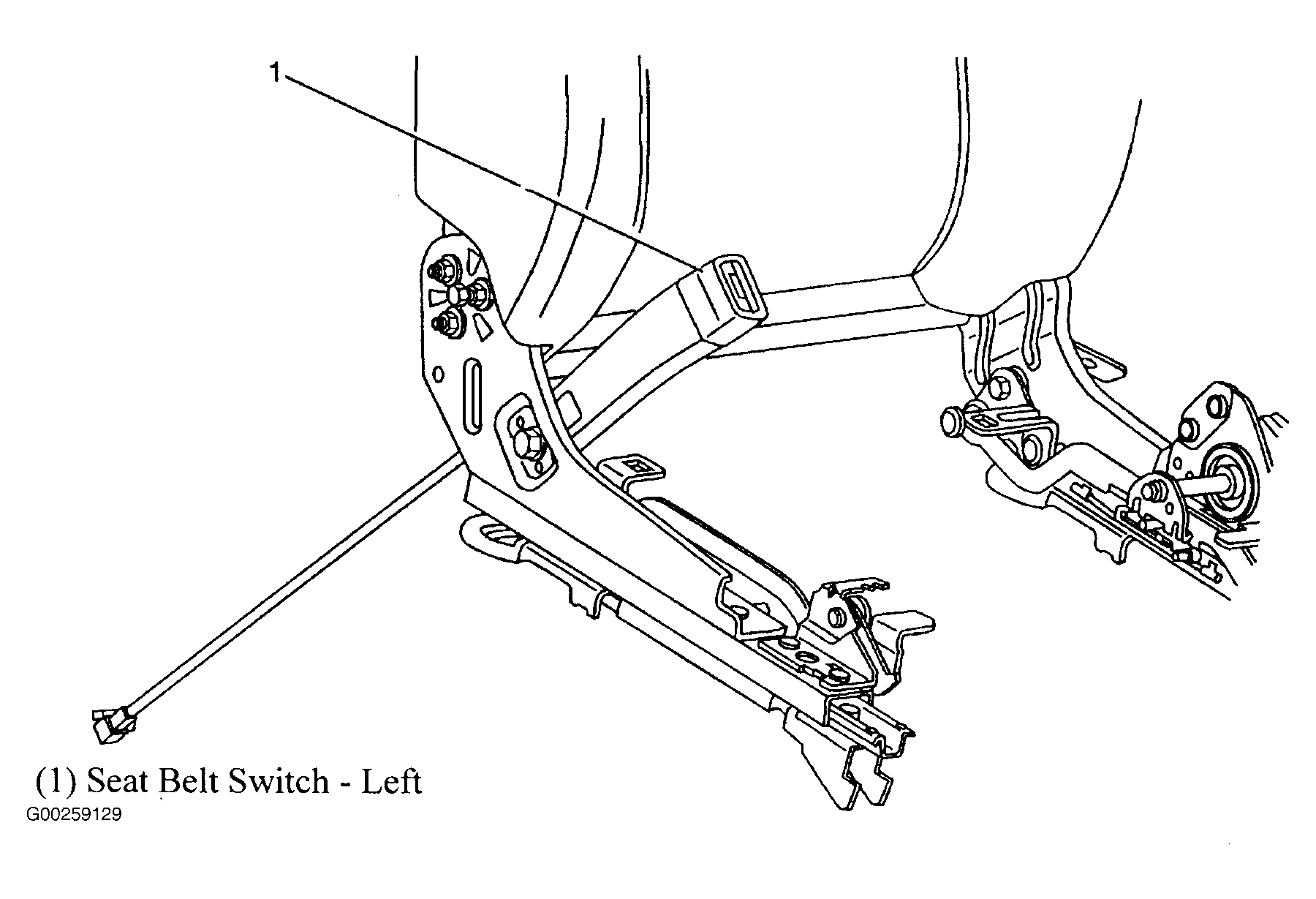

Fig 24: Base Of Left Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Front Of Roof Rail
Courtesy of GENERAL MOTORS CORP.
Fig 27: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 28: Steering Wheel Assembly
Courtesy of GENERAL MOTORS CORP.

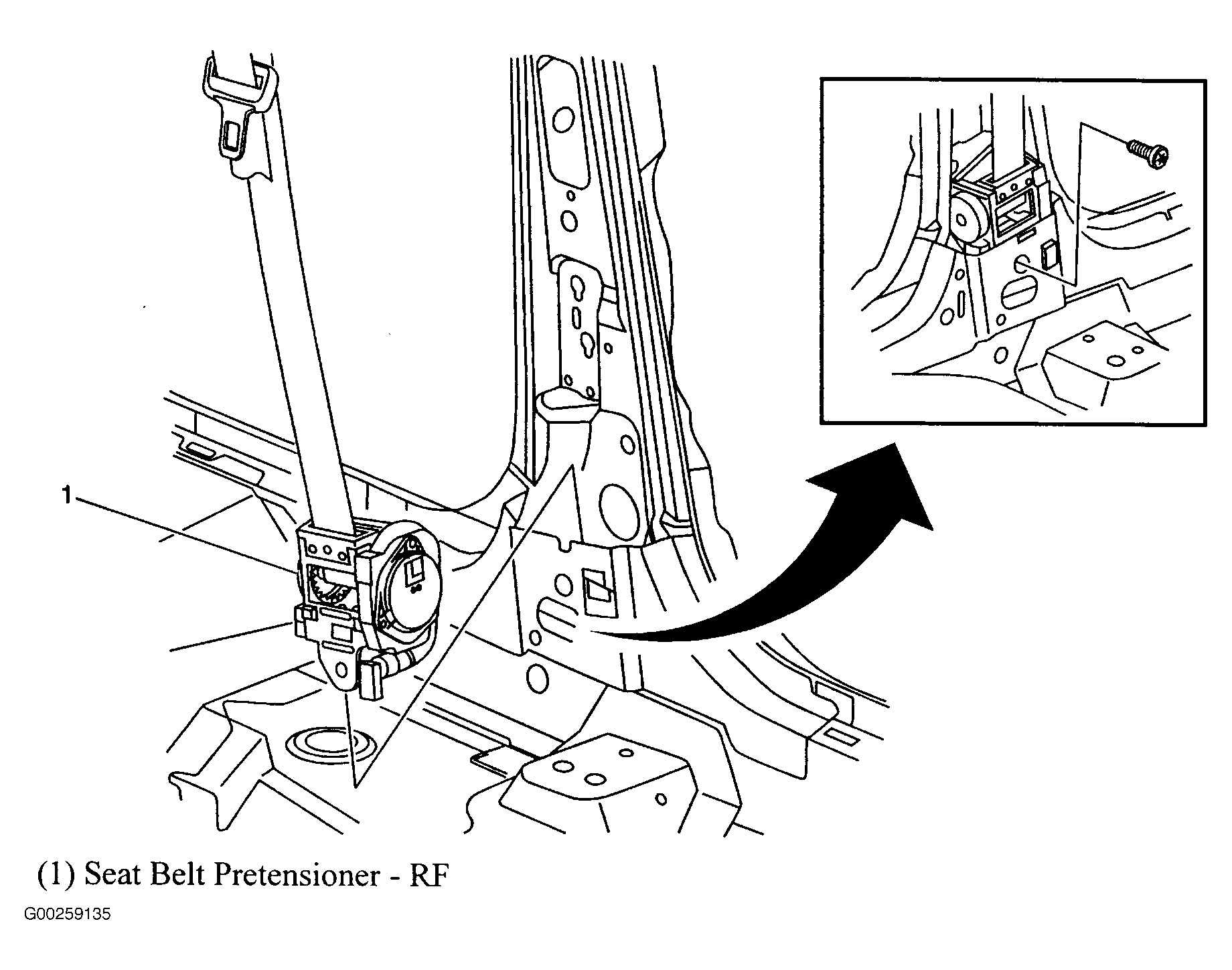

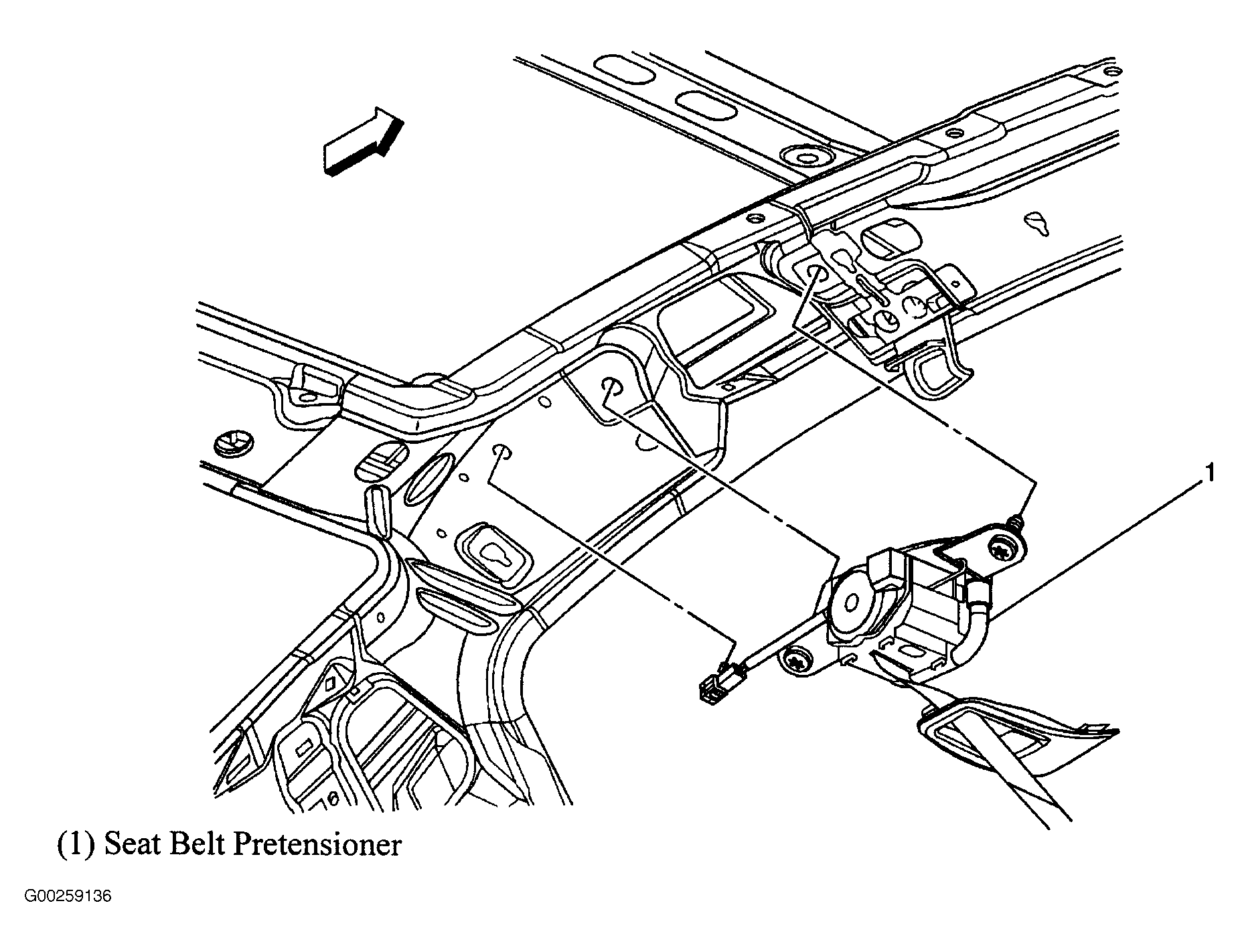

Fig 29: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 30: Right Center Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 31: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.

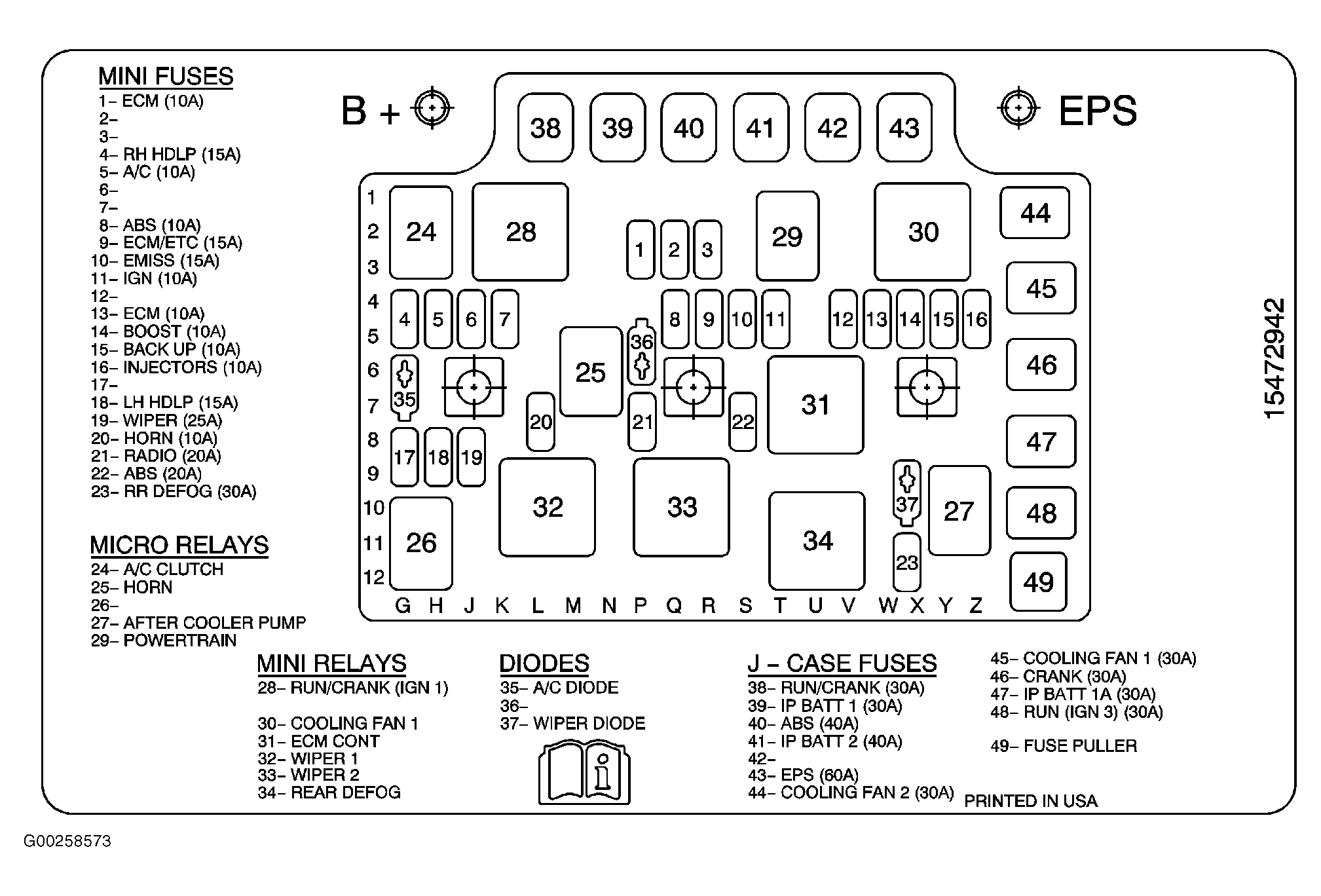

Fig 32: Fuse Block - Underhood (2.2L)
Courtesy of GENERAL MOTORS CORP.

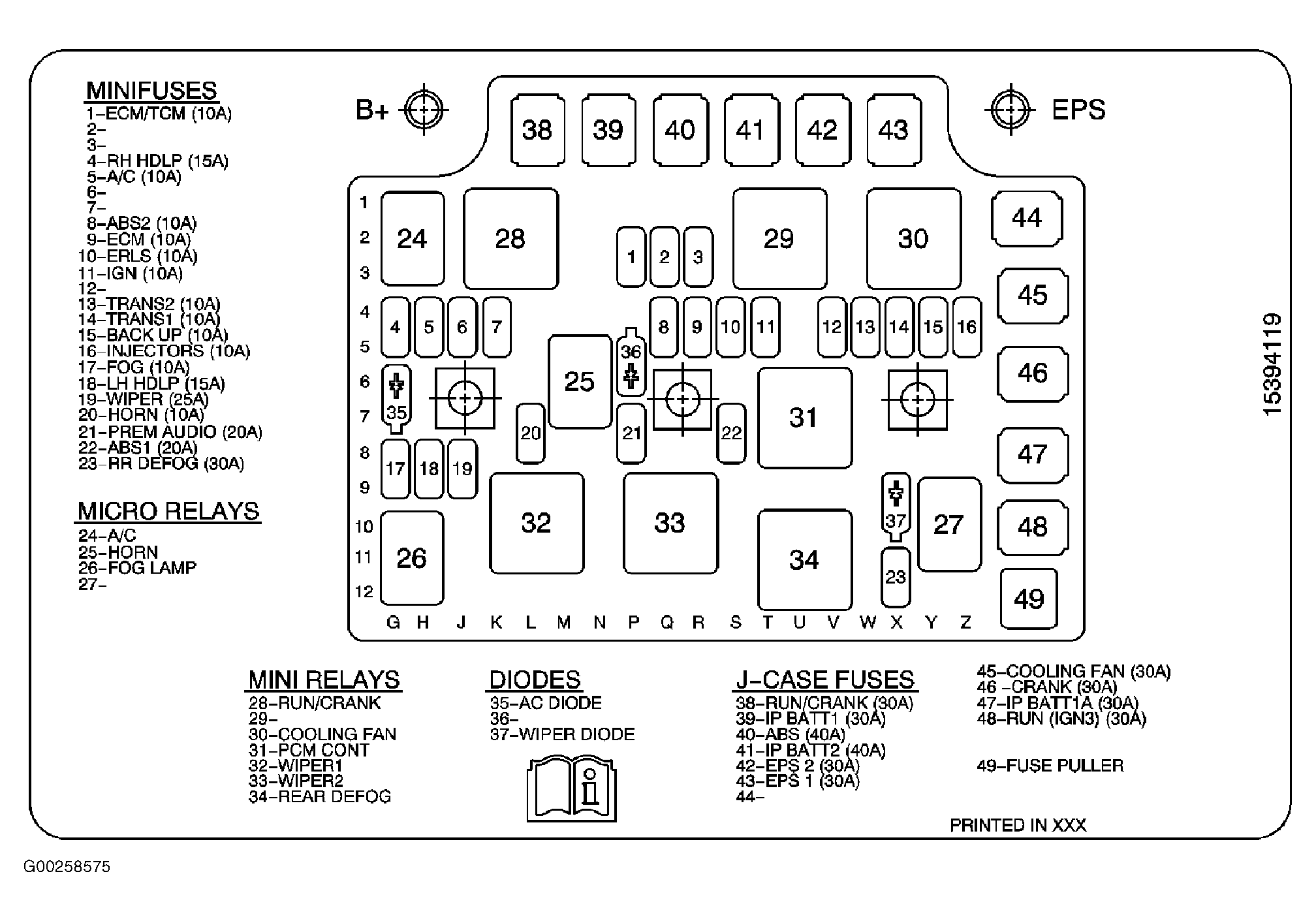

Fig 33: Fuse Block - Underhood (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 34: SIR Zone Identification Views (Sedan)
Courtesy of GENERAL MOTORS CORP.
