Installation Procedure

  1. Install the service muffler to the vehicle.
  2. Slide the muffler inlet pipe over the extension pipe, then install the muffler insulator to the underbody hanger.

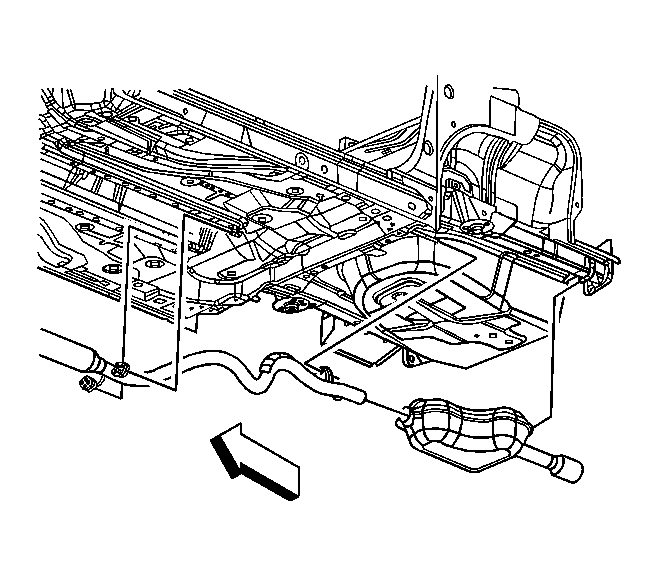

    3. Fig 1: View Of Exhaust Muffler (LSJ)
    GM1382254Courtesy of GENERAL MOTORS CORP.
  3. Install a service muffler clamp to the muffler inlet pipe. Position the clamp approximately 19 mm (3/4 in), from the edge of the muffler inlet, with the clamp nuts oriented away from the evaporative emission (EVAP) canister.
  4. Align the muffler and tailpipe to the vehicle underbody and rear bumper fascia.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. While maintaining muffler positioning, tighten the exhaust clamp nuts.

    Tighten:  Tighten the nuts to 45 N.m (33 lb ft).

    6. Fig 2: View Of Exhaust Muffler (LSJ)
    GM1382254Courtesy of GENERAL MOTORS CORP.
  6. Lower the vehicle.
