Removal Procedure

  1. Disconnect the connector position assurance (CPA) from the accelerator pedal position (APP) sensor connector.
  2. Disconnect the APP sensor harness connector.

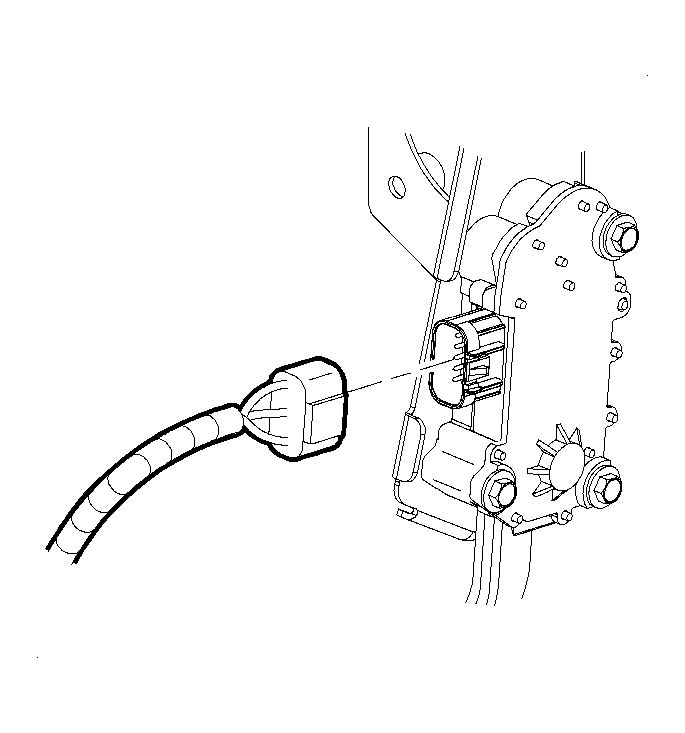

    3. Fig 1: View Of APP Sensor Harness Connector
    GM927716Courtesy of GENERAL MOTORS CORP.
  3. Remove the APP assembly attachment bolts from the brake pedal assembly.
  4. Remove the APP assembly from the vehicle.

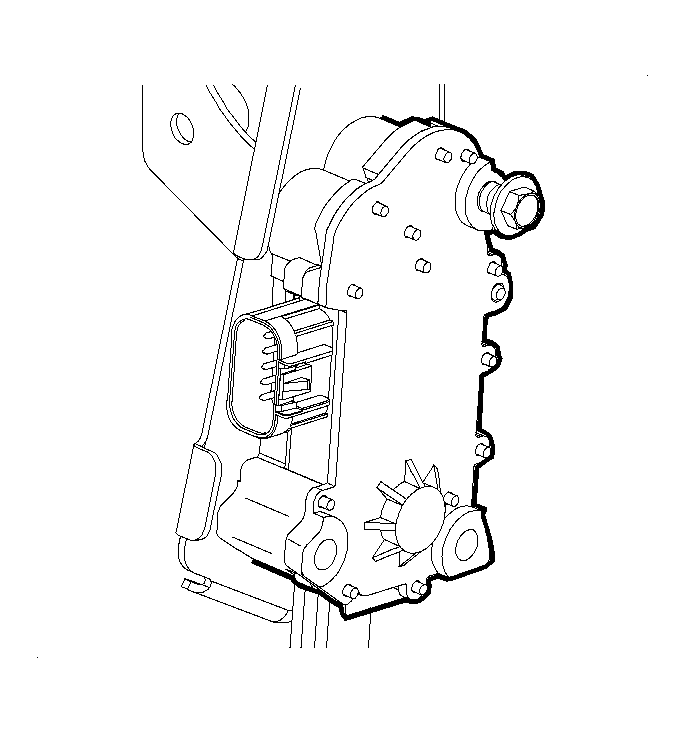

    5. Fig 2: View Of Accelerator Pedal Position Assembly
    GM898158Courtesy of GENERAL MOTORS CORP.
