Installation Procedure

    IMPORTANT: Verify full engagement of the inlet onto the resonator neck.
  1. Position the air cleaner assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the air cleaner assembly attachment bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

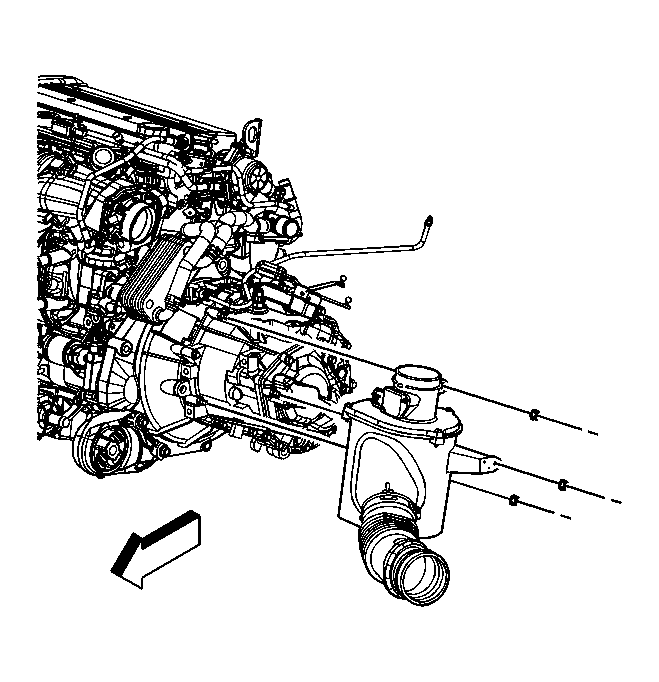

    3. Fig 1: View Of Air Cleaner
    GM1386447Courtesy of GENERAL MOTORS CORP.
  3. Connect the air cleaner resonator to the air cleaner assembly.

    Tighten:  Tighten the air cleaner outlet duct clamps to 5 N.m (44 lb in).

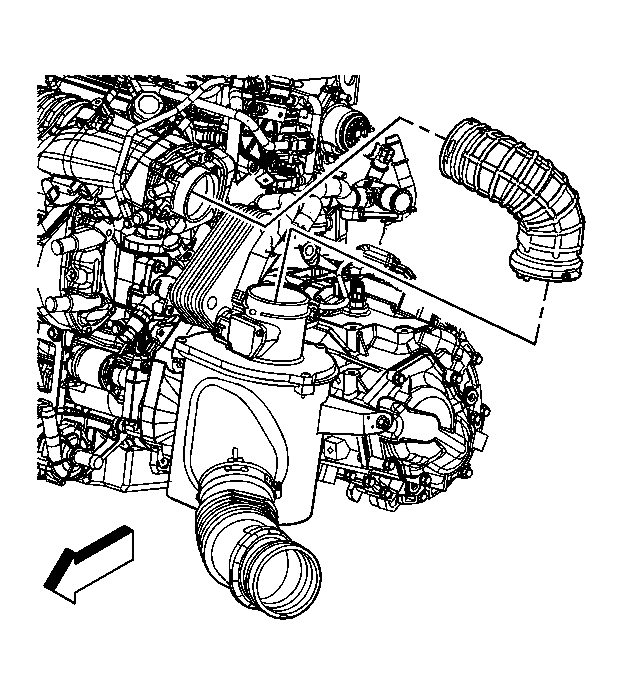

    4. Fig 2: View Of Air Cleaner Resonator
    GM1386445Courtesy of GENERAL MOTORS CORP.
