Installation Procedure

  1. Position the intake duct assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the intake duct assembly bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb ft).

  3. Install the intake duct assembly push in fasteners.

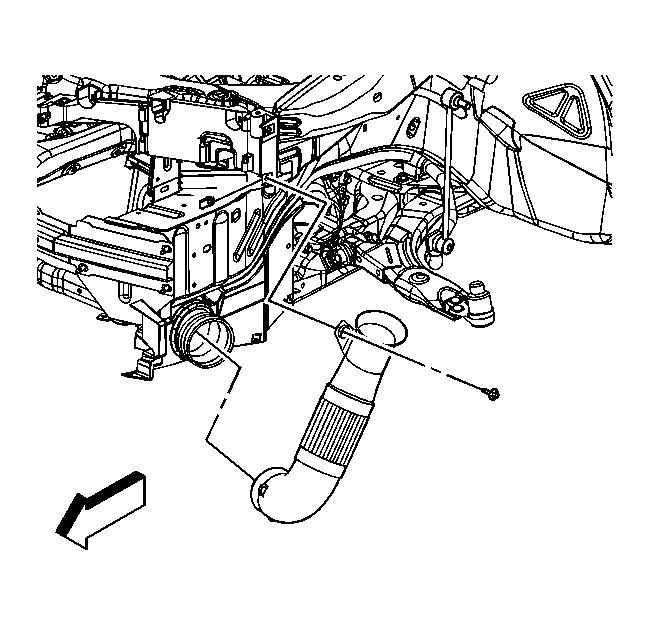

    4. Fig 1: View Of Air Cleaner Intake Duct
    GM1386449Courtesy of GENERAL MOTORS CORP.
  4. Install the left front fender liner. Refer to Front Fender Liner Replacement in Body Front End.
  5. Install the left front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tire and Wheels.
