Installation Procedure

  1. Install the BARO sensor (2).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the BARO sensor bracket and bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Connect the BARO sensor harness connector.

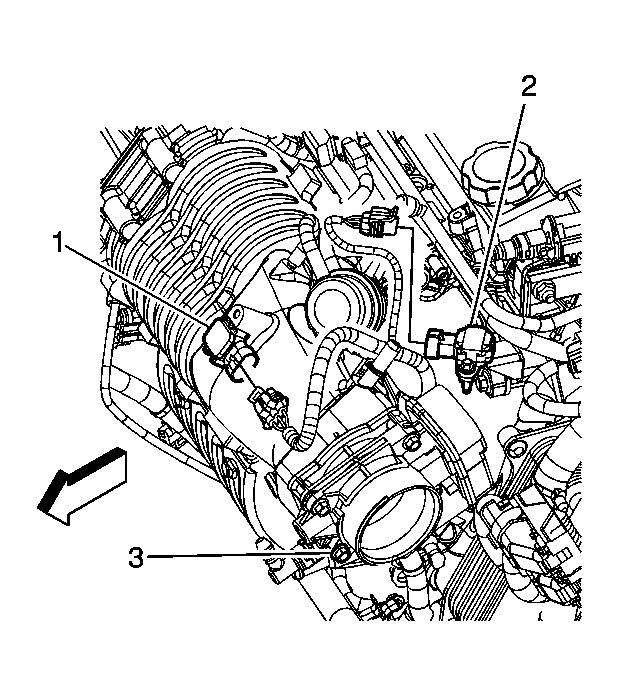

    4. Fig 1: Locating SCIP Sensor & BARO Sensor
    GM1389393Courtesy of GENERAL MOTORS CORP.
