Installation Procedure

  1. Install the camshaft position sensor housing assembly to the cylinder head.

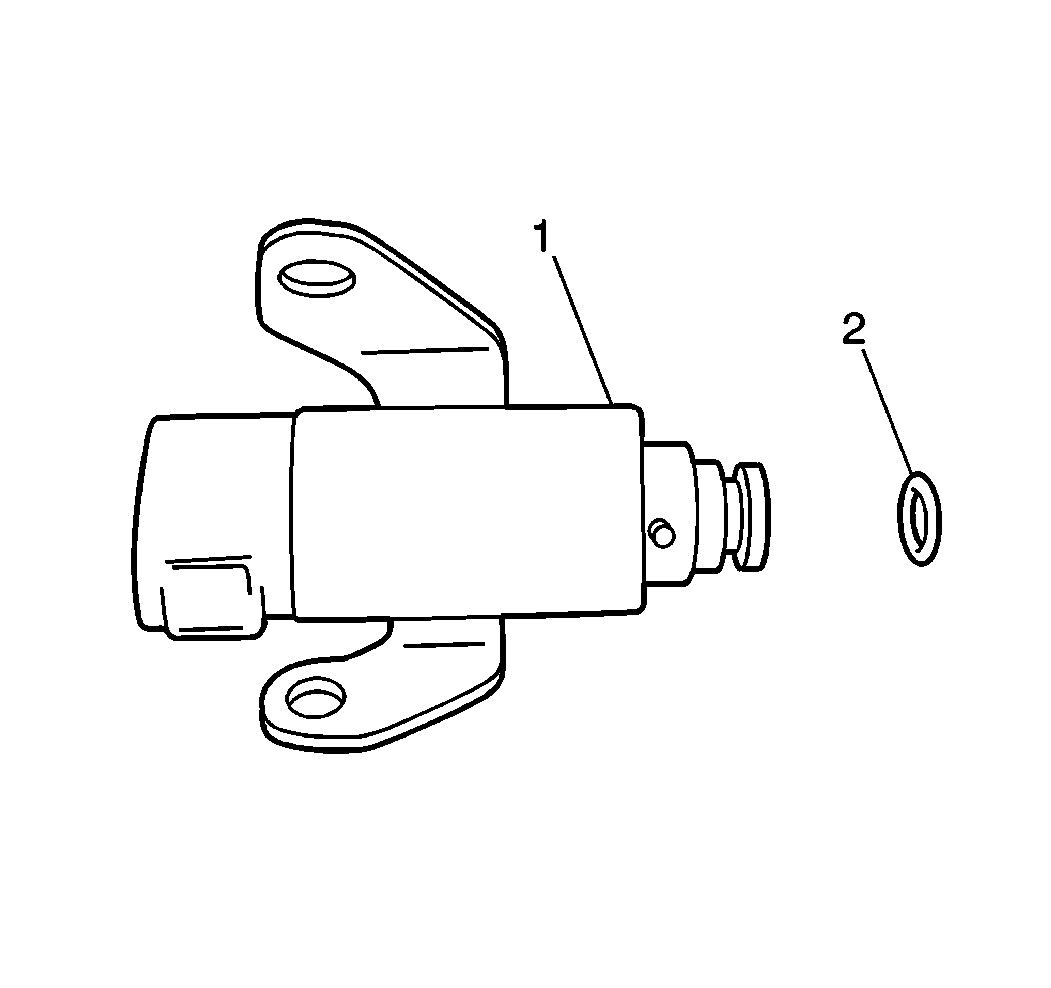

    2. Fig 1: View Of CMP Sensor
    GM153876Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the two fasteners for the camshaft position sensor housing assembly.

    Tighten:  Tighten the fasteners to 22 N.m (16 lb ft).

  3. Install the brake booster vacuum hose to the supercharger.
  4. Install the two fasteners to the clutch master cylinder.

    Tighten:  Tighten the fasteners to 10 N.m (89 lb in).

  5. Install the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Bracket Replacement in Wiring Systems.
  6. Install the ECM.
  7. Install the right front inner splash shield. Refer to Splash Shield Replacement - Engine in Body Front End.
  8. Install the right front tire. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

    Tighten:  Tighten the wheelnuts to 140 N.m (100 lb ft).

  9. Lower the vehicle.
  10. Install the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.

    Tighten:  Tighten the battery cable to 17 N.m (14 lb ft).
