Removal Procedure

  1. Remove the fuel tank. Refer to Fuel Tank Replacement .
  2. Disconnect the fuel pump module harness electrical connector from the fuel tank pressure sensor.
    3. Fig 1: View Of Fuel Pump Module And Fuel Tank Pressure Sensor Electrical Connectors
    GM889969Courtesy of GENERAL MOTORS CORP.
  3. Position 2 flat-bladed screwdrivers, one on each side of the sensor, near the vacuum port.
  4. Carefully use the screwdrivers to lift and release the sensor from the fuel pump module.

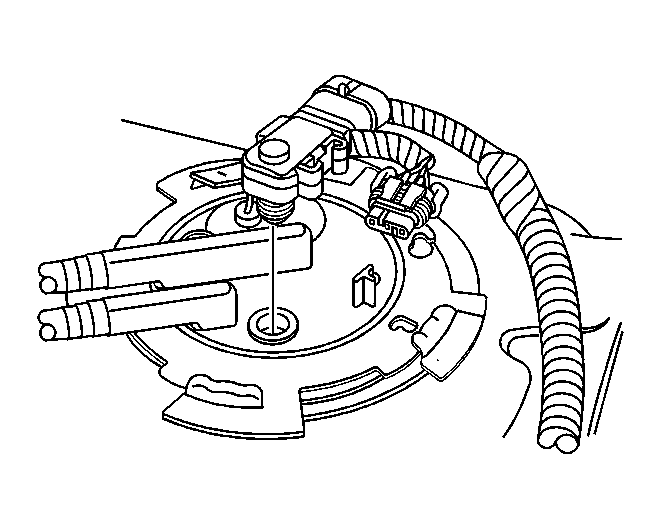

    5. Fig 2: View Of Fuel Tank Pressure Sensor
    GM889971Courtesy of GENERAL MOTORS CORP.
