Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

IMPORTANT: The KS threaded surfaces must be clean before installation.

Install the knock sensor.
Tighten: Tighten the knock sensor retaining bolt to 25 N.m (18 lb ft).
Connect the knock sensor harness connector.

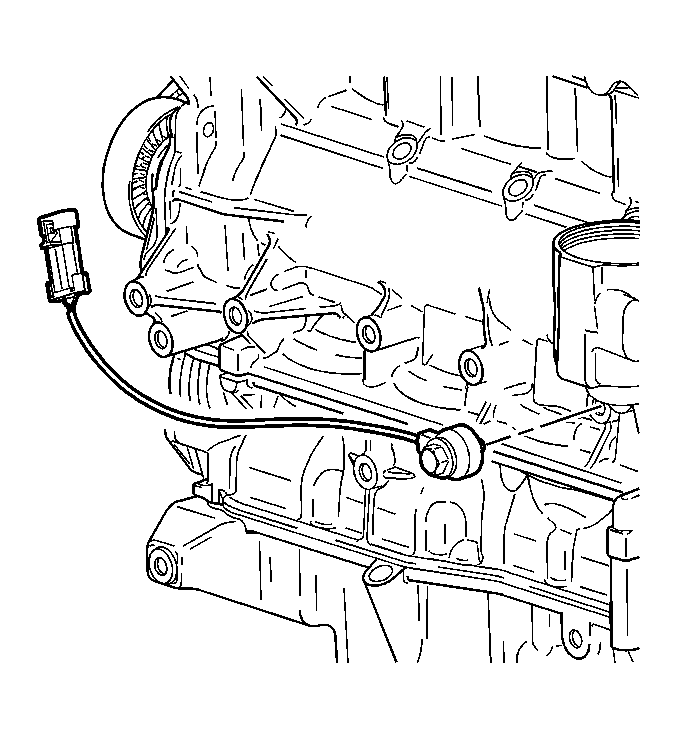

Fig 1: View of Knock Sensor

Courtesy of GENERAL MOTORS CORP.

Install the starter. Refer to Starter Motor Replacement (2.2L (L61)) or Starter Motor Replacement (2.0L (LSJ)) in Engine Electrical.
