Removal Procedure

NOTE: This engine has aluminum cylinder heads. Do not remove the spark plugs from a hot engine, allow it to cool first. Removing the spark plugs from a hot engine may cause spark plug thread damage or cylinder head damage.
  1. Remove the ignition coils. Refer to Ignition Coil(s) Replacement .
    2. IMPORTANT: Remove any water and debris from the spark plug holes before spark plug removal with compressed air.
  2. Remove the spark plugs with a spark plug socket.
  3. Inspect the spark plugs. Refer to Spark Plug Inspection .

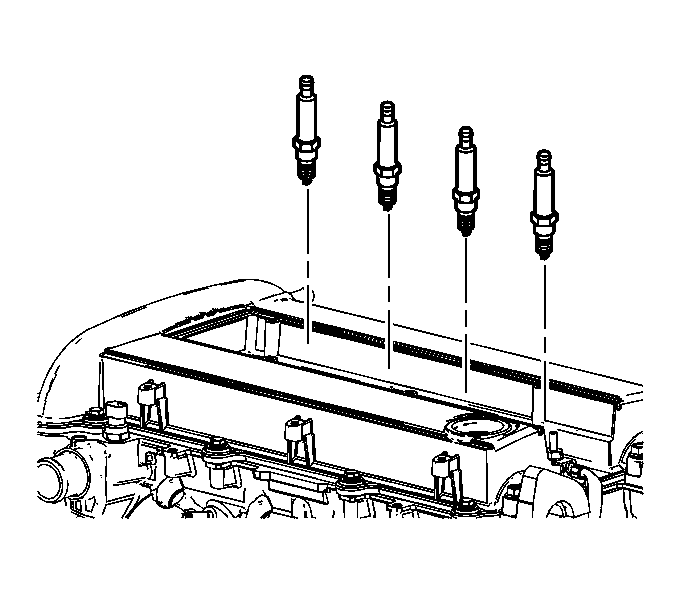

    4. Fig 1: View Of Spark Plugs
    GM1339183Courtesy of GENERAL MOTORS CORP.
