Installation Procedure

  1. Inspect the throttle body gasket and replace if necessary.
  2. Install the throttle body to the supercharger.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the throttle body attaching bolts.

    Tighten:  Tighten the throttle body attaching bolts to 10 N.m (89 lb in).

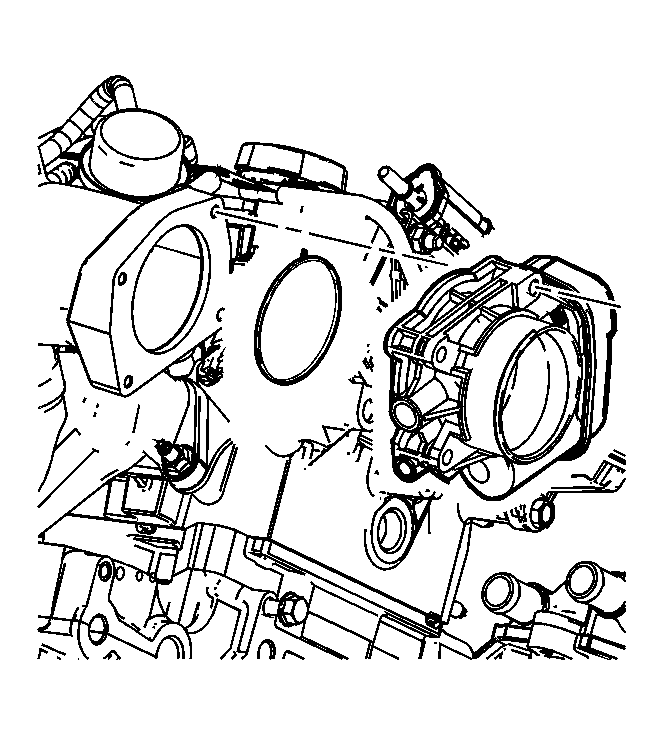

    4. Fig 1: View Of Throttle Body & Gasket
    GM1339289Courtesy of GENERAL MOTORS CORP.
  4. Connect the throttle body control harness connector.
  5. Connect the EVAP purge line.
  6. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .
