Engine Controls Schematics

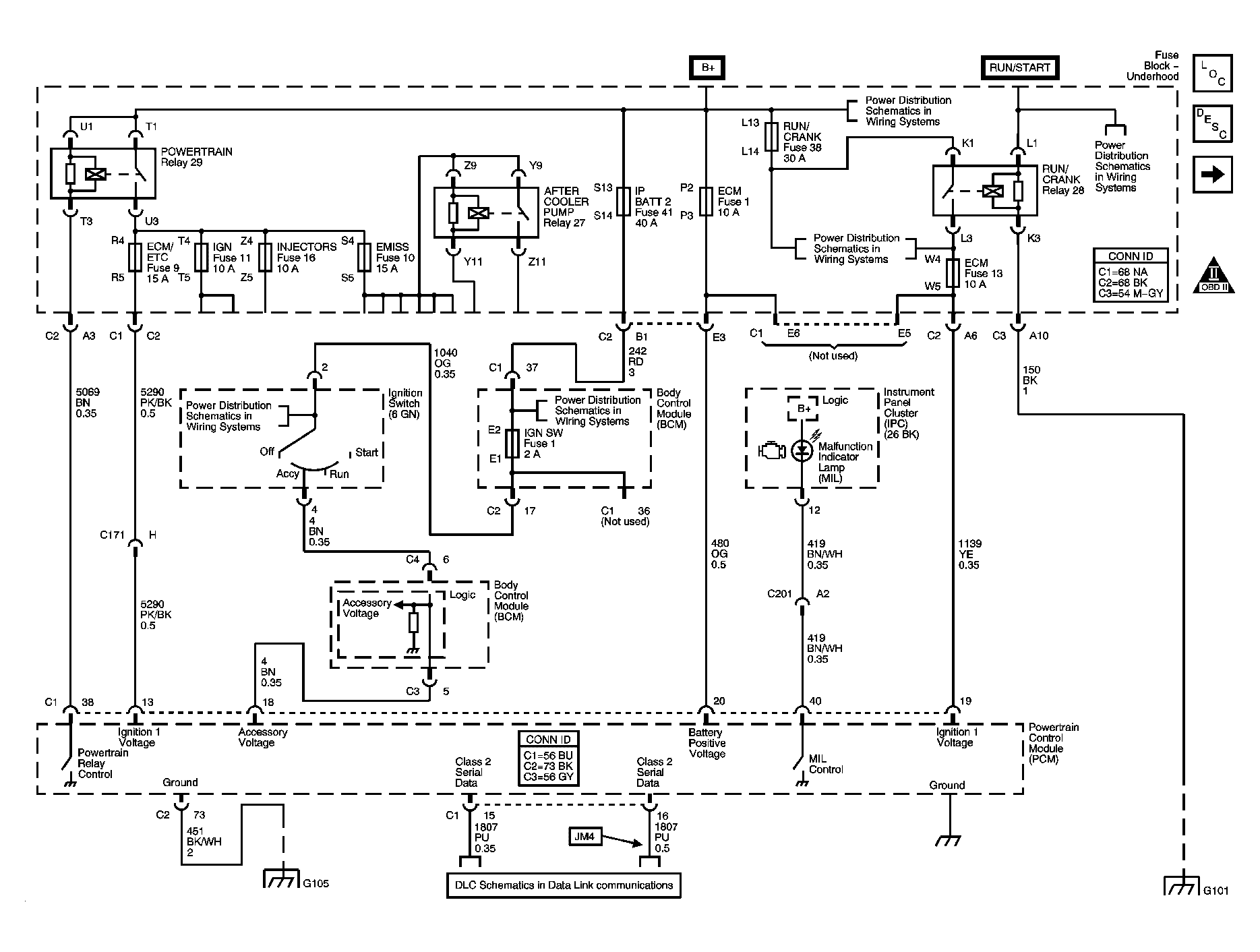

Fig 1: Power, Ground, MIL, and Serial Data Schematic
GM1374390Courtesy of GENERAL MOTORS CORP.

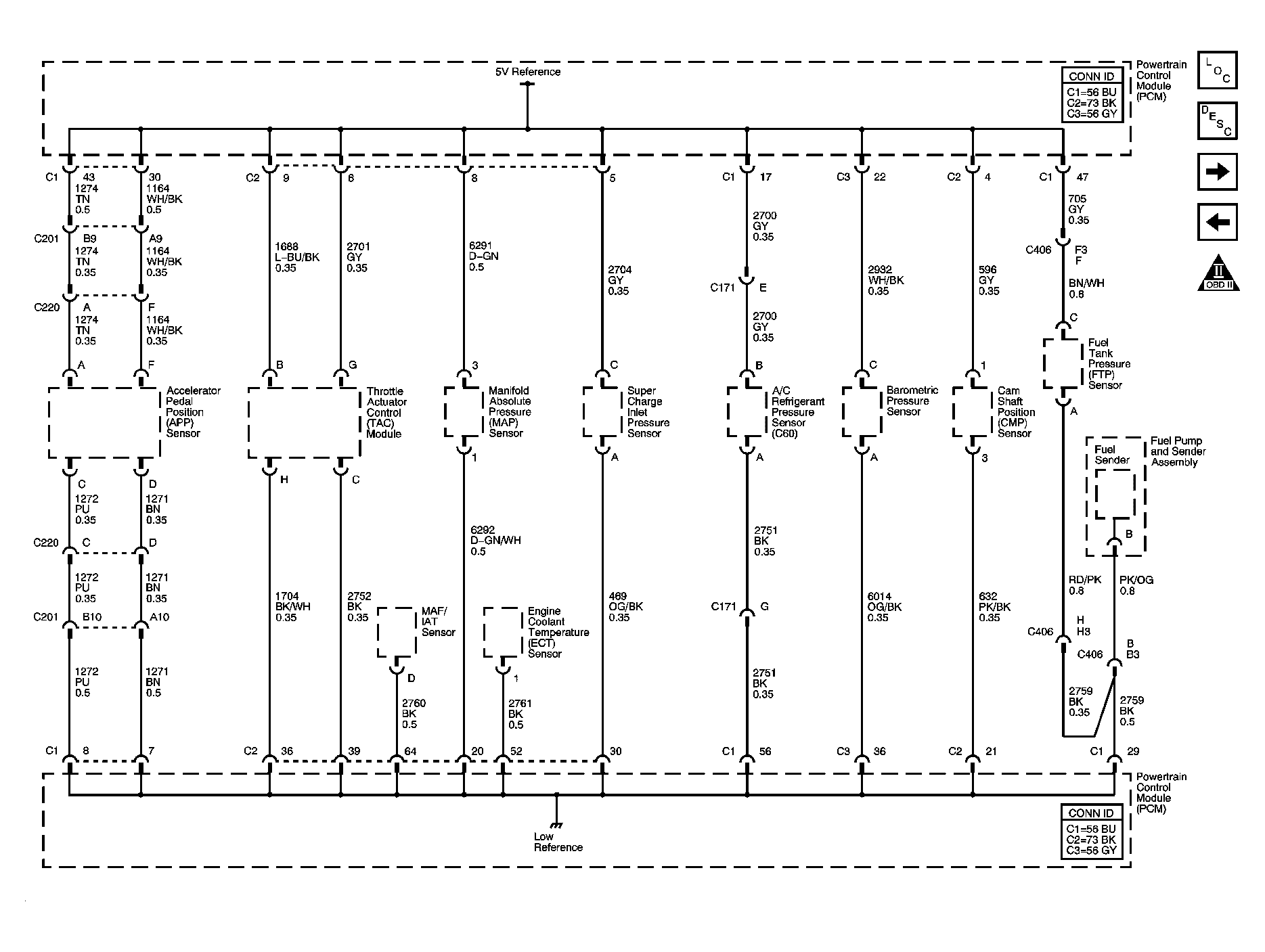

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Busing Schematic
GM1374396Courtesy of GENERAL MOTORS CORP.

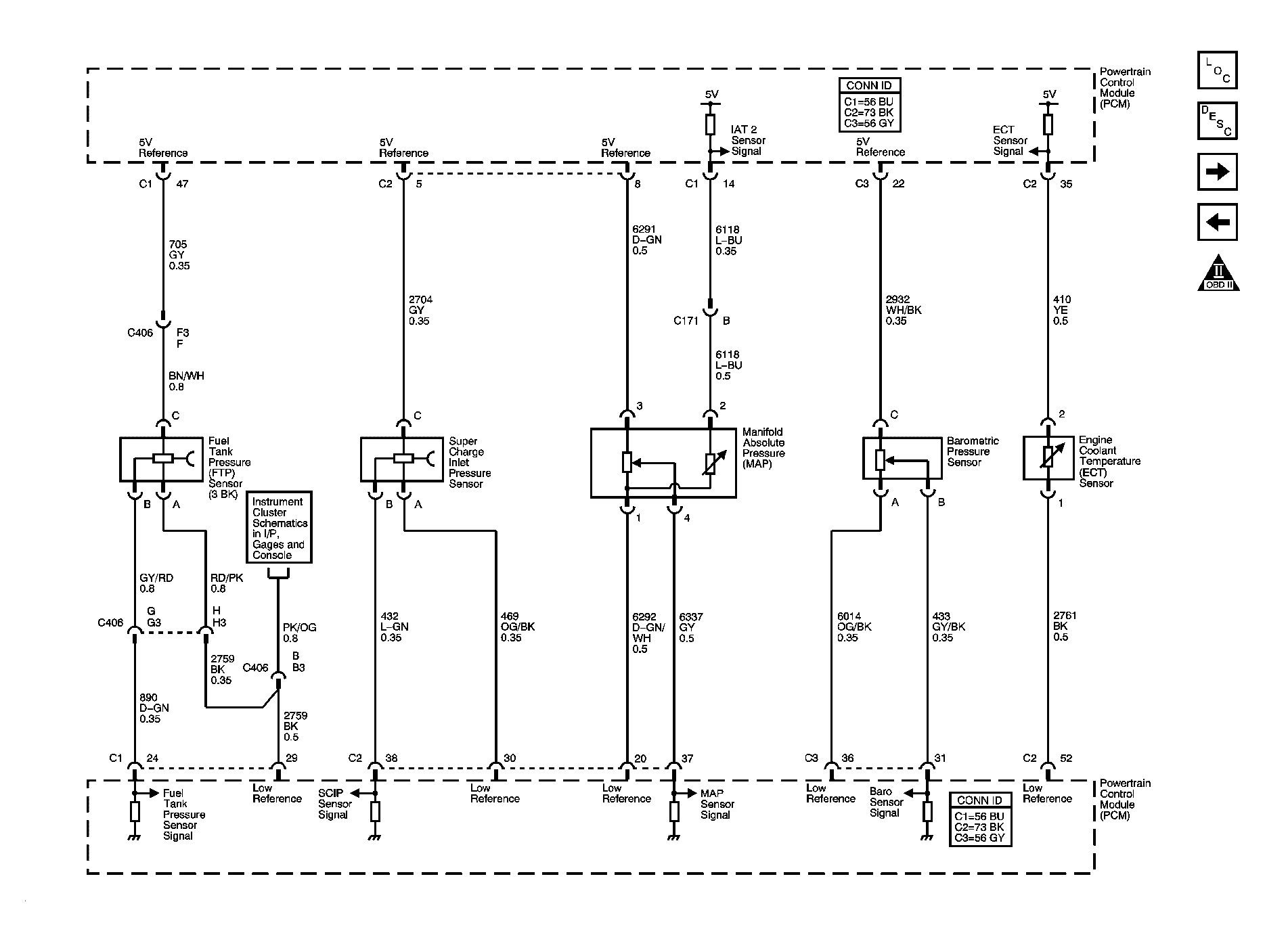

Fig 3: Engine Data Sensors - Pressure and Temperature Schematic
GM1374399Courtesy of GENERAL MOTORS CORP.

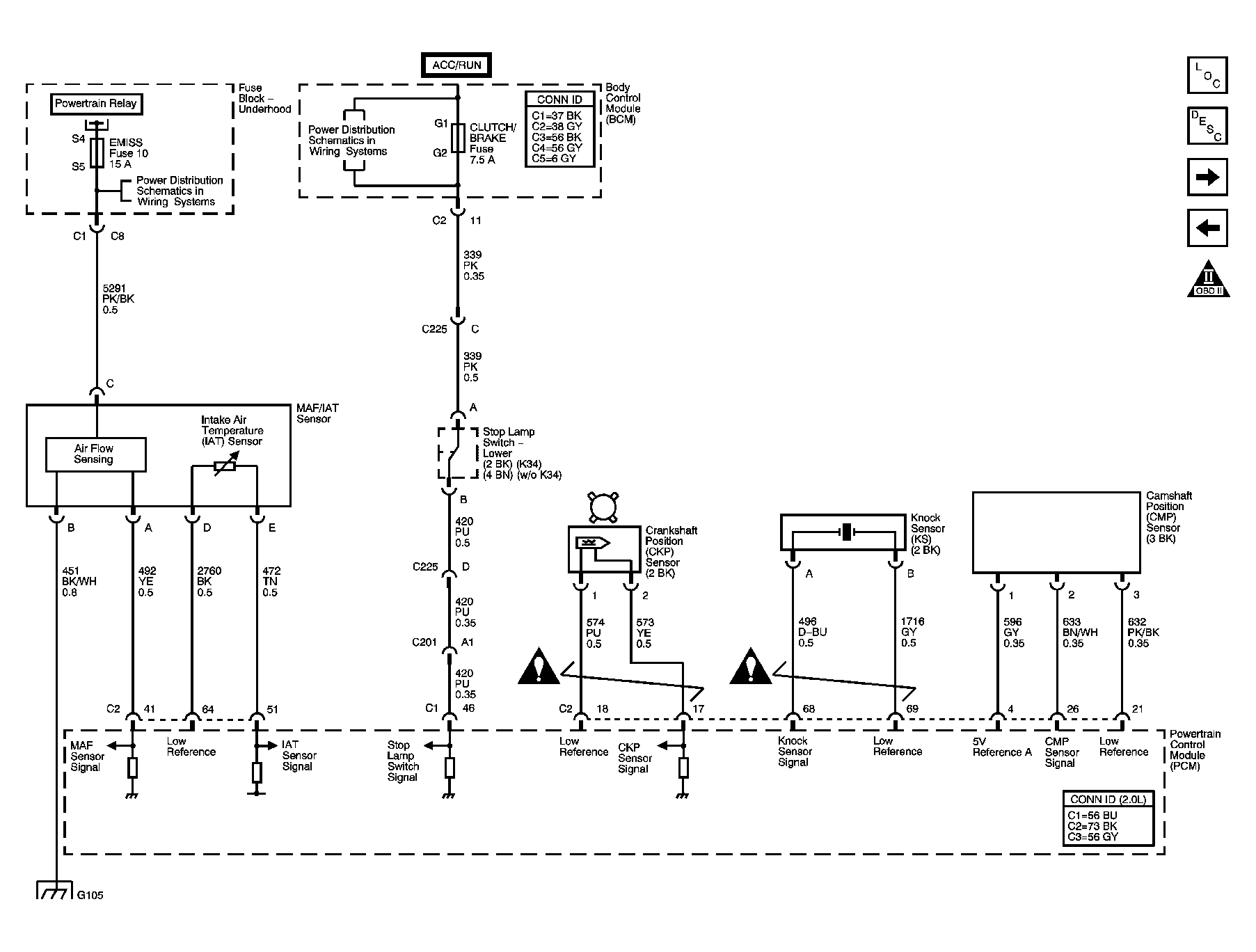

Fig 4: Engine Data Sensors Schematic - MAF/IAT, CKP, KS and Stop Lamp Switch, Lower
GM1374402Courtesy of GENERAL MOTORS CORP.

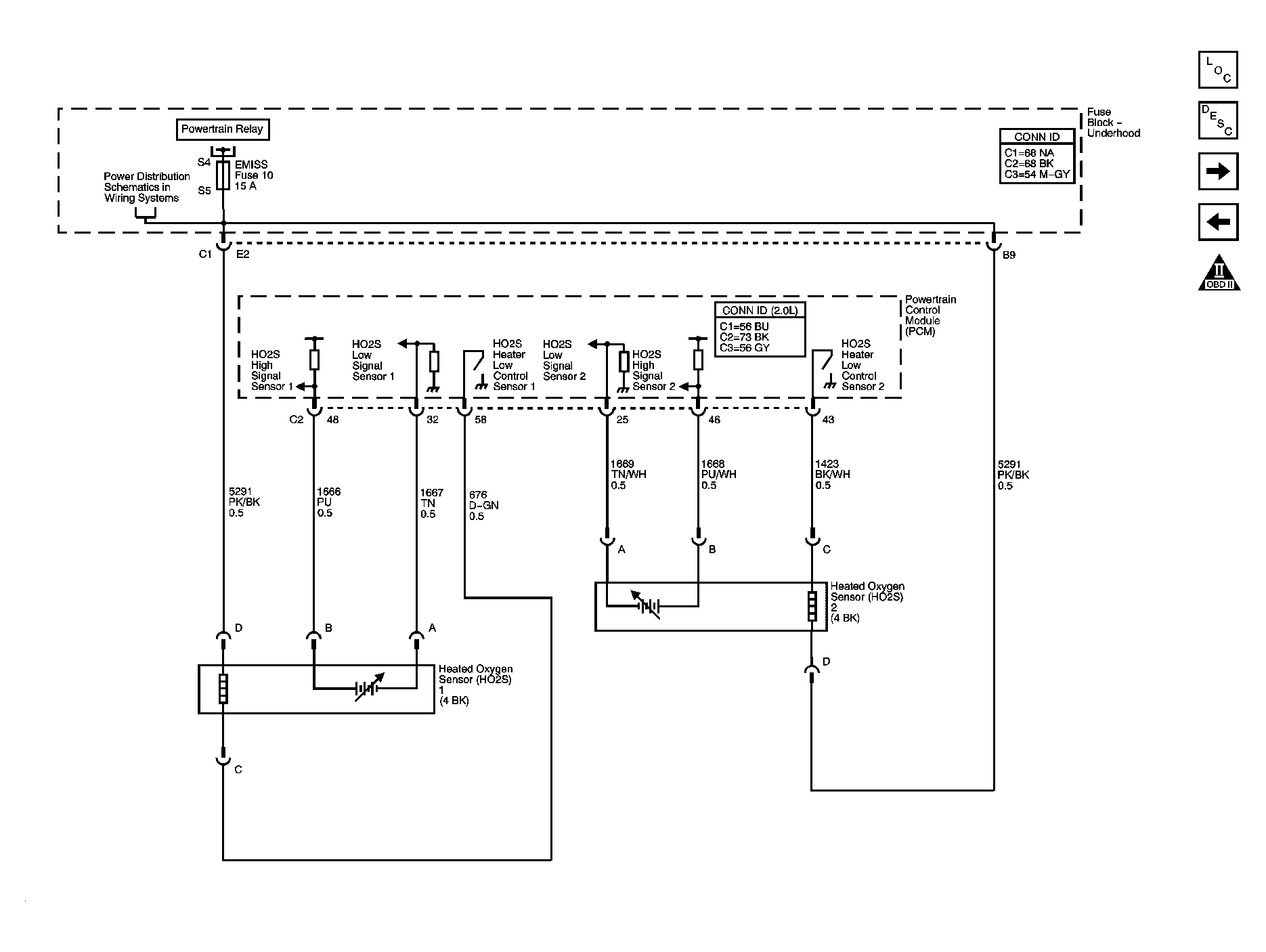

Fig 5: Engine Data Sensors Schematic - HO2S
GM1374405Courtesy of GENERAL MOTORS CORP.

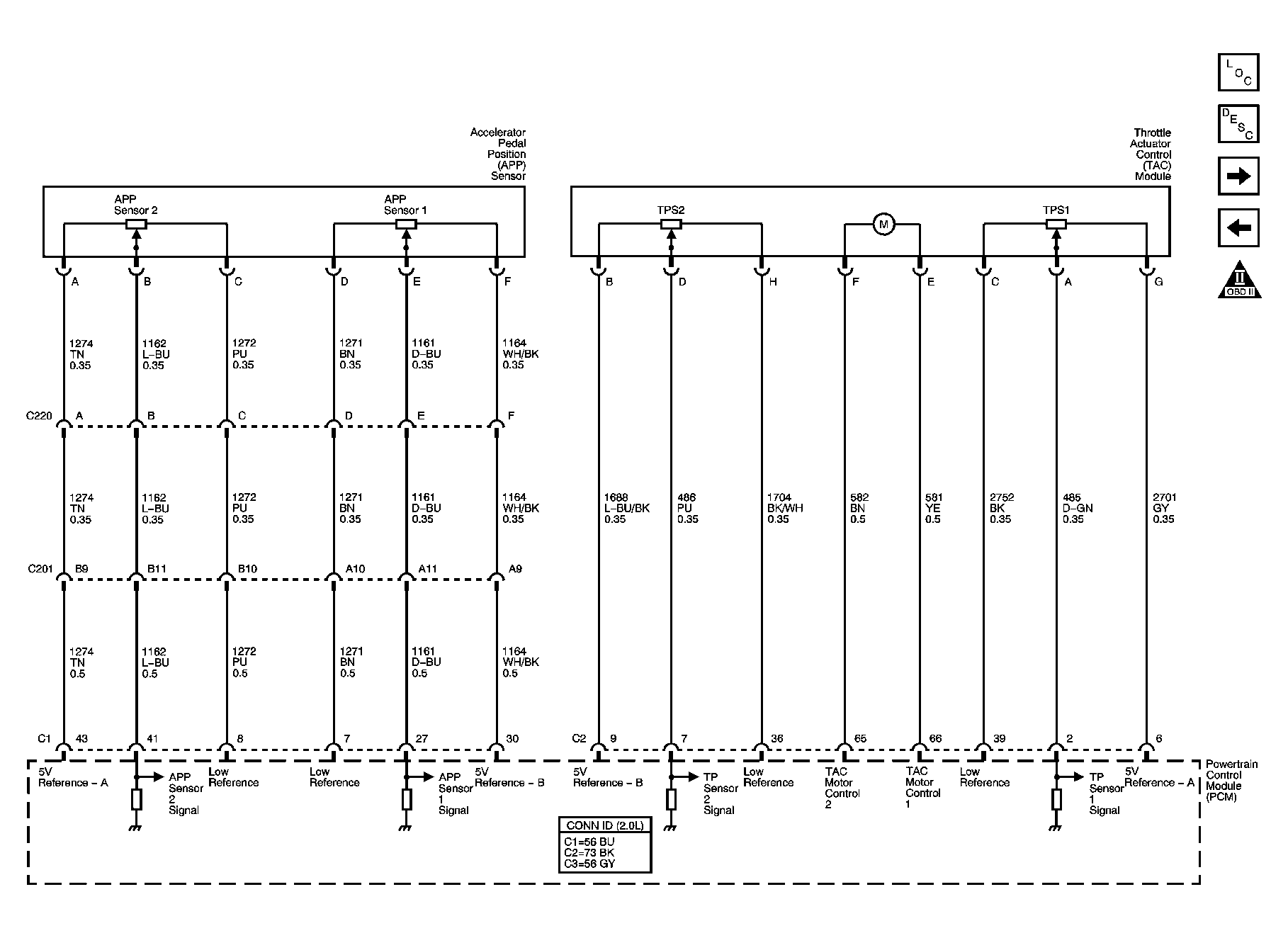

Fig 6: Engine Data Sensors Schematic - APP and TAC
GM1374407Courtesy of GENERAL MOTORS CORP.

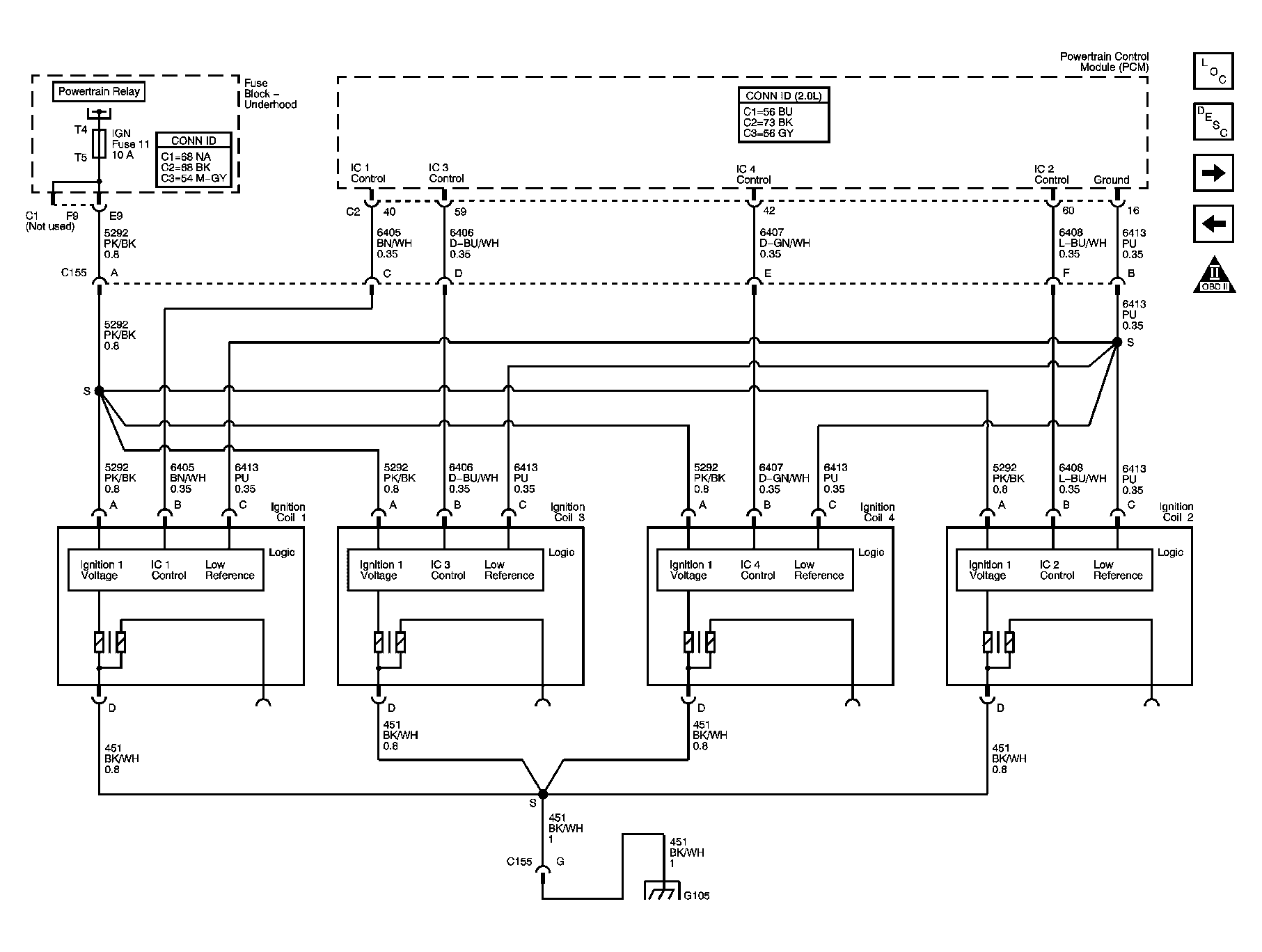

Fig 7: Ignition Controls Schematic
GM1374408Courtesy of GENERAL MOTORS CORP.

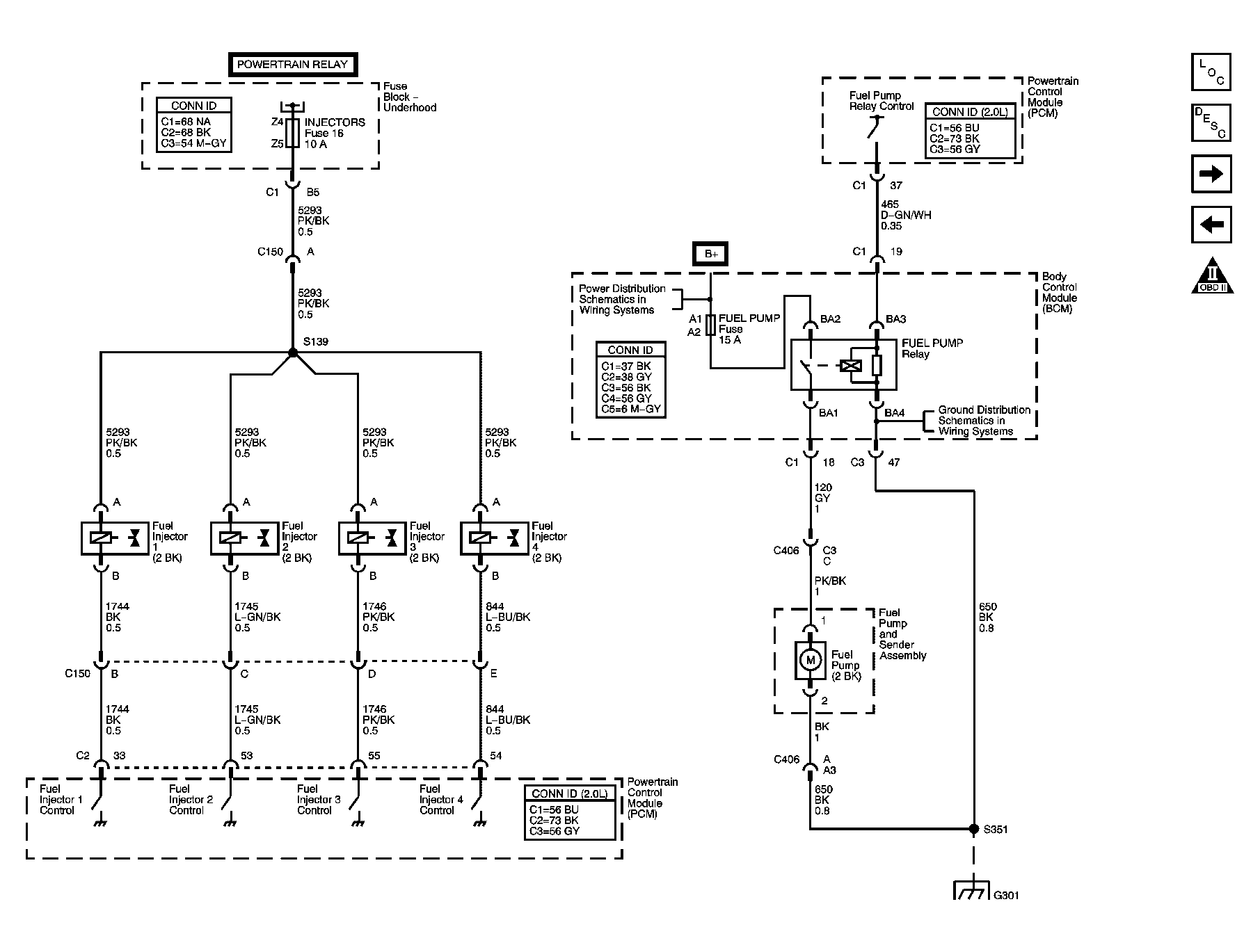

Fig 8: Fuel Delivery Schematic
GM1374410Courtesy of GENERAL MOTORS CORP.

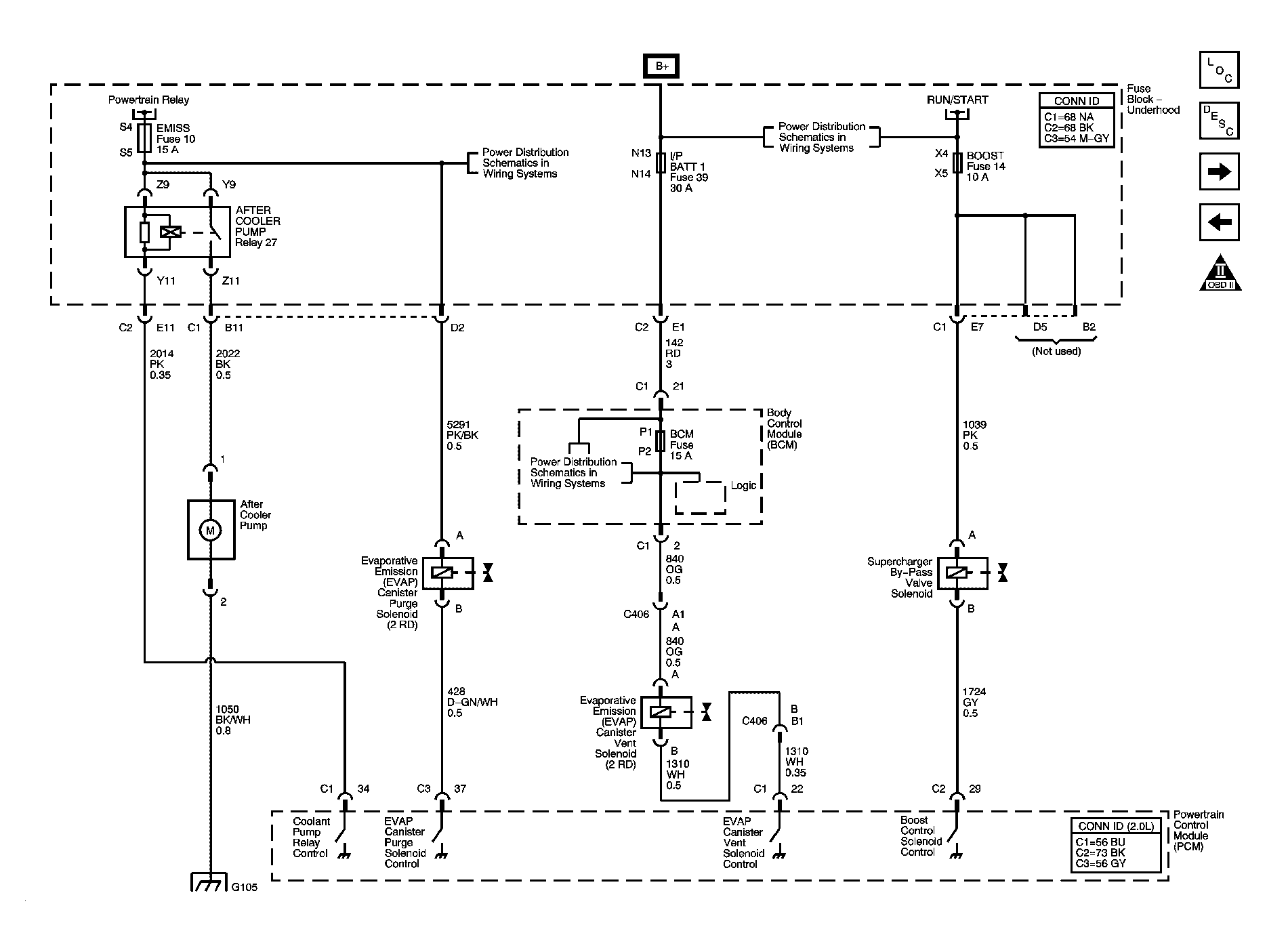

Fig 9: EVAP Controls, After Cooler Pump and Super Charger Boost Control Solenoid Schematic
GM1374411Courtesy of GENERAL MOTORS CORP.

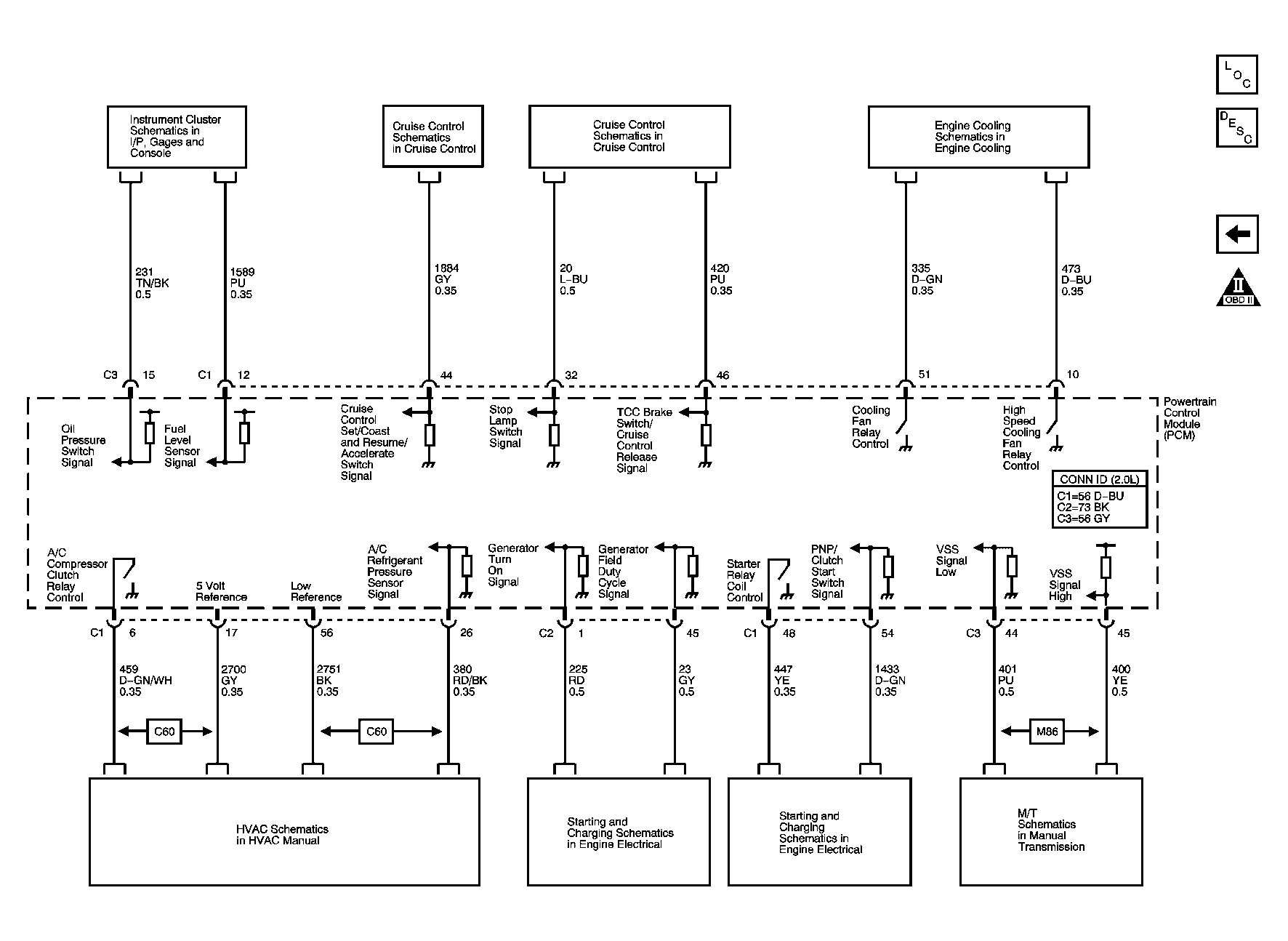

Fig 10: Controlled/Monitored Subsystem Reference Schematic
GM1374431Courtesy of GENERAL MOTORS CORP.
