Shift Lock Control Schematics

WARNING: This page is about a different car, the 2007 Saturn Ion 3 and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

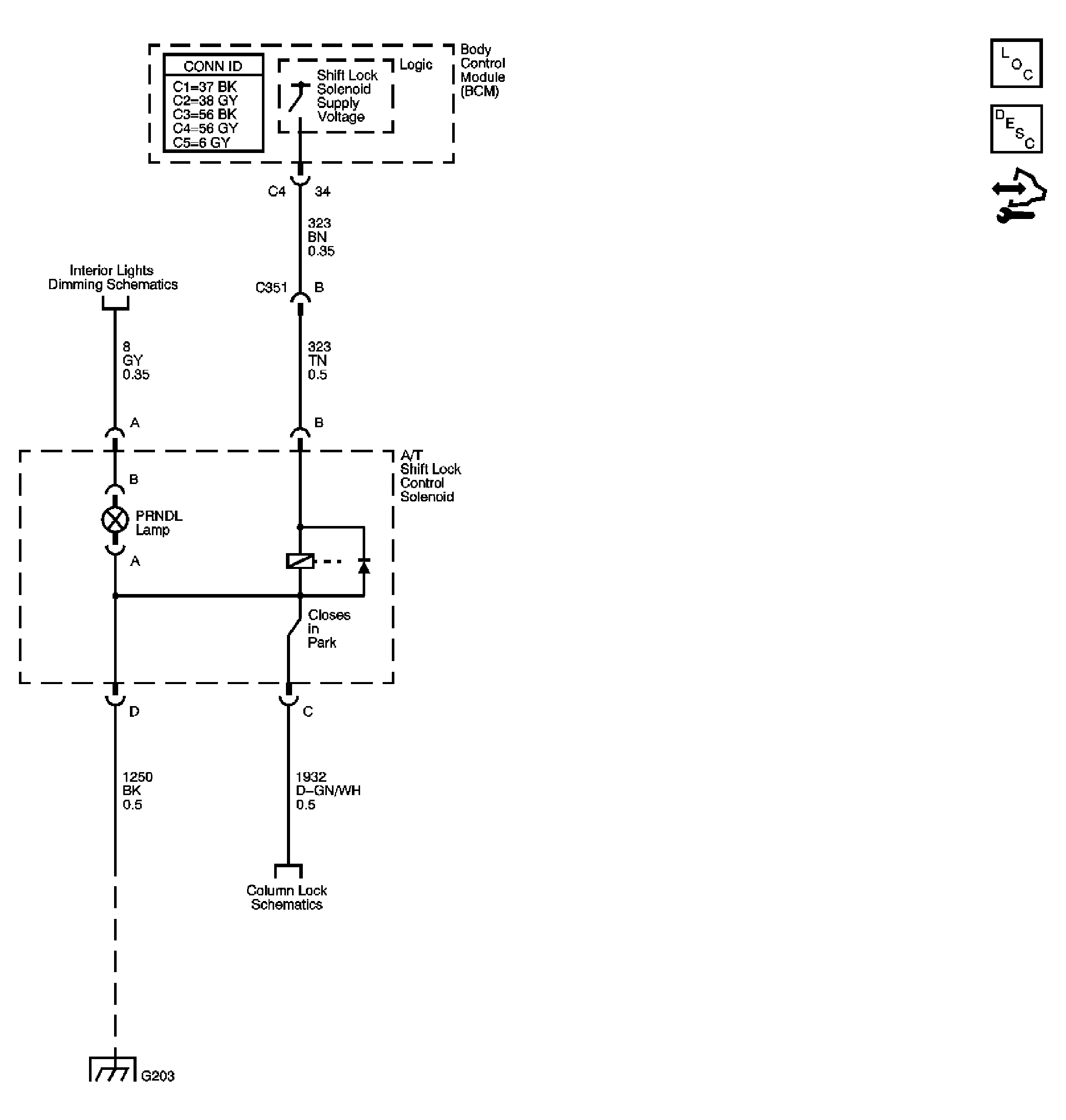

Fig 1: Shift Lock Control Schematics
GM1769066Courtesy of GENERAL MOTORS CORP.
