Installation Procedure

  1. Install the tether anchor bezel to the rear window trim.

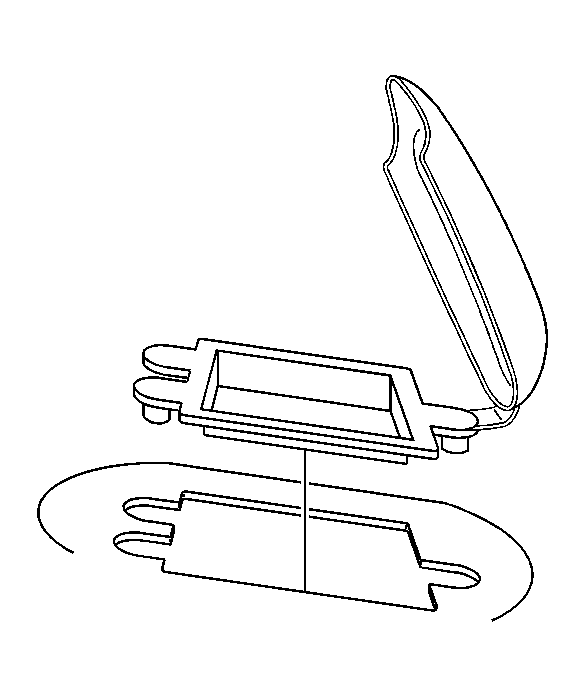

    2. Fig 1: Installing Tether Anchor Bezel
    GM876627Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the anchor bezel fasteners.

    Tighten:  Tighten the fasteners to 1.4 N.m (12 lb in).

  3. Install the rear window trim. Refer to Trim Panel Replacement - Rear Window Shelf (Early Production) or Trim Panel Replacement - Rear Window Shelf (Late Production) in Interior Trim.

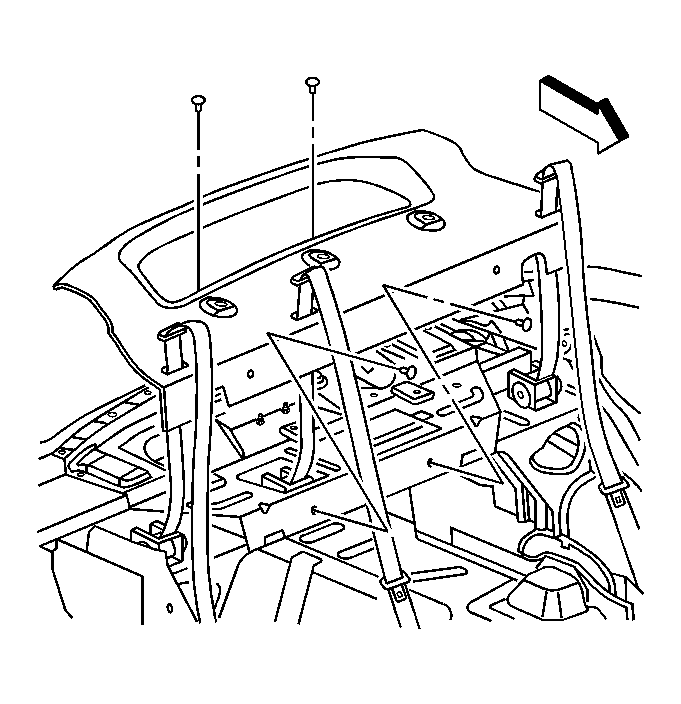

    4. Fig 2: View Of Rear Window Trim
    GM876540Courtesy of GENERAL MOTORS CORP.
  4. Close the tether anchor bezel.
