Installation Procedure

  1. Position the child tether anchor tab to the alignment hole in the rear shelf.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the child tether anchor bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

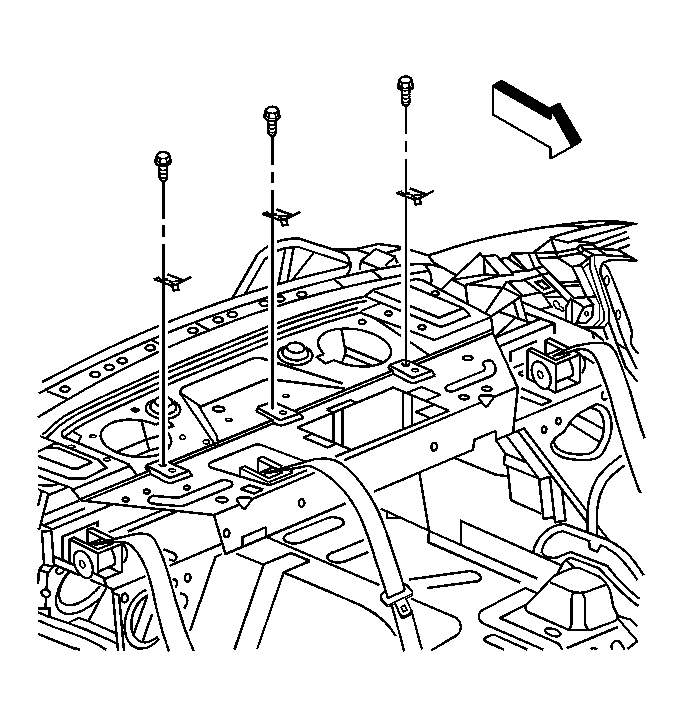

    3. Fig 1: View Of Child Tether Anchors
    GM876611Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window trim. Refer to Trim Panel Replacement - Rear Window Shelf (Early Production) or Trim Panel Replacement - Rear Window Shelf (Late Production) in Interior Trim.
  4. Close the anchor bezel, pressing into place until fully seated.
