Installation Procedure

  1. Install the child comfort guide to the garnish molding of the lower lock pillar.

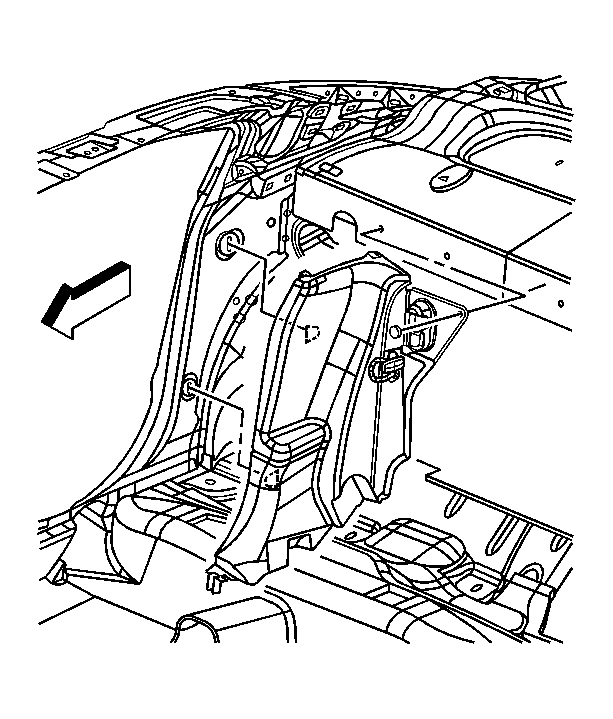

    2. Fig 1: View Of Child Comfort Guide
    GM888383Courtesy of GENERAL MOTORS CORP.
  2. Install the push-in retainer.
  3. Lift the rear seat back.
  4. Push on the seat back over the latch locations to ensure that the latches engage.
    5. IMPORTANT: Ensure that the seat belt webbing is not trapped behind the seat back.
  5. Pull up on the seat back to ensure that the seat back is latched.
  6. Verify that the seat belt operates properly.
