Installation Procedure

  1. Install the ignition coil housing to the camshaft cover.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the ignition coil housing retaining bolts.

    Tighten:  Tighten the retaining bolts to 10 N.m (89 lb in).

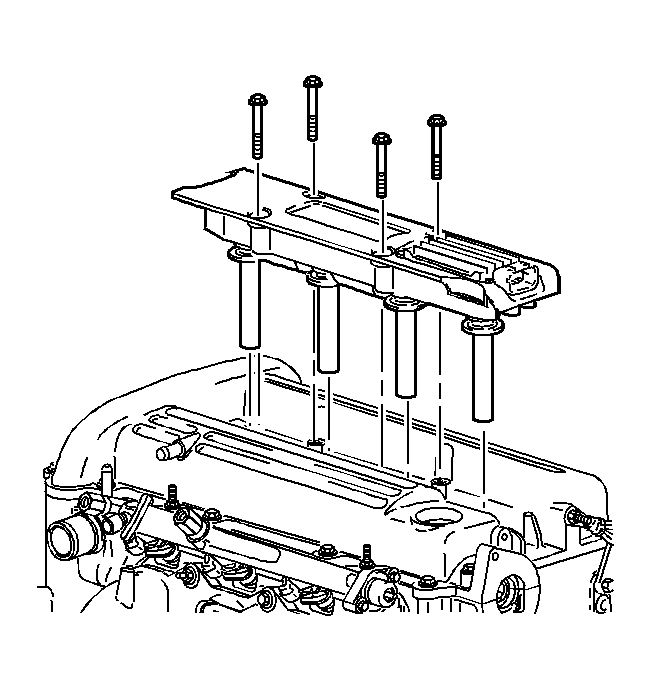

    3. Fig 1: View Of Ignition Coil & Module Assembly
    GM412144Courtesy of GENERAL MOTORS CORP.
  3. Install the ICM. Refer to Ignition Control Module Replacement .
  4. Install the accelerator and cruise control cables bracket.
  5. Install the accelerator and cruise control cables bracket bolts.

    Tighten:  Tighten the retaining bolts to 10 N.m (89 lb in).

  6. Install the accelerator and cruise control cables to the bracket.
