Mass Air Flow (MAF) Sensor Replacement

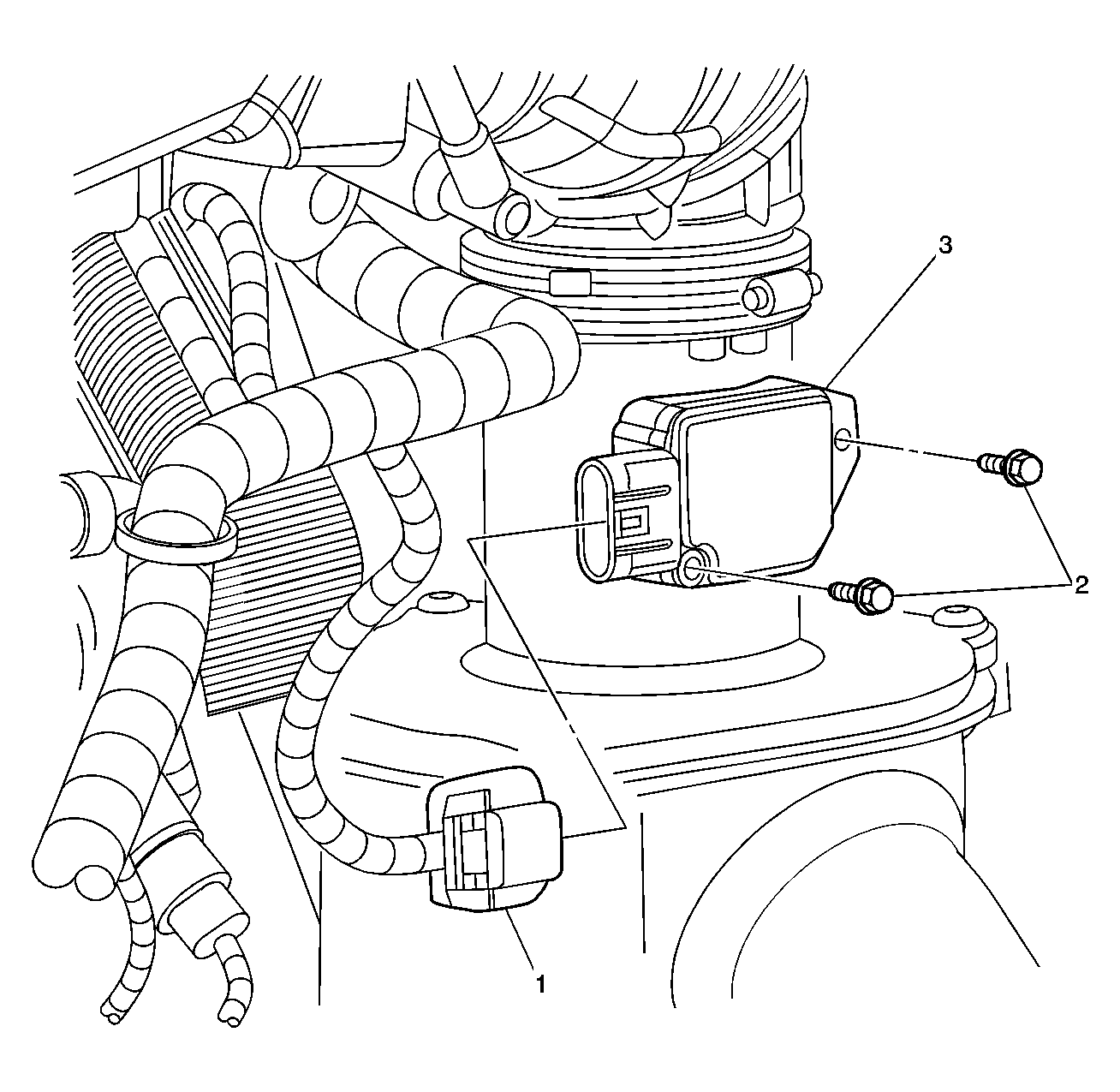

Fig 1: MAF Sensor Replacement Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Connector, Mass Air Flow Sensor
2	Bolt, Mass Air Flow Sensor (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Mass Air Flow Sensor
