Communication Interface Module Replacement
WARNING: This page is about a different car, the 2005 Pontiac Pursuit and 2005 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Communication Interface Module Replacement

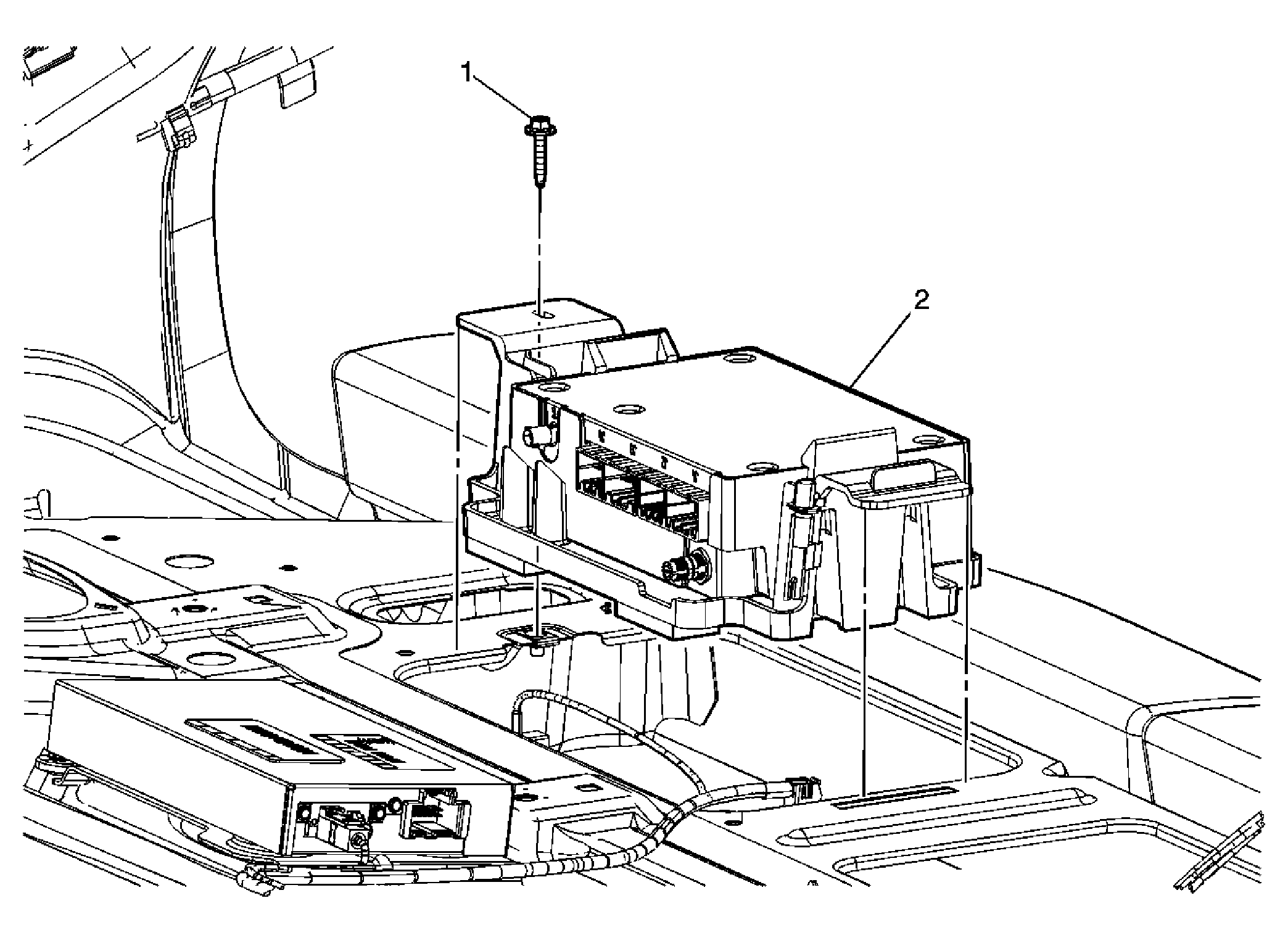

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the rear shelf trim. Refer to Trim Panel Replacement - Rear Window Shelf
. |
|
| 1 | Bolt, Vehicle Communication Module Tighten: 9 N.m (80 lb in) |
| 2 | Module Assembly, Vehicle Communication |
