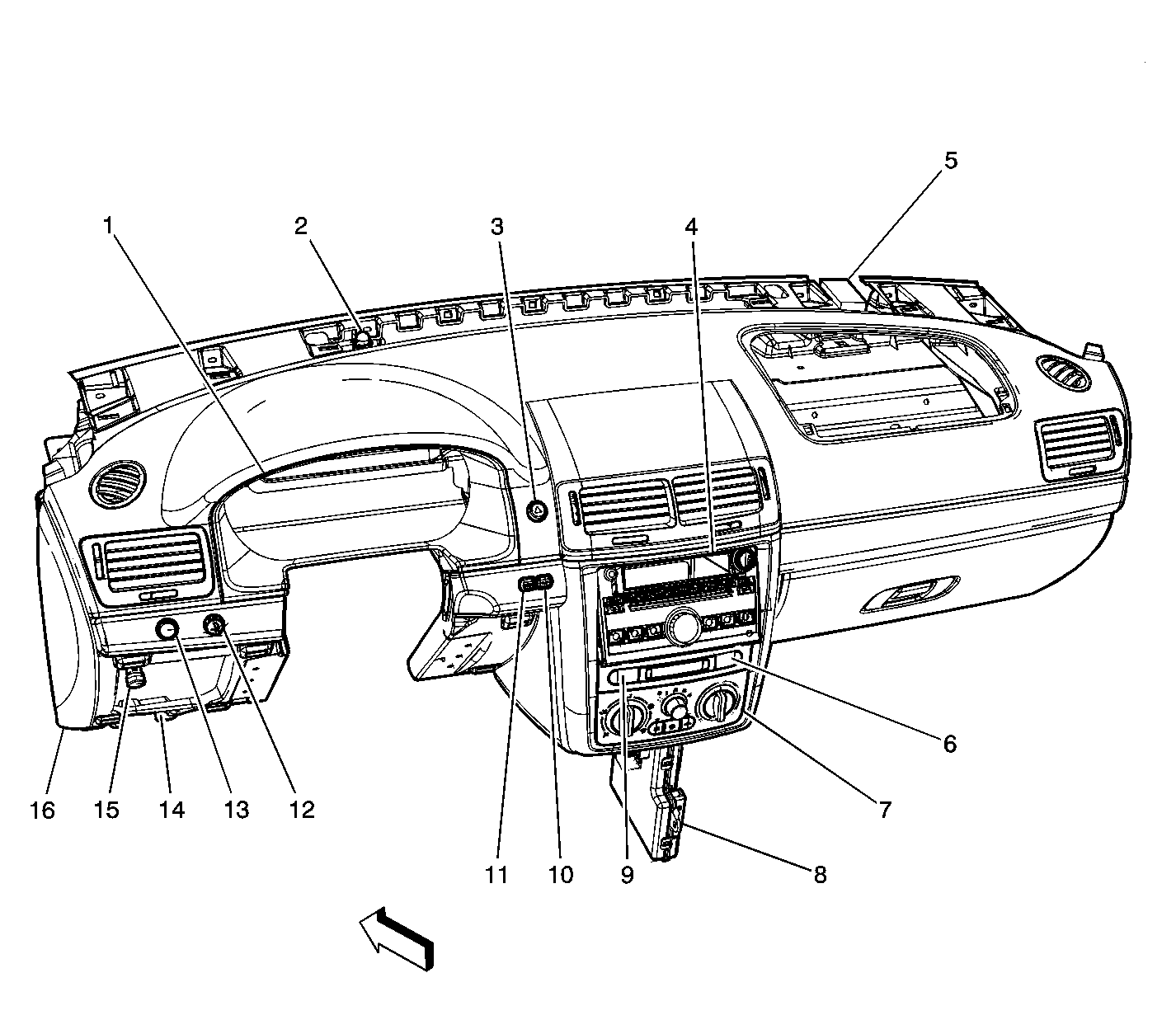

Computer/Integrating Systems Component Views
WARNING: This page is about a different car, the 2005 Pontiac Pursuit and 2005 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Ambient Light Sensor |
| 3 | Hazard Switch |
| 4 | Radio |
| 5 | Remote Control Door Lock Receiver (RCDLR) (AUO) |
| 6 | Heated Seat Switch - Passenger (KA1) |
| 7 | HVAC Control Module |
| 8 | Body Control Module (BCM) |
| 9 | Heated Seat Switch - Driver (KA1) |
| 10 | Driver Information Center (DIC) Set Switch |
| 11 | Driver Information Center (DIC) Mode Switch |
| 12 | I/P Dimmer Switch |
| 13 | Fog Lamp Switch (T37) |
| 14 | Data Link Connector (DLC) |
| 15 | Rear Compartment Lid Release Switch |
| 16 | I/P Trim |
