Installation Procedure

  1. Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Install the rearview mirror. Refer to Rearview Mirror Replacement .
  3. Install the front upper garnish molding. Refer to Molding Replacement - Roof Weld Joint Reveal - Front (Coupe) or Molding Replacement - Roof Weld Joint Reveal - Front (Sedan) in Exterior Trim.
  4. Install the windshield frame appliques. Refer to Applique Replacement - Windshield Frame in Exterior Trim.
  5. Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  6. Install the windshield wipers arms and blades. Refer to Wiper Arm Replacement in Wipers/Washer Systems.
  7. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  8. Close the hood.

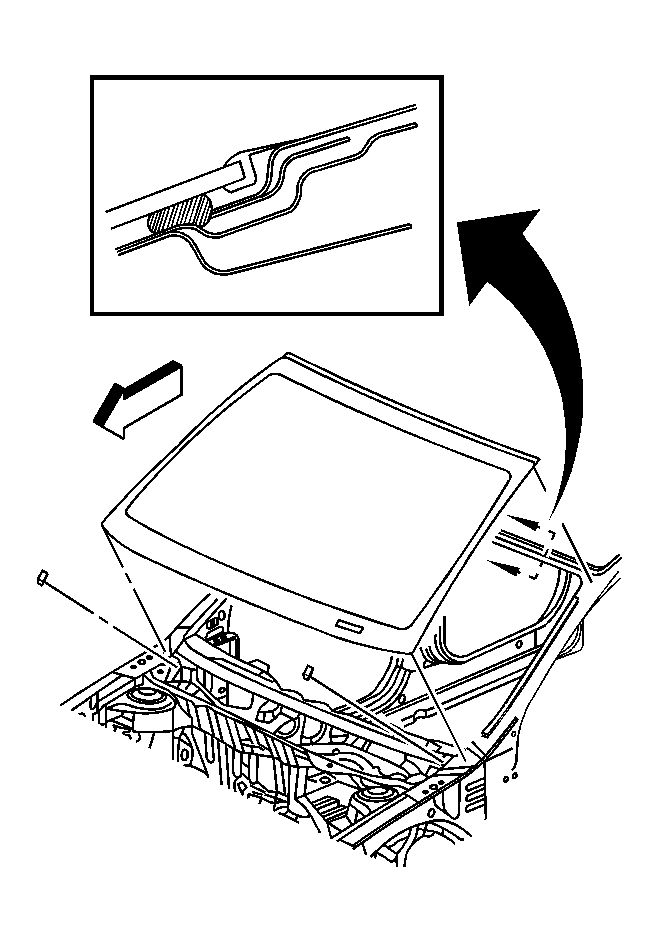

    9. Fig 1: Removing/Installing Windshield
    GM880612Courtesy of GENERAL MOTORS CORP.
