Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Center Console

G00259103

Courtesy of GENERAL MOTORS CORP.

Fig 2: Lower Left Front Of Engine

G00259106

Courtesy of GENERAL MOTORS CORP.

Fig 3: Left Front Wheel

G00259111

Courtesy of GENERAL MOTORS CORP.

Fig 4: Under Left Side Of Dash

G00259112

Courtesy of GENERAL MOTORS CORP.

Fig 5: Center Of Dash

G00259126

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Shelf

G00259127

Courtesy of GENERAL MOTORS CORP.

Fig 7: Base Of Left Front Seat

G00259129

Courtesy of GENERAL MOTORS CORP.

Fig 8: Right Side Of Dash

G00259130

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Front Of Roof Rail

G00259131

Courtesy of GENERAL MOTORS CORP.

Fig 10: Right "B" Pillar

G00259135

Courtesy of GENERAL MOTORS CORP.

Fig 11: Right Center Of Passenger Compartment

G00259136

Courtesy of GENERAL MOTORS CORP.

Fig 12: Body Control Module (BCM)

G00258570

Courtesy of GENERAL MOTORS CORP.

Fig 13: Fuse Block - Underhood (2.2L)

G00258575

Courtesy of GENERAL MOTORS CORP.

Fig 14: Fuse Block - Underhood (2.0L)

G00258573

Courtesy of GENERAL MOTORS CORP.

Fig 15: SIR Zone Identification Views (Sedan)

G00259137

Courtesy of GENERAL MOTORS CORP.

Fig 16: Rear Of Engine (2.0L)

G00359249

Courtesy of GENERAL MOTORS CORP.

Fig 17: Left Side Of Engine (2.0L)

G00359250

Courtesy of GENERAL MOTORS CORP.

Fig 18: Top Of Engine (2.0L)

G00359251

Courtesy of GENERAL MOTORS CORP.

Fig 19: Rear Of Engine Compartment (2.0L)

G00359252

Courtesy of GENERAL MOTORS CORP.

Fig 20: Rear Of Engine Compartment (2.0L)

G00359253

Courtesy of GENERAL MOTORS CORP.

Fig 21: Left Side Of Engine Compartment (2.0L)

G00359254

Courtesy of GENERAL MOTORS CORP.

Fig 22: Top Left Side Of Engine (2.0L)

G00359255

Courtesy of GENERAL MOTORS CORP.

Fig 23: Lower Rear Of Engine (2.0L)

G00359256

Courtesy of GENERAL MOTORS CORP.

Fig 24: Front Of Engine (2.0L)

G00359257

Courtesy of GENERAL MOTORS CORP.

Fig 25: Below Left Side Of Dash

G00359258

Courtesy of GENERAL MOTORS CORP.

Fig 26: Top Of Fuel Tank

G00359259

Courtesy of GENERAL MOTORS CORP.

Fig 27: Top Of Engine (2.0L)

G00359260

Courtesy of GENERAL MOTORS CORP.

Fig 28: Top Left Of Engine (2.0L)

G00359261

Courtesy of GENERAL MOTORS CORP.

Fig 29: Left Side Of Engine (2.2L)

G00359262

Courtesy of GENERAL MOTORS CORP.

Fig 30: Right Side Of Engine/Transmission (2.2L)

G00359263

Courtesy of GENERAL MOTORS CORP.

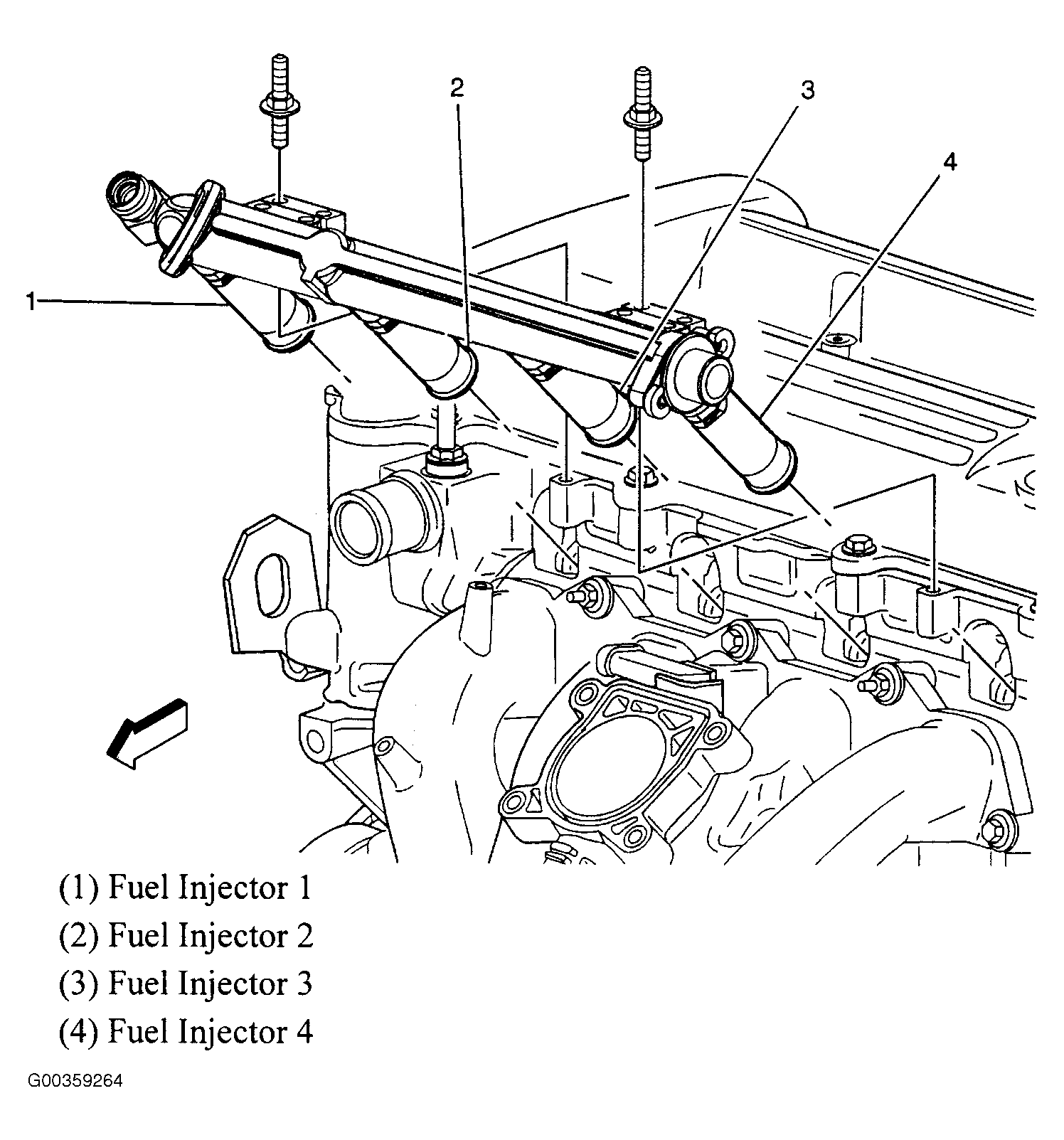

Fig 31: Top Of Engine (2.2L)

G00359264

Courtesy of GENERAL MOTORS CORP.

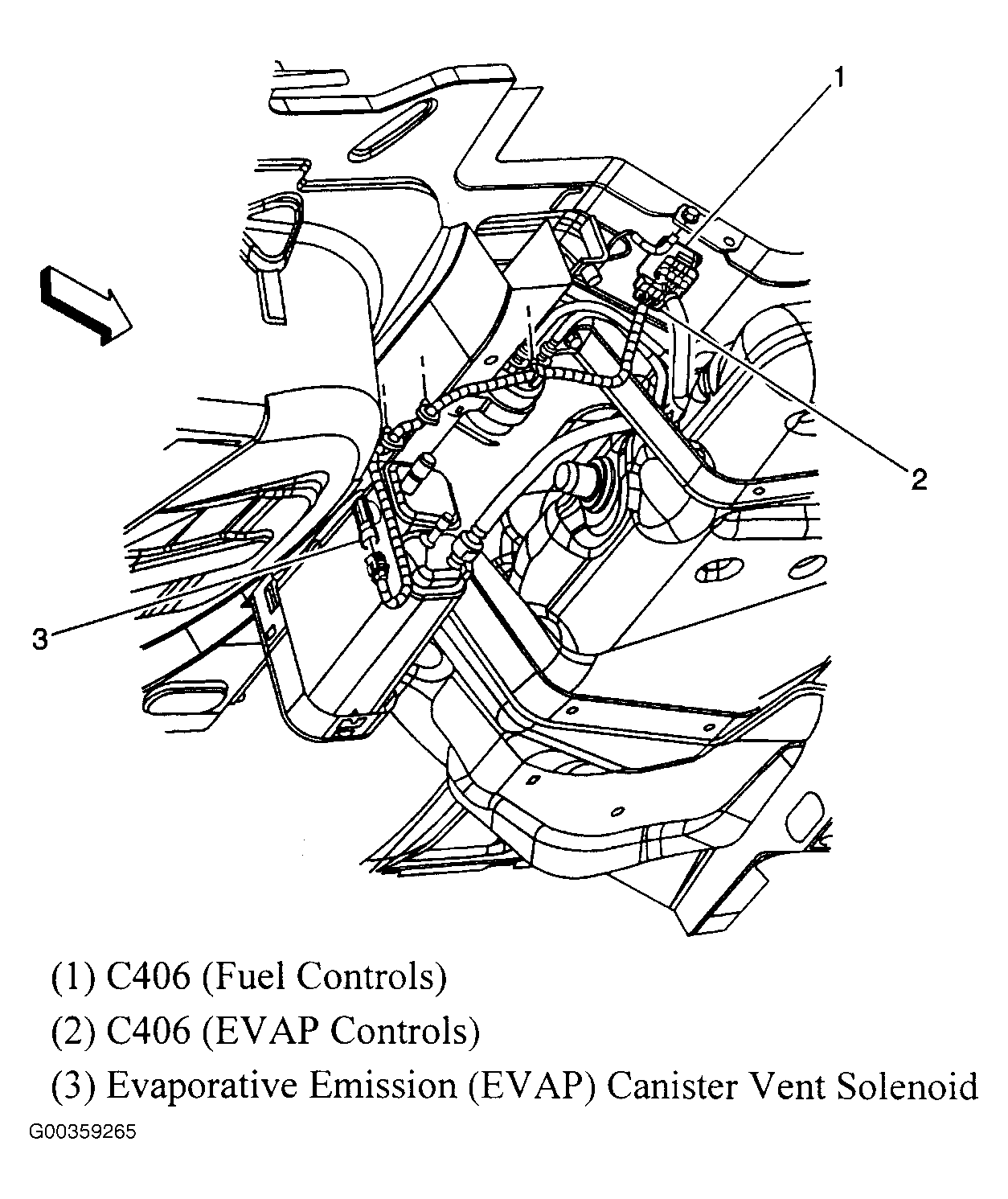

Fig 32: Behind Fuel Tank

G00359265

Courtesy of GENERAL MOTORS CORP.

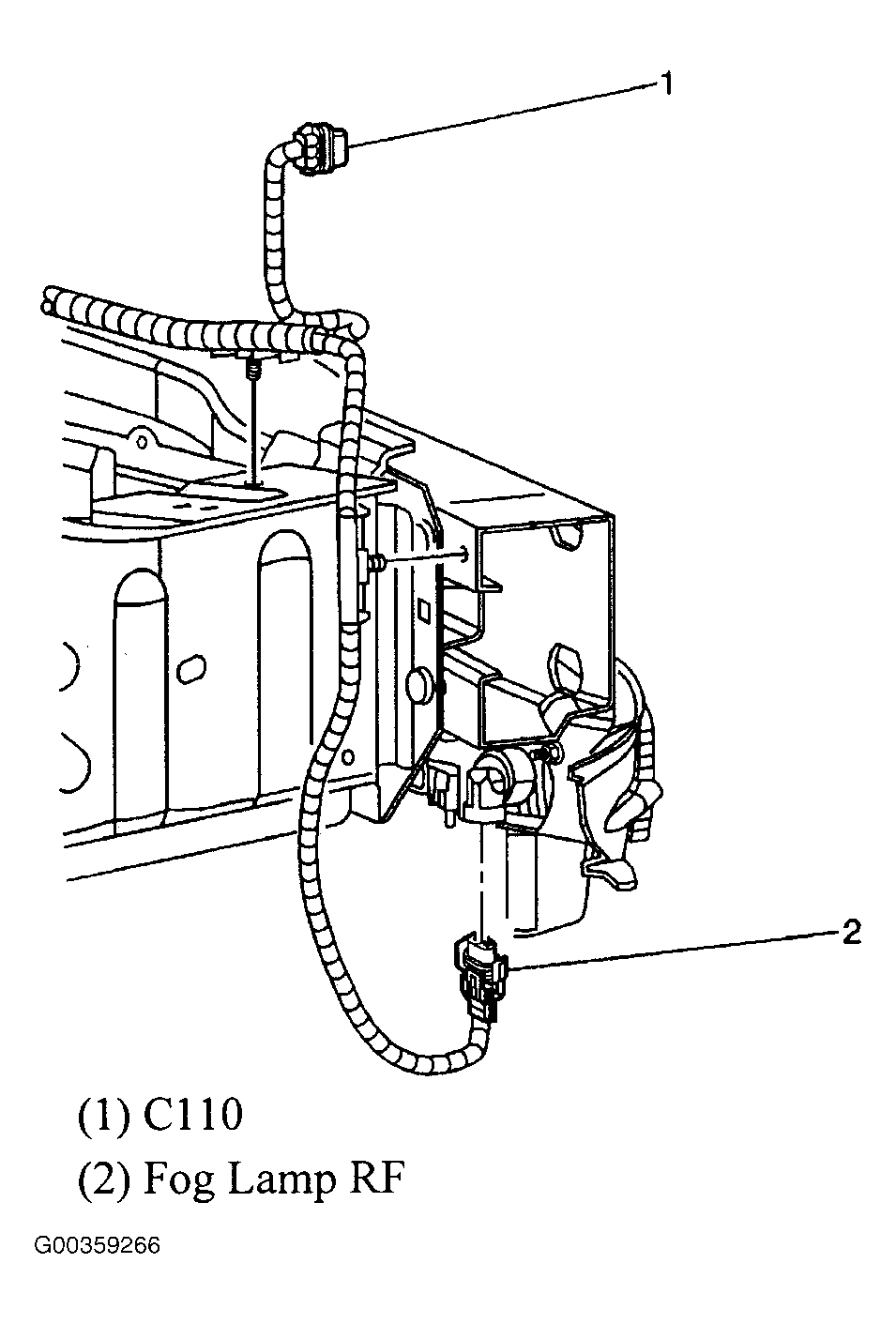

Fig 33: Right Front Of Vehicle

G00359266

Courtesy of GENERAL MOTORS CORP.

Fig 34: Left Front Of Vehicle

G00359267

Courtesy of GENERAL MOTORS CORP.

Fig 35: Left Side Of Dash

G00359268

Courtesy of GENERAL MOTORS CORP.

Fig 36: Left Side Of Engine Compartment

G00359269

Courtesy of GENERAL MOTORS CORP.

Fig 37: Left Rear Of Engine Compartment

G00359270

Courtesy of GENERAL MOTORS CORP.

Fig 38: Under Center Console

G00359271

Courtesy of GENERAL MOTORS CORP.

Fig 39: Top Of Dash

G00359272

Courtesy of GENERAL MOTORS CORP.

Fig 40: Under Center Console

G00359273

Courtesy of GENERAL MOTORS CORP.

Fig 41: Automatic Transmission

G00359274

Courtesy of GENERAL MOTORS CORP.

Fig 42: Left Side Of Engine Compartment

G00359275

Courtesy of GENERAL MOTORS CORP.

Fig 43: Under Right Rear Of Vehicle

G00359276

Courtesy of GENERAL MOTORS CORP.

Fig 44: Rear Window Shelf

G00359277

Courtesy of GENERAL MOTORS CORP.

Fig 45: Vehicle Rear Gate

G00359278

Courtesy of GENERAL MOTORS CORP.

Fig 46: Inside Rearview Mirror

G00359279

Courtesy of GENERAL MOTORS CORP.

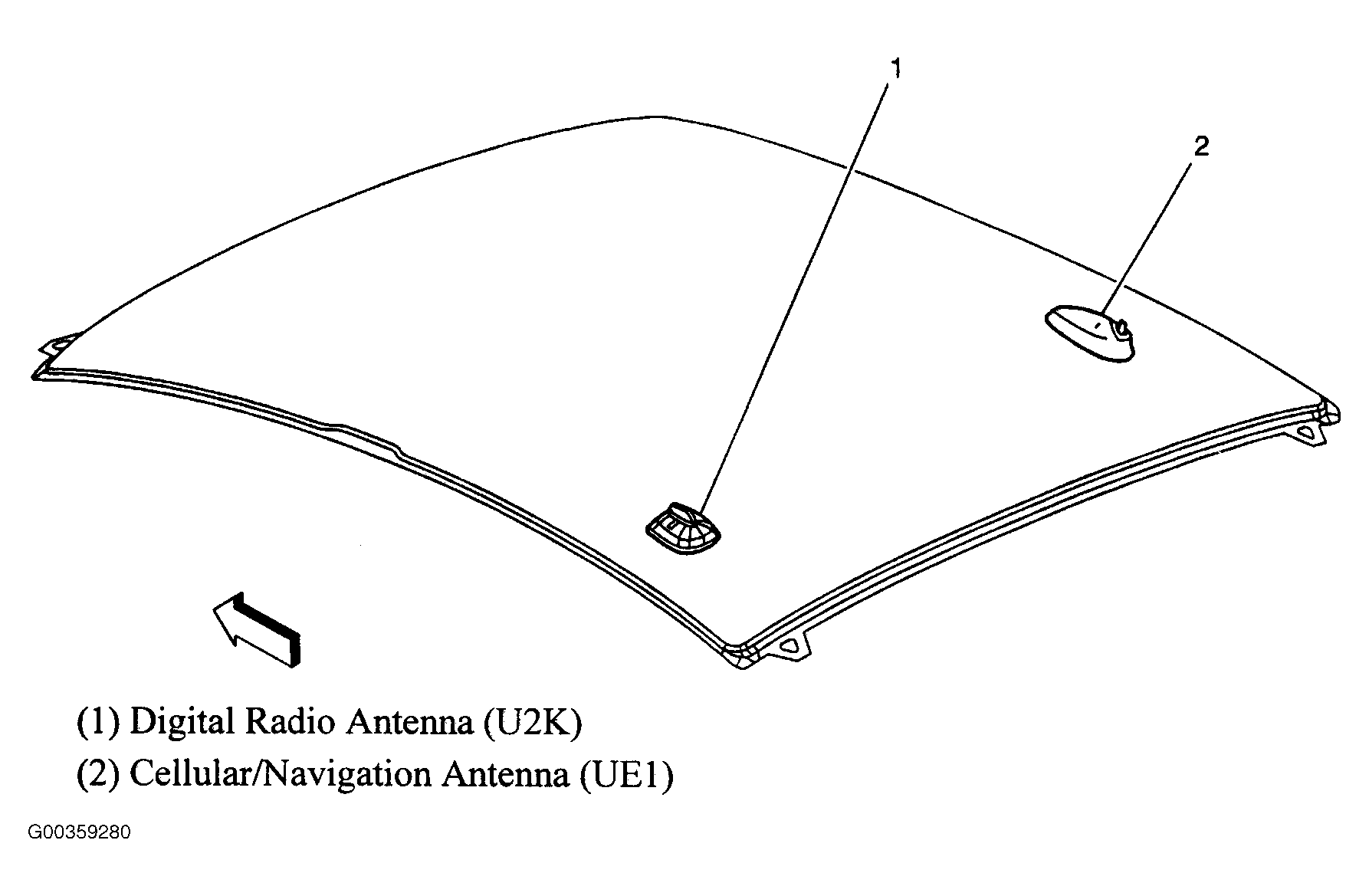

Fig 47: Roof

G00359280

Courtesy of GENERAL MOTORS CORP.

Fig 48: Left Side Of Dash

G00359281

Courtesy of GENERAL MOTORS CORP.

Fig 49: Center Of Dash

G00359282

Courtesy of GENERAL MOTORS CORP.

Fig 50: Left Side Of Dash

G00359283

Courtesy of GENERAL MOTORS CORP.

Fig 51: Steering Wheel Assembly

G00359284

Courtesy of GENERAL MOTORS CORP.

Fig 52: Left Front Door

G00359285

Courtesy of GENERAL MOTORS CORP.

Fig 53: Right Side Of Dash

G00359286

Courtesy of GENERAL MOTORS CORP.

Fig 54: Right Side Of Dash

G00359287

Courtesy of GENERAL MOTORS CORP.

Fig 55: Left Side Of Dash

G00359288

Courtesy of GENERAL MOTORS CORP.

Fig 56: Right Rear Door (Sedan)

G00359289

Courtesy of GENERAL MOTORS CORP.

Fig 57: Left Front Door

G00359290

Courtesy of GENERAL MOTORS CORP.

Fig 58: Front Of Engine Compartment (2.2L)

G00359291

Courtesy of GENERAL MOTORS CORP.

Fig 59: Front Of Engine Compartment (2.0L)

G00359292

Courtesy of GENERAL MOTORS CORP.

Fig 60: Left Rear Of Engine Compartment

G00364895

Courtesy of GENERAL MOTORS CORP.

Fig 61: Left Front Of Engine (2.0L)

G00259114

Courtesy of GENERAL MOTORS CORP.

Fig 62: Luggage Compartment

G00364896

Courtesy of GENERAL MOTORS CORP.

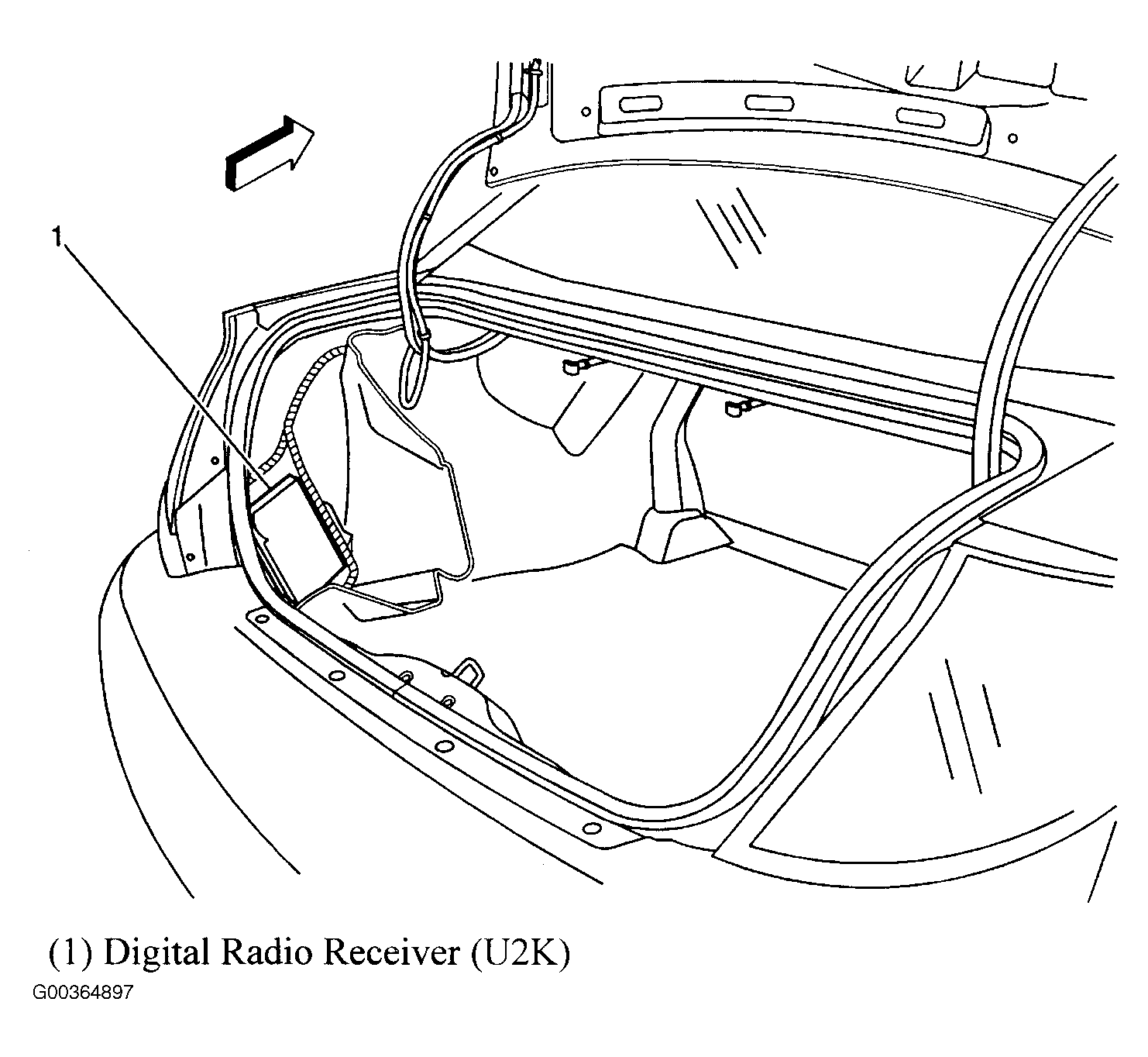

Fig 63: Left Side Of Luggage Compartment

G00364897

Courtesy of GENERAL MOTORS CORP.

Fig 64: Left Side Of Dash

G00364898

Courtesy of GENERAL MOTORS CORP.

Fig 65: Sunroof Assembly

G00364899

Courtesy of GENERAL MOTORS CORP.

Fig 66: Left Front Of Vehicle

G00364900

Courtesy of GENERAL MOTORS CORP.

Fig 67: Left Rear Of Engine Compartment

G00364901

Courtesy of GENERAL MOTORS CORP.

Fig 68: Right Side Of Luggage Compartment

G00364902

Courtesy of GENERAL MOTORS CORP.

Fig 69: Vehicle Overview

G00364903

Courtesy of GENERAL MOTORS CORP.

Fig 70: Left Side Of Engine Compartment

G00364904

Courtesy of GENERAL MOTORS CORP.

Fig 71: Left Side Of Dash

G00364905

Courtesy of GENERAL MOTORS CORP.
