Engine Controls - DTC P0132 - DTC P0340
>>
Diagnostic Information & Procedures
>>
DTC P0141
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0141: Notes

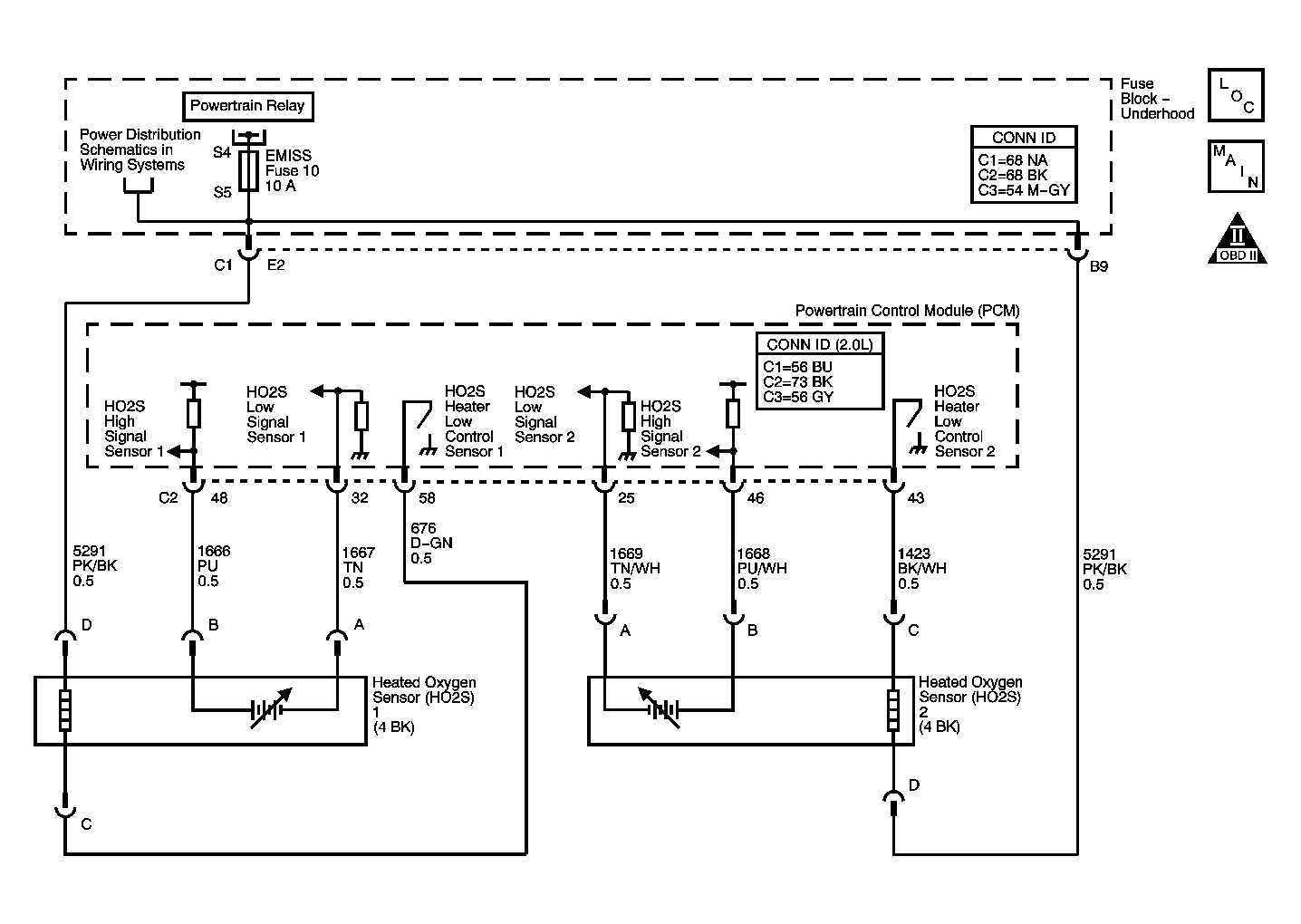

Fig 1: HO2S Circuit
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
