Engine Controls - DTC P1682 - DTC P2229
>>
Diagnostic Information & Procedures
>>
DTC P2138
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P2138: Notes

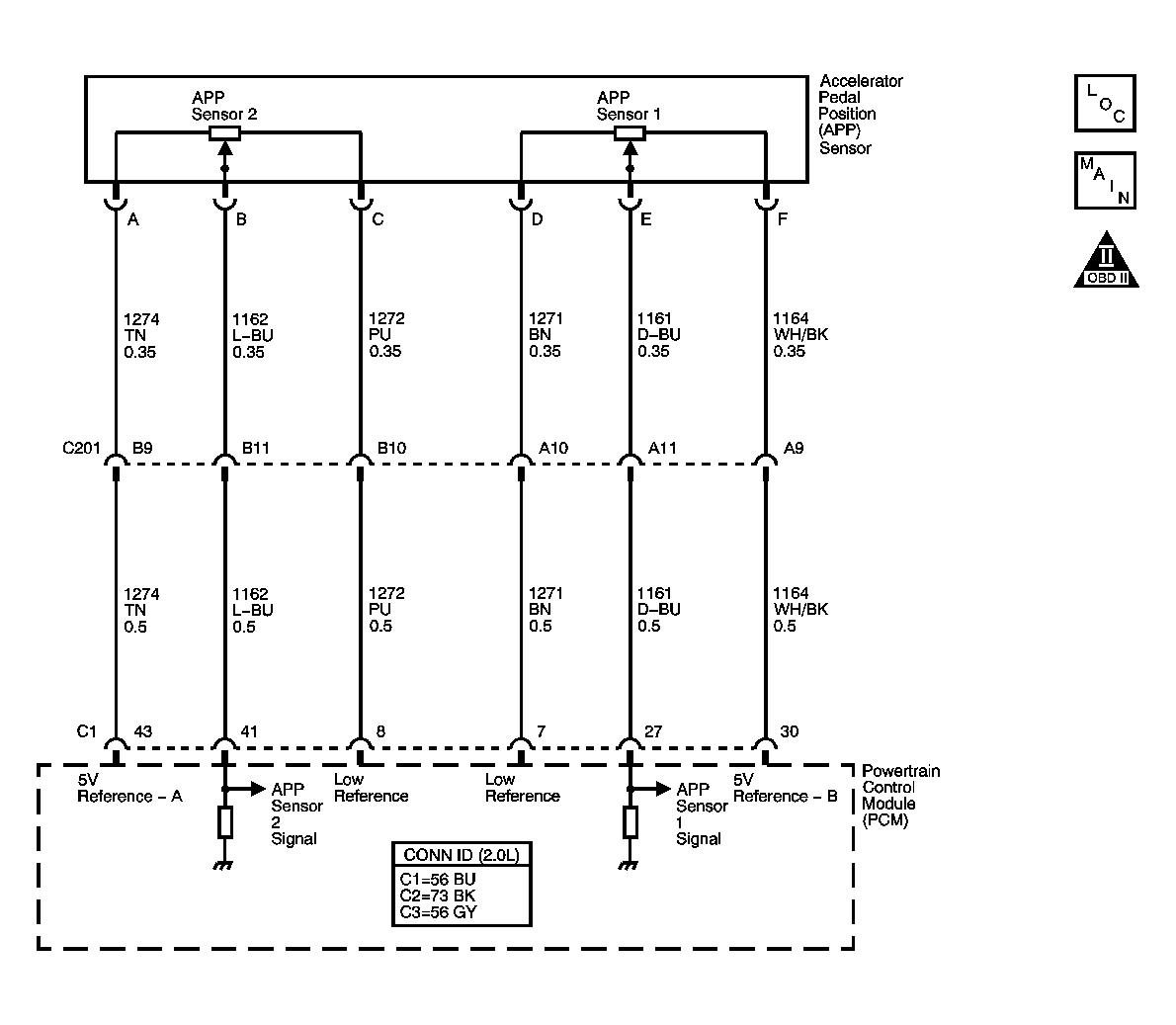

Fig 1: APP Sensors Circuit
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
