Bypass Valve Actuator Replacement

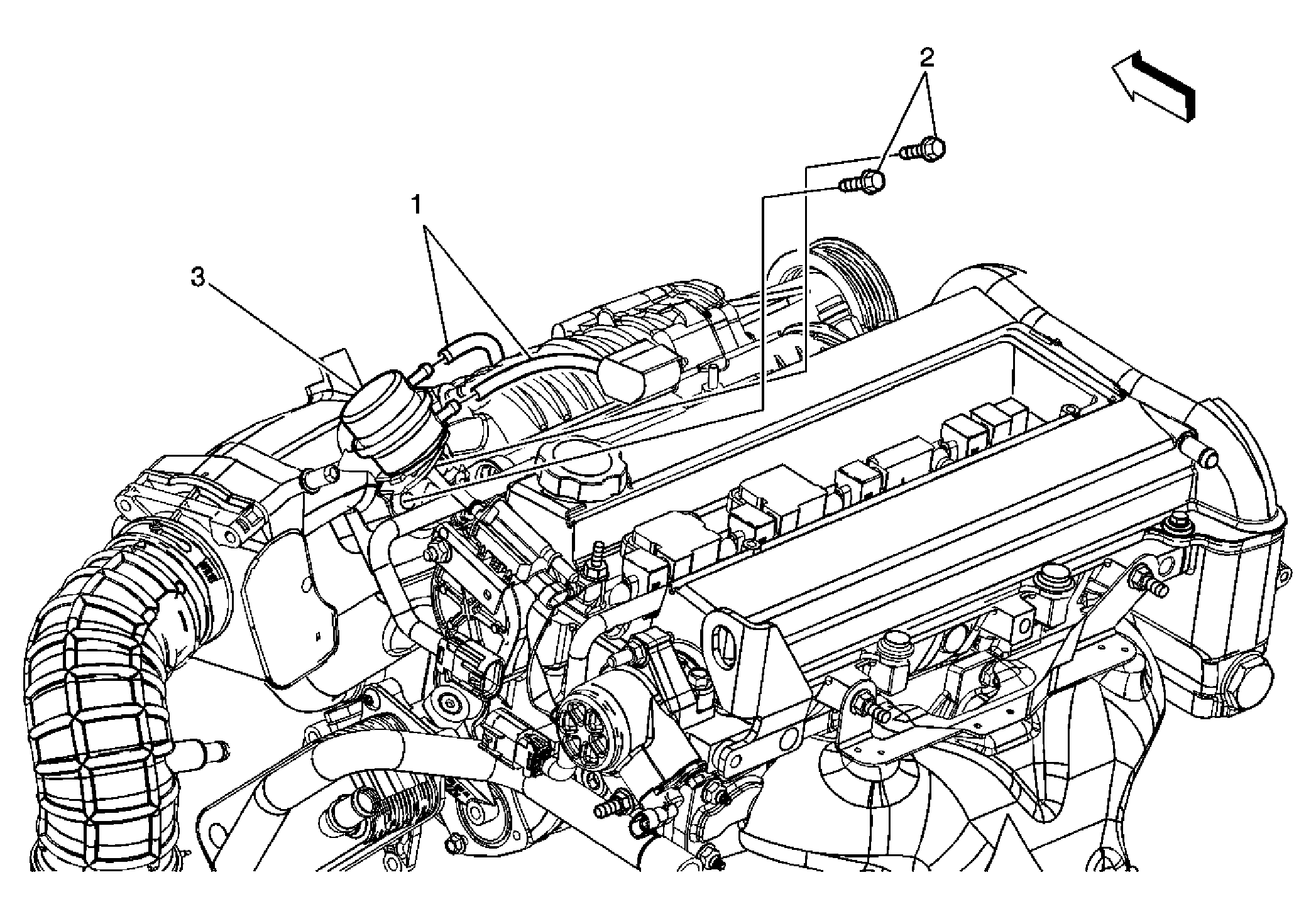

Fig 1: Bypass Valve Actuator Replacement Component View
GM1523569Courtesy of GENERAL MOTORS CORP.
Bypass Valve Actuator Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Vacuum Hose, Bypass Valve Actuator (Qty: 2)
2 Bolt, Bypass Valve Actuator (Qty: 2)

Tighten:  10 N.m (89 lb in)
3 Bypass Valve Actuator
