Power Steering System Component Views

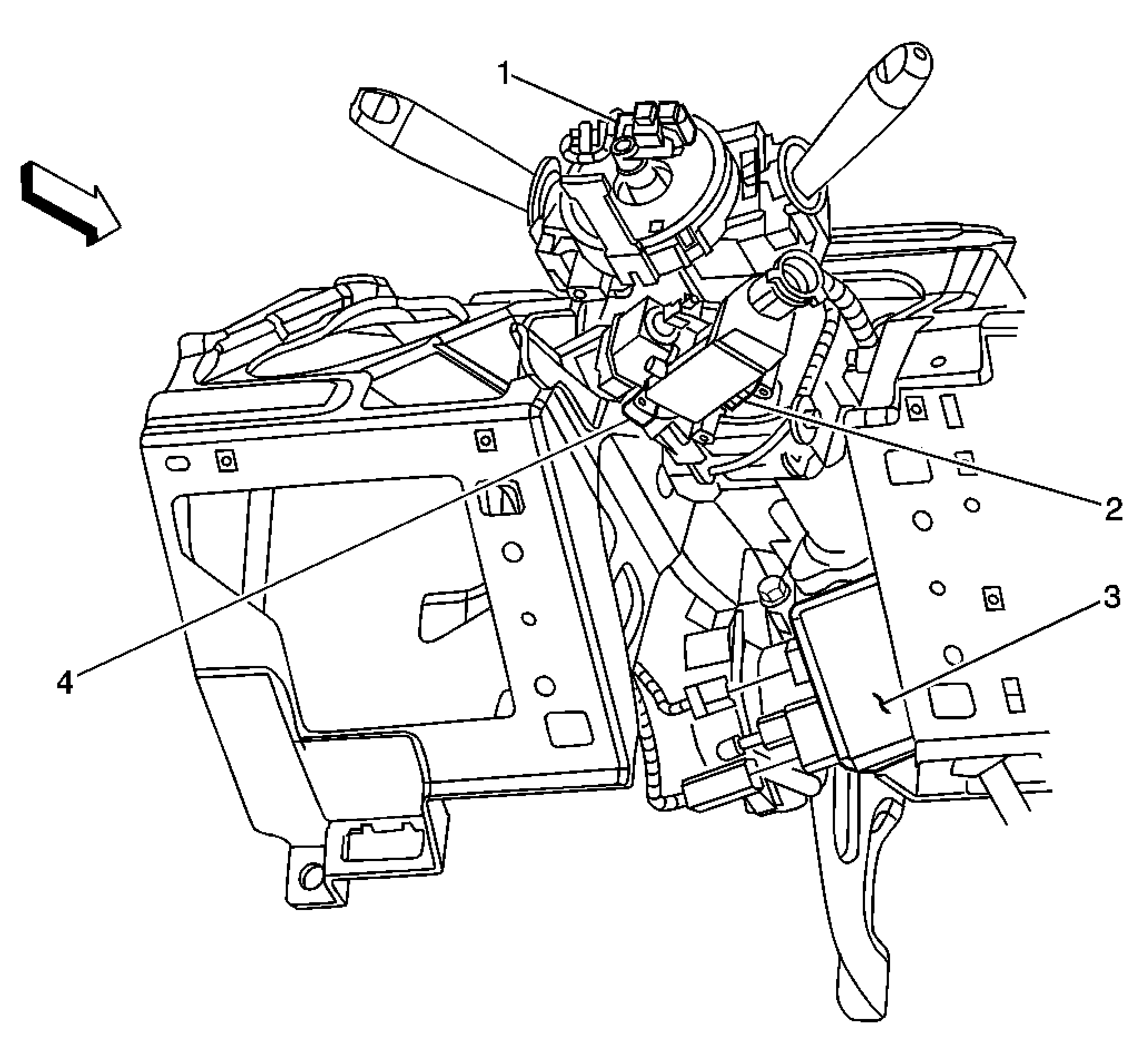

Fig 1: Under Left Side Of I/P Component View
GM1540725Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Coil
2 Ignition Lock Cylinder Control Actuator (MN5)
3 Power Steering Control Module (PSCM)
4 Ignition Switch
