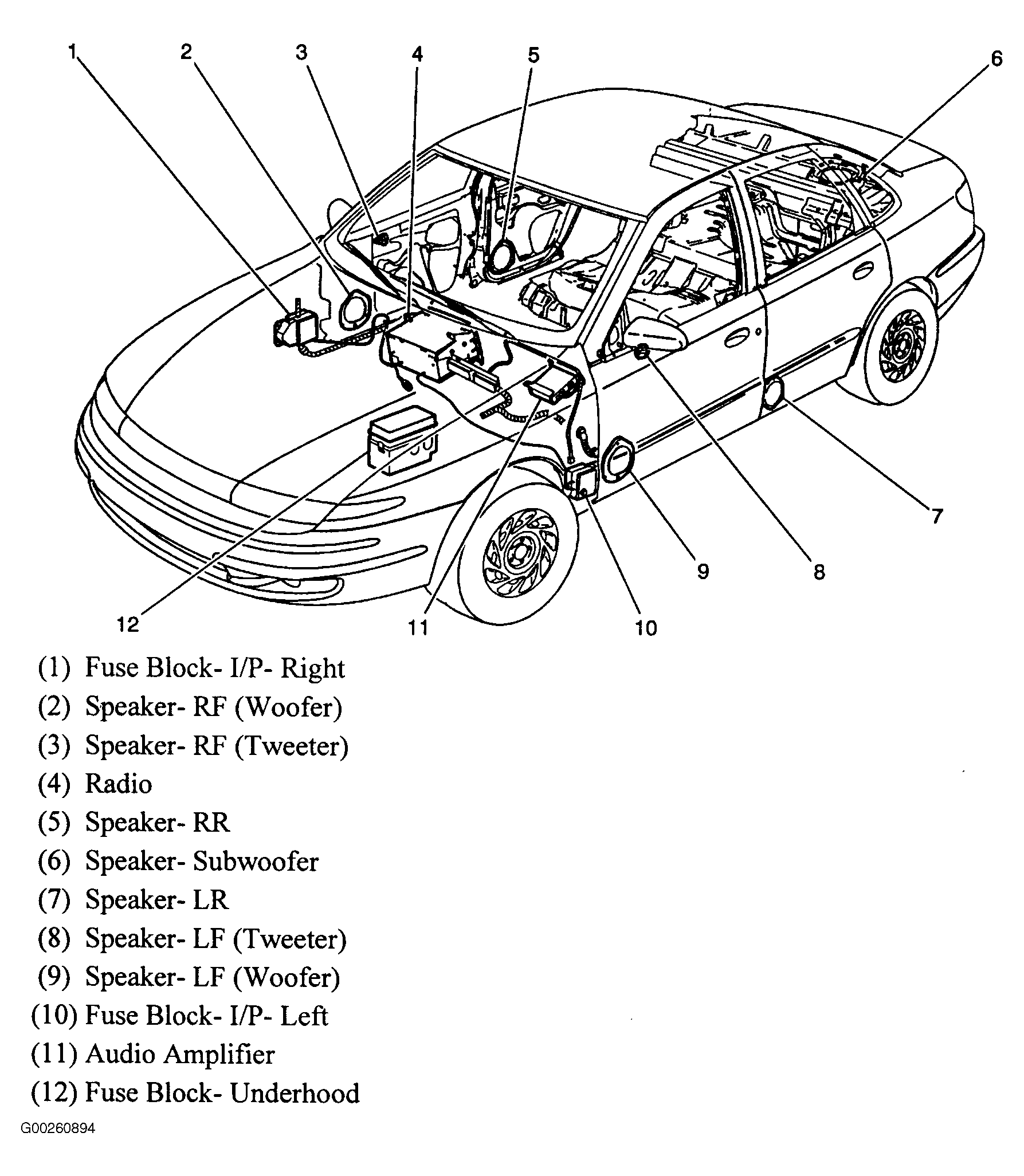

Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

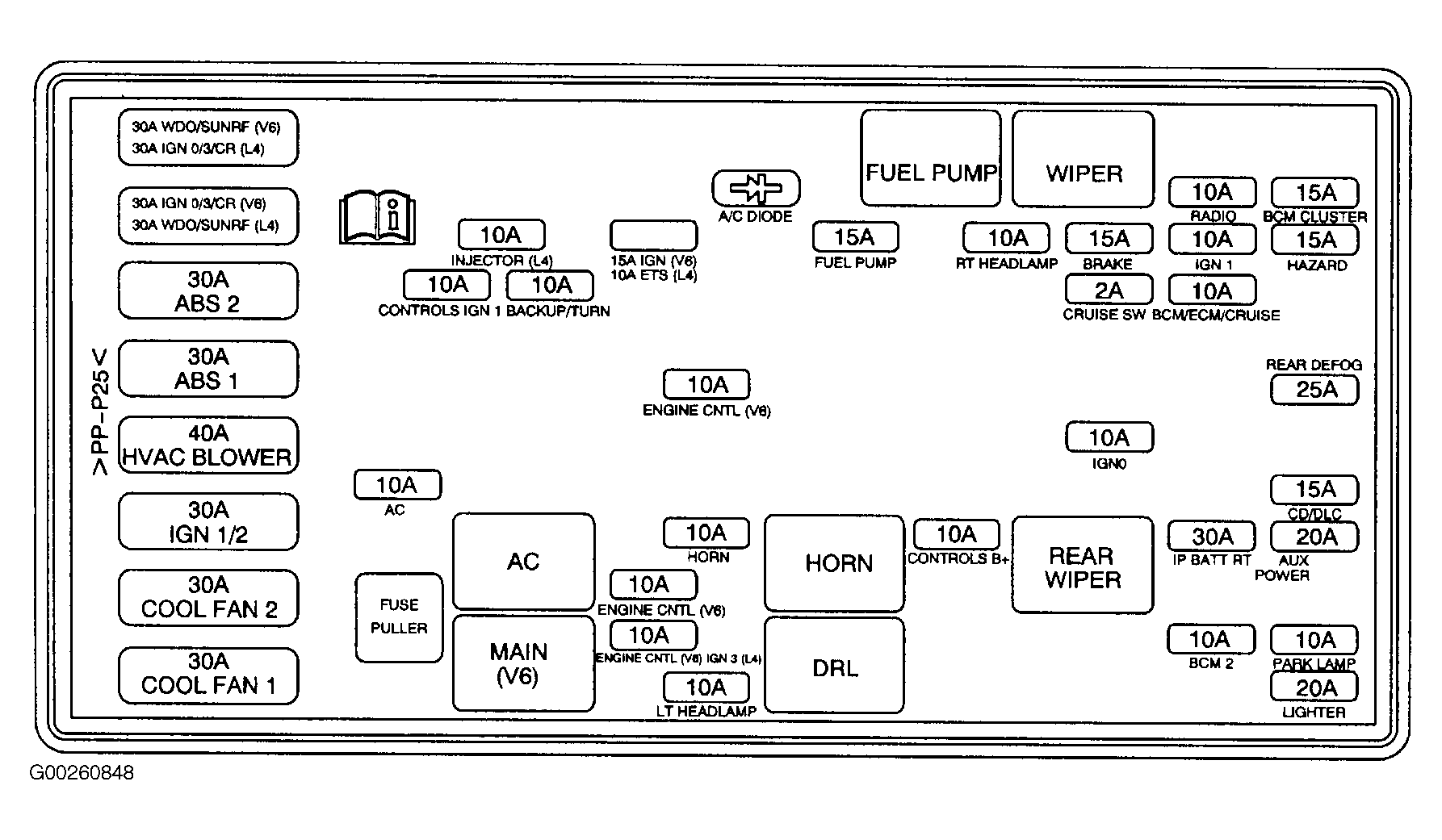

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

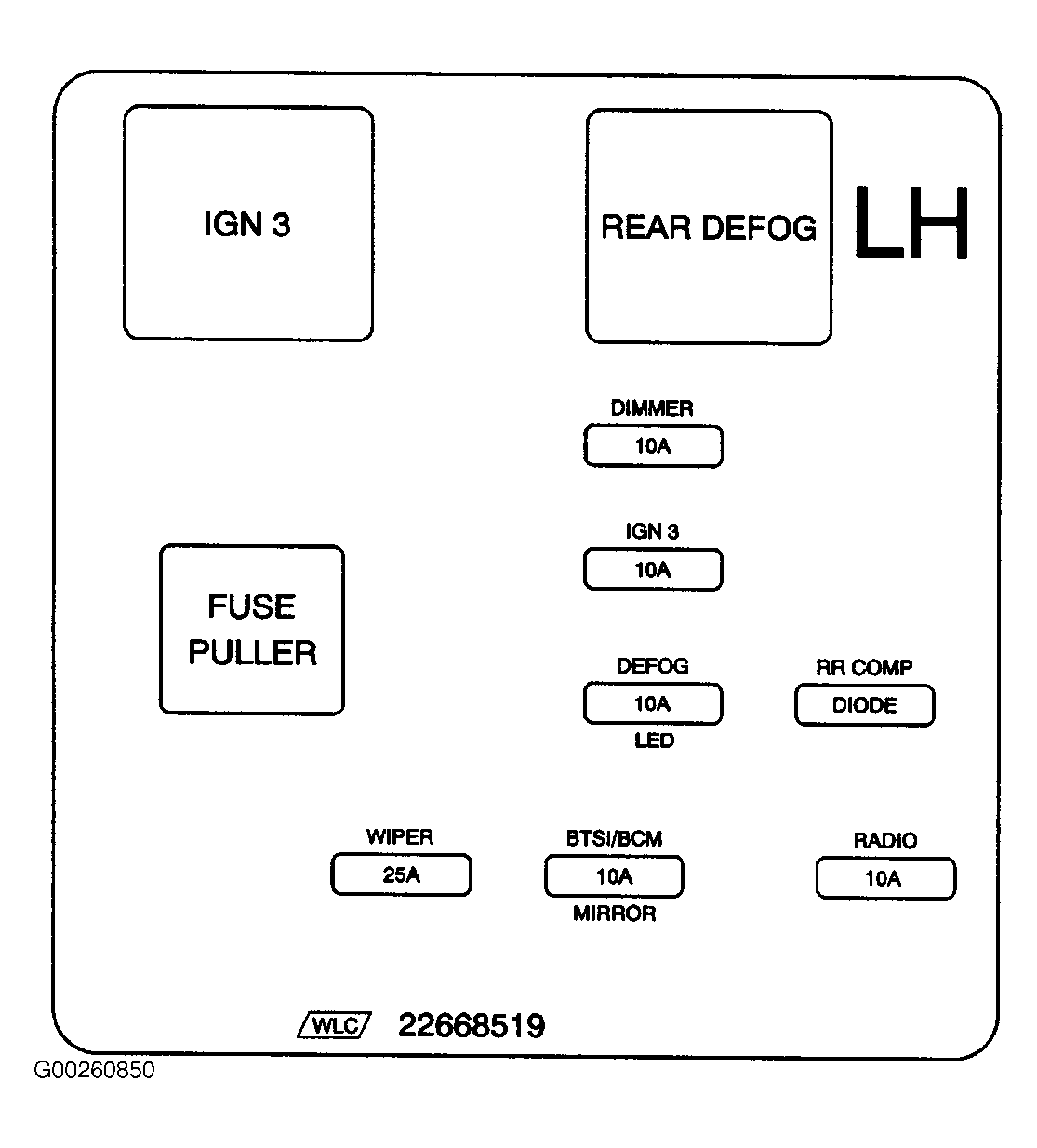

Fig 2: Left Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

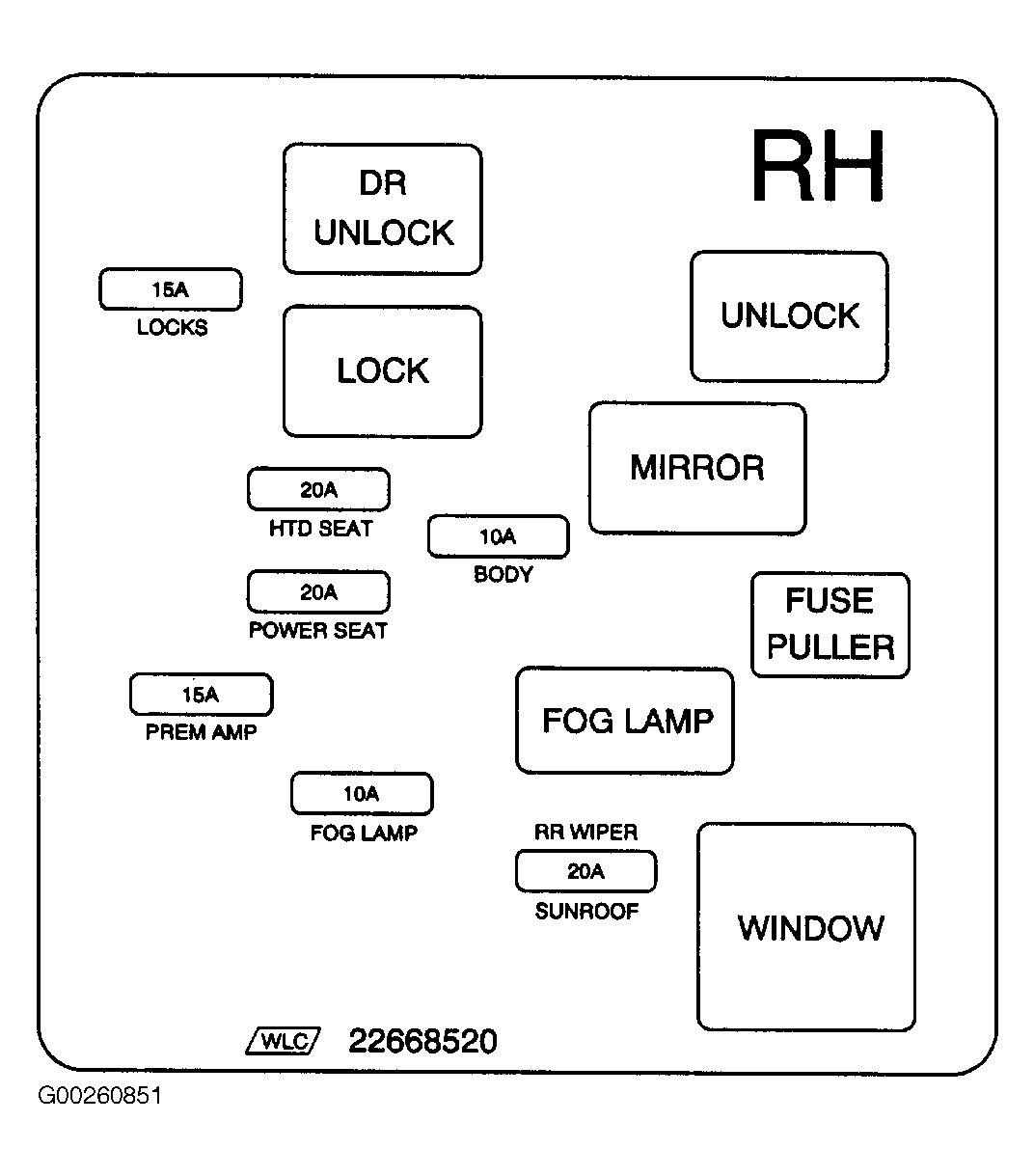

Fig 3: Right Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

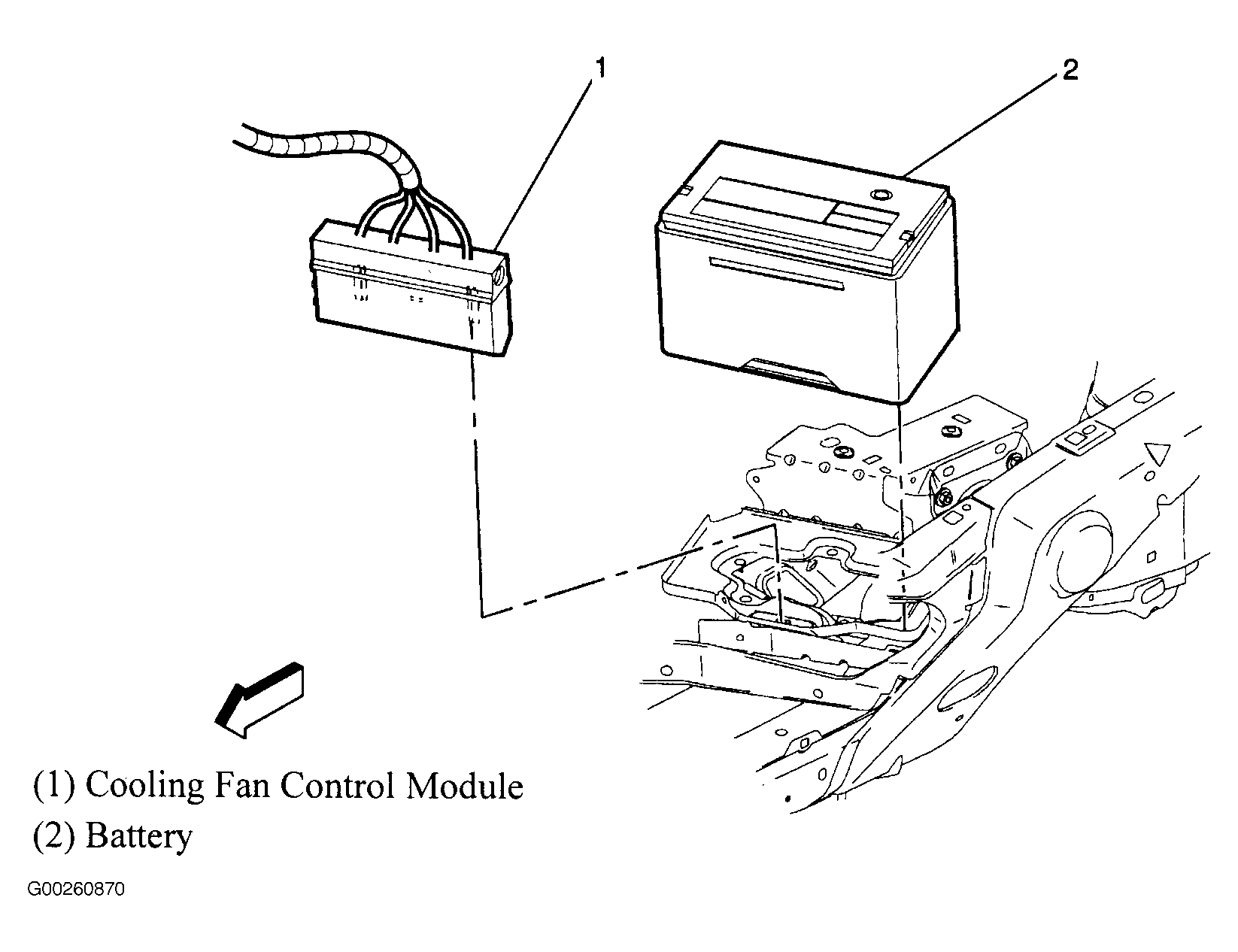

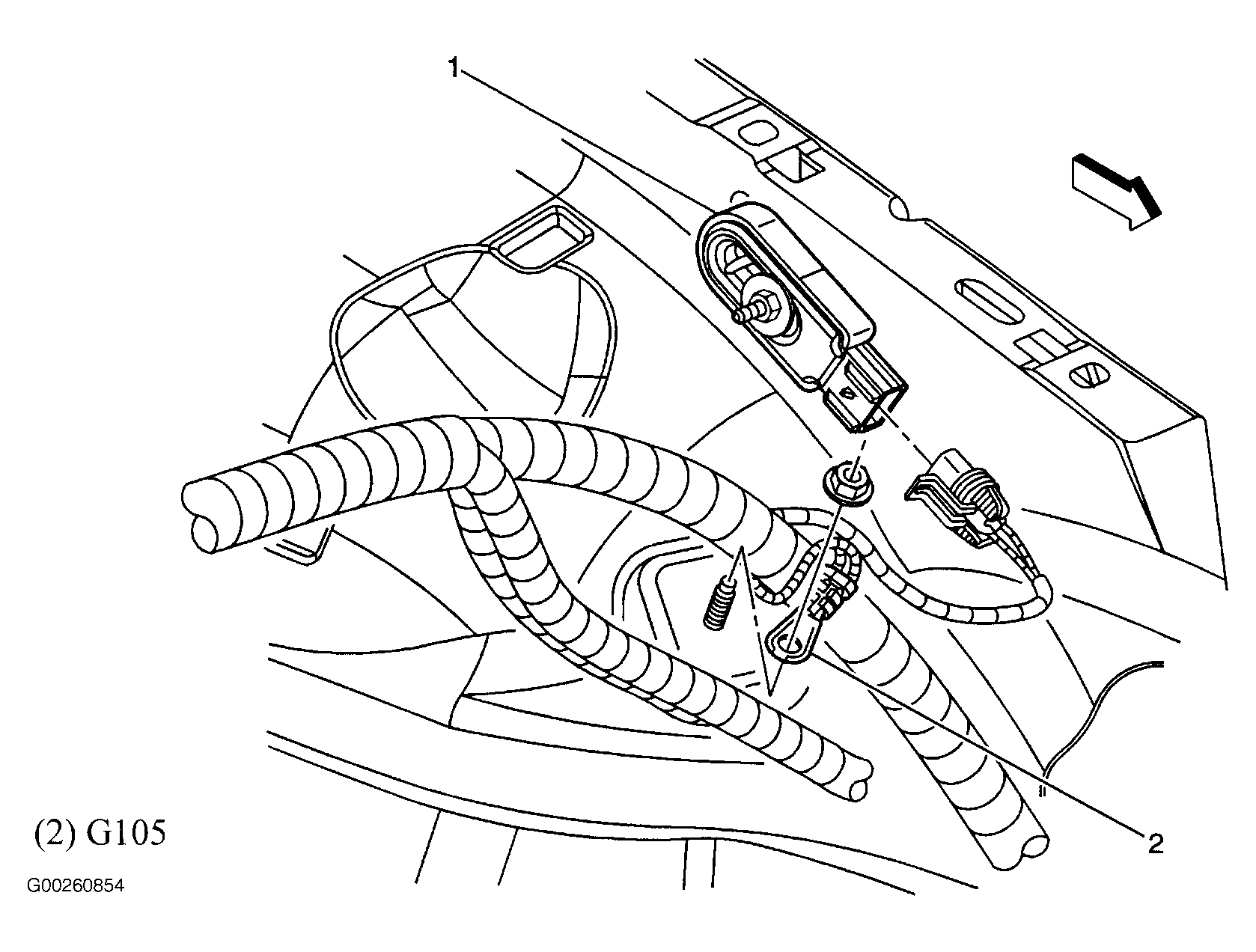

Fig 4: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

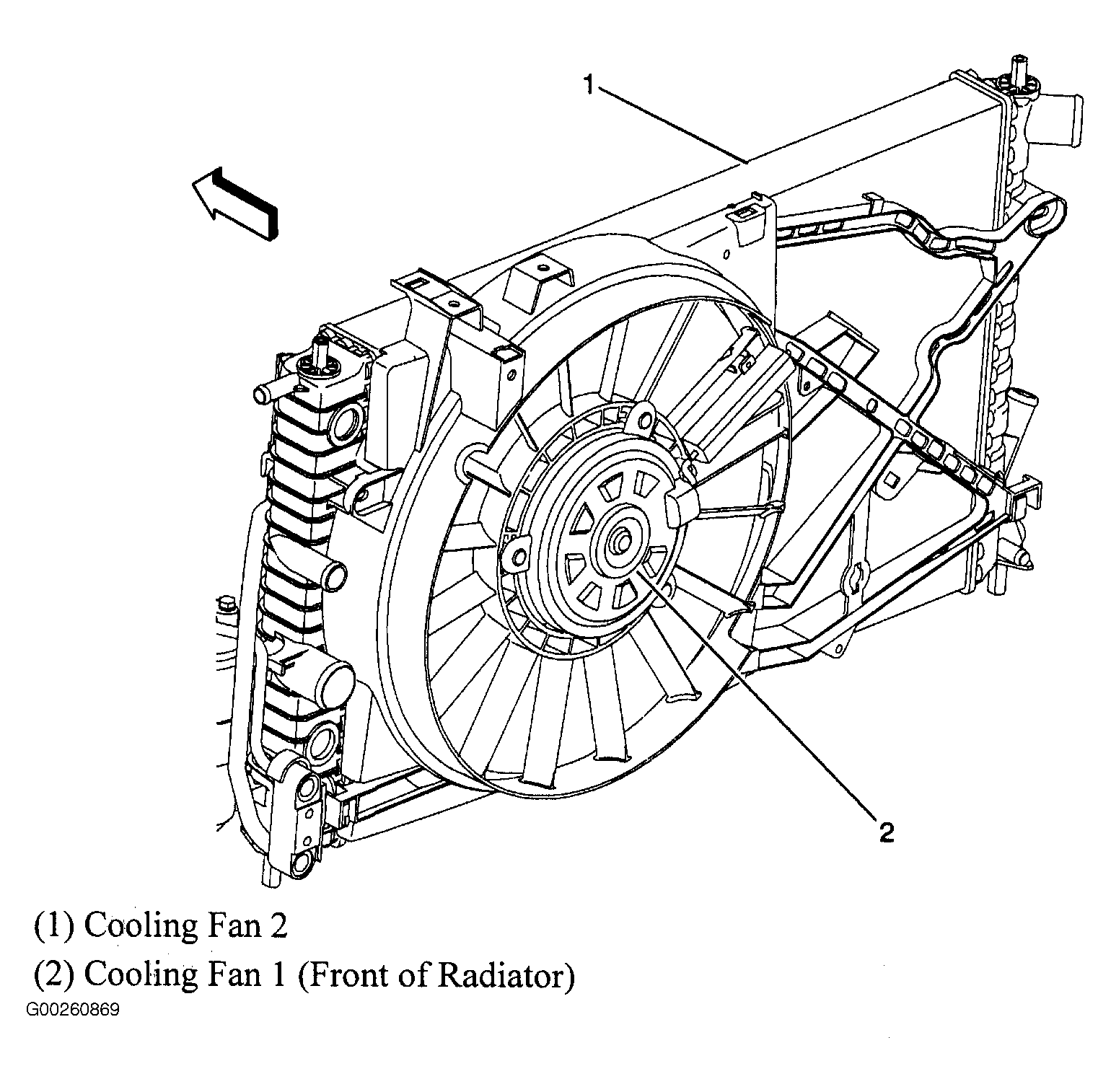

Fig 5: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

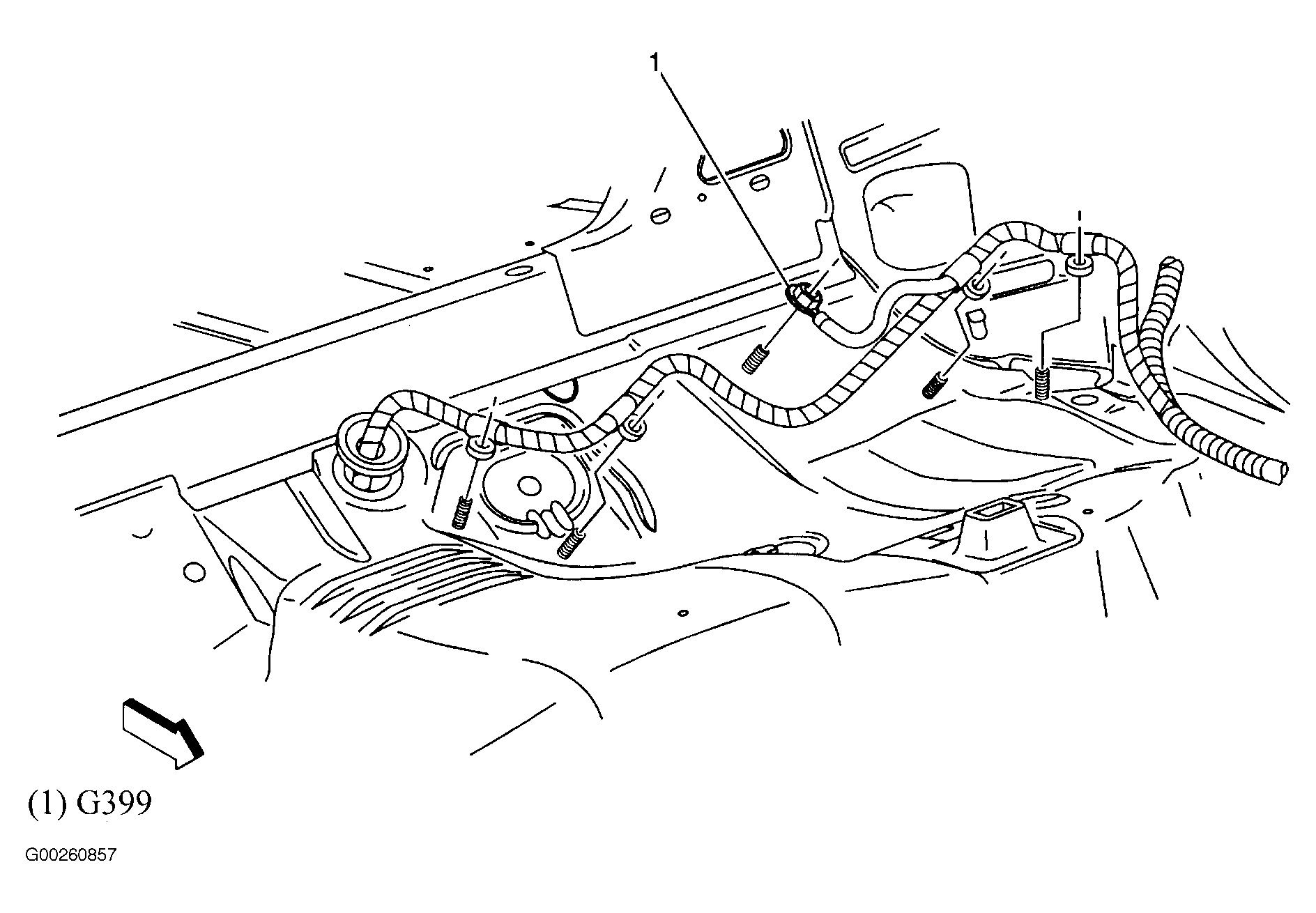

Fig 6: Center Passenger Compartment Floor
Courtesy of GENERAL MOTORS CORP.
Fig 7: Rear Of Passenger Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 8: HVAC Module
Courtesy of GENERAL MOTORS CORP.

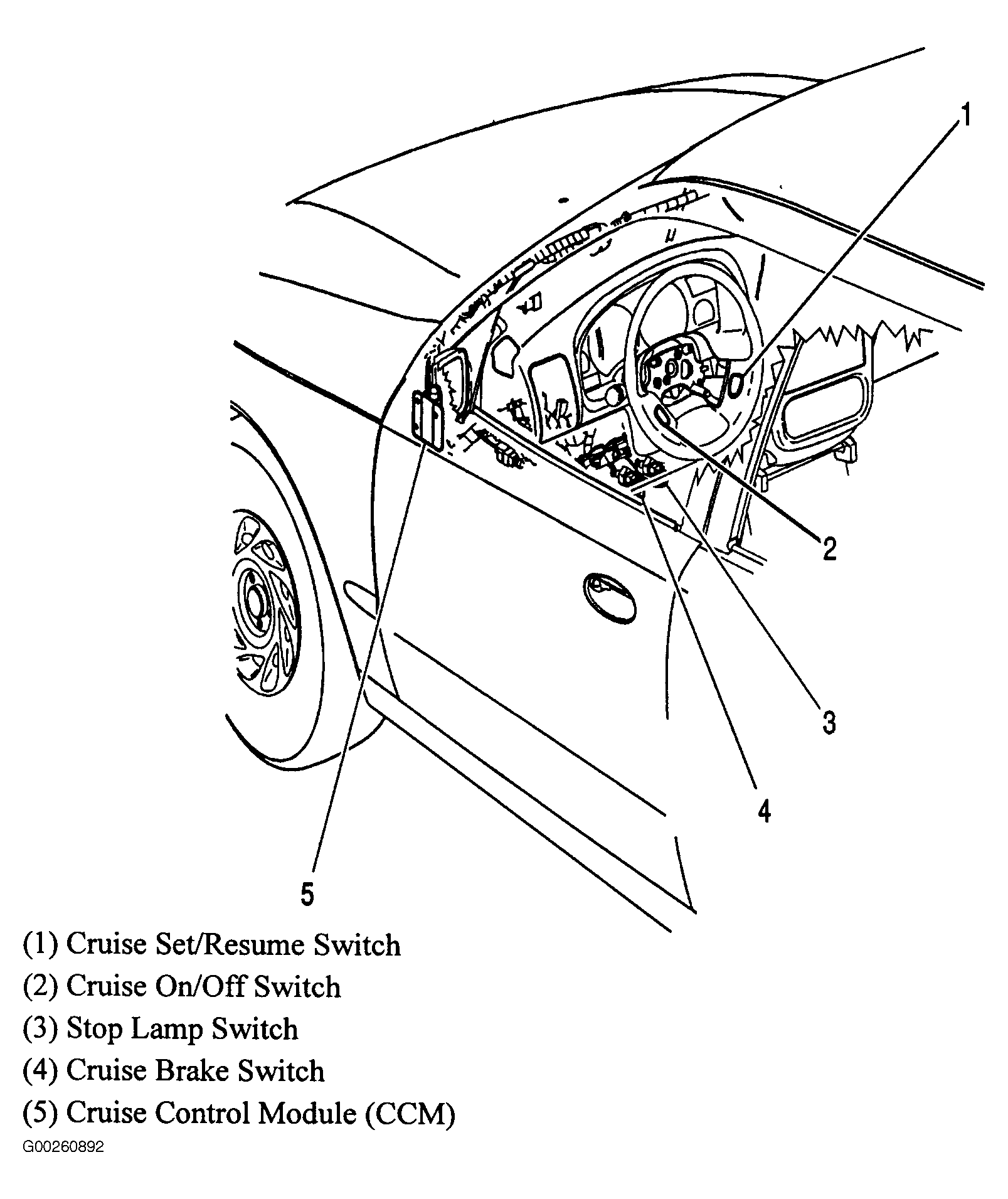

Fig 9: Center & Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 10: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

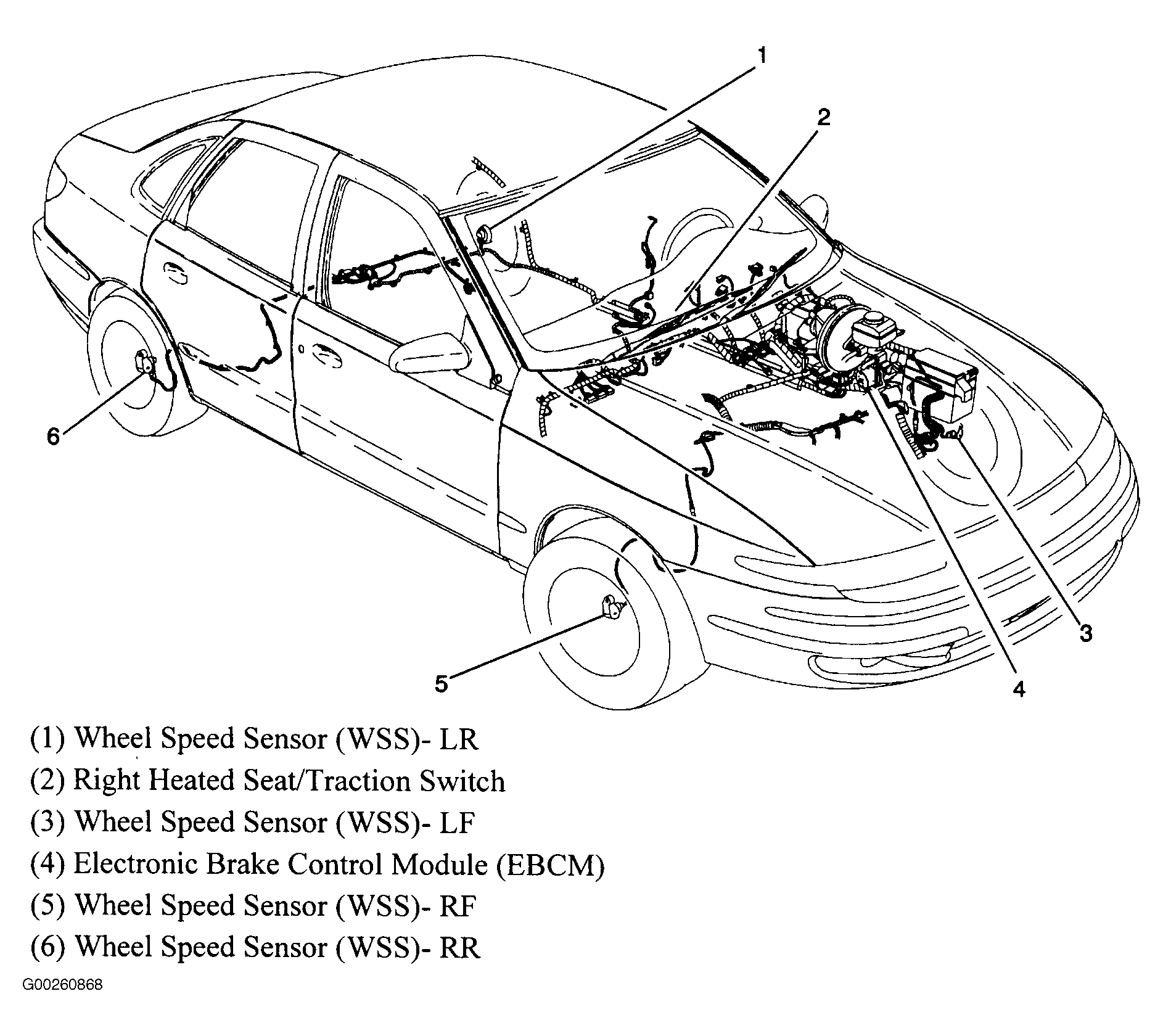

Fig 12: ABS Components
Courtesy of GENERAL MOTORS CORP.
Fig 13: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 14: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

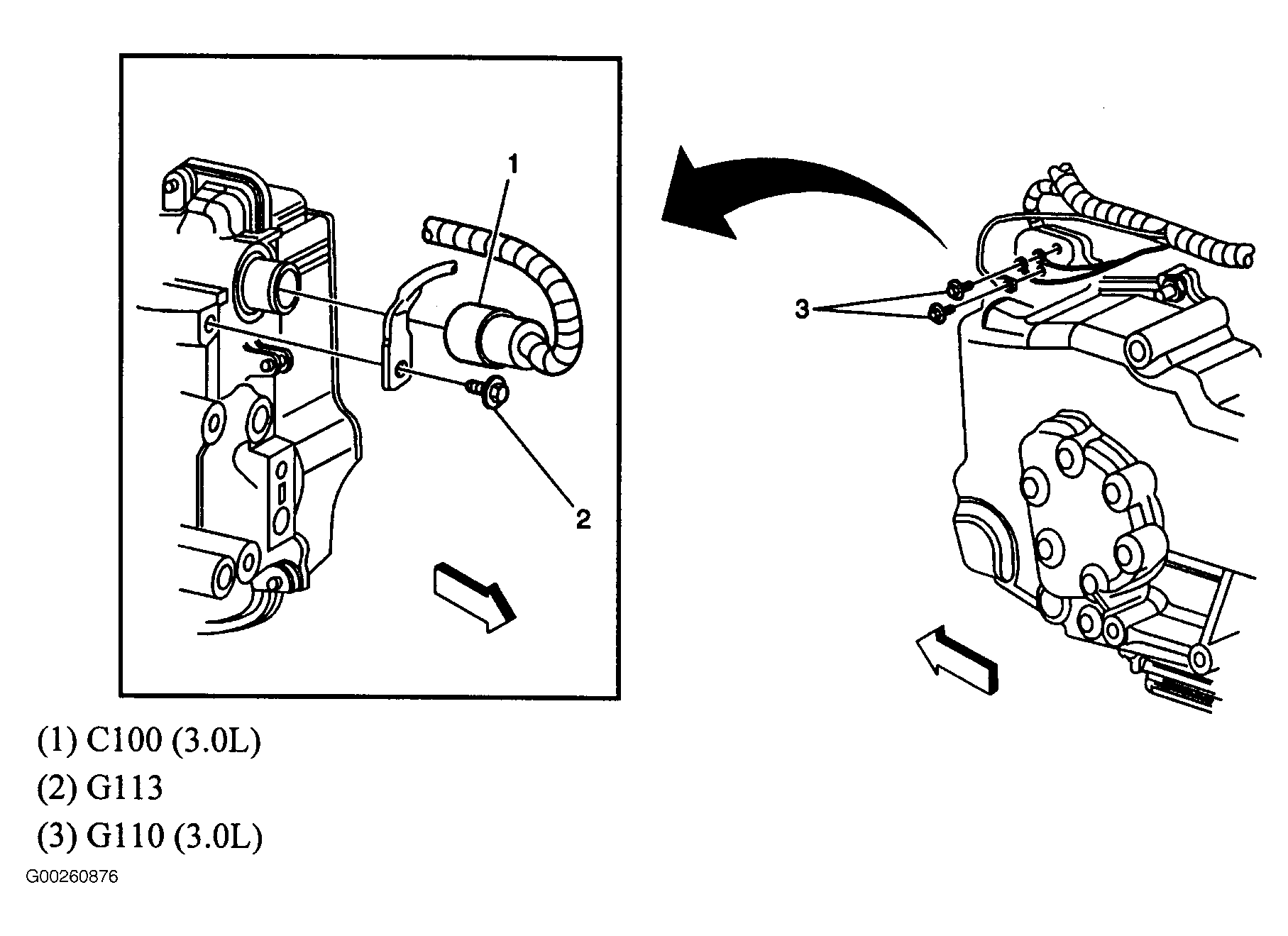

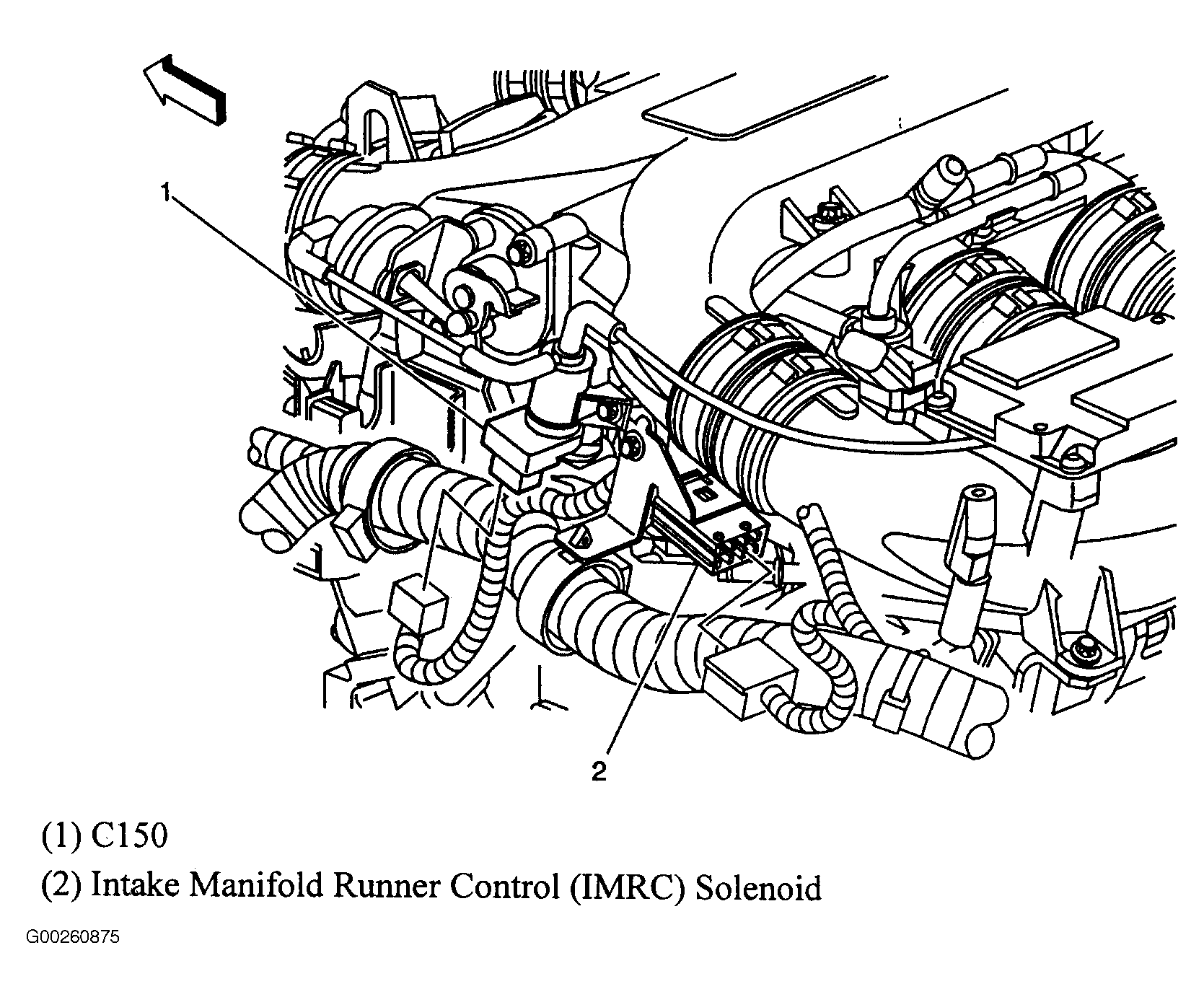

Fig 15: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 16: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 17: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

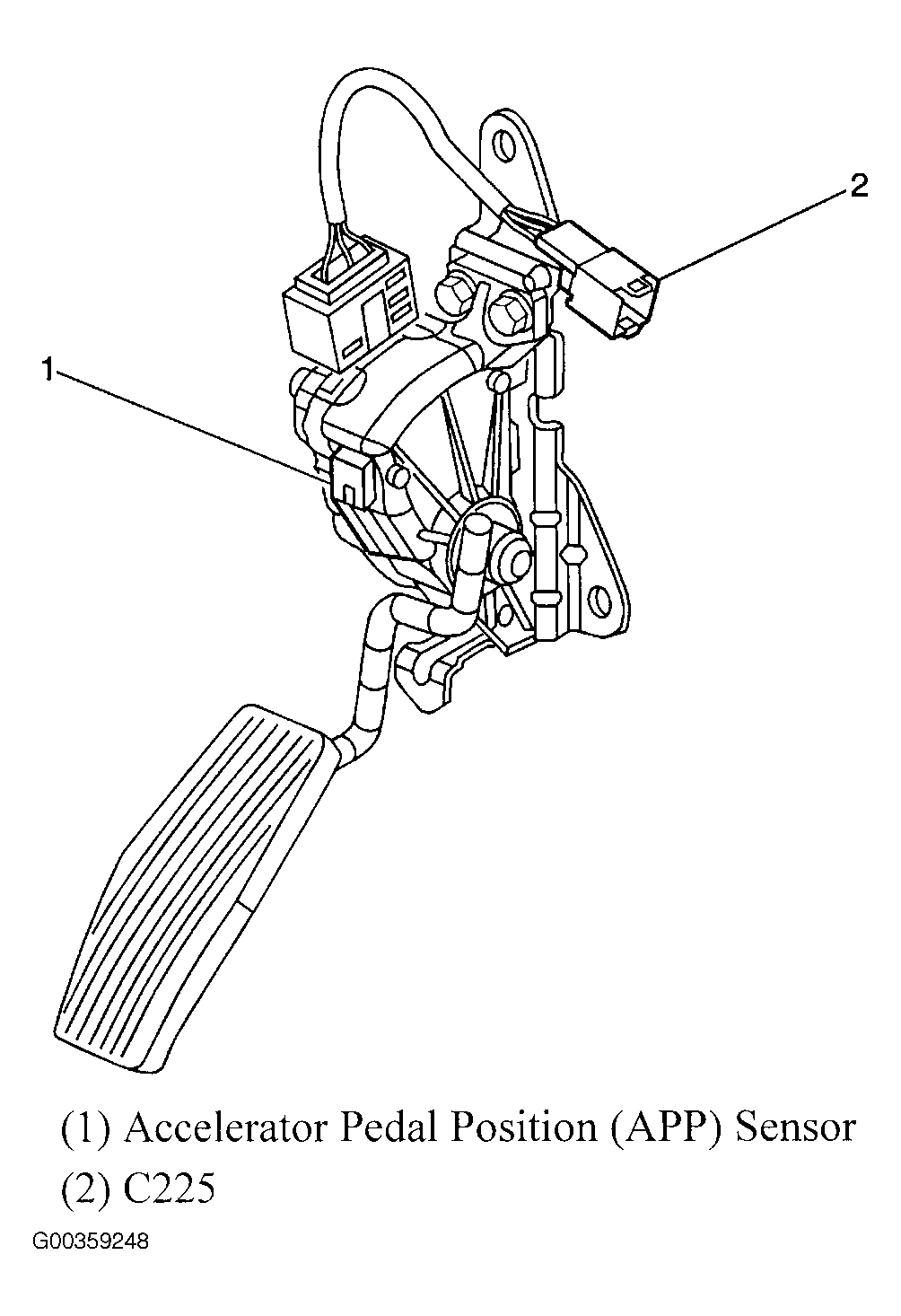

Fig 18: Accelerator Pedal
Courtesy of GENERAL MOTORS CORP.

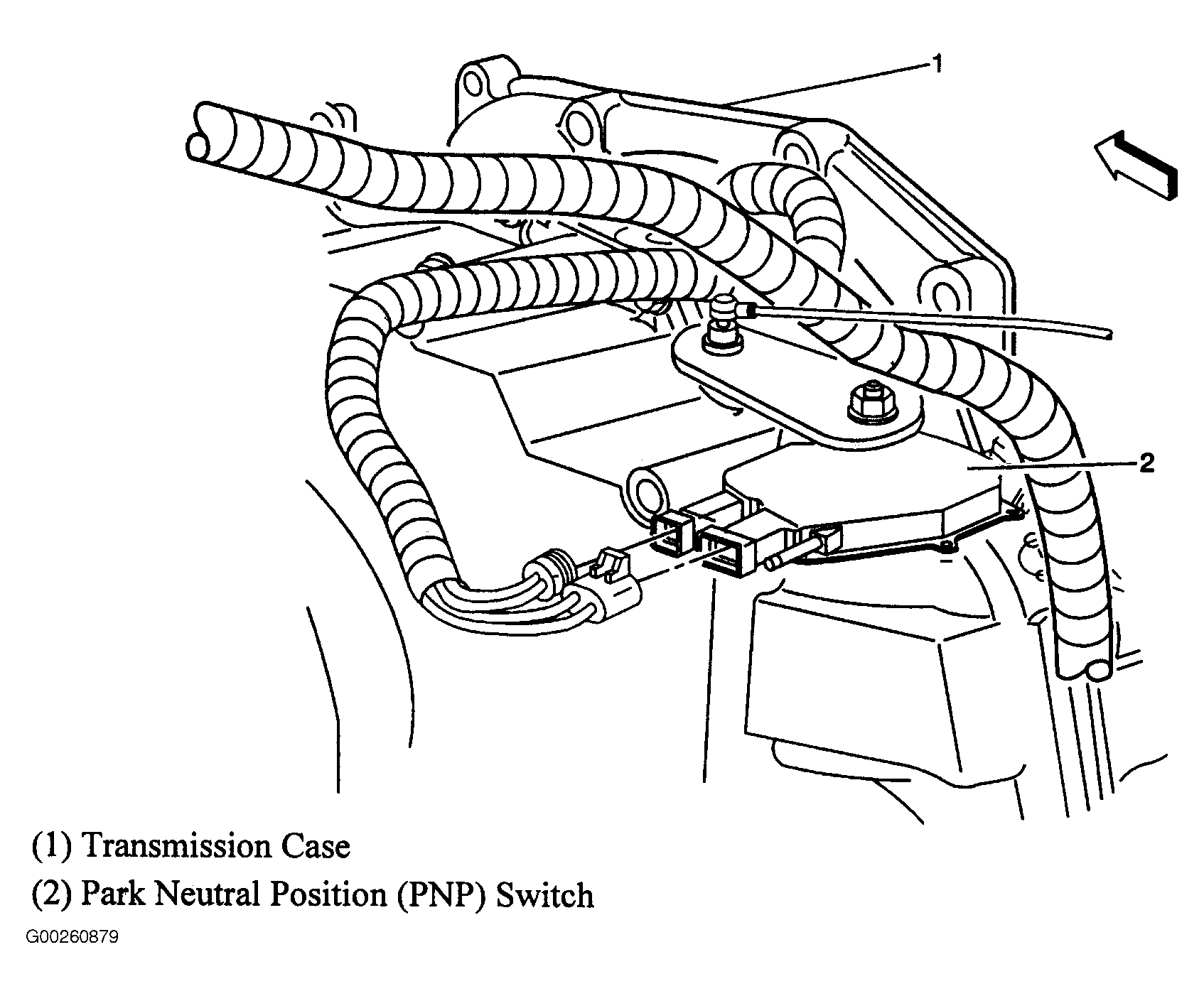

Fig 19: Left Side Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 20: SIR Components
Courtesy of GENERAL MOTORS CORP.

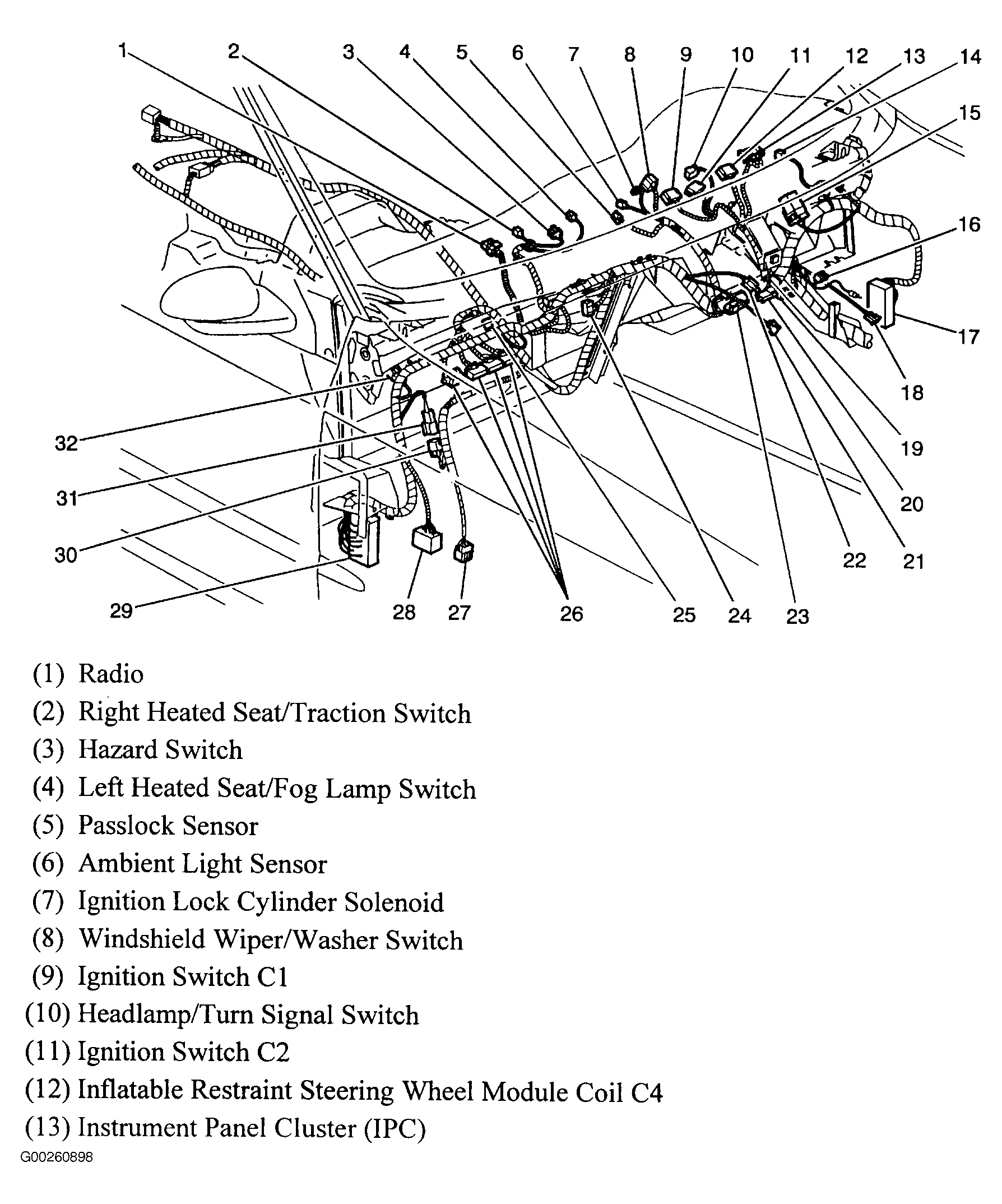

Fig 21: Behind Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Behind Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

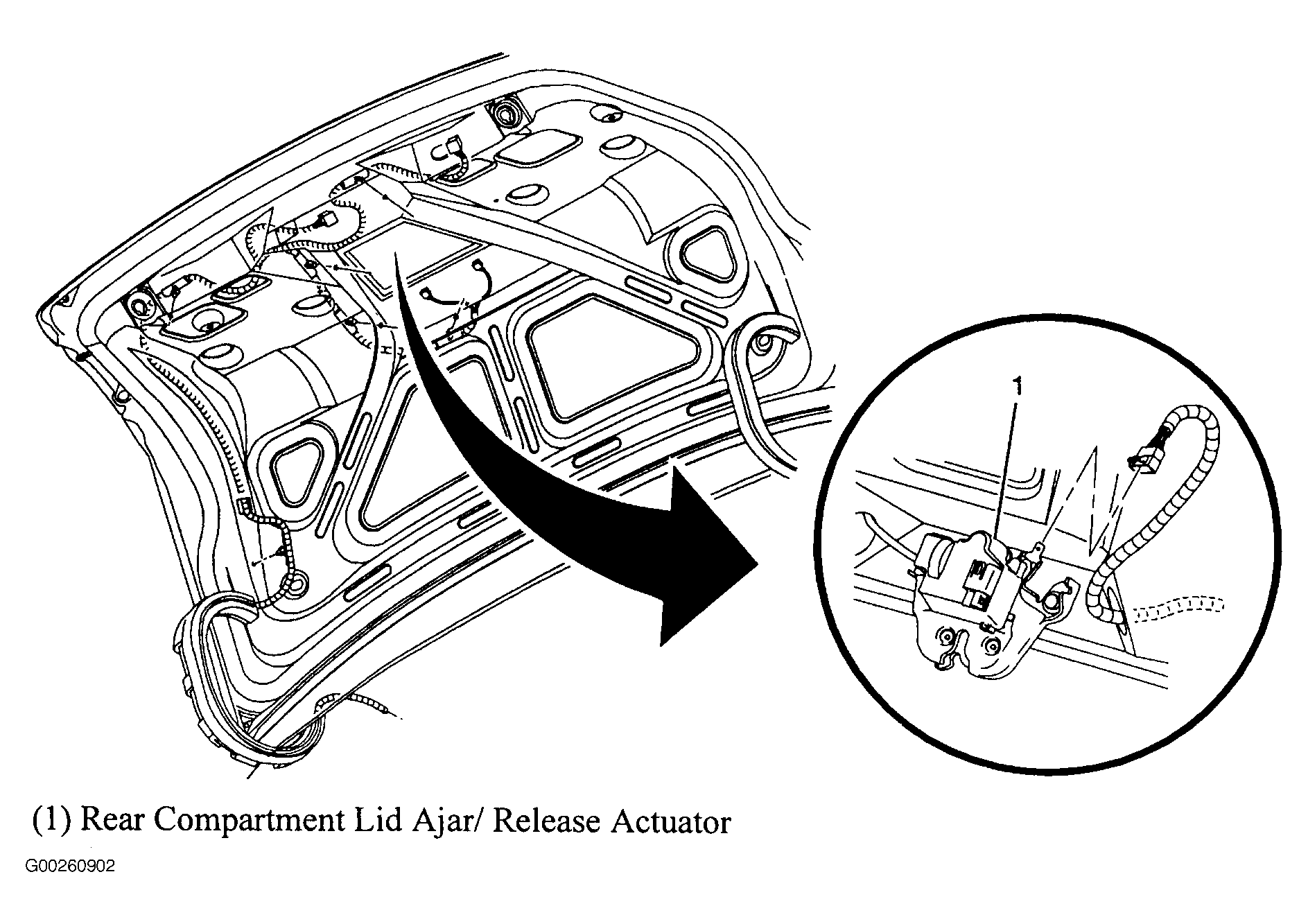

Fig 23: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.

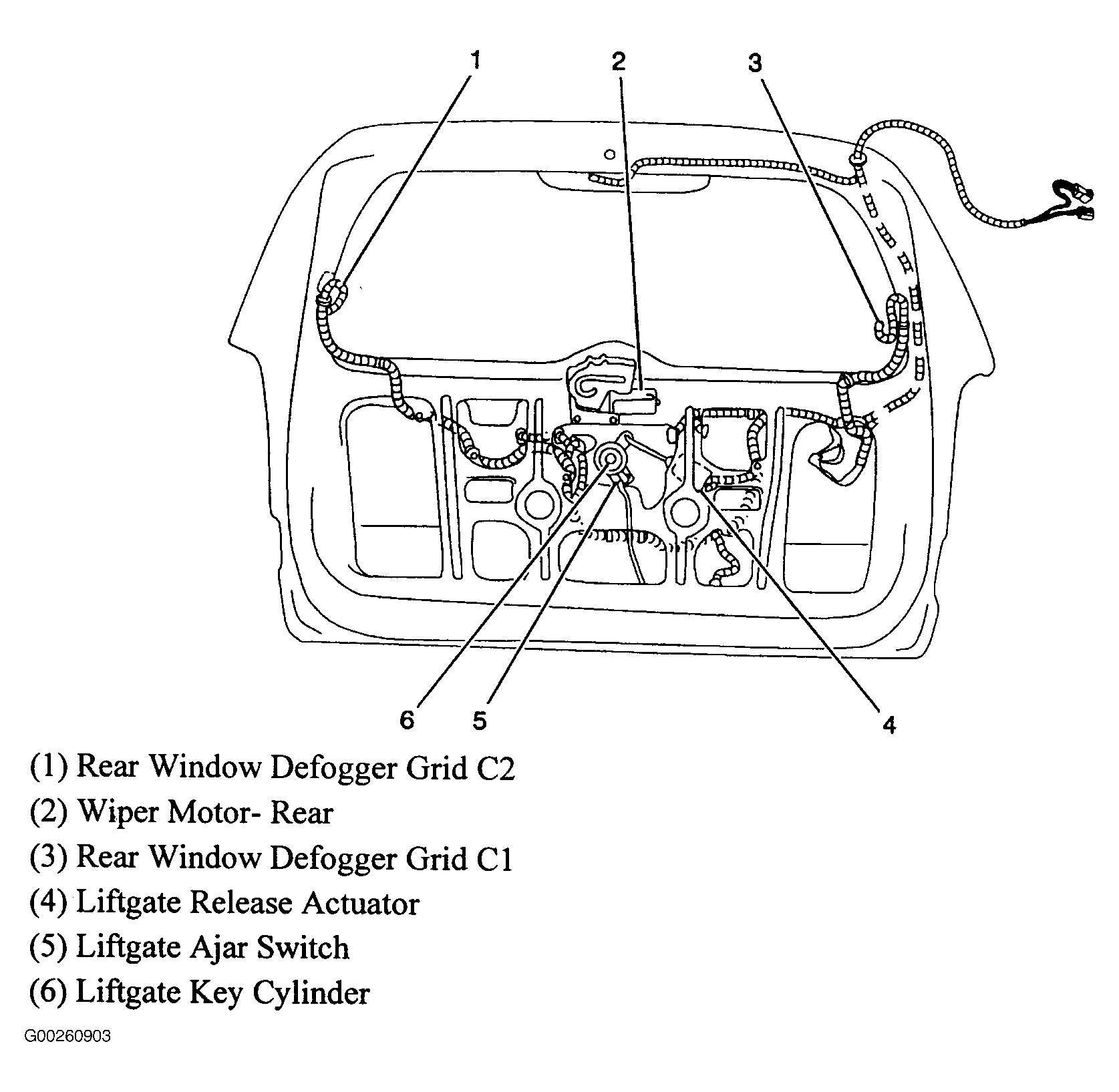

Fig 24: Liftgate
Courtesy of GENERAL MOTORS CORP.

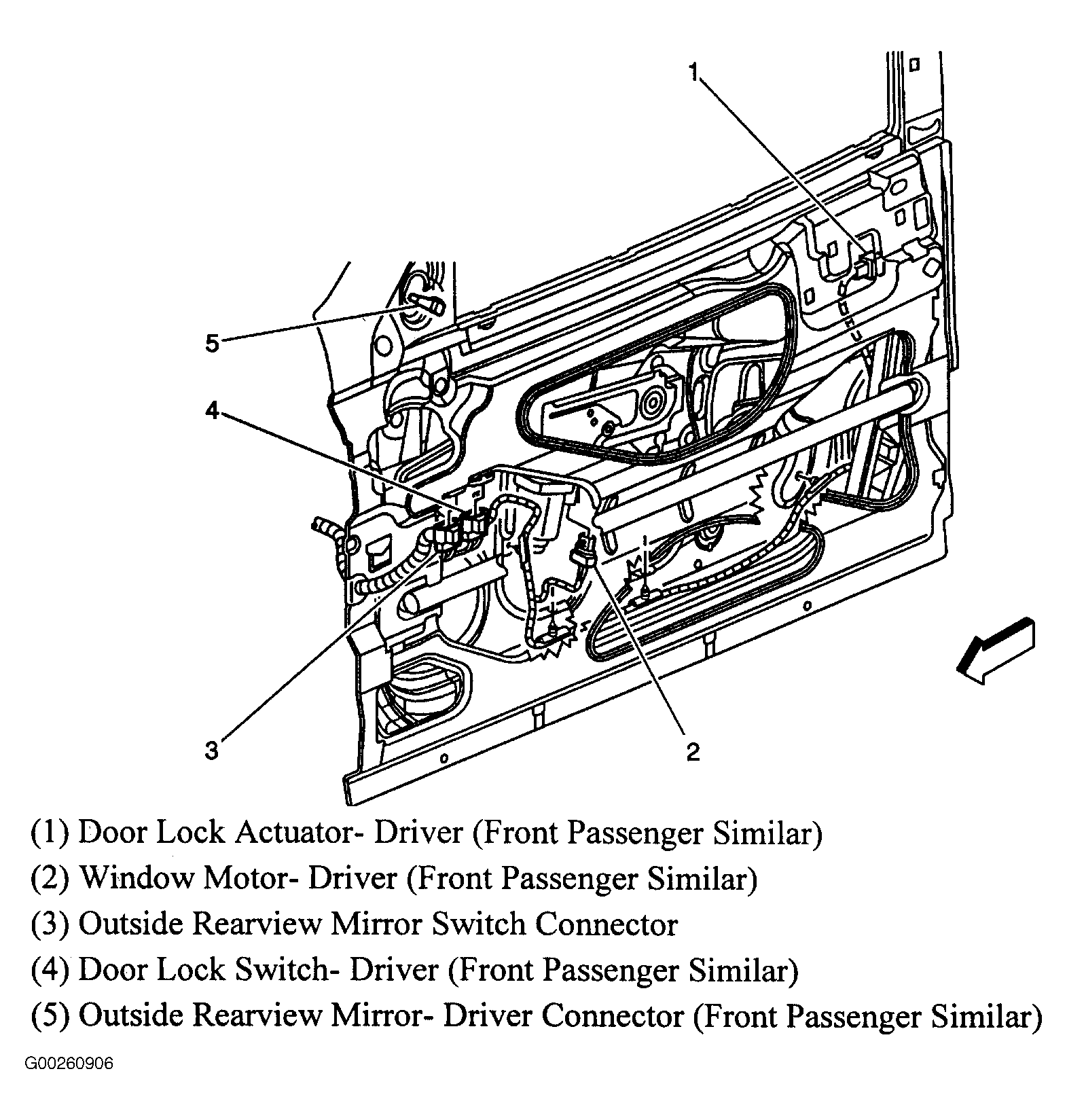

Fig 25: Driver Door
Courtesy of GENERAL MOTORS CORP.

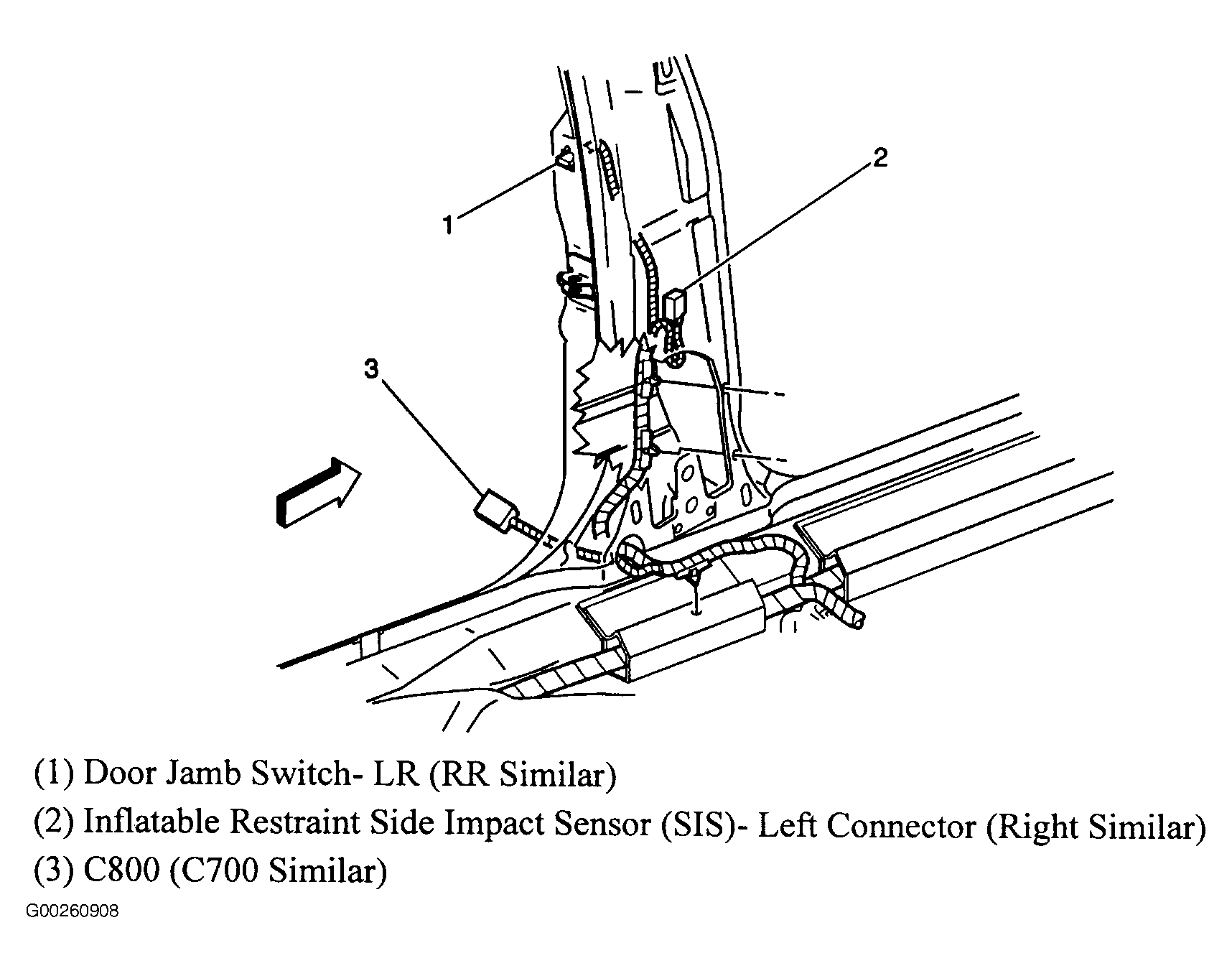

Fig 26: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 27: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 28: Left & Right Rear Corners Of Vehicle (Wagon)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Front Of Roof
Courtesy of GENERAL MOTORS CORP.

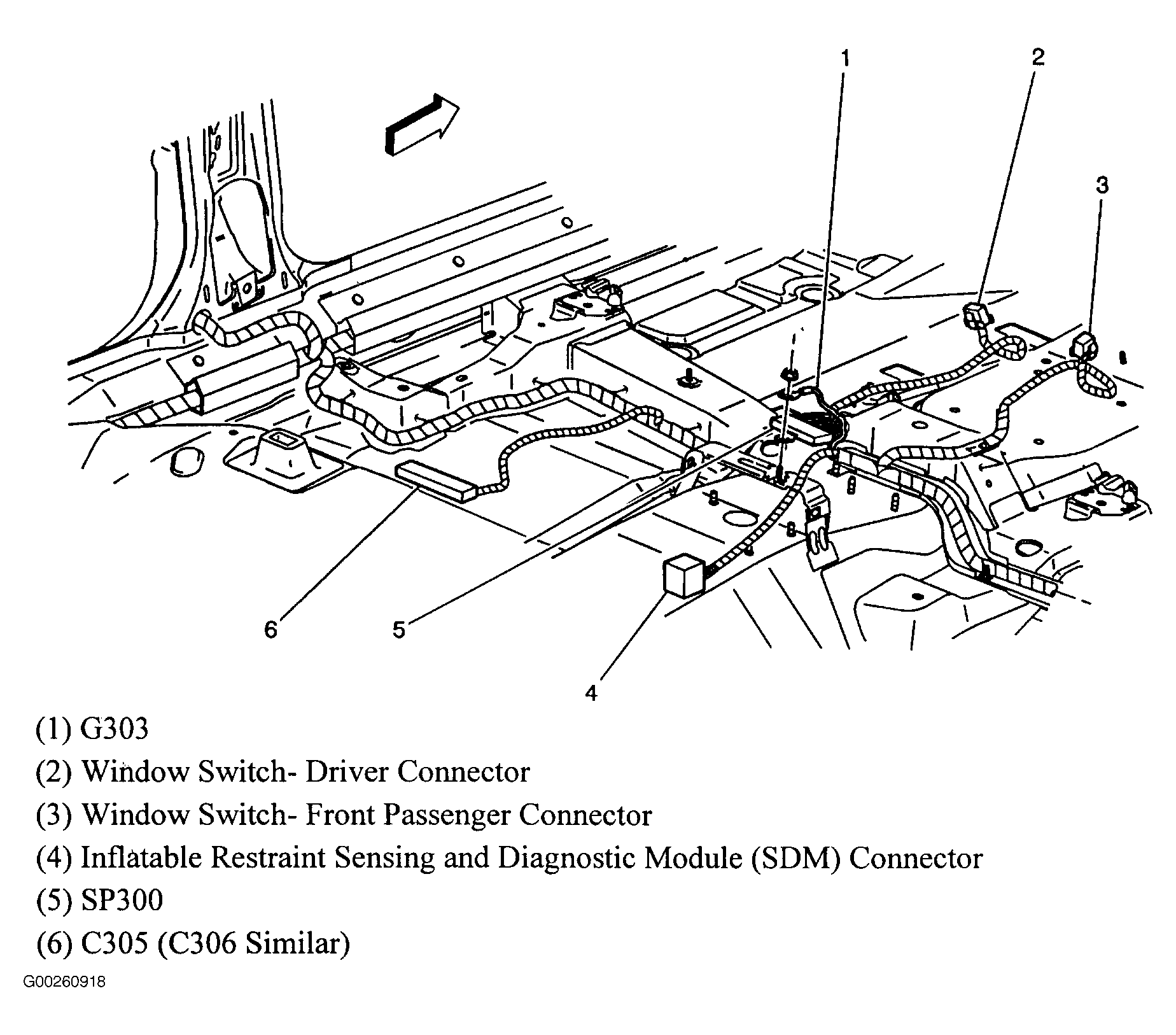

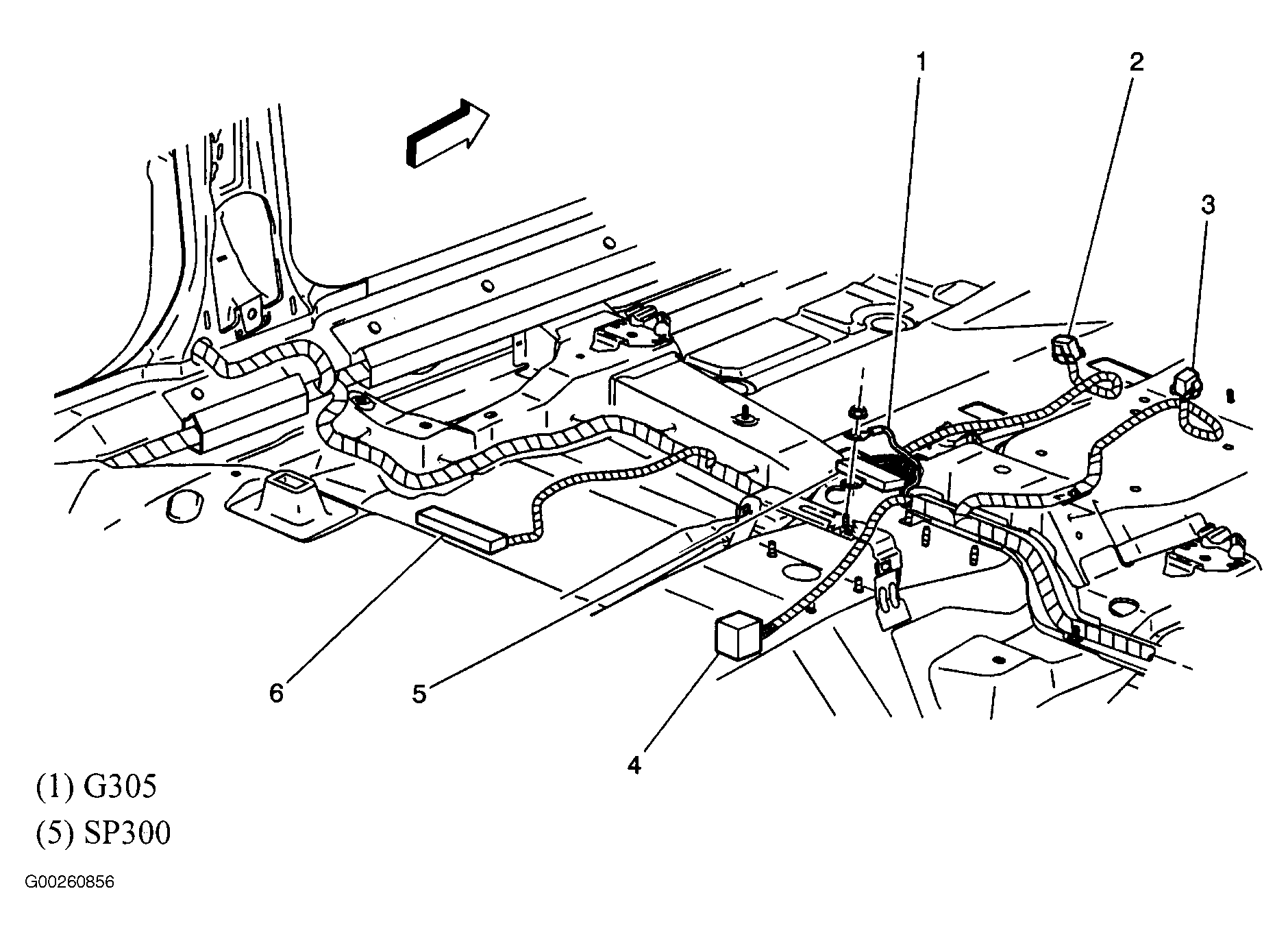

Fig 30: Center Of Passenger Compartment Floor
Courtesy of GENERAL MOTORS CORP.
Fig 31: Front Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

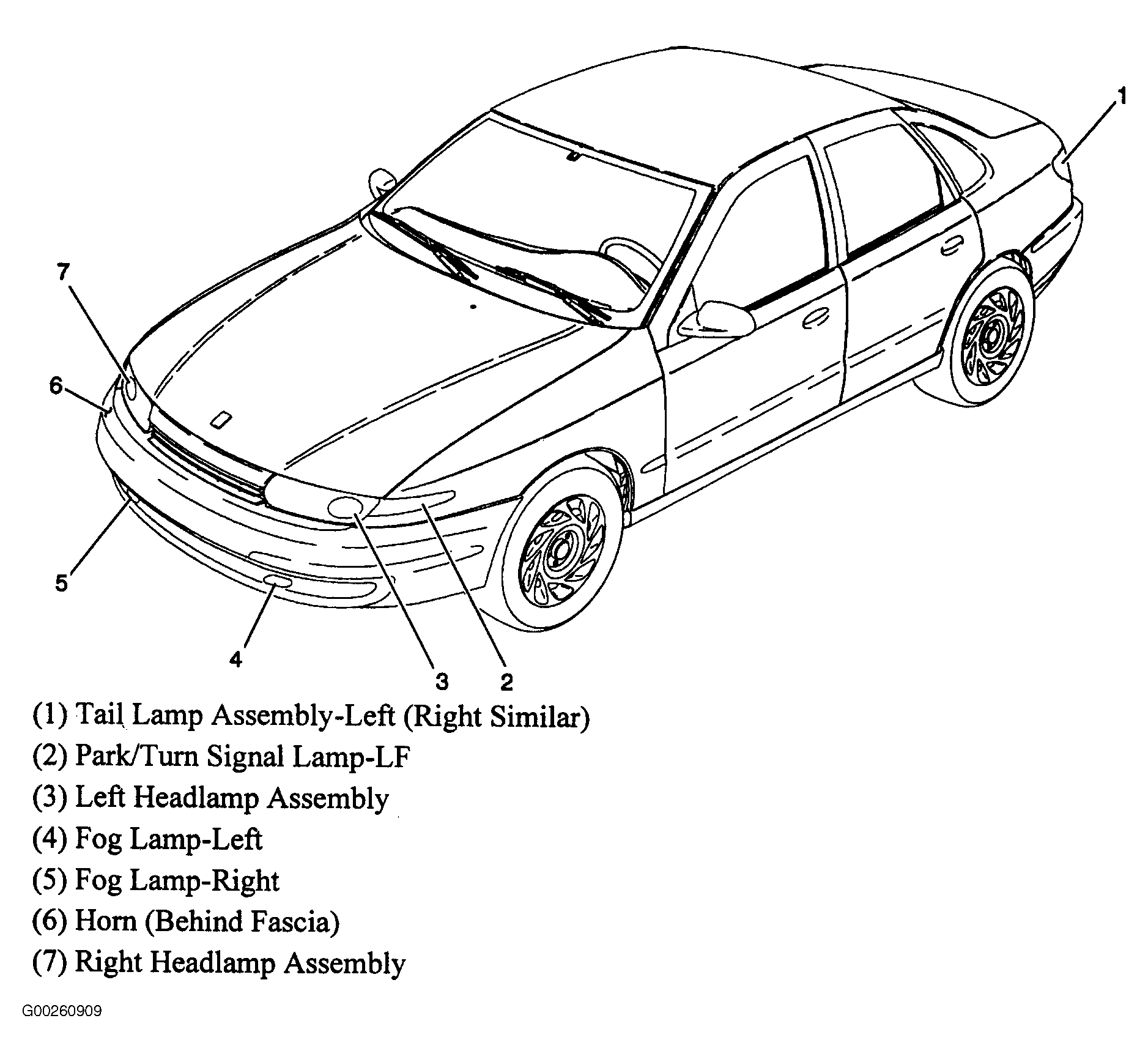

Fig 33: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 34: SIR Zone Identification Views
Courtesy of GENERAL MOTORS CORP.

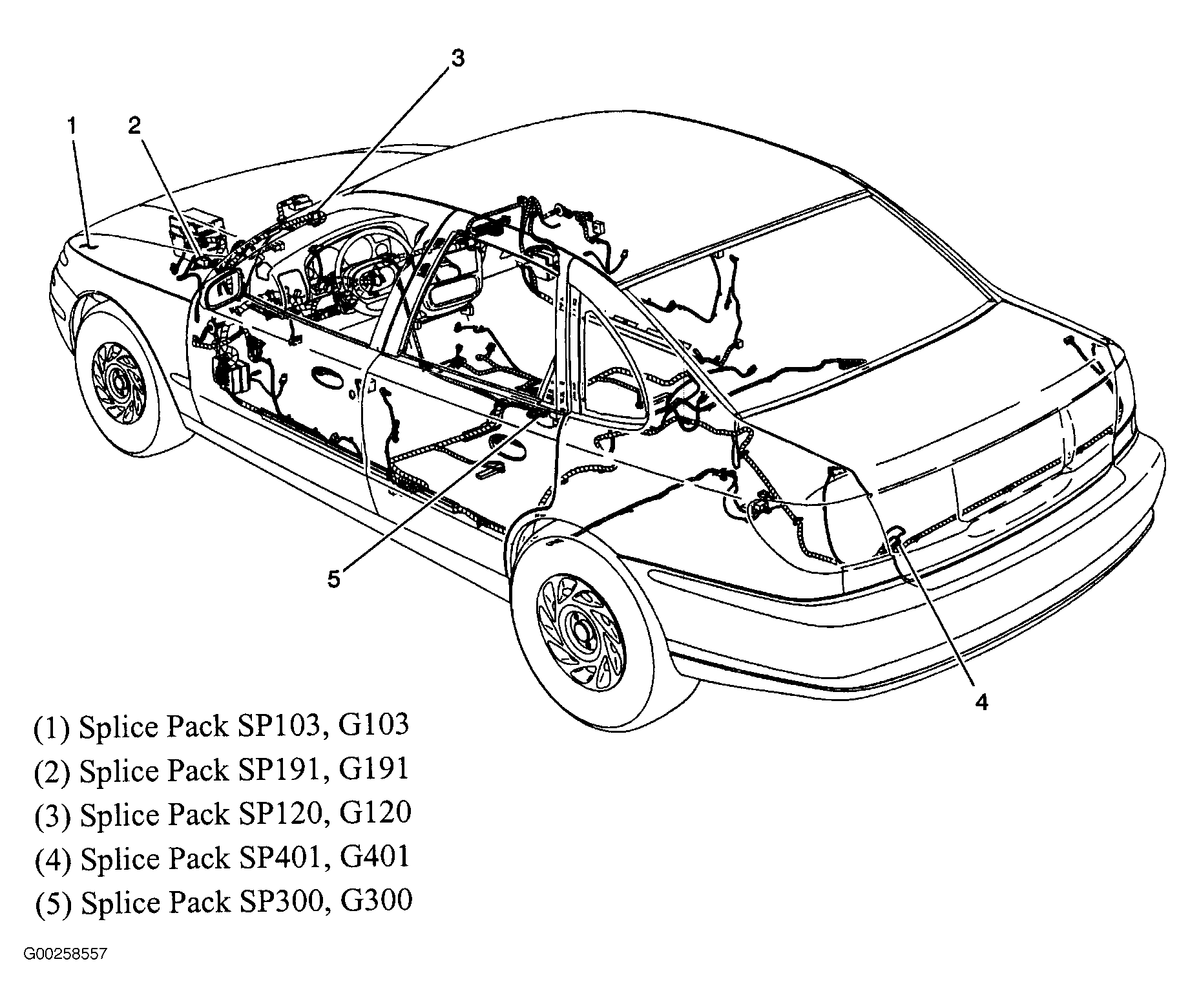

Fig 35: Splice Pack/Ground Locations
Courtesy of GENERAL MOTORS CORP.

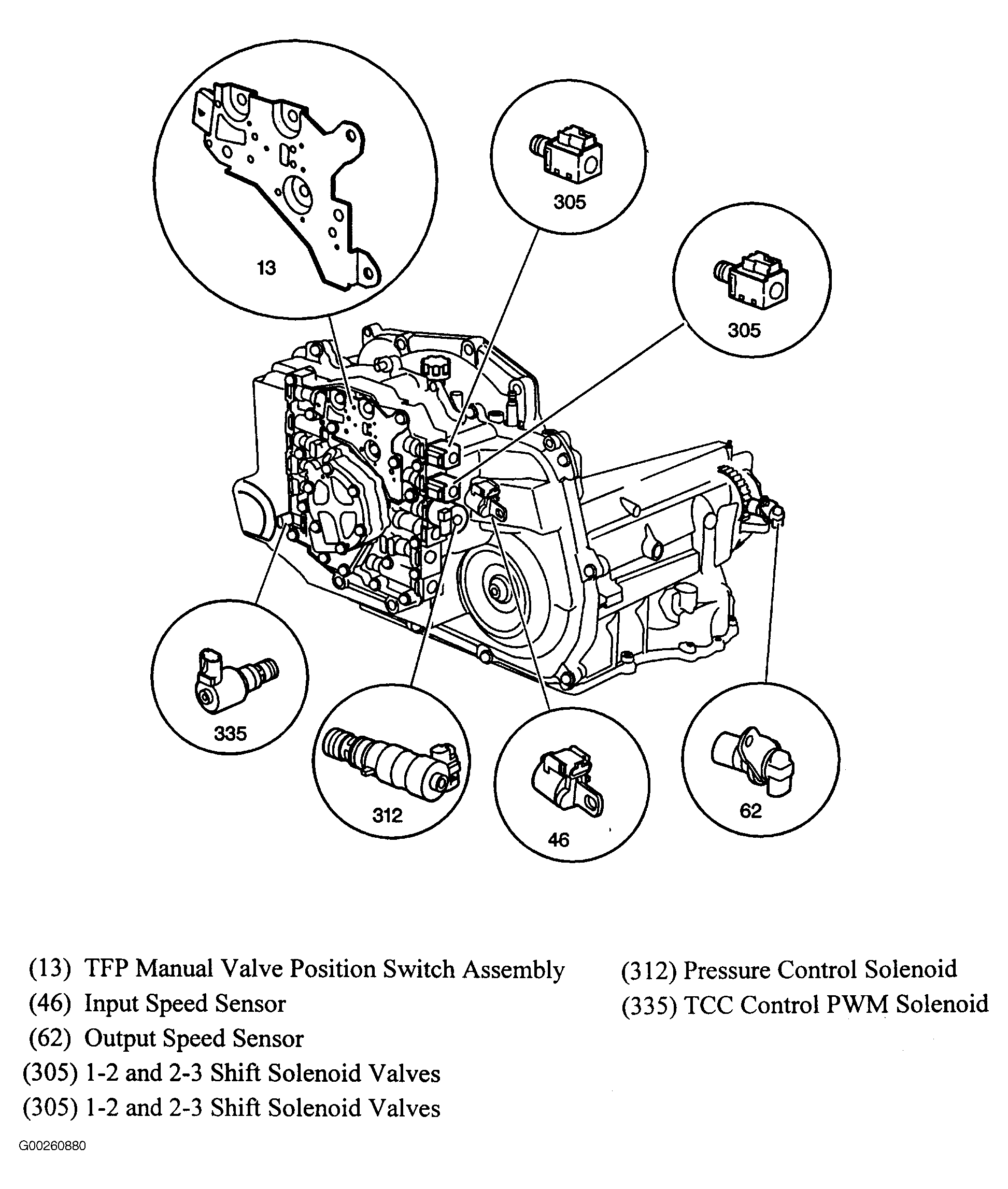

Fig 36: Top Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 37: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.

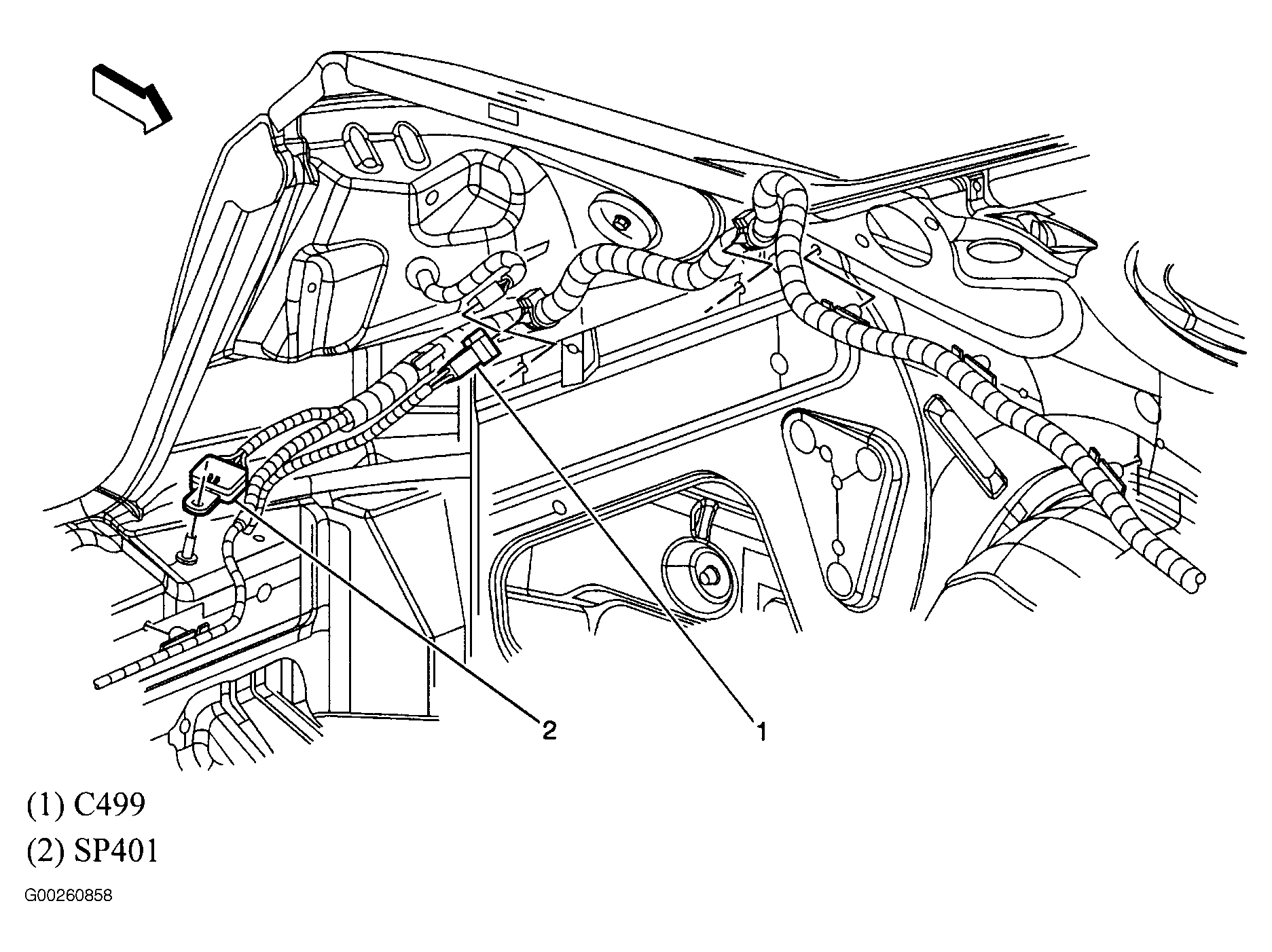

Fig 38: Left Rear Of Engine Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.
