Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

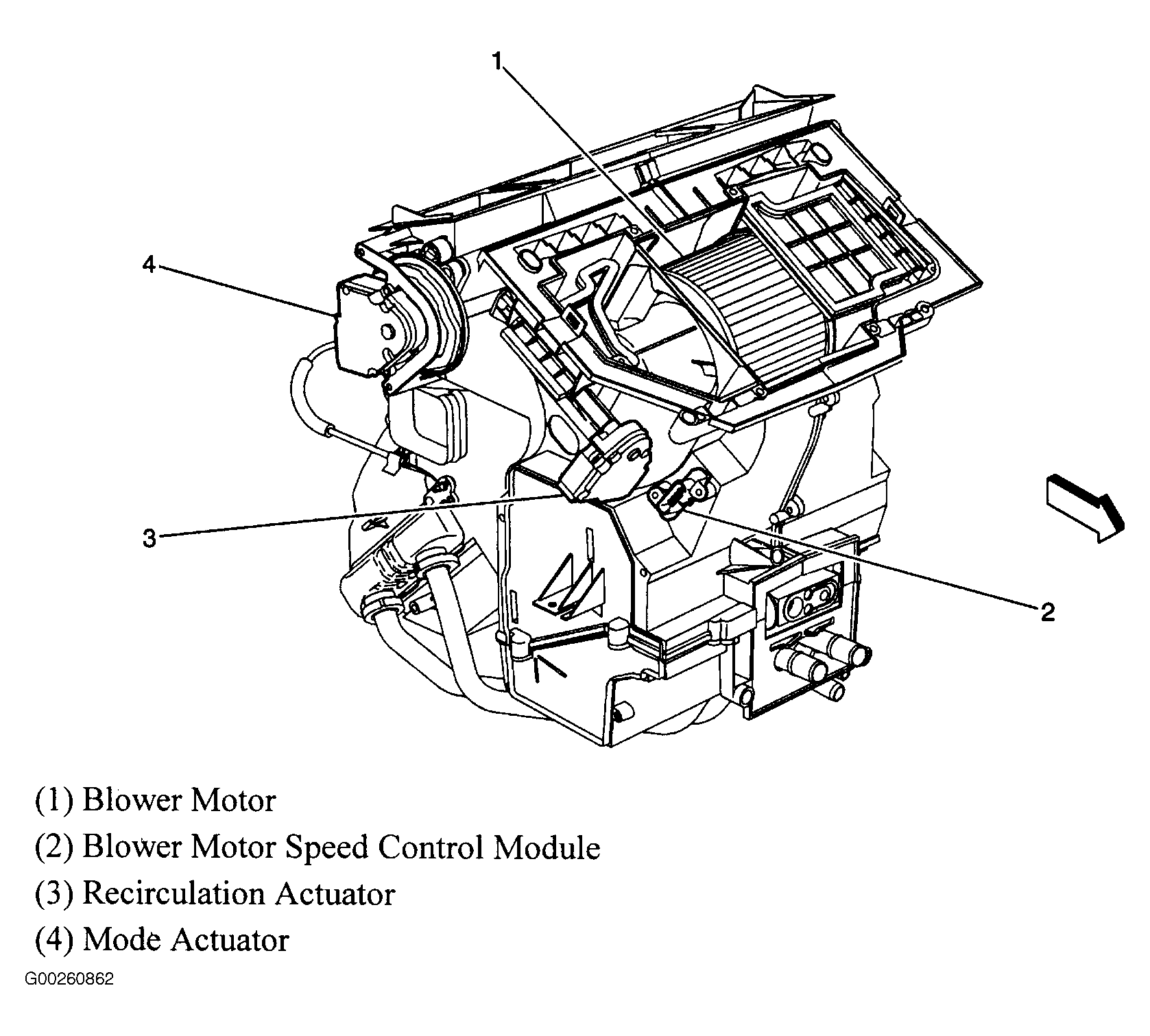

| Blower Motor Speed Control Module | On front of HVAC assembly. See Figure . |
| Body Control Module (BCM) | Mounted to top of glove box. See Figure . |

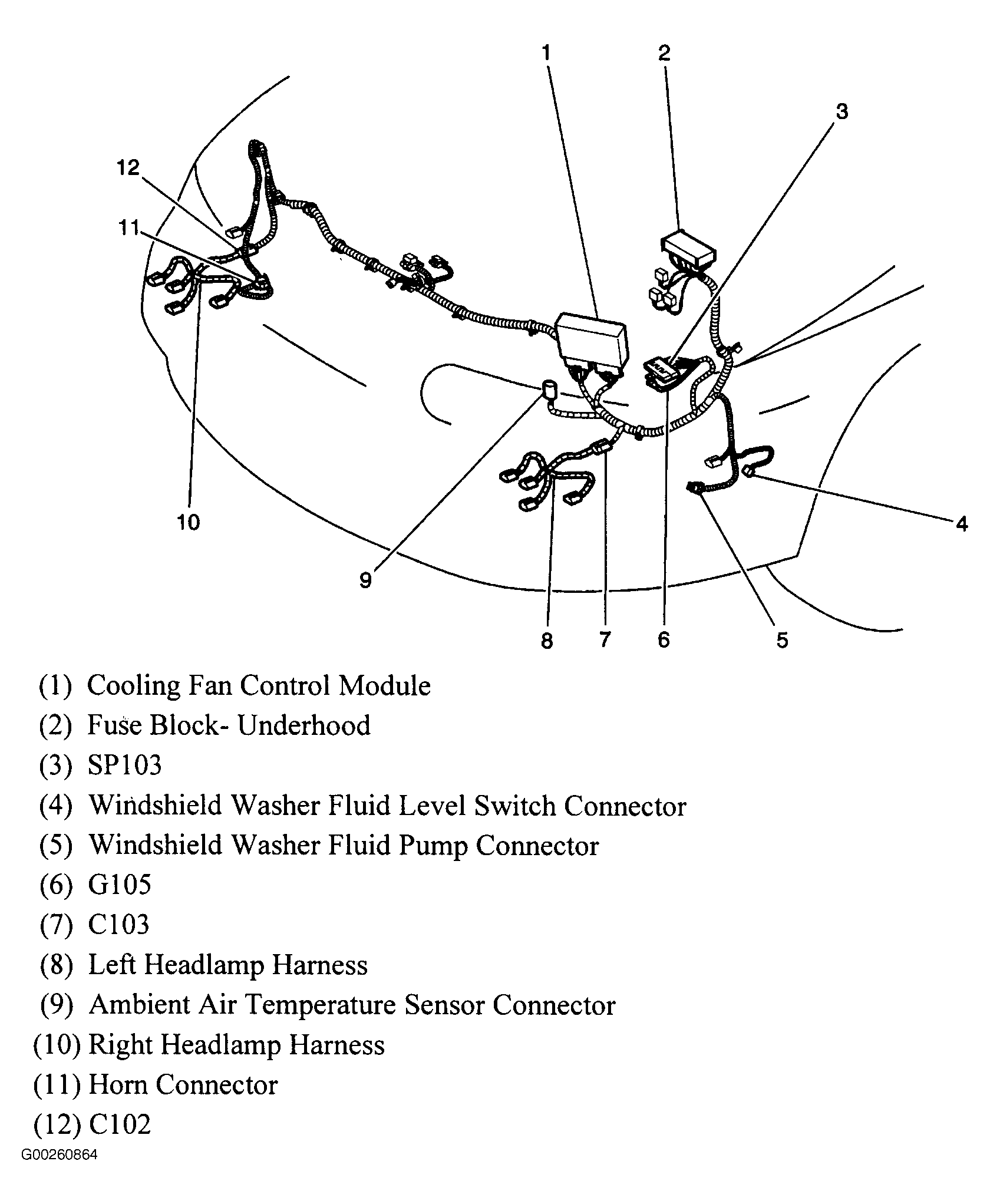

| Cooling Fan Control Module | Near battery. See Figure . |

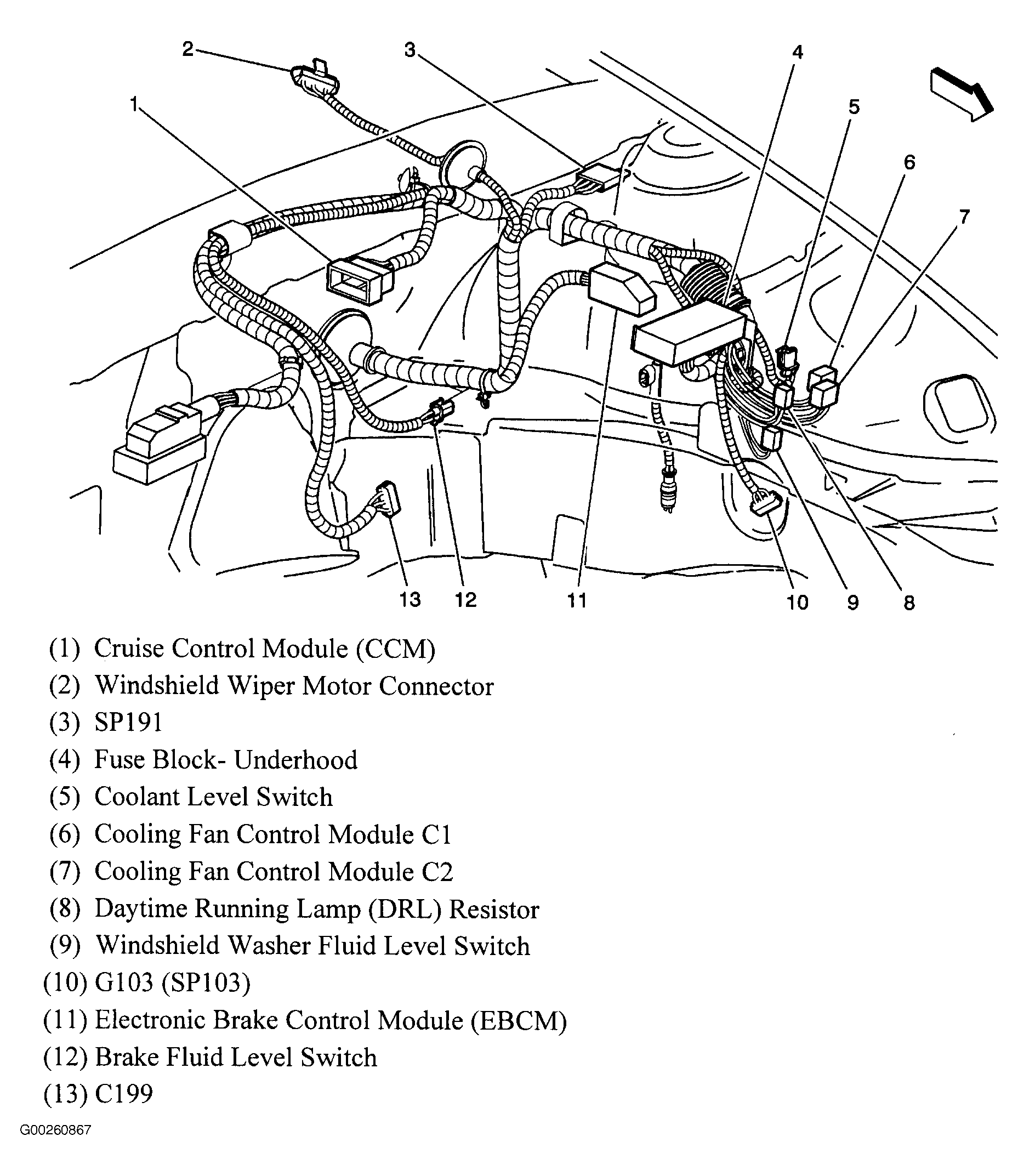

| Cruise Control Module (CCM) | At left rear of engine compartment. See Figure . |
| Electronic Brake Control Module (EBCM) | At left rear of engine compartment. See Figure . |

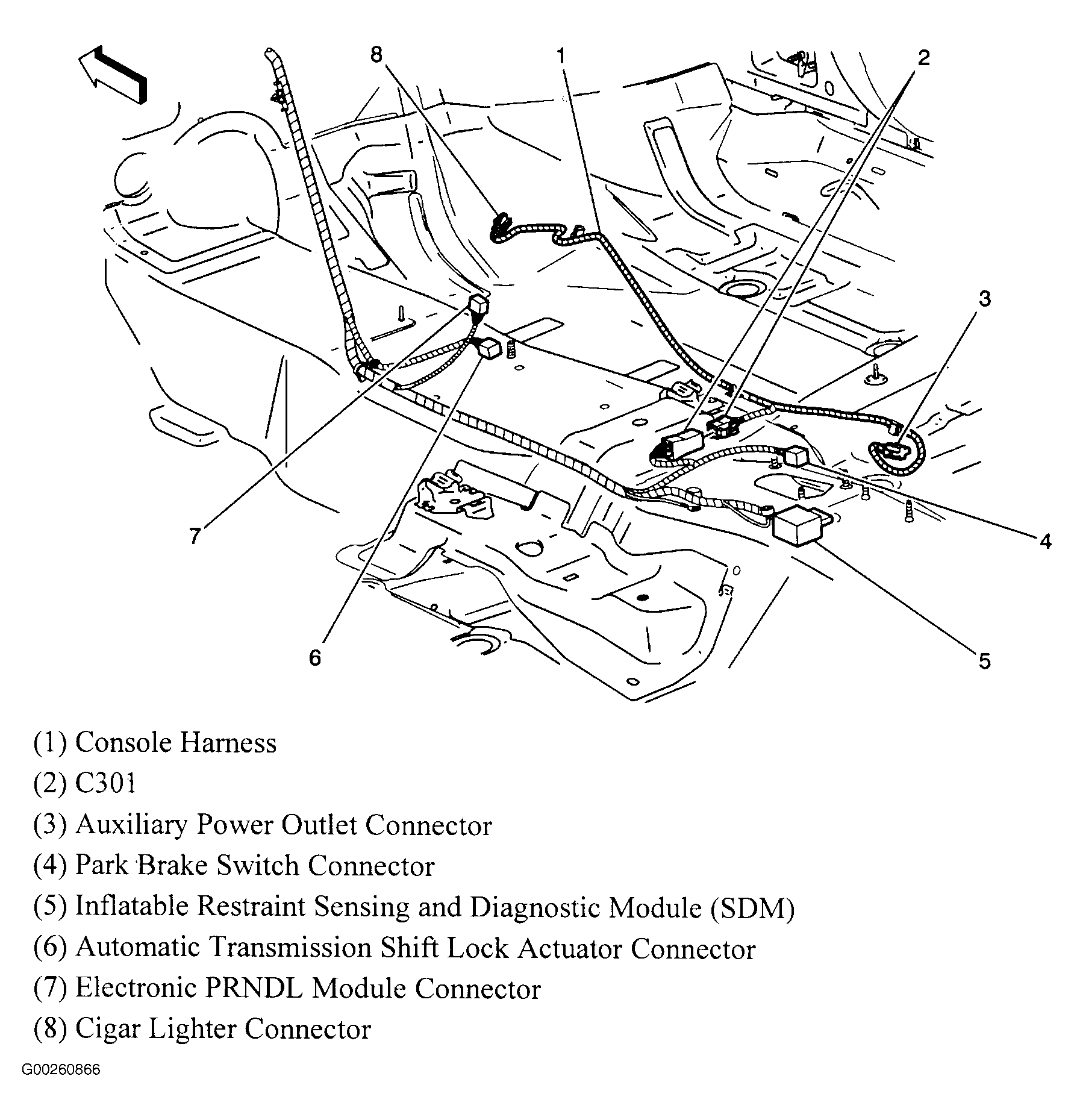

| Electronic PRNDL Module Connector | Under center console. See Figure . |

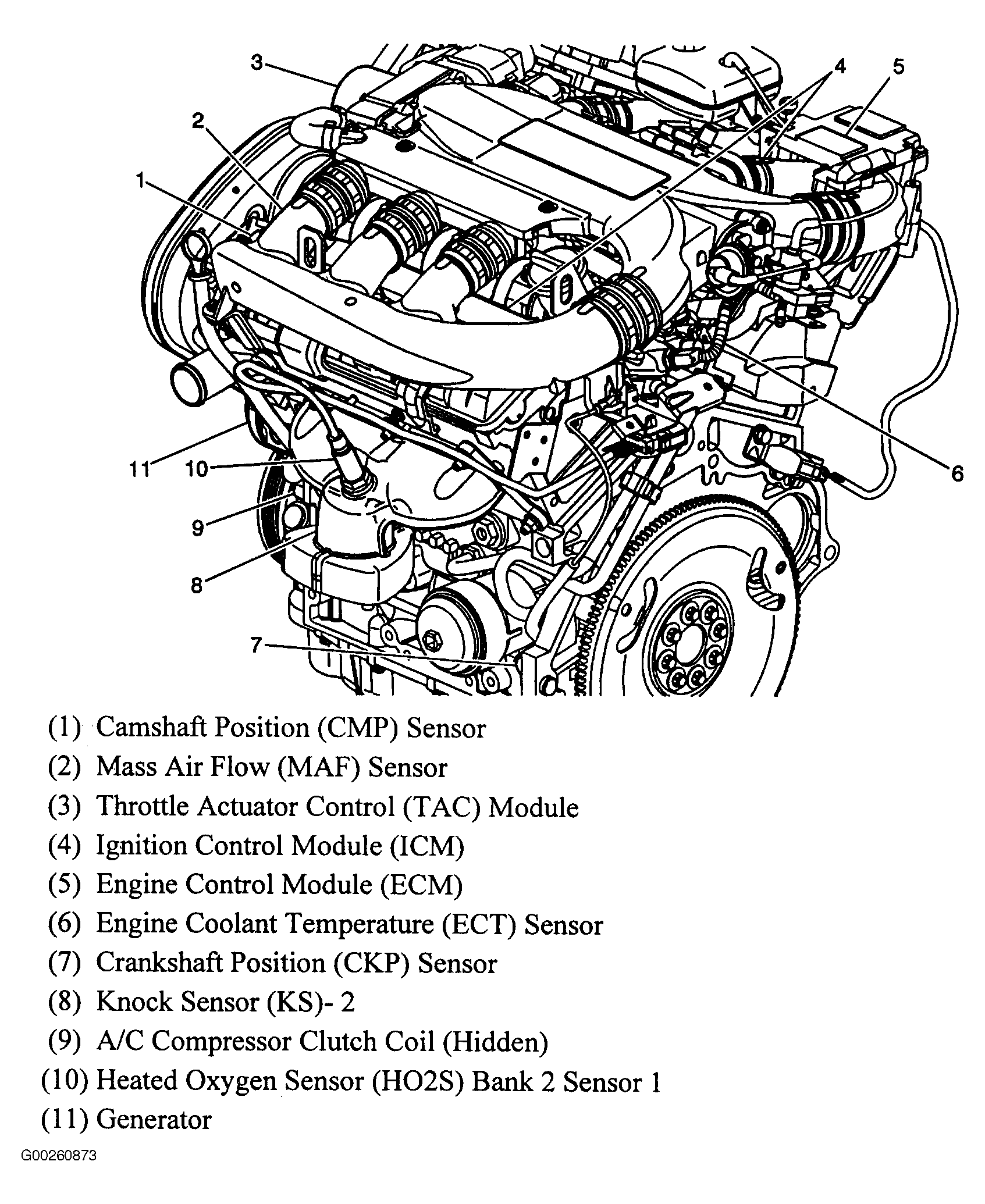

| Engine Control Module (ECM) | On top right rear of engine. See Figure . |

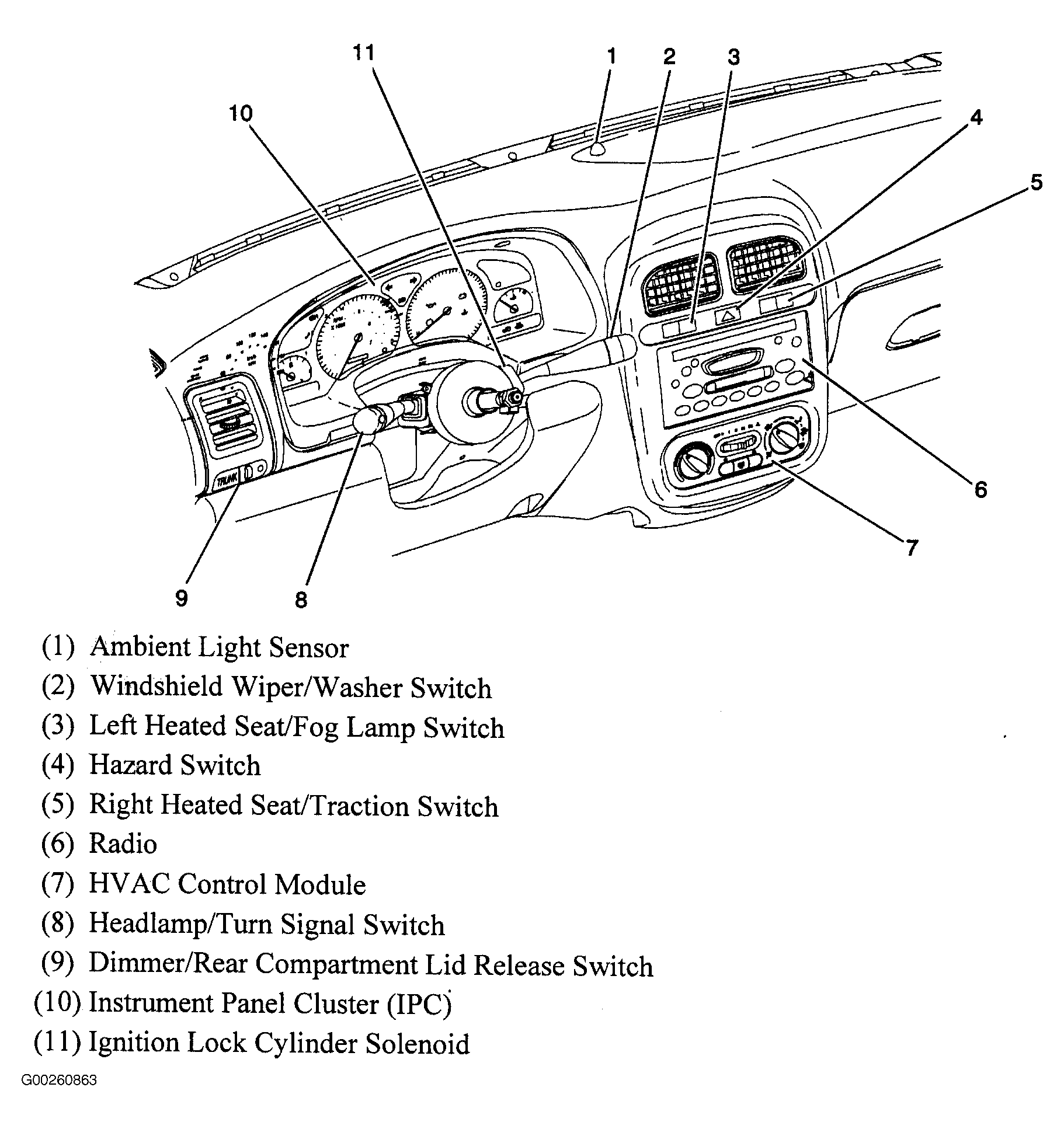

| HVAC Control Module | At lower center of dash. See Figure . |
| Ignition Control Module (ICM) (2) | Top rear of the engine, in the camshaft covers. See Figure . |

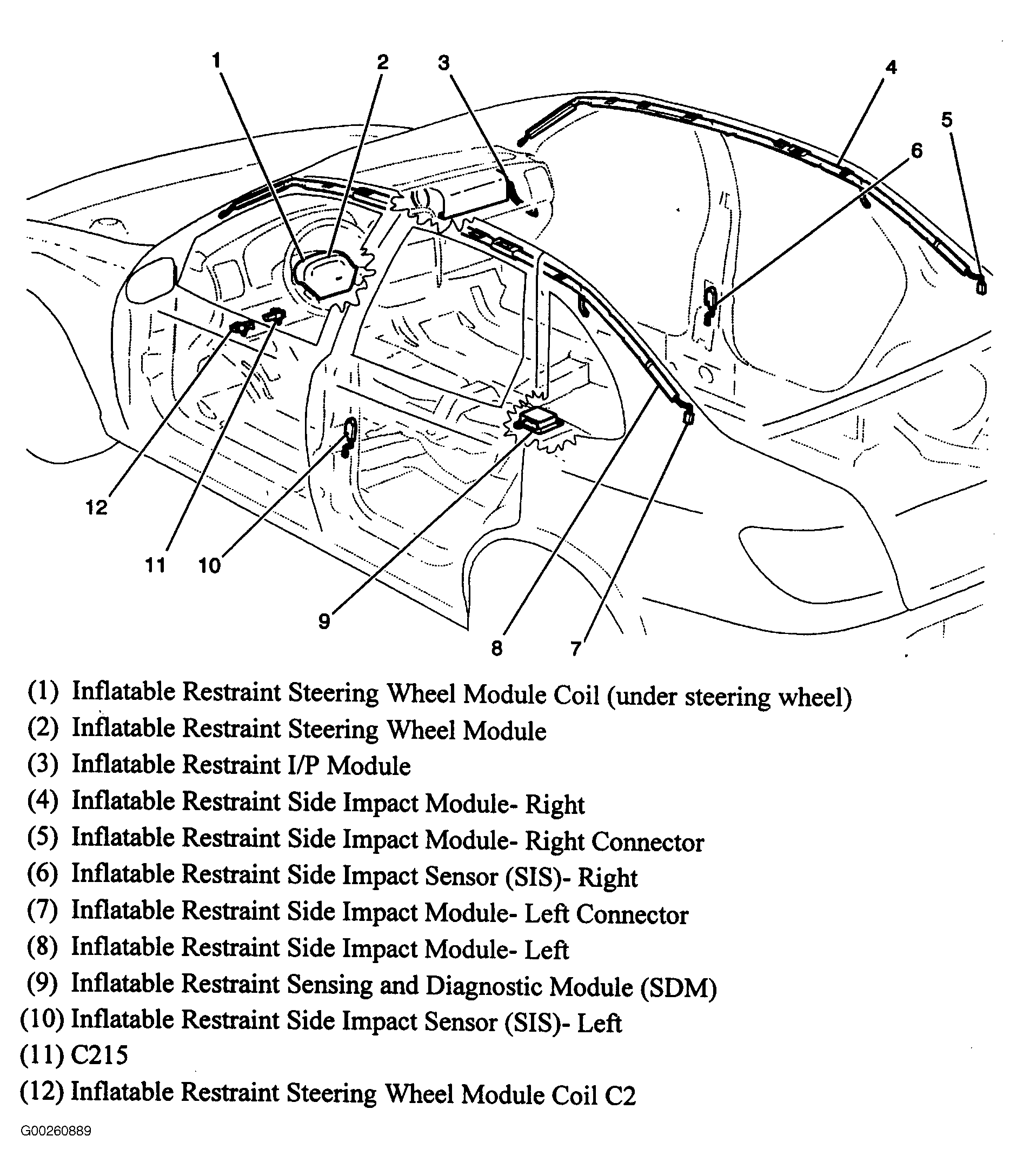

| Inflatable Restraint I/P Module | Behind right side of dash. See Figure . |

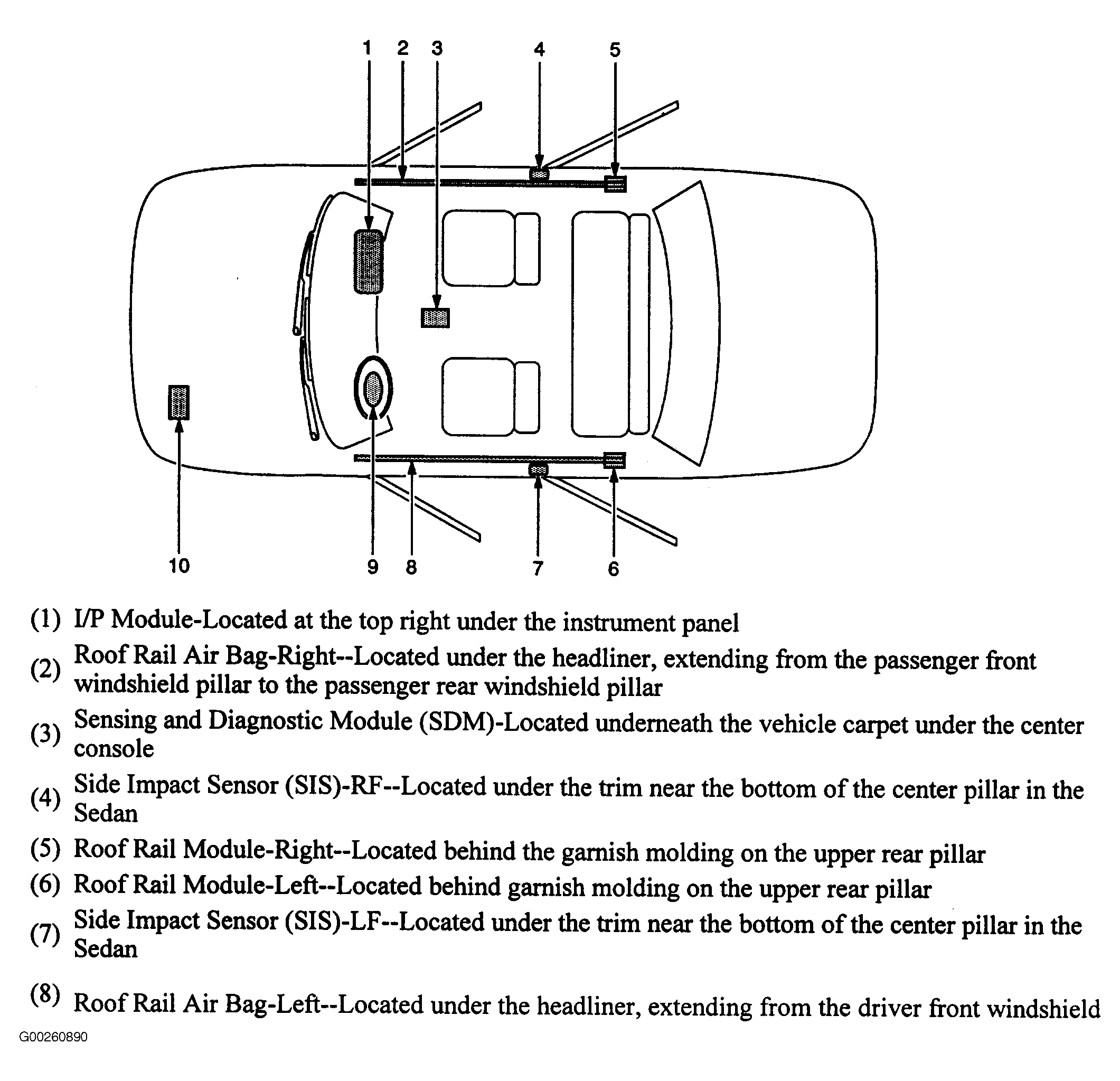

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | At center of vehicle, under center console. See Figure . |
| Inflatable Restraint Side Impact Module- Left | Behind left "C" pillar trim. See Figure . |

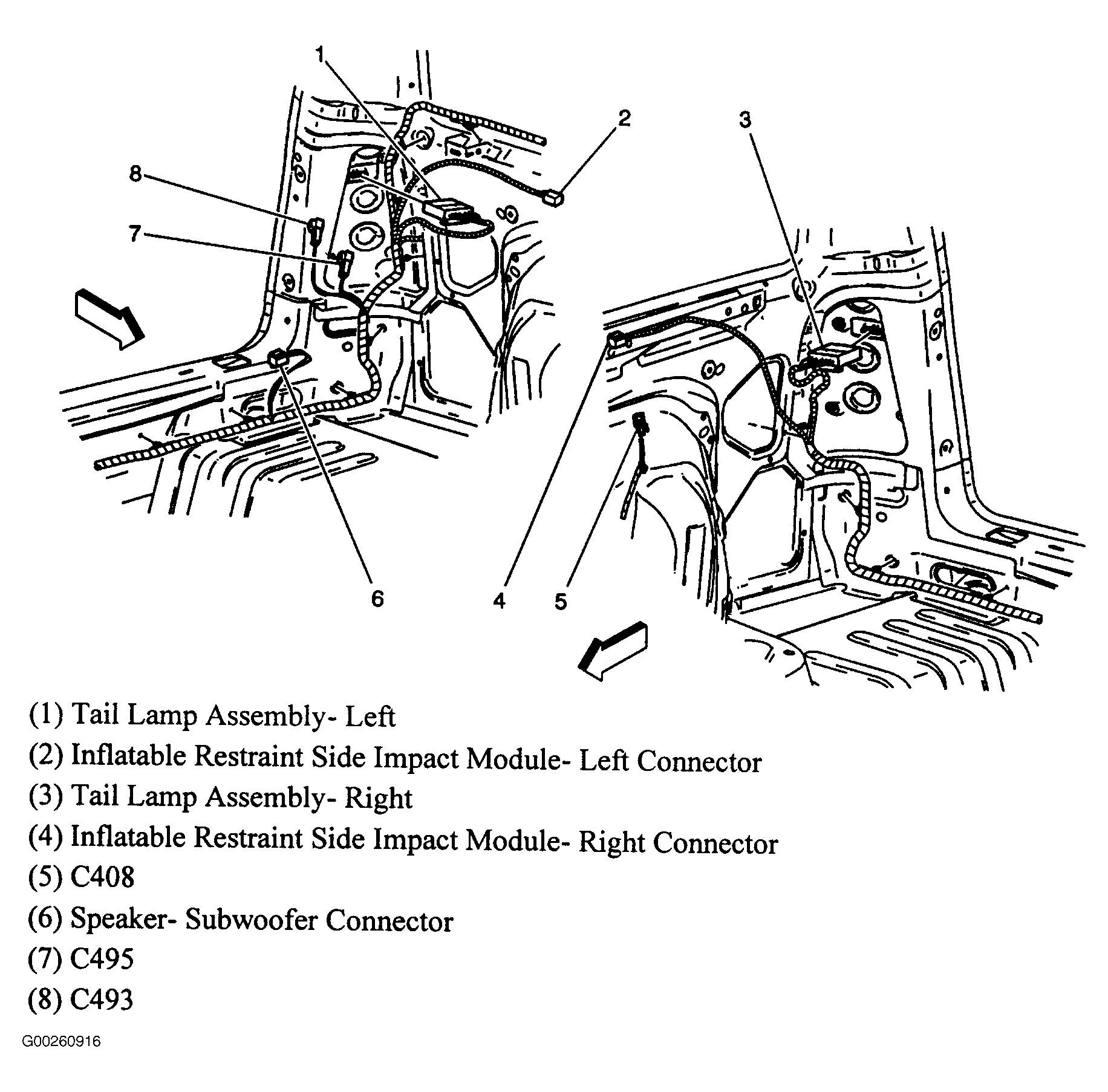

| Inflatable Restraint Side Impact Module- Left Connector (Sedan) | At base of left "C" pillar. See Figure . |
| Inflatable Restraint Side Impact Module- Left Connector (Wagon) | At left rear quarterpanel. See Figure . |
| Inflatable Restraint Side Impact Module- Right | Behind right "C" pillar trim. See Figure . |
| Inflatable Restraint Side Impact Module- Right Connector (Sedan) | At base of right "C" pillar. See Figure . |
| Inflatable Restraint Side Impact Module- Right Connector (Wagon) | At right rear quarterpanel. See Figure . |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure . |
| I/P Module | Behind top right side of dash. See Figure . |
| Roof Rail Module- Left | At top of left "C" pillar. See Figure . |
| Roof Rail Module- Right | At top of right "C" pillar. See Figure . |
| Sensing & Diagnostic Module (SDM) | Under rear of floor console. See Figure . |

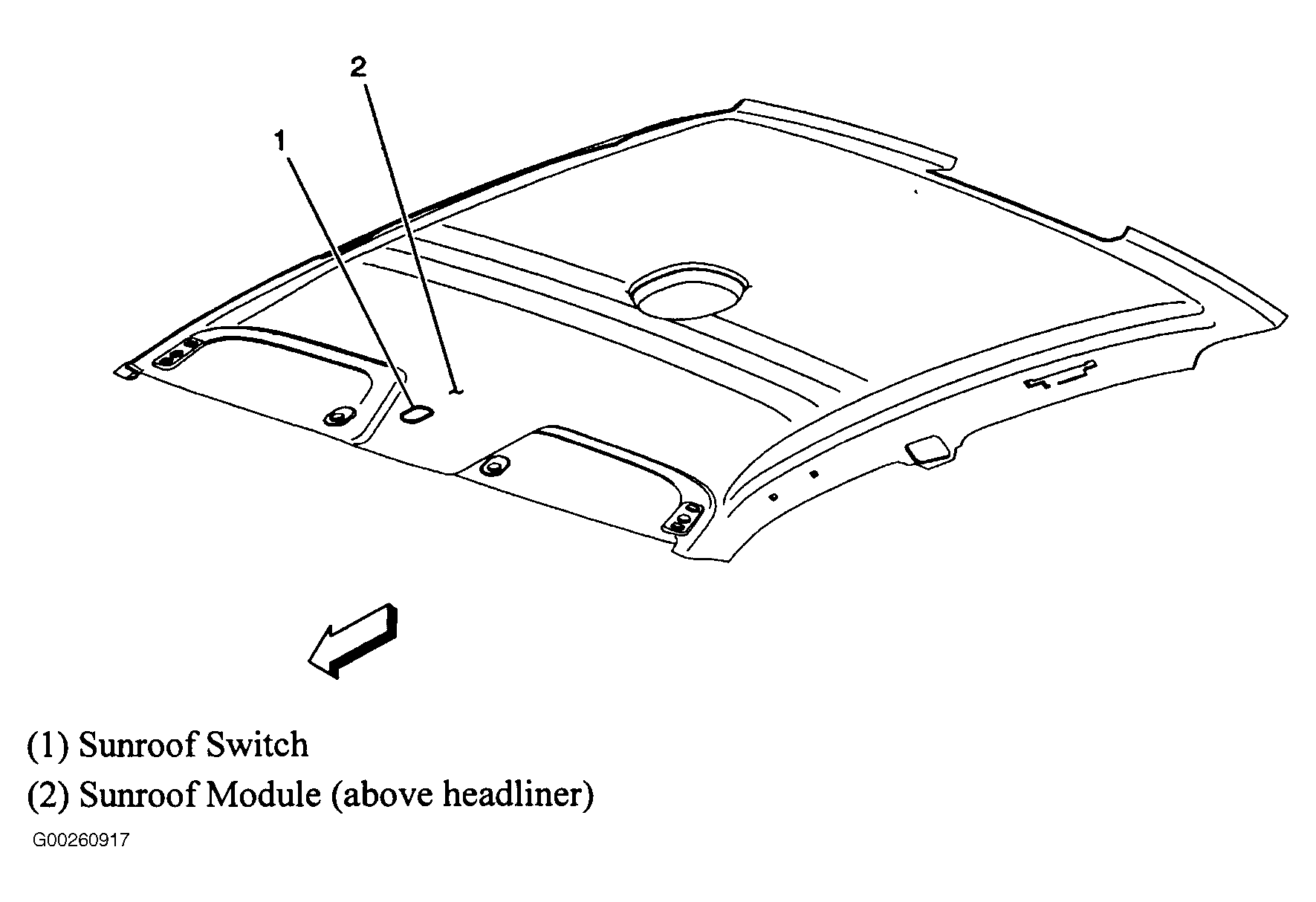

| Sunroof Module | At front center of roof, under headliner. See Figure . |

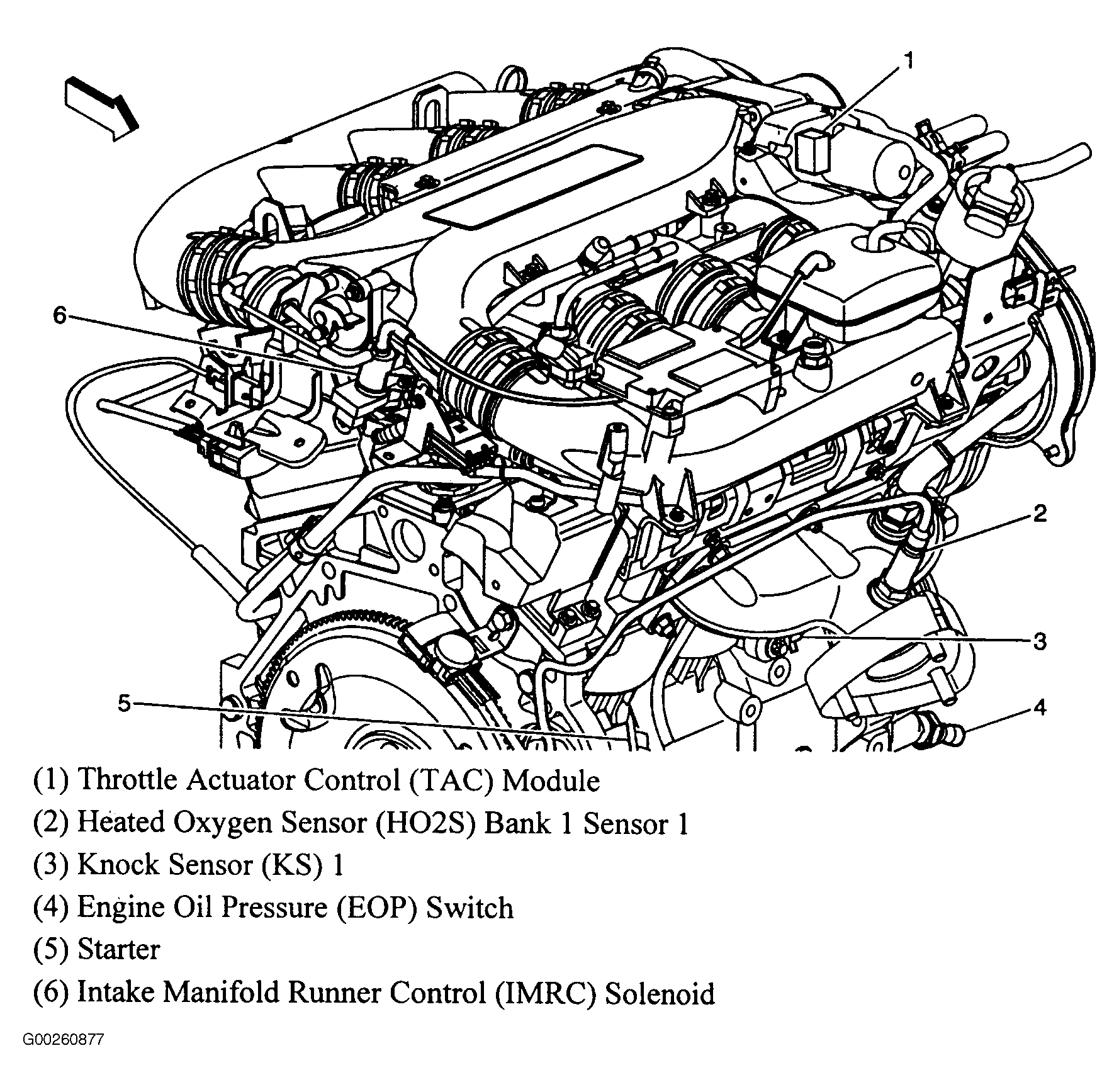

| Throttle Actuator Control (TAC) Module | At top front of engine, on throttle body. See Figure . |
| Transmission Control Module (TCM) | Right side of engine compartment. |
