Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

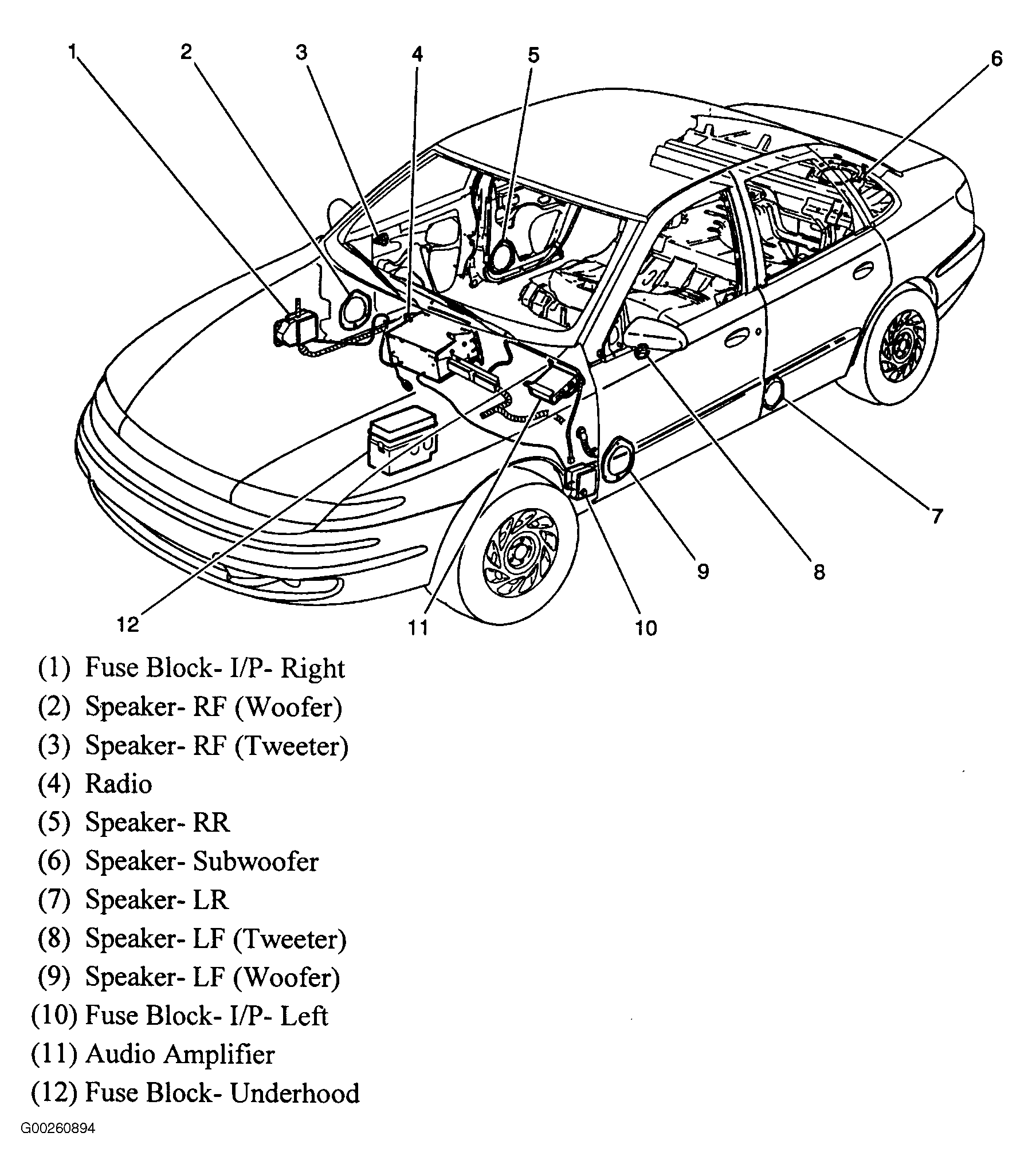

| Audio Amplifier | Behind upper left side of dash. See Figure . |
| Auxiliary Power Outlet Connector | Under center console. See Figure . |

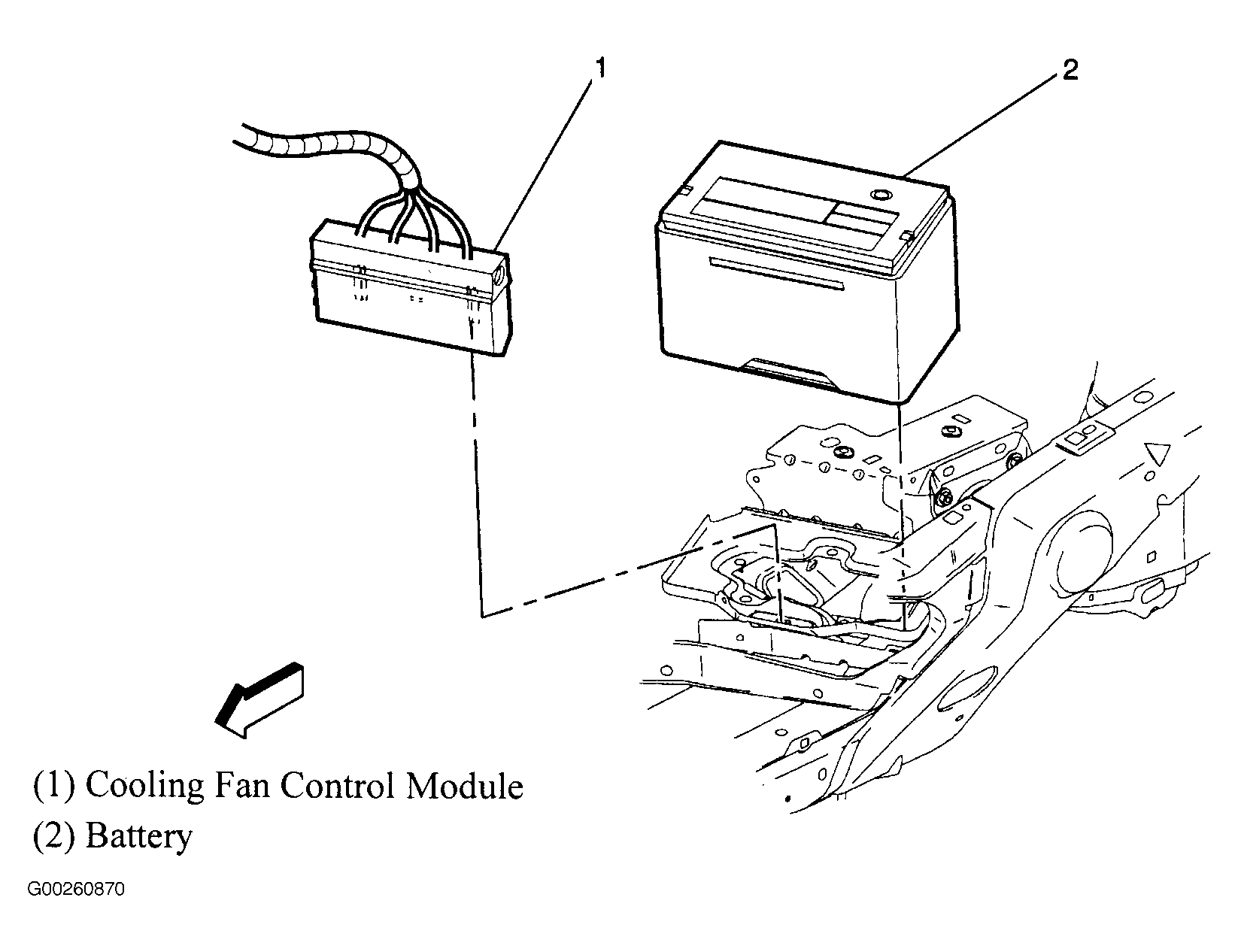

| Battery | At left front of engine compartment. See Figure . |
| Blower Motor Resistor Assembly | Behind right side of dash. |
| Data Link Connector (DLC) | Lower left side of dash. See Figure . |
| Daytime Running Lamp (DRL) Resistor | At left side of engine compartment. See Figure . |
| Generator | At left front of engine. See Figure . |

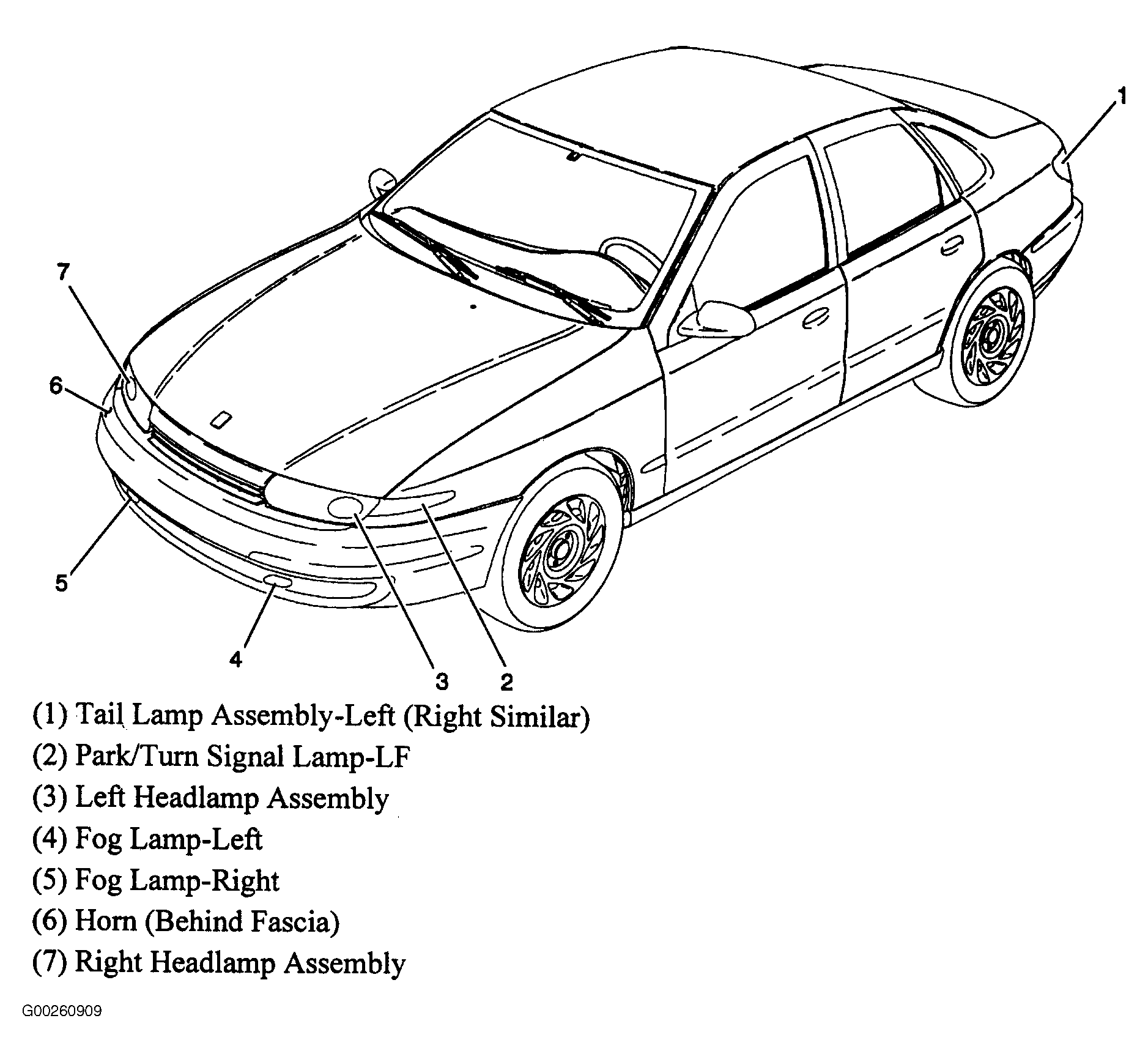

| Horn | Behind right side of front fascia. See Figure . |
| Horn Connector | At right front of engine compartment. See Figure . |
| Inflatable Restraint Steering Wheel Module Coil | Under steering wheel. See Figure . |
