Engine Controls Connector End Views

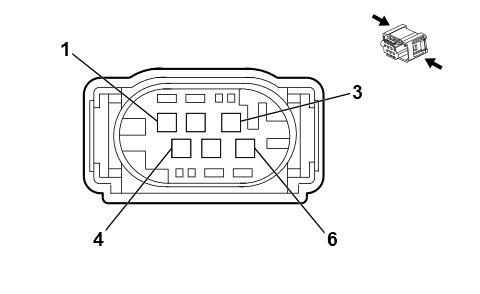

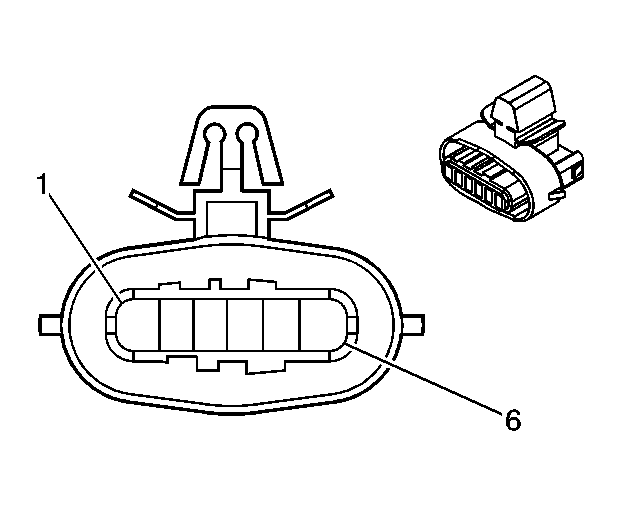

Accelerator Pedal Position (APP) Sensors
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | 1274 | 5-Volt Reference |
| 2 | BN | 1164 | 5-Volt Reference |
| 3 | GY | 1161 | APP Sensor 1 Signal |
| 4 | PK | 1271 | Low Reference |
| 5 | GN | 2759 | Low Reference |
| 6 | WH | 1162 | APP Sensor 2 Signal |

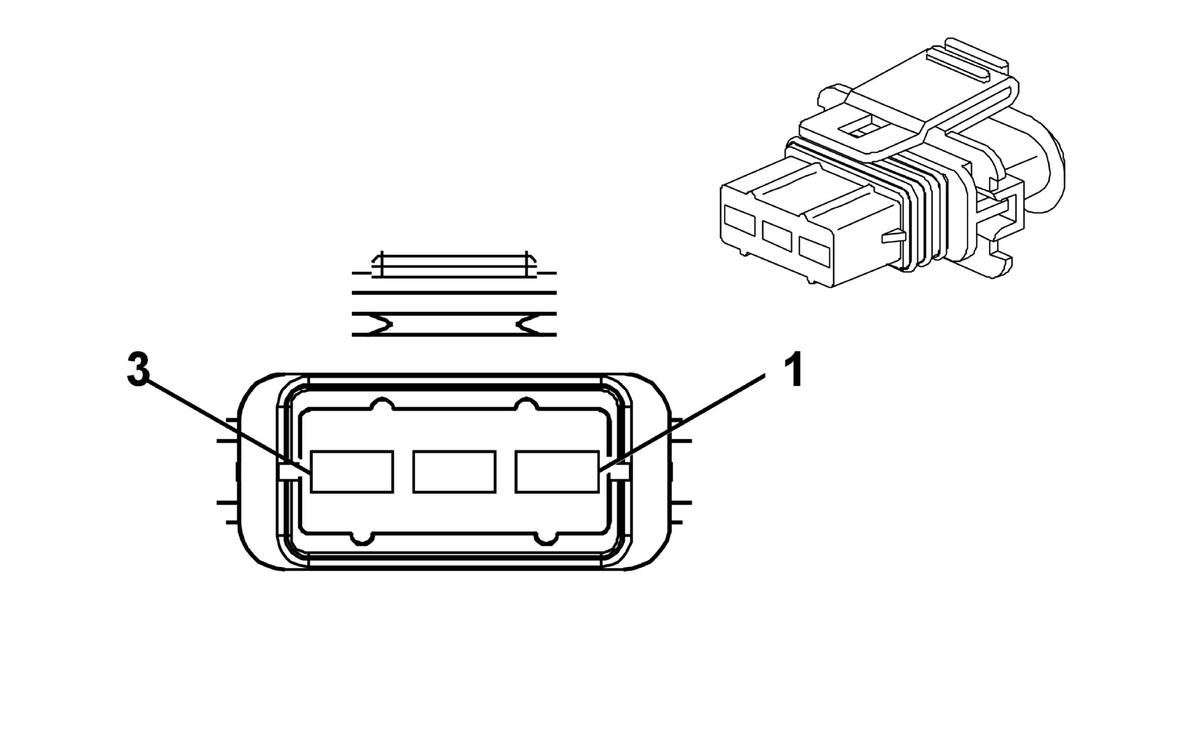

Camshaft Position (CMP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU/WH | 652 | Low Reference |
| 2 | BN/WH | 633 | CMP Sensor Signal |
| 3 | GY | 416 | 5-Volt Reference A |
Crankshaft Position (CKP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 574 | Low Reference |
| 2 | YE | 573 | CKP Sensor Signal |
| 3 | BK/WH | 451 | Ground |

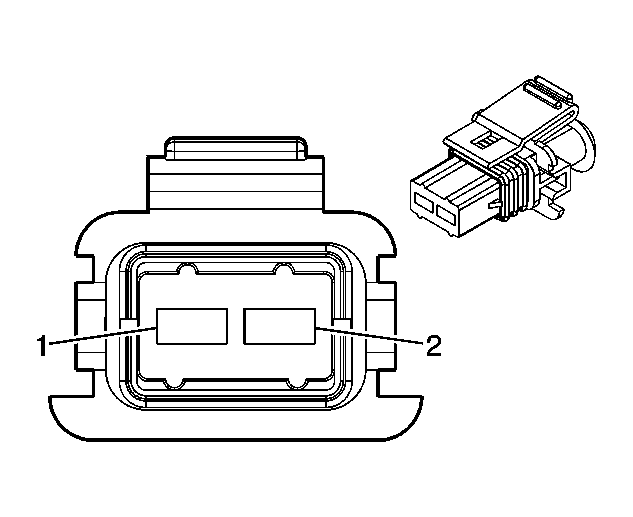

Evaporative Emissions (EVAP) Canister Purge Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | 2440 | Battery Positive Voltage |
| 2 | D-GN/WH | 428 | EVAP Canister Purge Solenoid Control |
Evaporative Emissions (EVAP) Canister Vent Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | OG | 2740 | Ignition 1 Voltage |
| B | WH | 1310 | EVAP Canister Vent Solenoid Control |
Fuel Injectors
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | RD/BU | 2640 | Ignition 1 Voltage |
| 2 | BN/YE | 1744 | Fuel Injector 1 Control (Injector 1) |
| BN/L-GN | 1745 | Fuel Injector 2 Control (Injector 2) | |
| BN/BU | 1746 | Fuel Injector 3 Control (Injector 3) | |
| BN/RD | 844 | Fuel Injector 4 Control (Injector 4) | |
| BN/BK | 845 | Fuel Injector 5 Control (Injector 5) | |
| BN/PU | 846 | Fuel Injector 6 Control (Injector 6) | |
Fuel Pump and Sender Assembly
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PU | 30 | Fuel Level Sensor Signal |
| B | GY | 120 | Fuel Pump Supply Voltage |
| C | BK | 650 | Ground |
| D | BK | 2759 | Low Reference |

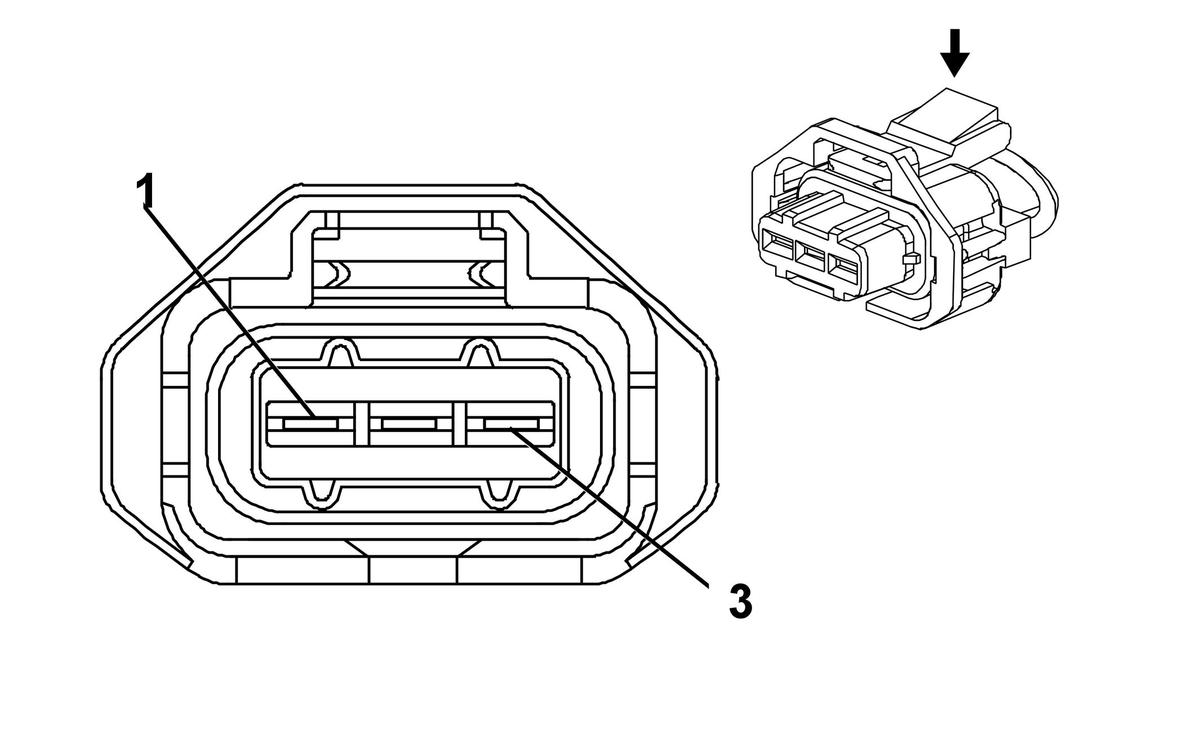

Fuel Tank Pressure (FTP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | GY | 2709 | 5-Volt Reference A |
| 2 | BK | 2759 | Low Reference |
| 3 | D-GN | 890 | Fuel Tank Pressure Sensor Signal |

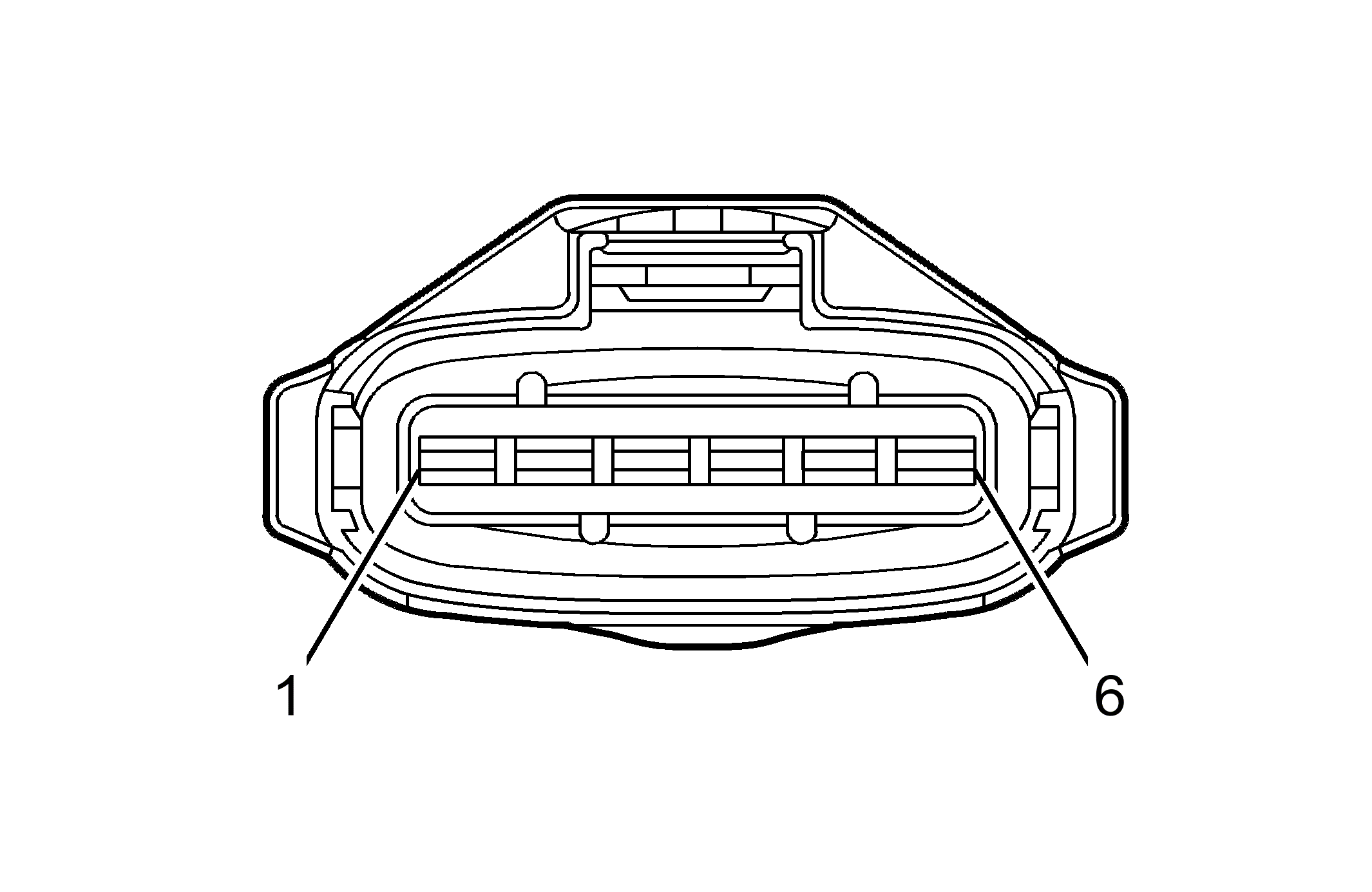

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU/WH | 1665 | HO2S Input Pump Current |
| 2 | PU | 412 | HO2S Reference Voltage |
| 3 | TN | 413 | HO2S Low Reference |
| 4 | BK/WH | 751 | HO2S Heater Low Control |
| 5 | OG | 2740 | Ignition 1 Voltage |
| 6 | TN | 1667 | HO2S Output Pump Current |

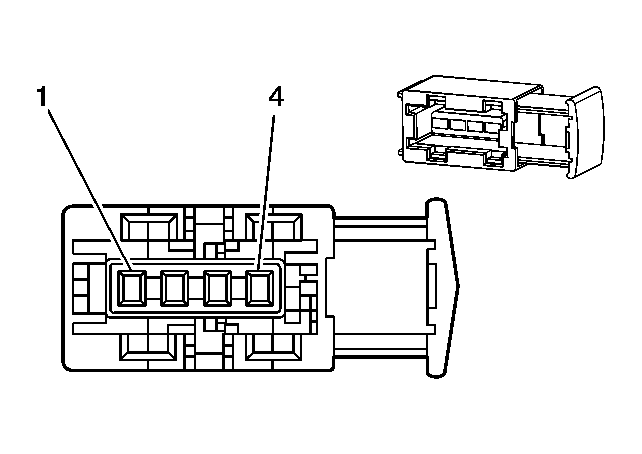

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | 2440 | Ignition 1 Voltage |
| 2 | BK/WH | 151 | HO2S Heater Low Control |
| 3 | TN/WH | 1669 | HO2S Low Signal |
| 4 | PU/WH | 1668 | HO2S High Signal |

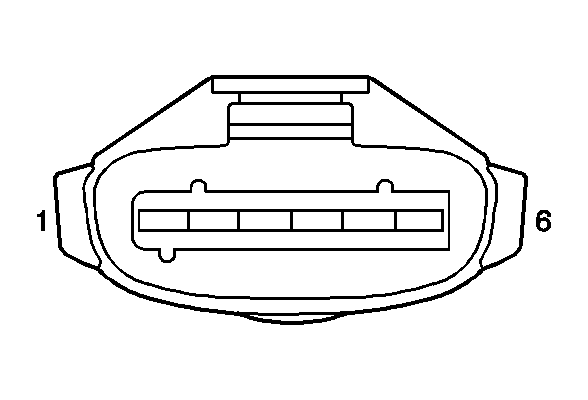

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 1666 | HO2S Input Pump Current |
| 2 | TN/WH | 1653 | HO2S Reference Voltage |
| 3 | GY | 1979 | HO2S Low Reference |
| 4 | TN/WH | 551 | HO2S Heater Low Control |
| 5 | OG | 2440 | Ignition 1 Voltage |
| 6 | TN | 1664 | HO2S Output Pump Current |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | 2740 | Ignition 1 Voltage |
| 2 | BK/WH | 51 | HO2S Heater Low Control |
| 3 | GY | 1981 | HO2S High Signal |
| 4 | TN | 1671 | HO2S Low Signal |

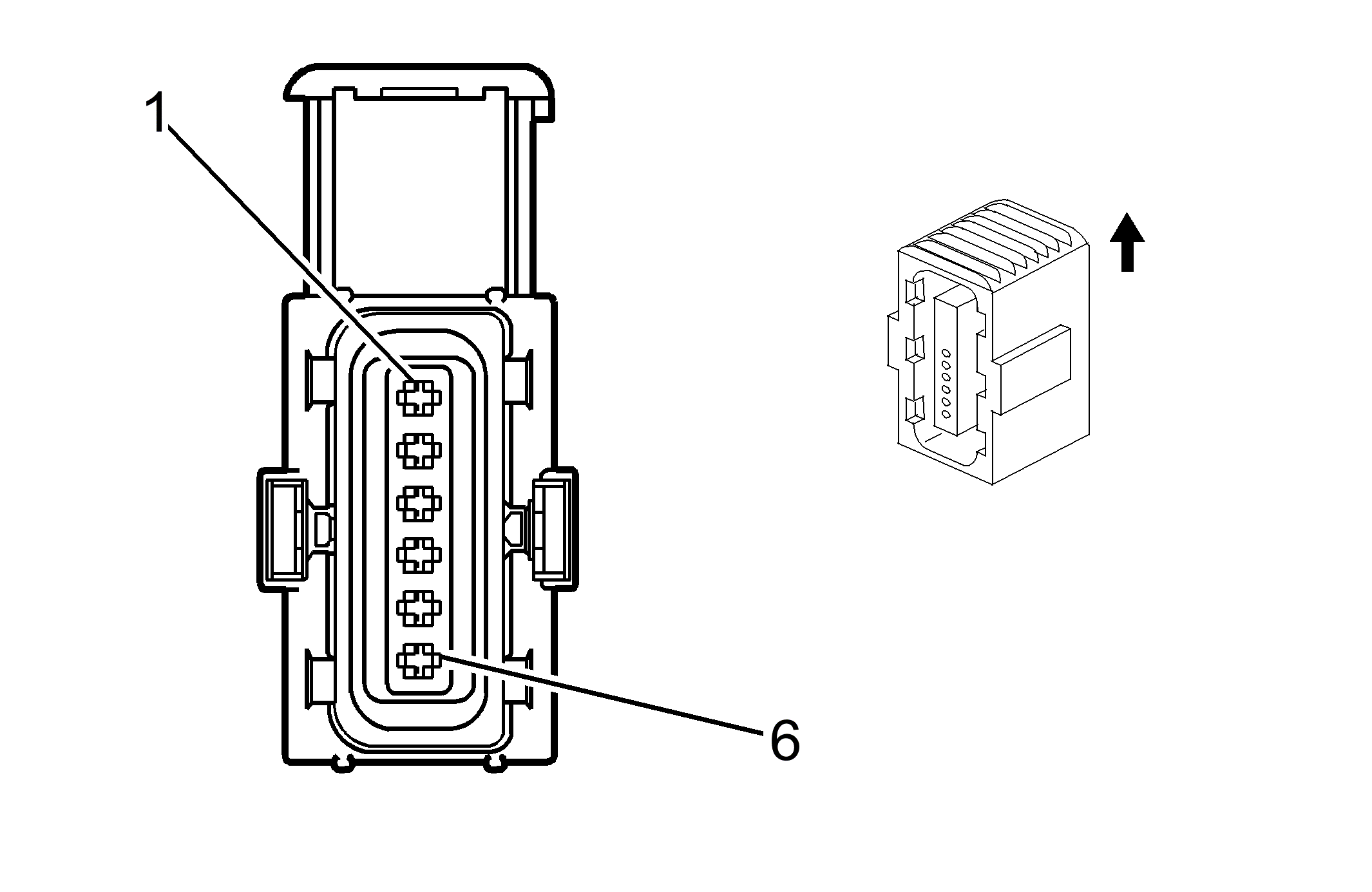

Ignition Control Module (ICM) Bank 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BK | 250 | Ground |
| 2 | PK | 1539 | Ignition 1 Voltage |
| 3 | YE | 1157 | Ignition Coil 5 Control |
| 4 | PK | 1155 | Ignition Coil 3 Control |
| 5 | L-BU | 1153 | Ignition Coil 1 Control |
| 6 | - | - | Not Used |
Ignition Control Module (ICM) Bank 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BK | 250 | Ground |
| 2 | PK | 1539 | Ignition 1 Voltage |
| 3 | TN | 1158 | Ignition Coil 6 Control |
| 4 | PU | 1156 | Ignition Coil 4 Control |
| 5 | D-BU | 1154 | Ignition Coil 2 Control |
| 6 | - | - | Not Used |
Intake Manifold Runner Control Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU | 1110 | IMRC Solenoid Control |
| 2 | OG | 2640 | Ignition 1 Voltage |
Knock Sensor (KS) 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-BU | 496 | Knock Sensor 1 Signal |
| 2 | YE/BK | 457 | Low Reference |
Knock Sensor (KS) 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU | 1876 | Knock Sensor 2 Signal |
| 2 | YE/BK | 452 | Low Reference |

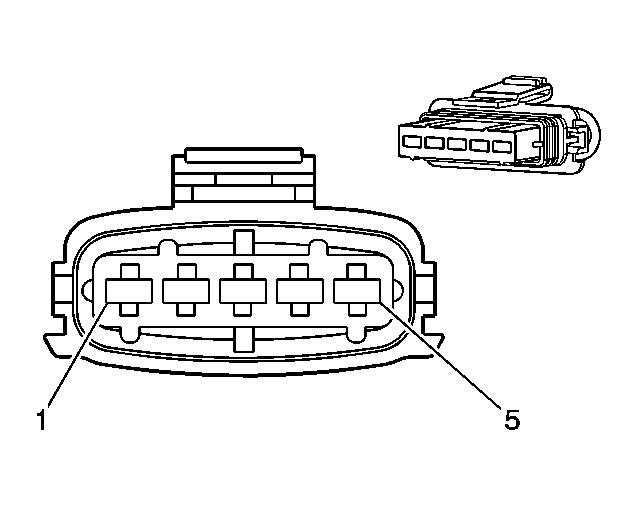

Mass Air Flow (MAF) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | TN | 472 | IAT Sensor Signal |
| 2 | OG | 2440 | Ignition 1 Voltage |
| 3 | PU/WH | 652 | Low Reference |
| 4 | GY | 416 | 5-Volt Reference A |
| 5 | YE | 492 | MAF Sensor Signal |
Throttle Actuator Control (TAC) Module
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | 581 | TAC Motor Control 1 |
| 2 | PU/WH | 652 | Low Reference |
| 3 | PU | - | 5-Volt Reference |
| 4 | BN | 582 | TAC Motor Control 2 |
| 5 | D-GN | - | TP Sensor 2 Signal |
| 6 | YE/BK | - | TP Sensor 1 Signal |
